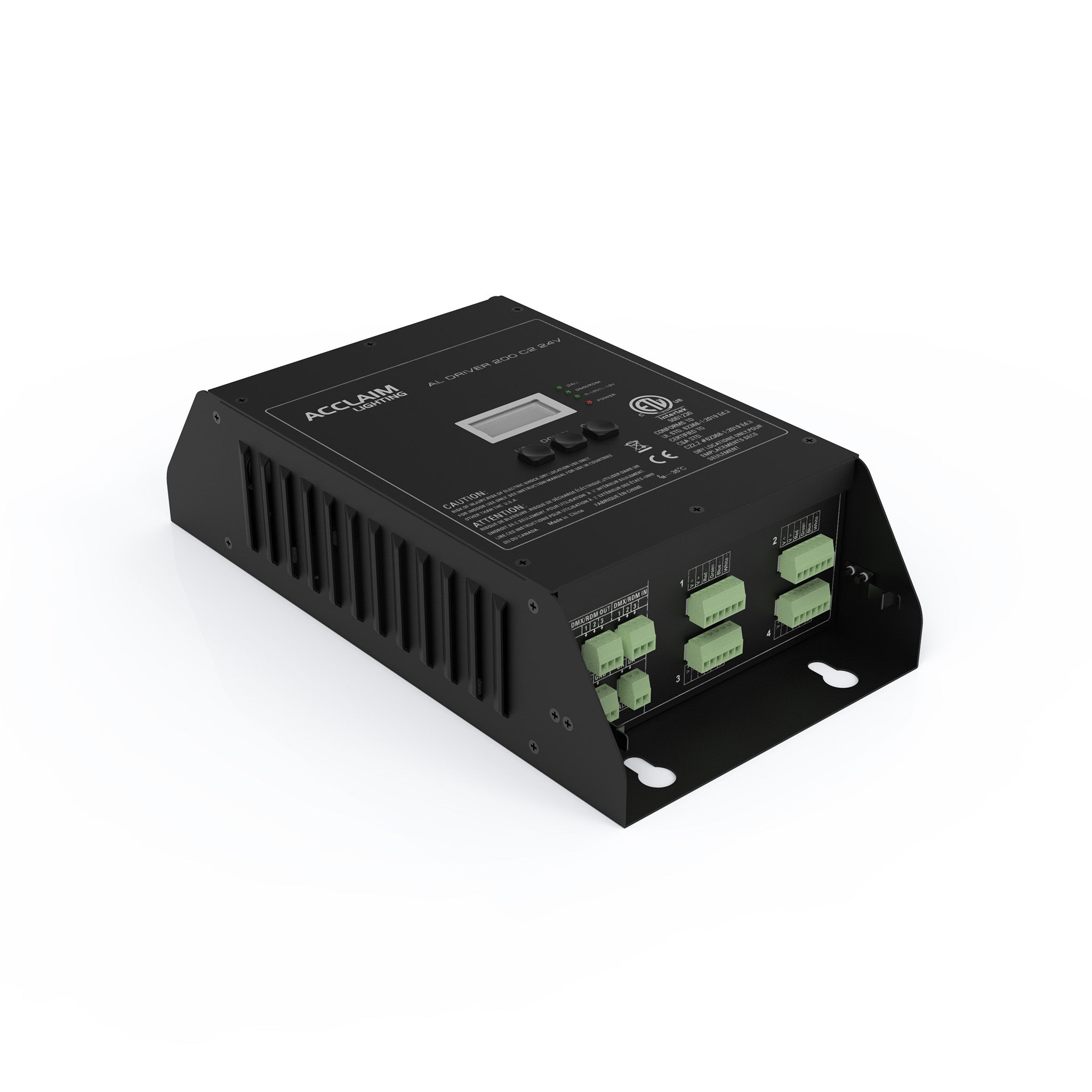

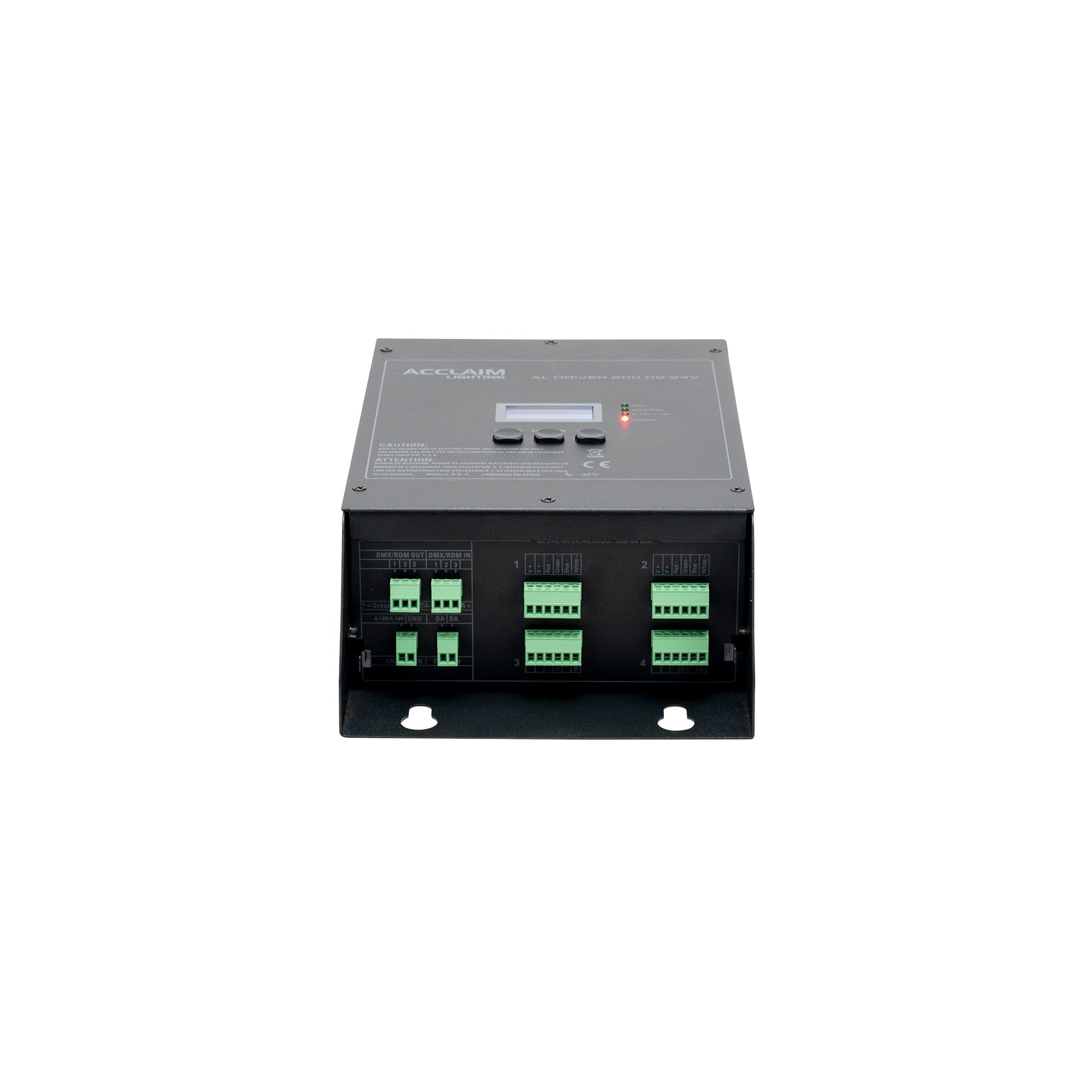

AL Driver 200 C2
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Input Voltage
- 100-277VAC
- Output Voltage
- 24VDC
- Output Power
- 200W
The AL Driver 200 C2 is a Class 2, multi-protocol, 200W driver for low voltage LED products. The input control protocols include DMX, RDM, 0-10V, and DALI; and feature 24V DC / PWM output. It offers maximum flexibility with your front-end control preferences. The ALDriver C2 series benefits from a fuse per output terminal for electronic output regulation.
AL Driver 200 C2
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| AL Driver 200 C2 Specification Sheet - March 2025 | Specification Sheet | |
| AL Driver C2 Series User Guide | User Guide | |
| Al Driver 200 Revit File | Revit Files | RFA |
| AL Driver 200 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CEOperating Voltage
100-277VAC, 50/60HzOutput Current
4A (96W) maximum per output portOutput Voltage
24VDCAmbient Temperature Range
14° F to 113° F (-10° C to 45° C)Ingress Protection
IP20, dry location
