Specification highlights
- Lumens Per Foot
- 102
- Power
- 1.4W
- TM-30
- 86

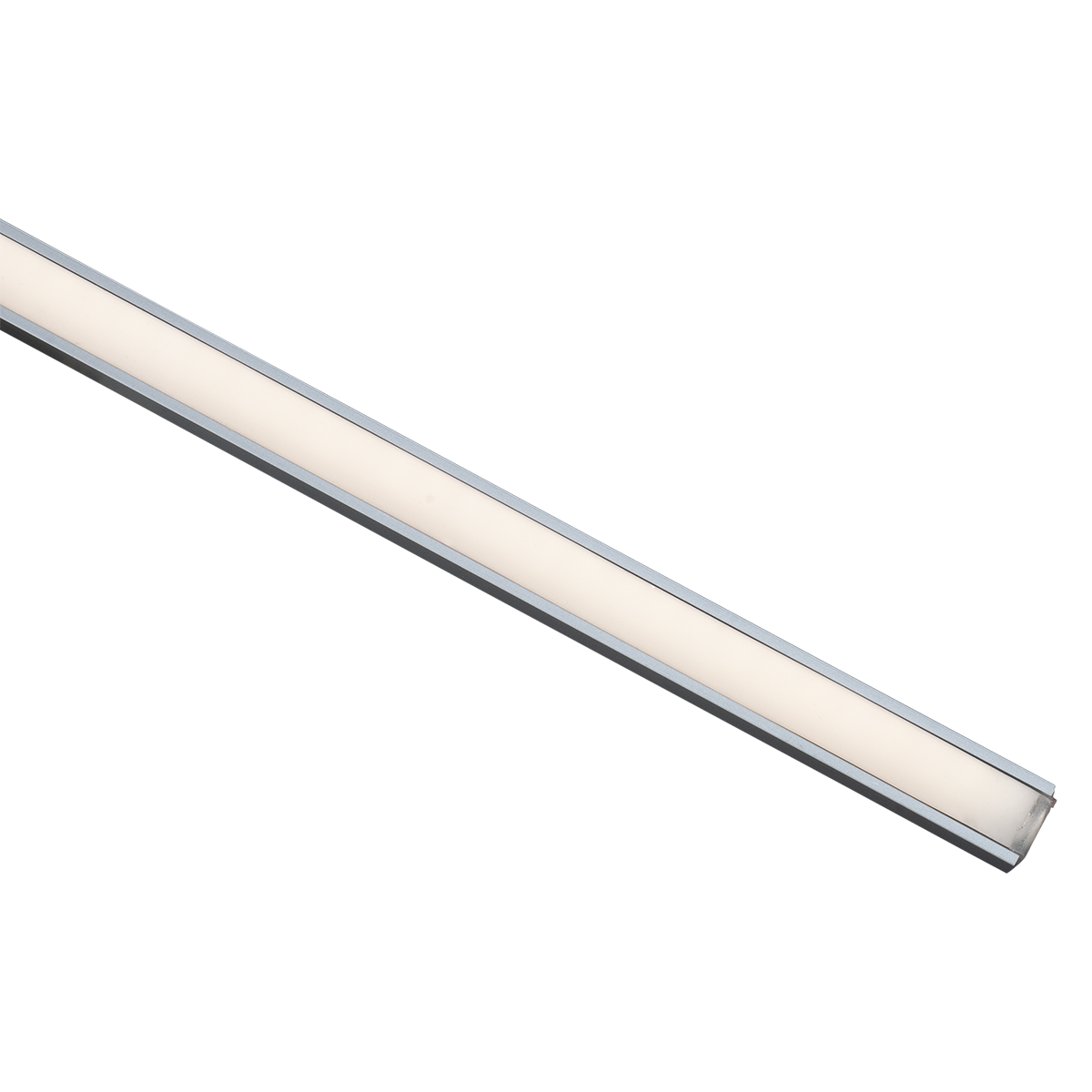

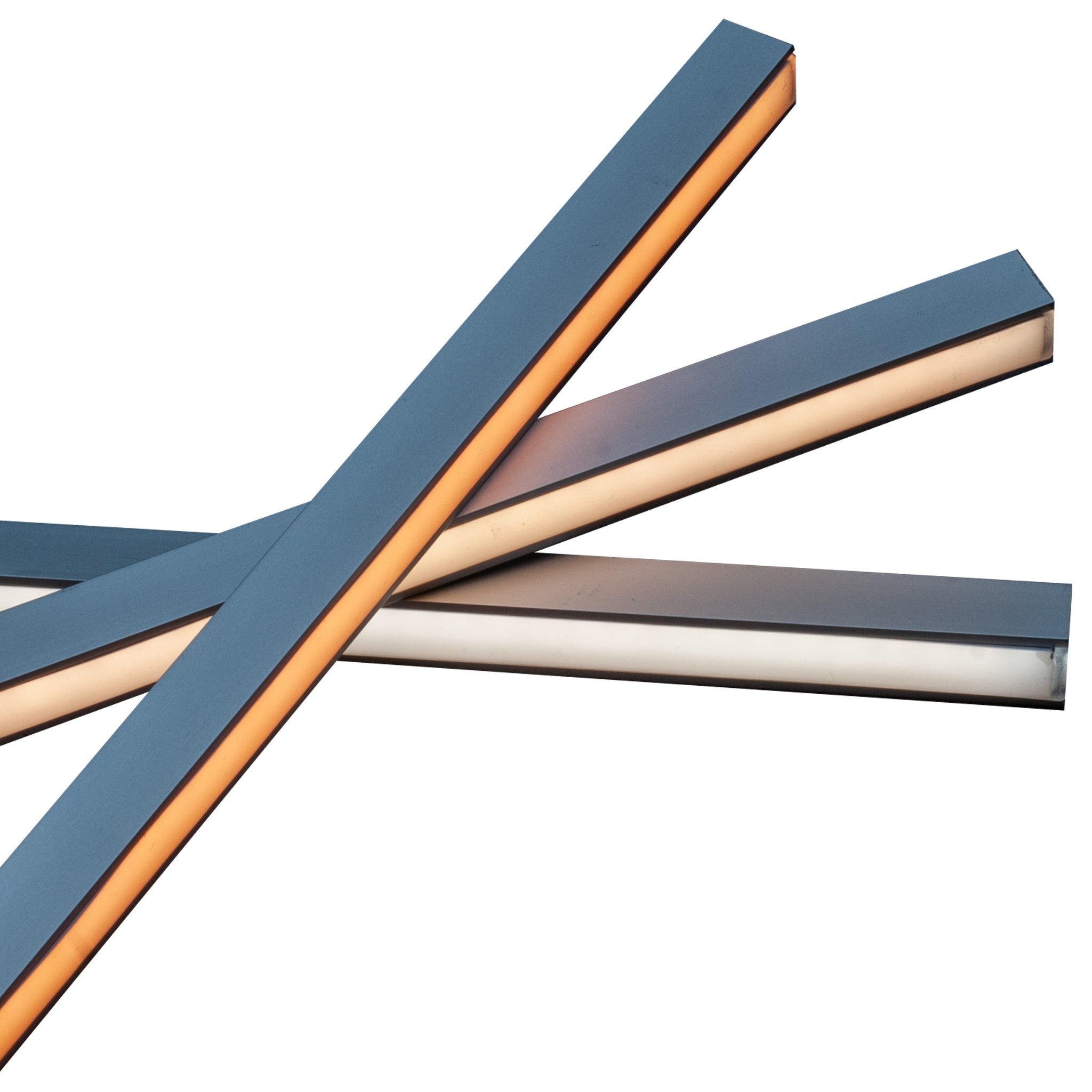

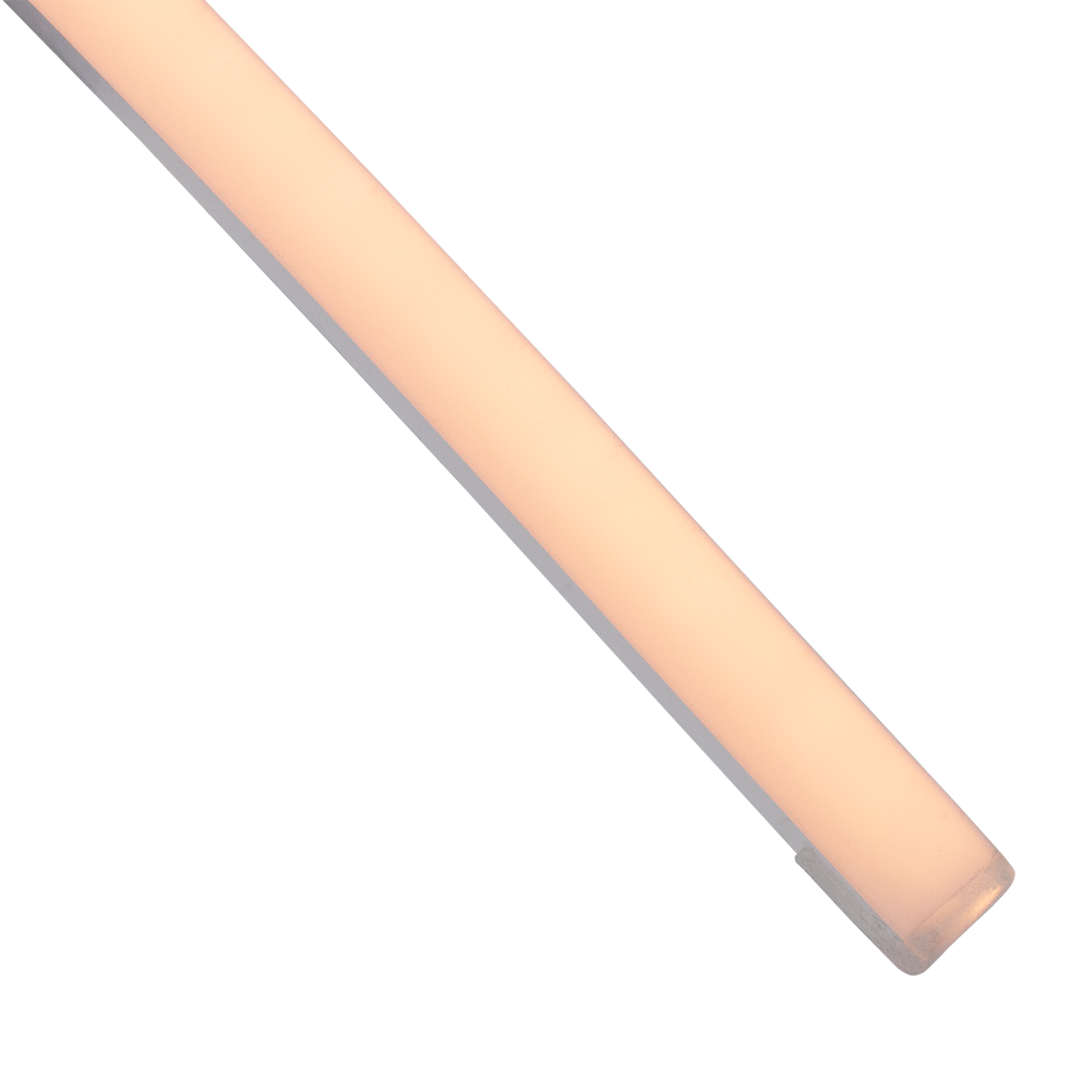

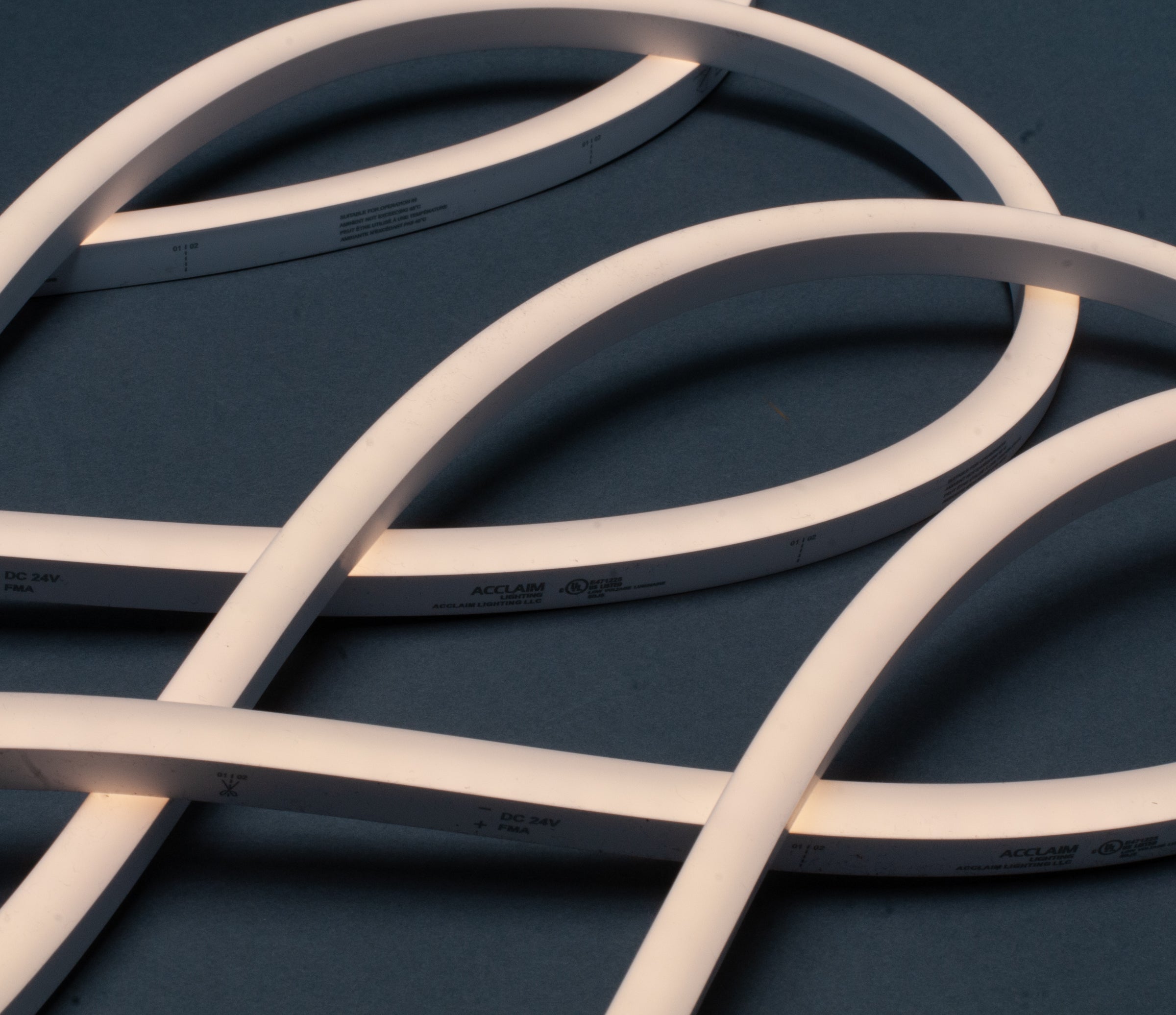

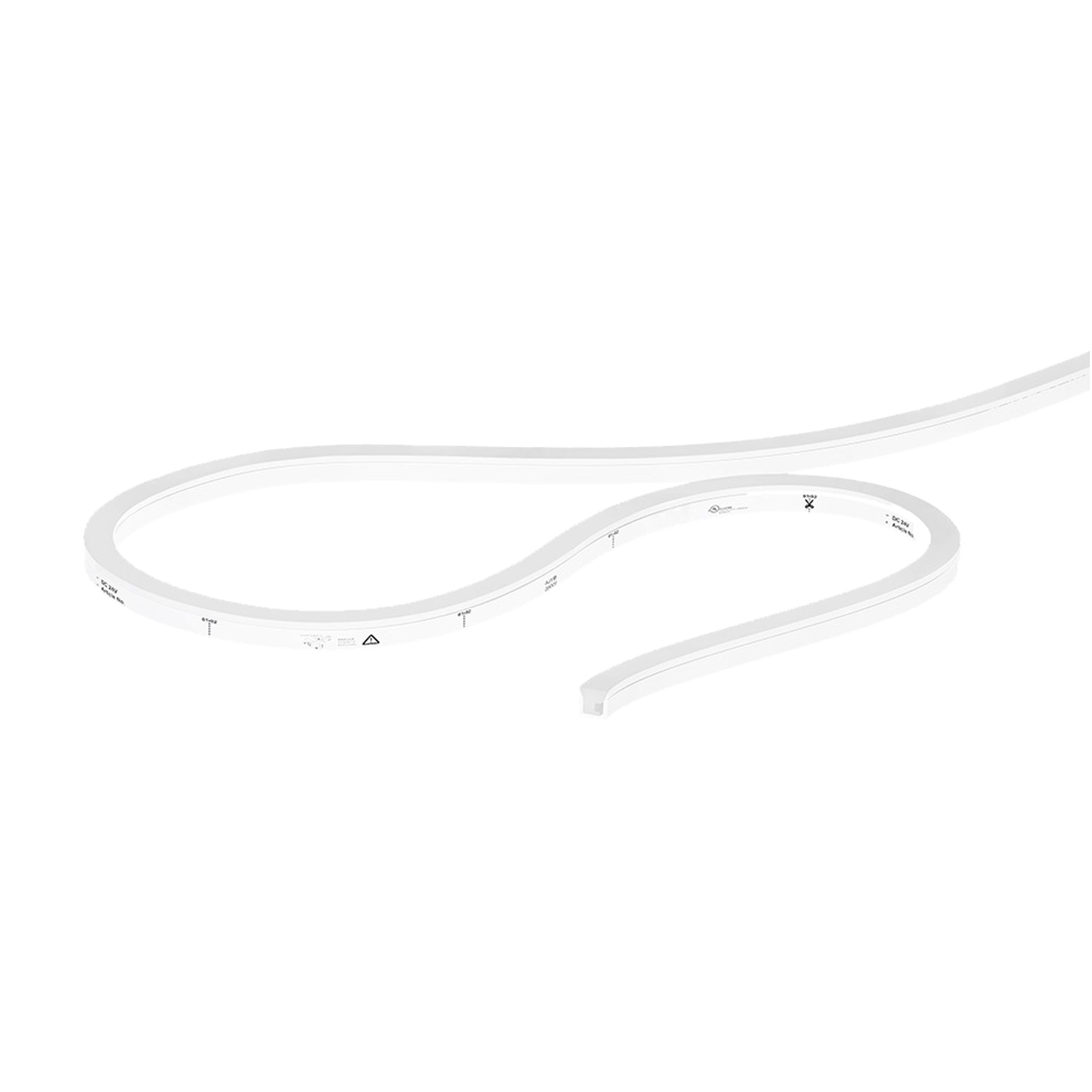

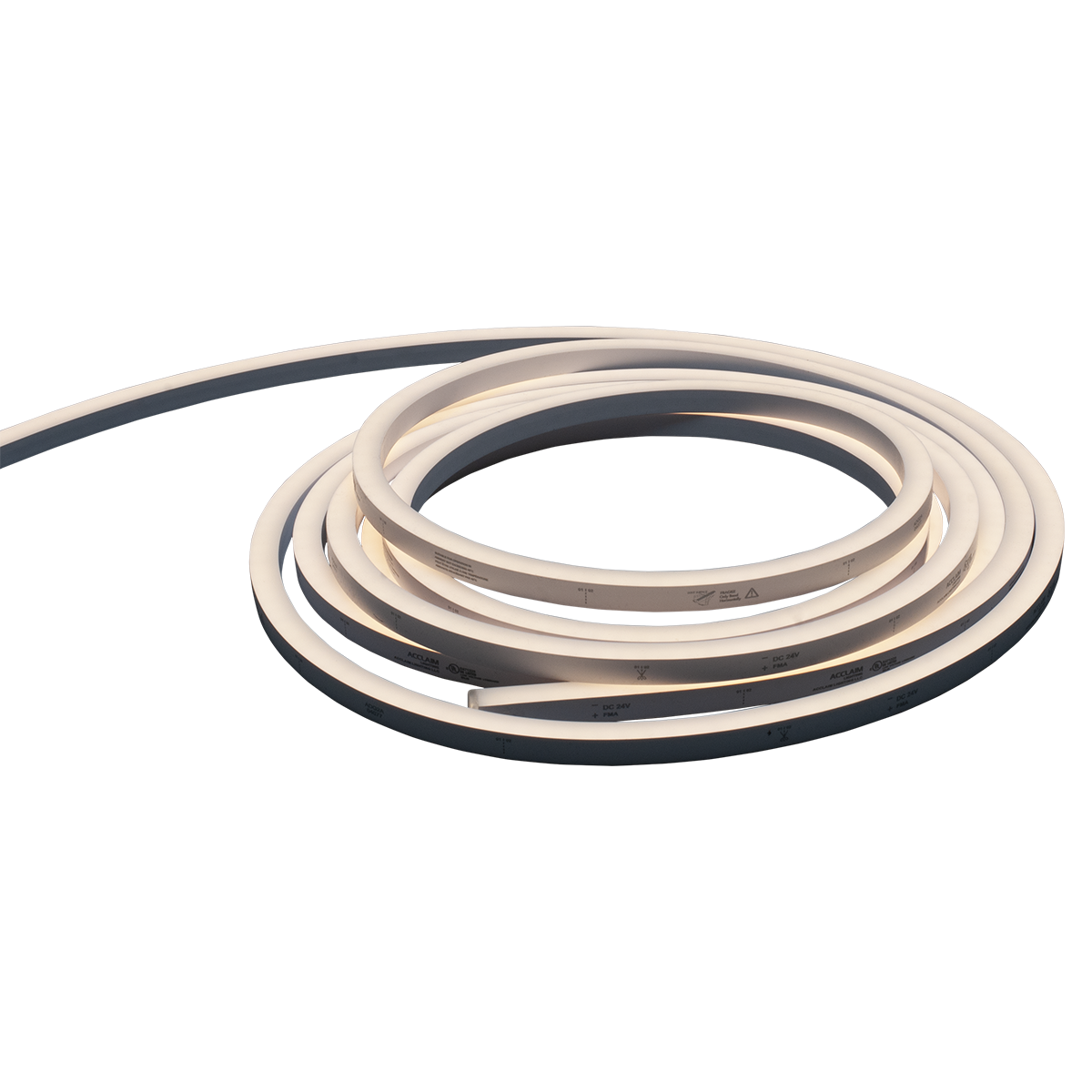

Flex Tube Mini is a flexible, direct view, outdoor LED strip, with an ultra-compact 0.4” x 0.4” profile. It comes in a 15M spool or custom-built lengths to suit project requirements and features a highly durable second-generation silicone body, which is outdoor rated, high impact resistant, and 3G vibration rated.
Flex Tube Mini
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Flex Tube Mini
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Flex Tube Mini Specification Sheet - March 2025 | Specification Sheet | |
| Flex Tube Mini User Guide v3-0b | User Guide | |
| Flex Tube Mini IES | IES Files | ZIP |
| Flex Tube Mini 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
UL, CE, 3G, EPDOperating Voltage
24VDCPower Consumption
1.4W per footControl
Low voltage control via optional AL Driver: DMX (0-100%), DALI (0-100%) or 0-10V (1-100%)Lumen Maintenance
L70 50,000 hours (@ 25° C)Optics
120°Output
Up to 102 lumens per footConnection
16.4' (5m) injection molded feed cable with bare tailsEmitters
2200K, 2700K, 3000K, 3500K, 4000K, 5700K, Red, Green, Blue or AmberFinish
WhiteLength
Built to order lengths up to 49.2' (15m)Material
UV resistant siliconeMounting

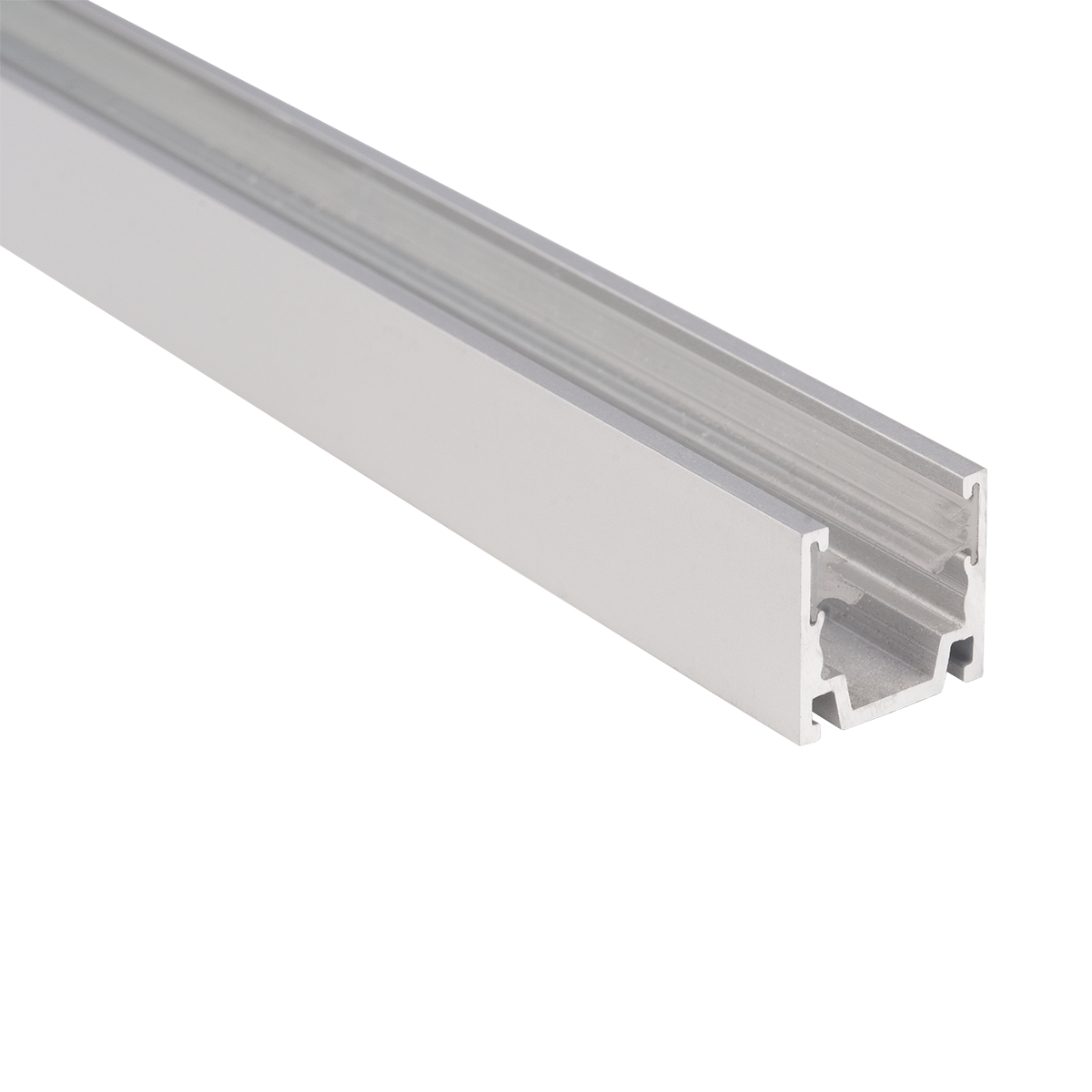

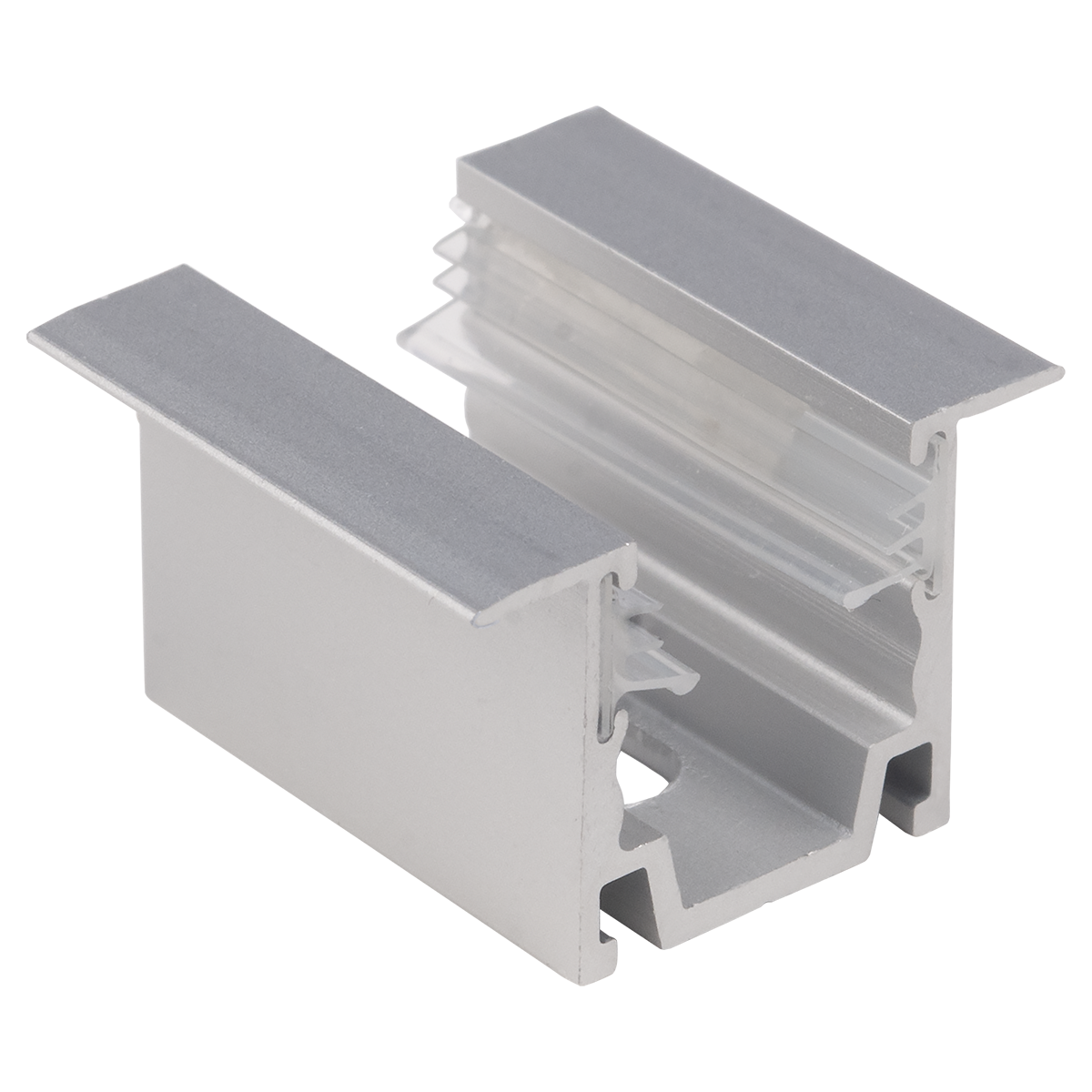

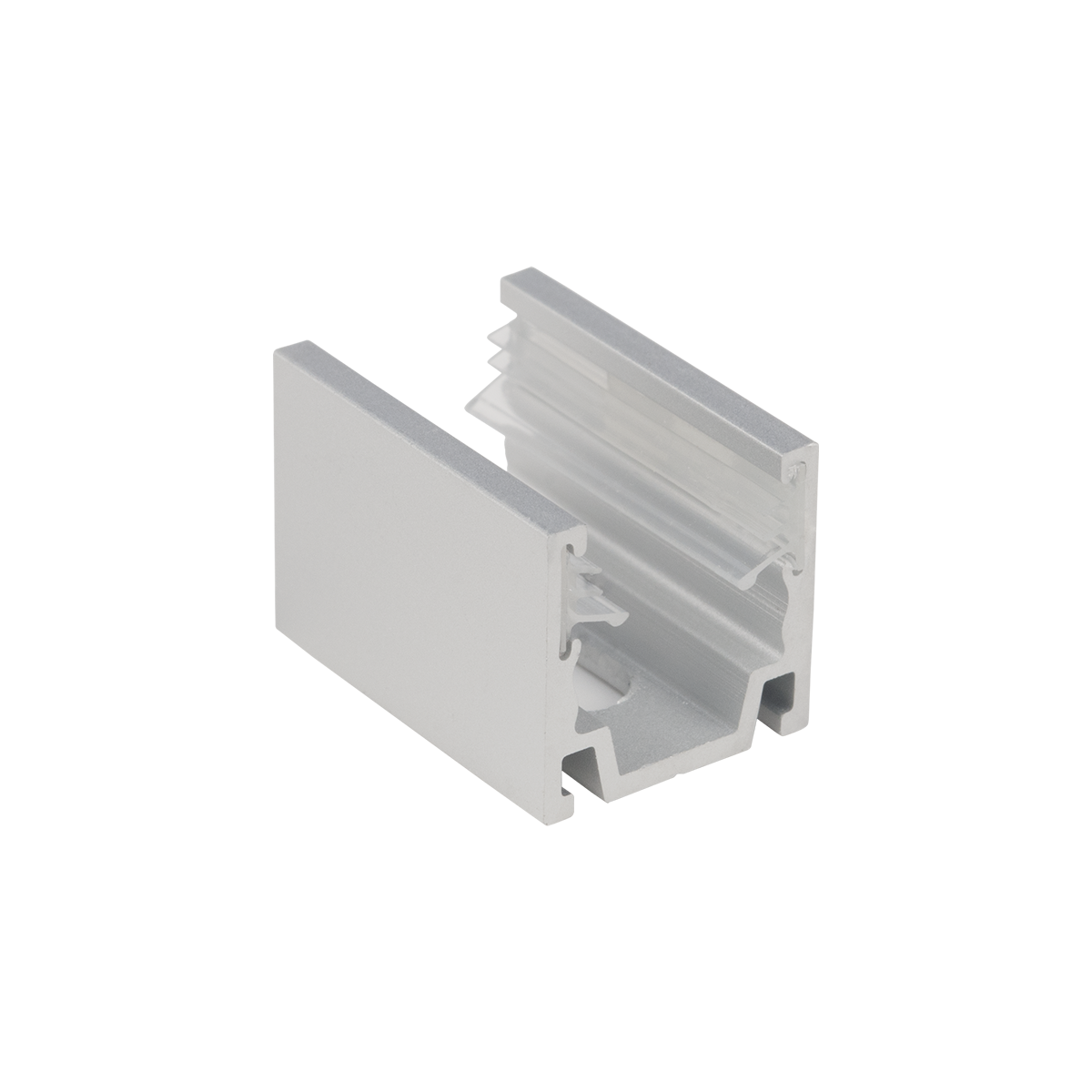

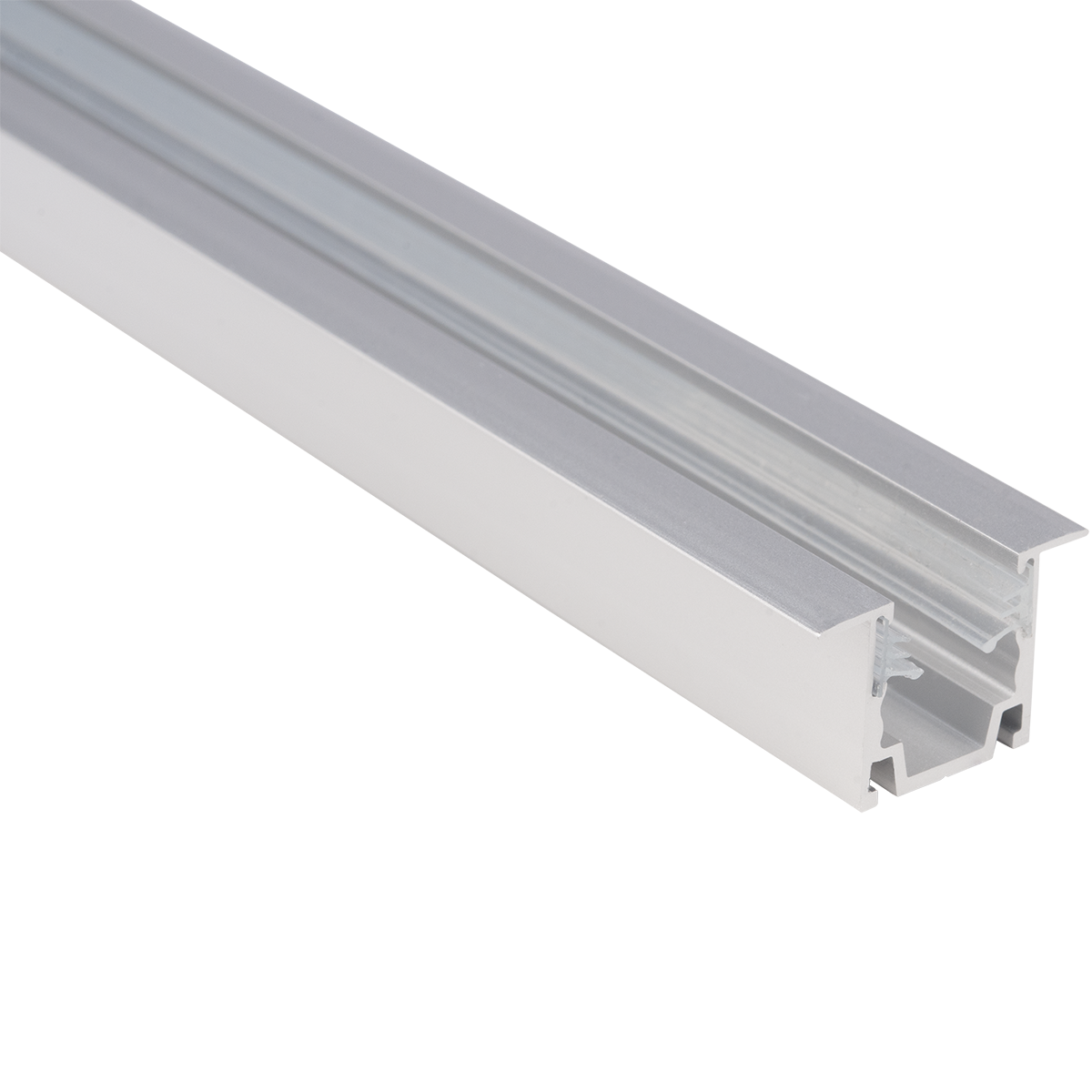

Press-fit aluminum channels in various lengths: 0.78" (20mm), 3.28' (1m) or 6.5' (2m)Weight
4.3 lbs (1.95 kg) for 15m spoolAmbient Temperature Range
-40° F to 131° F (-40° C to 55° C)Impact Protection
IK08, protection against 5 joule impact (30cm distance)Ingress Protection
IP67, wet locationVibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applicationsMaximum Fixtures In Series
49.2’ (15M)Minimum Bends
Separate model options with vertical or horizontal bend. Minimum bend radius: 3.93" (100mm)
