MLE288-24DC-UD

MLE288-24DC-UD

Specification highlights

Input Voltage
110-277VAC
Output Power
3 x 96W
Output Voltage
24VDC

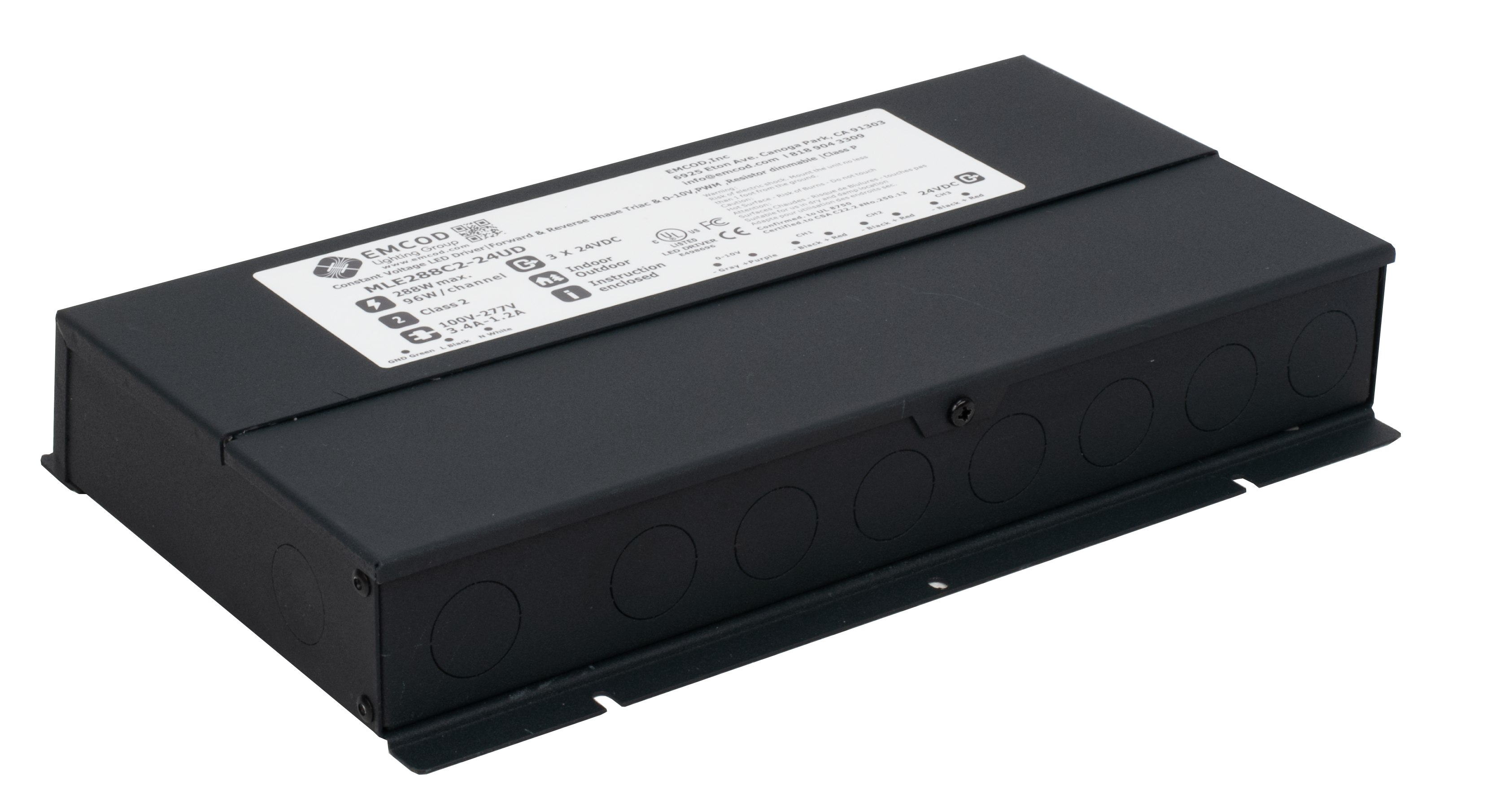

The MLE288-24DC-UD is a multi-protocol, 288W Class 2 driver for low voltage LED products. It features a full range 100-277VAC input, as well TRIAC, ELV, and 0-10V sink or source dimming control options. It can be used with or without a connected dimmer.

UPC: 840063521285SKU: MLE288-24DC-UD

Downloads

Filename Document type File type
MLE288-24DC-UD 2.0.0 Specification Sheet PDF
MLE288-24DC-UD User Guide PDF

Tech Specs

Certifications
UL, CSA
DC Output Current
4A maximum per circuit
DC Output Wattage
3 x 96W
Operating Voltage
110-277VAC, 50/60Hz
Output Voltage
24VDC
Control
TRIAC (forward phase), ELV (reverse phase) 0-10V (sink and source), 1-100% dimming
Connection
3 wire lead for AC input, 2 wire leads for 0-10V and DC output, 3/8" conduit knockouts
Finish
Black powder coated steel
Material
Black powder coated steel
Weight
4.4 lbs. (1.99kg)
Ambient Temperature Range
-40 F to 140º (-40º C to 60º C)
Ingress Protection
Indoor or Outdoor, NEMA 3R
