Specification highlights
- Lumens Per Foot
- 566
- Power
- 5.5W
- TM-30
- 92

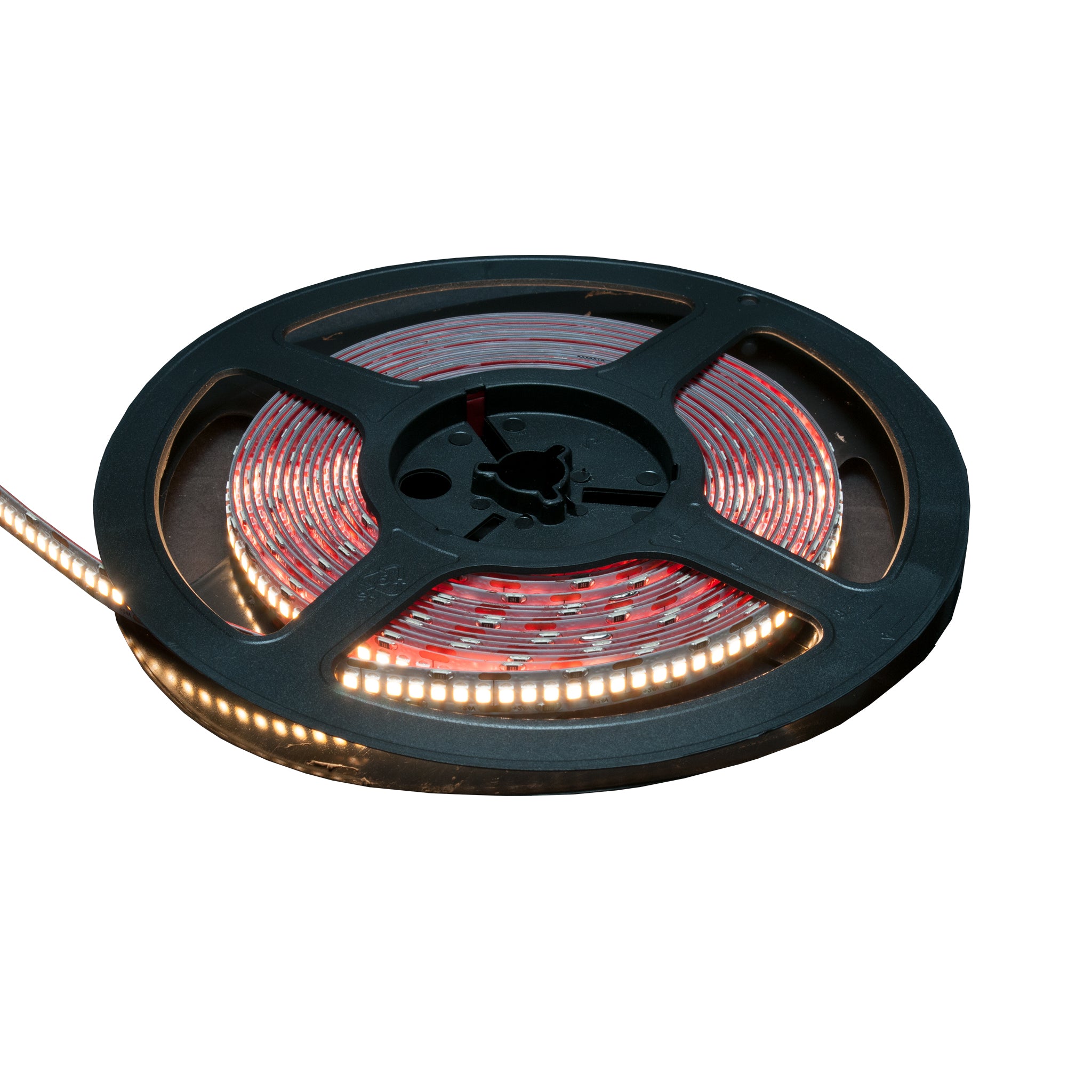

Flex One HO Interior provides the best in class color rendering, fidelity, and gamut of any LED strip product. It can be cut in one-inch increments to create the exact length needed for your specific application. It is available in 2400K, 2700K, 3000K, 3500K, 4000K, and features a lumen output of up to 566 per foot, with a minimum CRI of 95. The combination of its high output and low profile allows for a wide variety of cove, millwork, signage, and many other interior applications.
Flex One HO Interior
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Flex One HO Interior
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Flex One HO Interior Specification Sheet - July 2025 | Specification Sheet | |
| Flex One HO Interior User Guide v3-0a | User Guide | |
| Flex One HO Interior Revit File | Revit Files | RFA |
| Flex One Interior IES Files | IES Files | ZIP |
| Flex One HO Interior 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, RoHS, ETL SanitationOperating Voltage
24VDCPower Consumption
5.5W per footLumen Maintenance
L70 50,000 hours (@ 25° C)Optics
120ºOutput
Up to 566 lumens per footConnection
3.28' (1m) attached feed cable with bare tails (18 AWG)Emitters
2400K, 2700K, 3000K, 3500K or 4000KFinish
White PCBMaterial
Copper strip with white finishMounting
3M™ VHB™ adhesive backing - see user guide for mounting detailsWeight
4.79oz (136g)Ambient Temperature Range
32° F to 104° F (0° C to 40° C)Impact Protection
IK00, not impact protectedIngress Protection
IP20, dry locationMaximum Fixtures In Series
16.4' (5M)
