Specification highlights
- Lumens Per Foot
- 411
- Power
- 5.5W
- TM-30
- 92

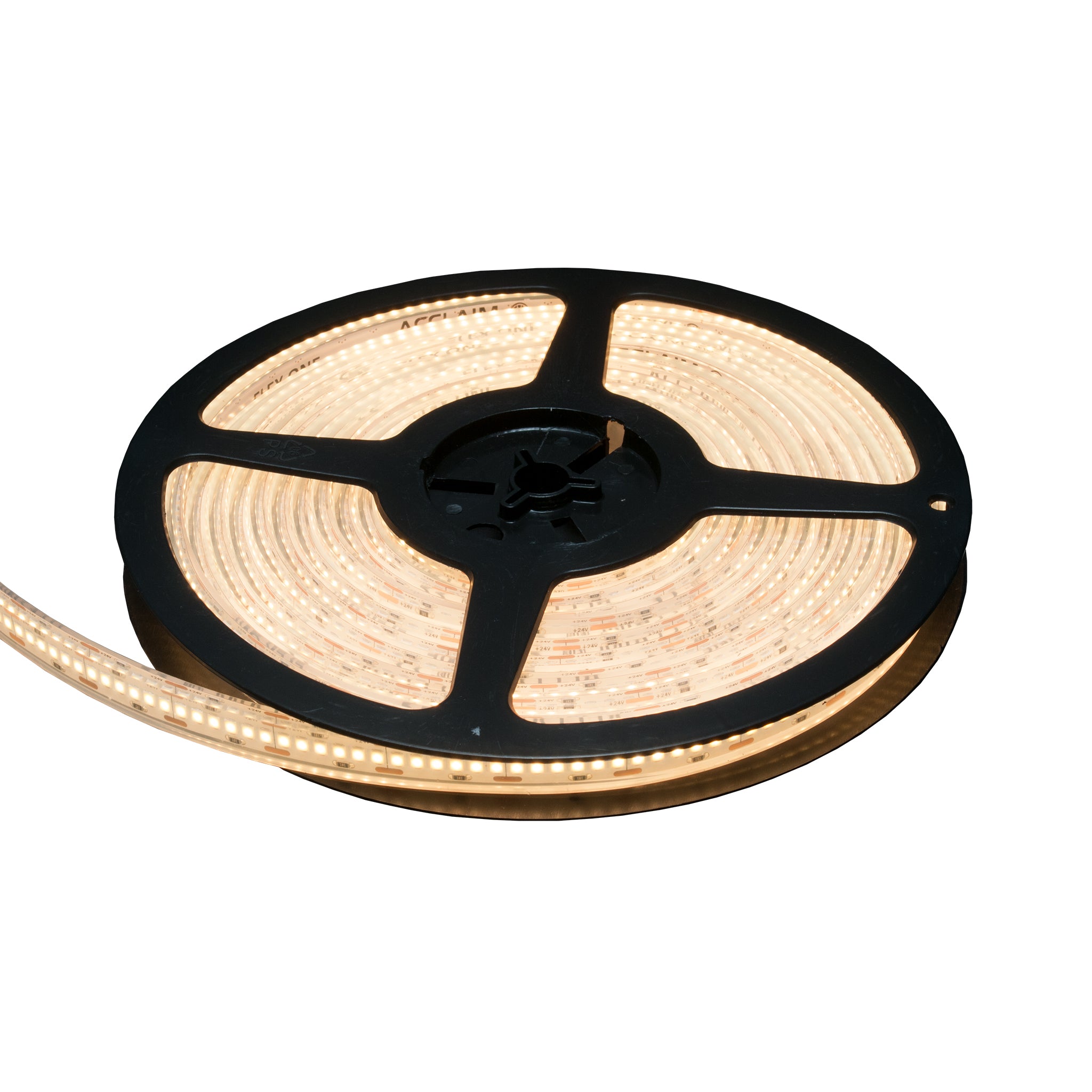

Flex One HO Exterior provides the best in class color rendering, fidelity, and gamut of any LED strip product with wired digital communication network. It can be cut in one inch increments to create the exact length needed for your specific application. It is available in 2700K, 3000K, 4000K, and features a lumen output of up to 411 per foot, with a minimum CRI of 95. The combination of it’s high output, low profile, and IP68* rating allows for a wide variety of cove, millwork, signage, and many other exterior applications.
Flex One HO Exterior
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Flex One HO Exterior
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Flex One HO Exterior Specification Sheet - July 2025 | Specification Sheet | |
| Flex One Exterior Guide v3-0a | User Guide | |
| Flex One HO Exterior Revit File | Revit Files | RFA |
| Flex One HO Exterior IES Files | IES Files | ZIP |
| Flex One HO Exterior 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, RoHS, ETL SanitationOperating Voltage
24VDCPower Consumption
5.5W per footLumen Maintenance
L70 50,000 hours (@ 25° C)Optics
120ºOutput
Up to 411 lumens per footConnection
3.28' (1m) attached feed cable with bare tails (18 AWG)Emitters
2700K, 3000K or 4000KFinish
White PCBMaterial
Copper strip with UV-stabilized silicone coatingMounting
Ten silicone mounting clips plus screws included - see user guide for mounting detailsWeight
14.07oz (400g)Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)Impact Protection
IK06, protected up to 1 joule impactIngress Protection
IP68*, wet location and submersibleMaximum Fixtures In Series
16.4' (5M)
