AL Driver 400 C2
AL Driver 400 C2

AL Driver 400 C2

Specification highlights

Input Voltage
100-277VAC
50/60Hz
Output Voltage
24VDC
Output Power
400W

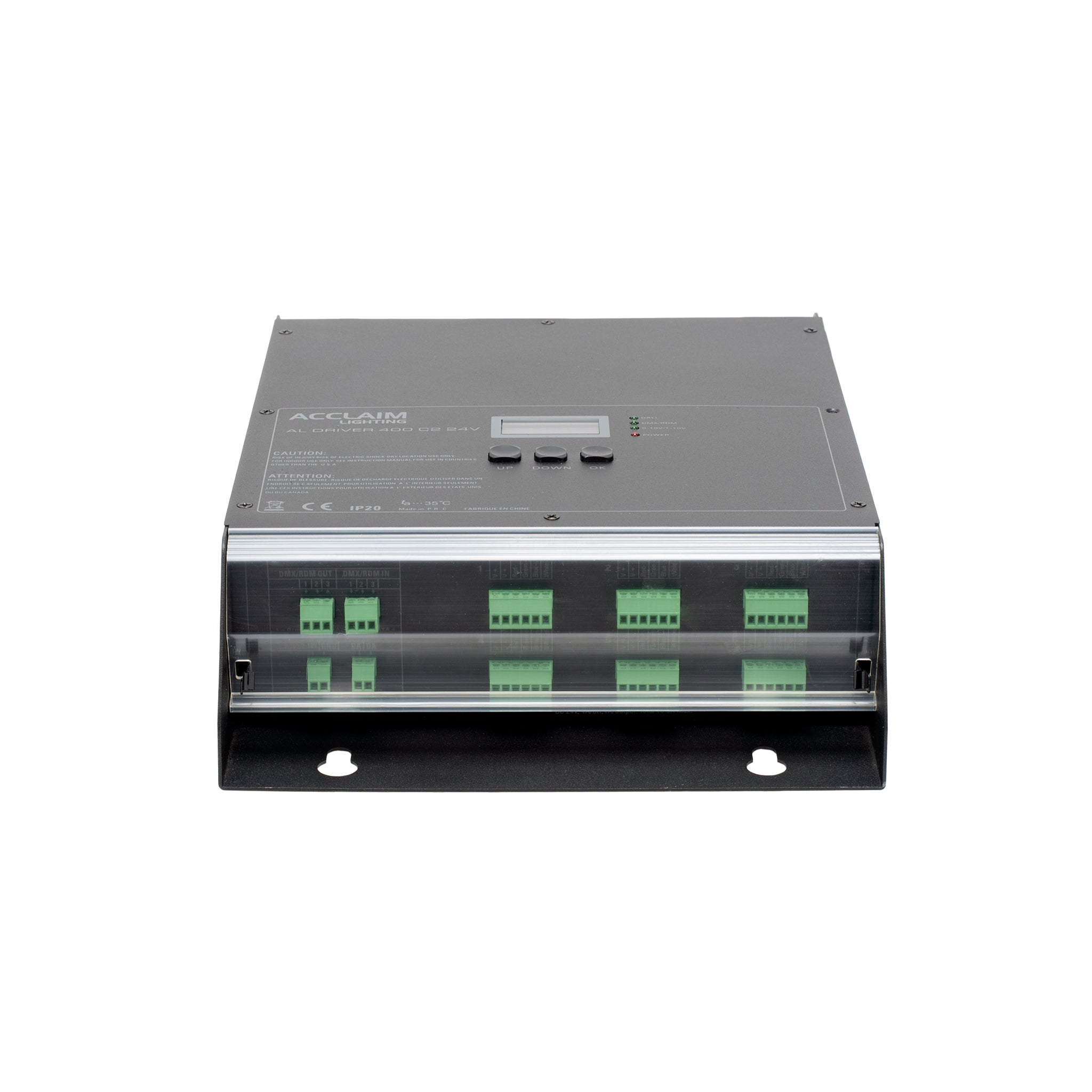

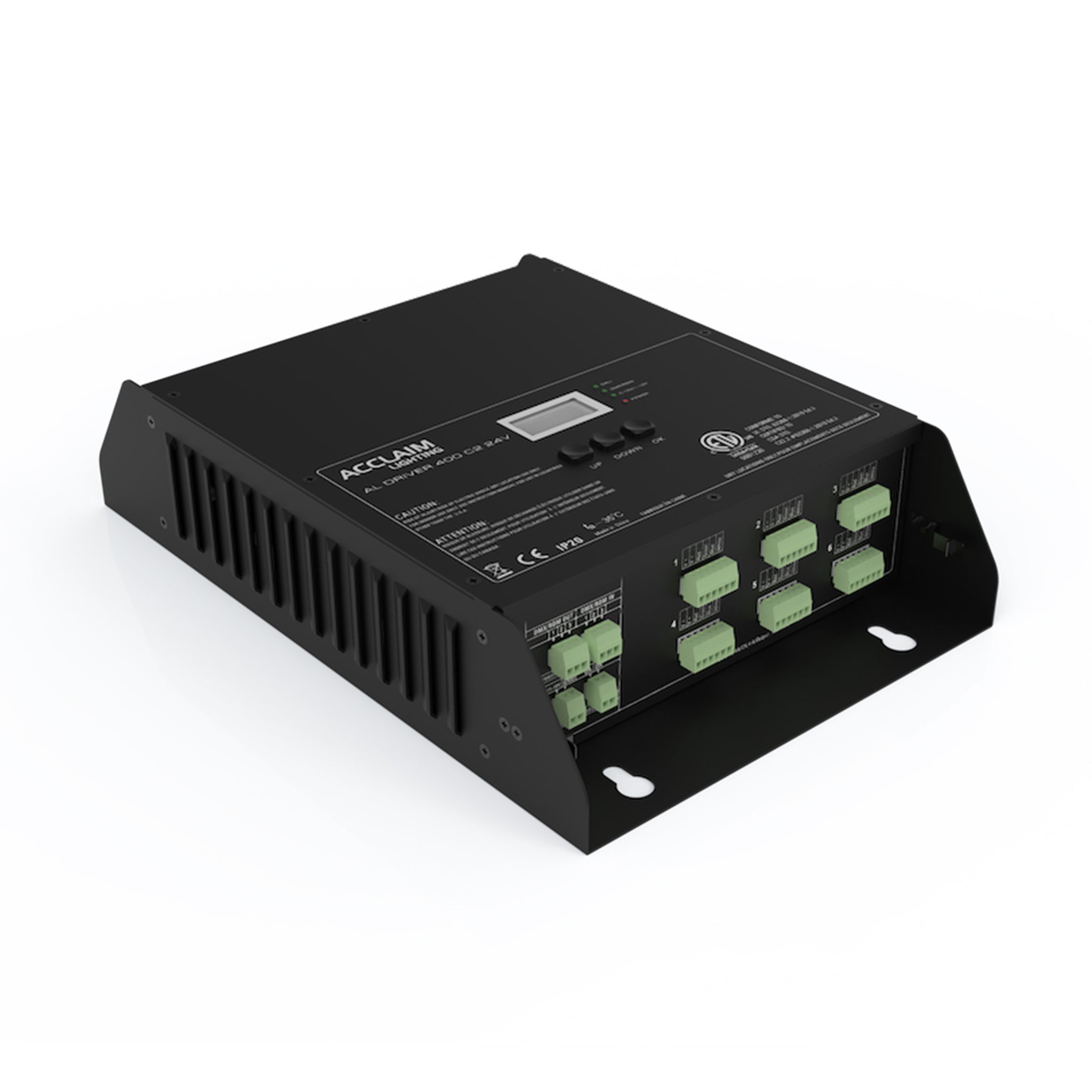

The AL Driver 400 C2 is a Class 2, multi-protocol, 400W driver for low voltage LED products. The input control protocols include DMX, RDM, 0-10V, and DALI; and feature 24V DC / PWM output. It offers maximum flexibility with your front-end control preferences. The ALDriver C2 series benefits from a fuse per output terminal for electronic output regulation.
UPC: 840063517509SKU: ALD424-C2

Downloads

Filename Document type File type
AL Driver C2 Series guide v2-0 User Guide PDF
AL Driver 400 C2 2.0.1 Specification Sheet PDF
AL Driver 400 C2 Drawings Drawings ZIP

Tech Specs

Certifications
ETL, CE
Operating Voltage
100-277VAC, 50/60Hz
Output Current
4A (96W) maximum per output port
Output Voltage
24VDC
Finish
Black
Connectors
6-pin terminal blocks for PWM outputs, 3-pin terminals for DMX, 2-pin terminals for 0-10V & DALI
Internal Sensors
Temperature: current, minimum and maximum values available via the on-board display
Material
Aluminum
Weight
8.4 lbs (3.8 kg)
Ambient Temperature Range
14° F to 113° F (-10° C to 45° C)
Ingress Protection
IP20, dry location
