Flex Tube SC G2
Specification highlights
- Lumens Per Foot
- 215
- Power
- 3.6W
- TM-30
- 86

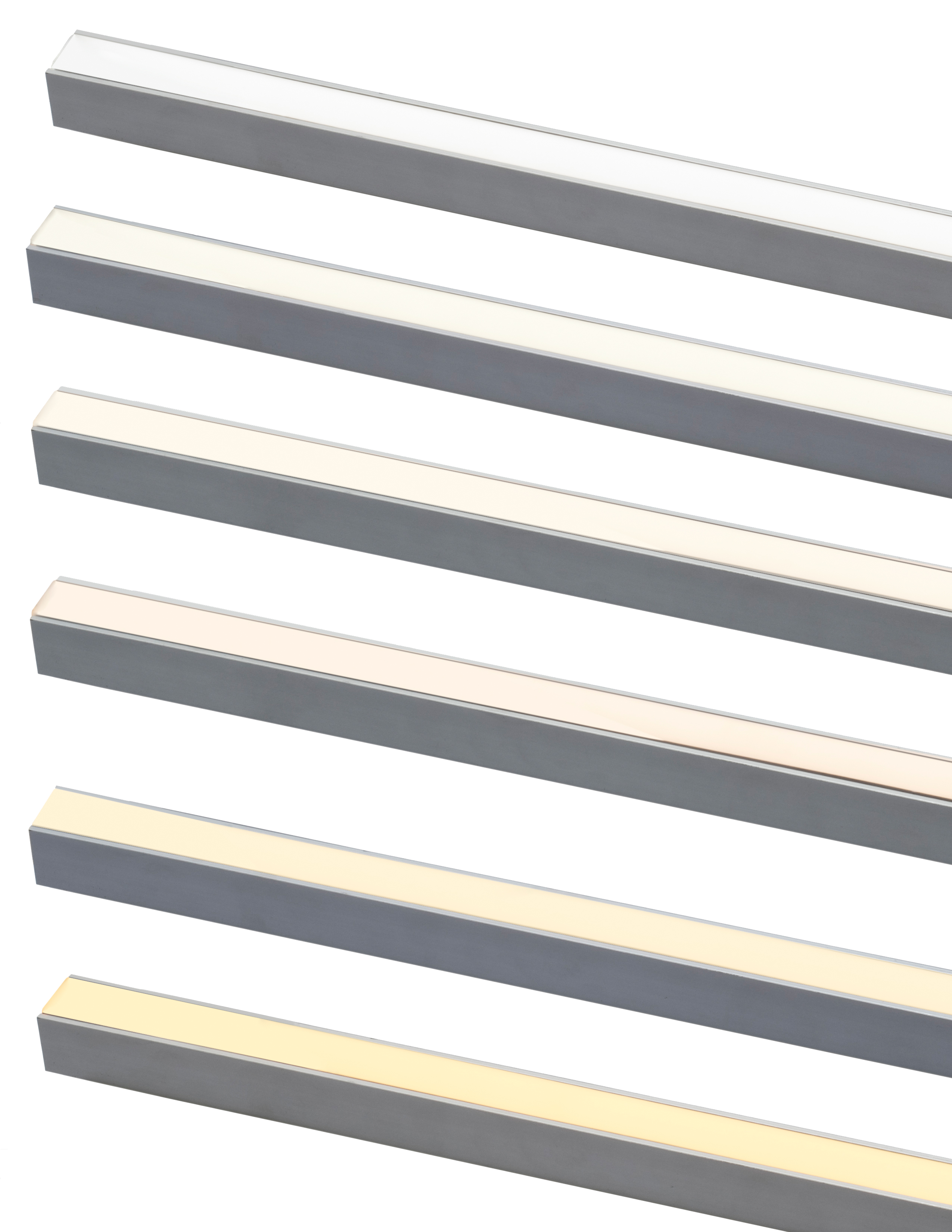

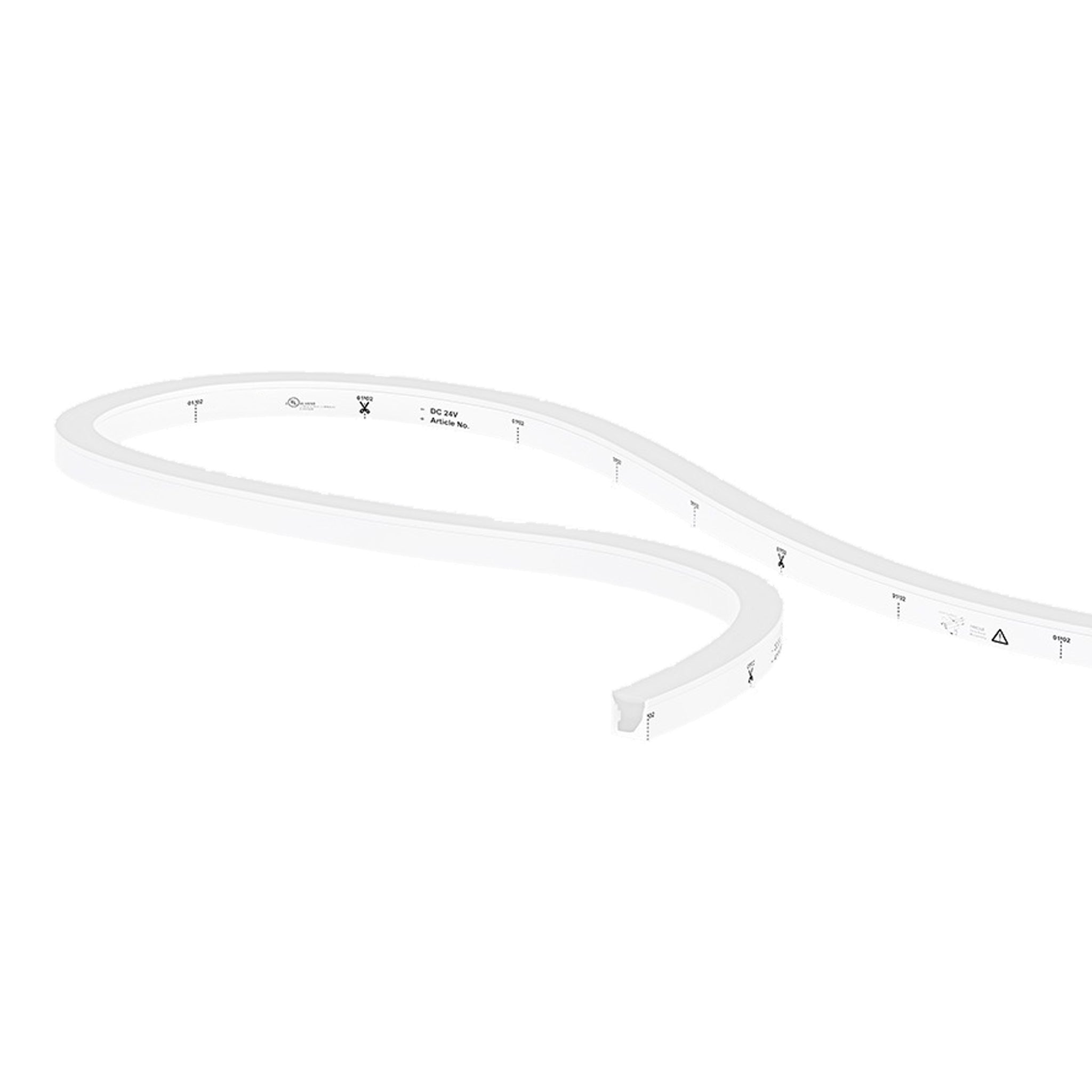

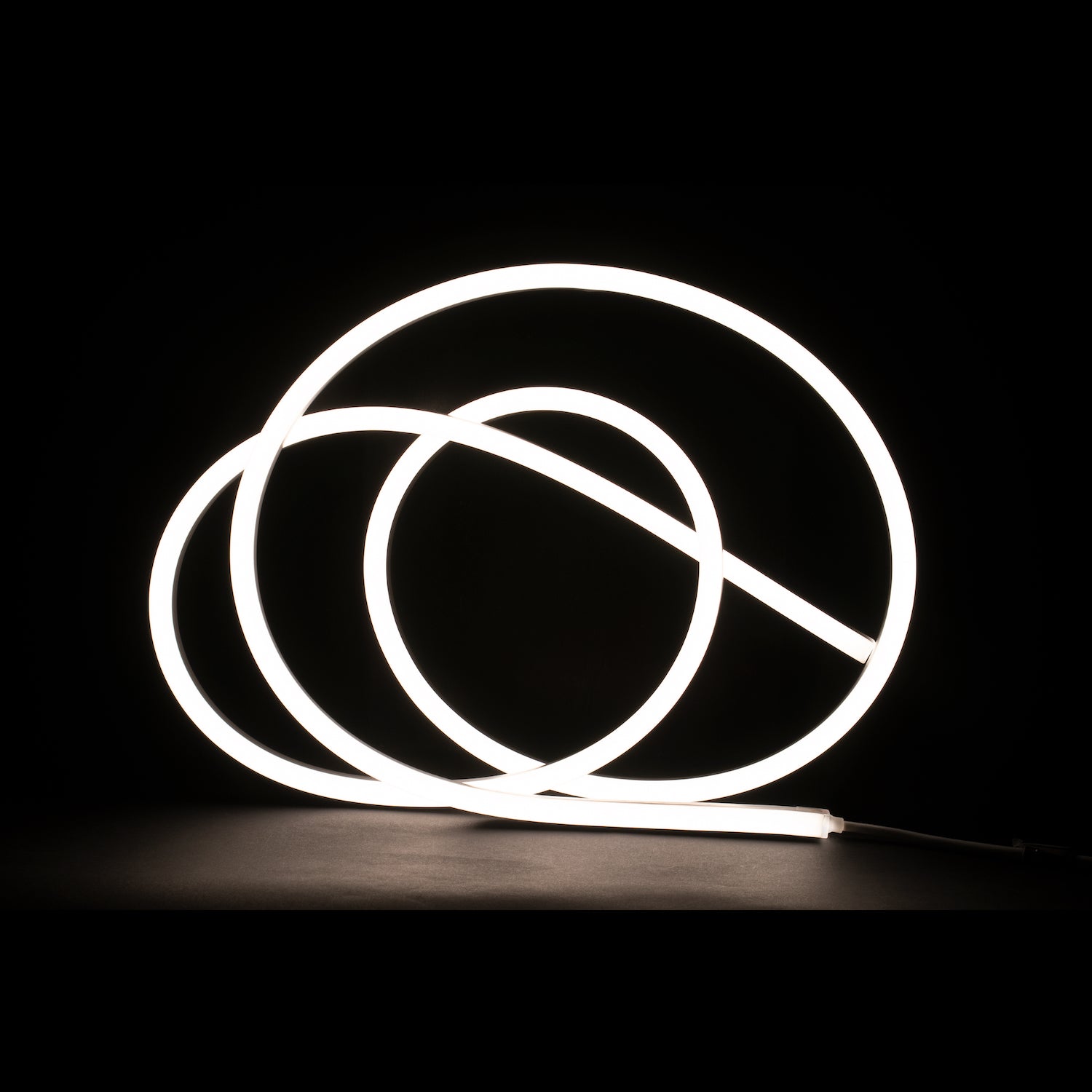

Flex Tube SC G2 is a flexible, single color, indoor/outdoor LED strip, available in multiple color temperatures and mounting orientations. It comes in a seven-meter spool or custom-built lengths to suit project requirements and features a highly durable second-generation silicone body, which is outdoor rated, high impact resistant, and 3G vibration rated.
Flex Tube SC G2
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Flex Tube SC G2
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Flex Tube SC G2 Specification Sheet - March 2025 | Specification Sheet | |
| Flex Tube Gen 2 User Guide v3-0b | User Guide | |
| Flex Tube SC G2 IES | IES Files | ZIP |
| Flex Tube Gen 2 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
UL, CE, Ctick, 3G, EPDOperating Voltage
24VDCControl
Low voltage control via optional AL Driver: DMX (0-100%), DALI (0-100%) or 0-10V (1-100%)Lumen Maintenance
L70 50,000 hours (@ 25° C)Optics
120°Output
Up to 215 lumens per foot (80 CRI), 3-step SDCMConnection
16.4' (5m) injection molded feed cable with bare tailsEmitters

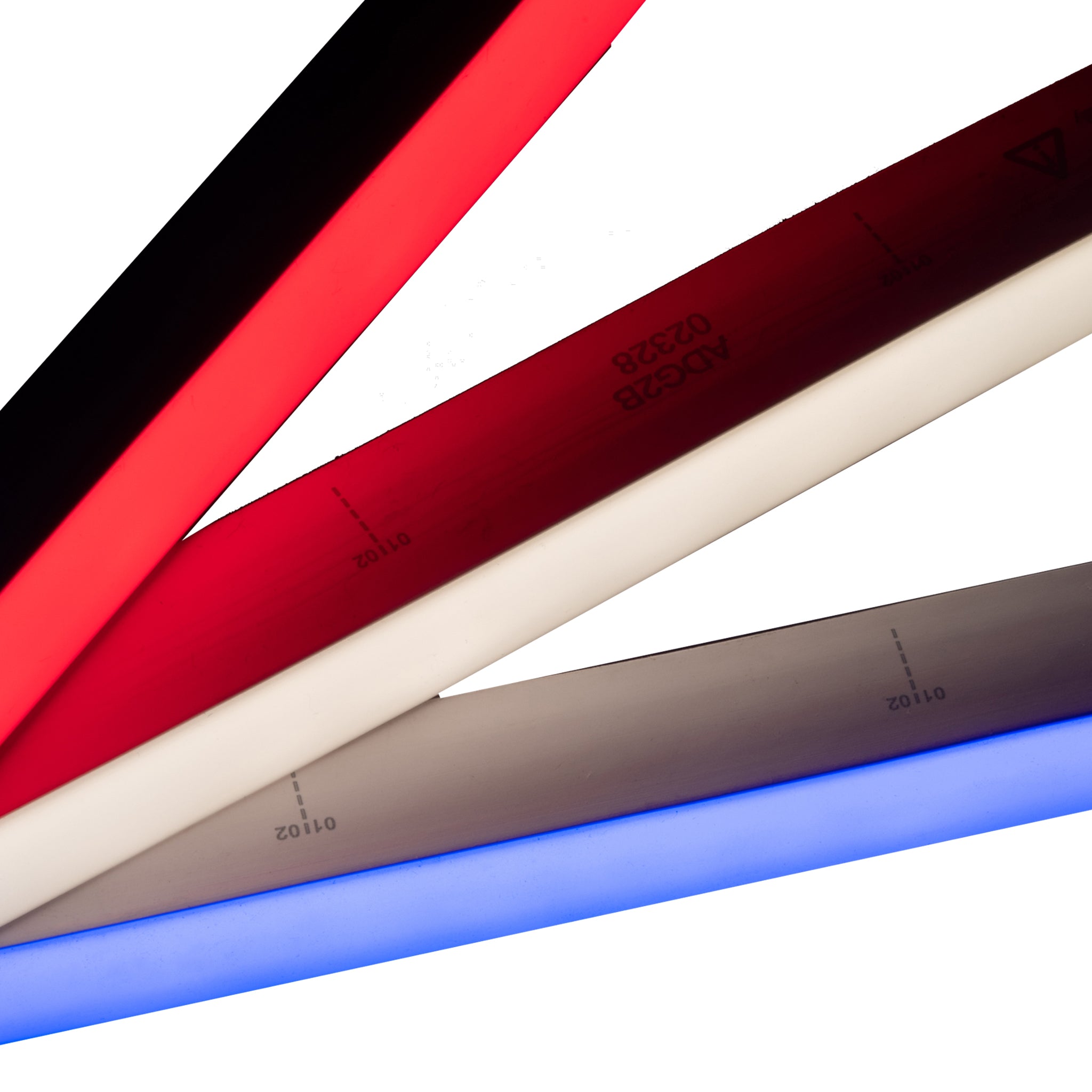

2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5700K, Red, Green, Blue or AmberFinish
WhiteLength
Built to order lengths up to 22.96' (7m)Material
UV resistant siliconeMounting

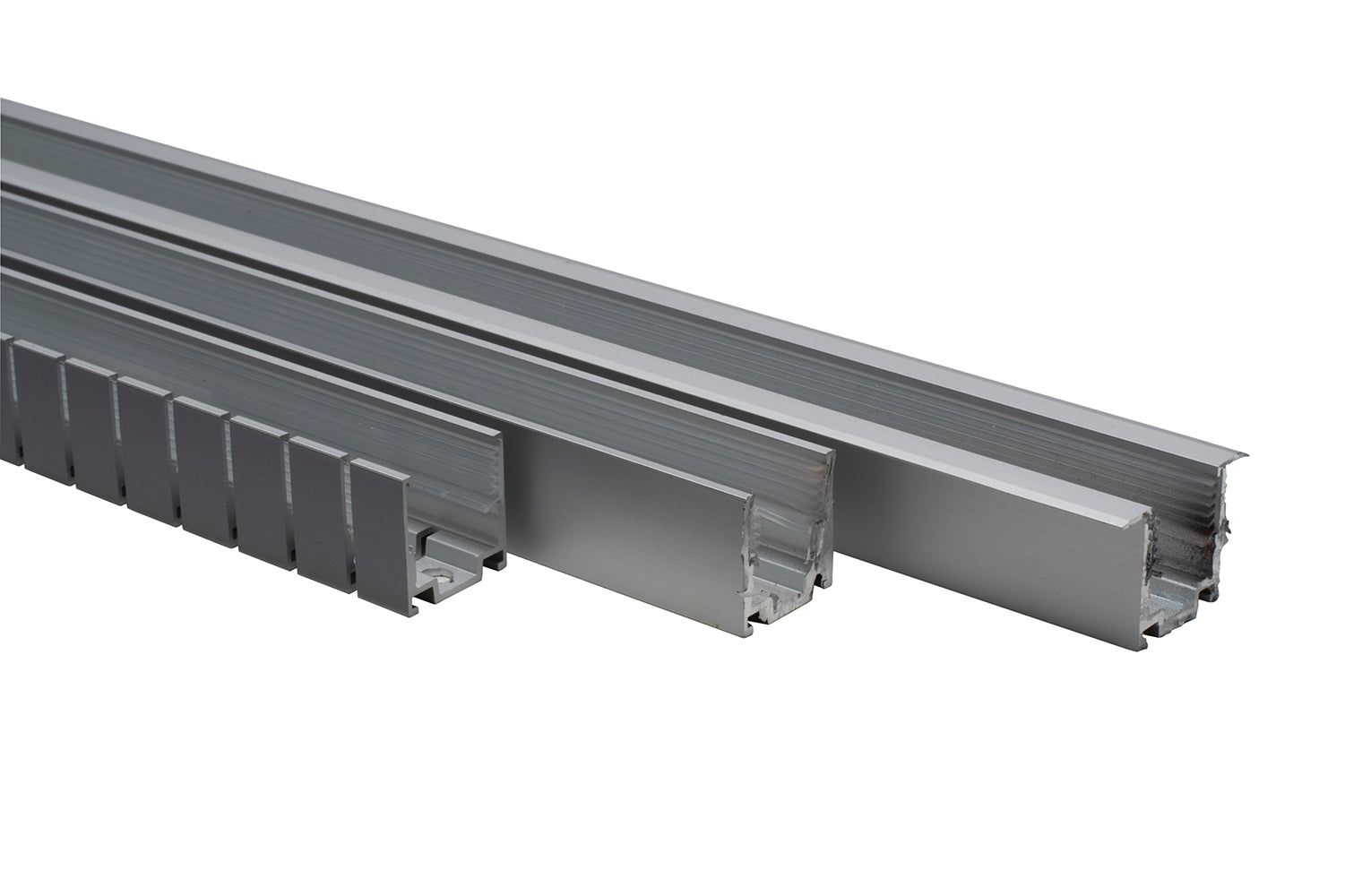

Press-fit aluminum channels in various lengths: 0.78" (20mm), 3.28' (1m) or 6.5' (2m)Weight
5.73 lbs (2.59 kg) for 7m spoolAmbient Temperature Range
-40° F to 131° F (-40° C to 55° C)Impact Protection
IK08, protection against 5 joule impact (30cm distance)Ingress Protection
IP68, wet location, submersible* to 6.56' (2m)Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applicationsMaximum Fixtures In Series
22.96’ (7M)Minimum Bends

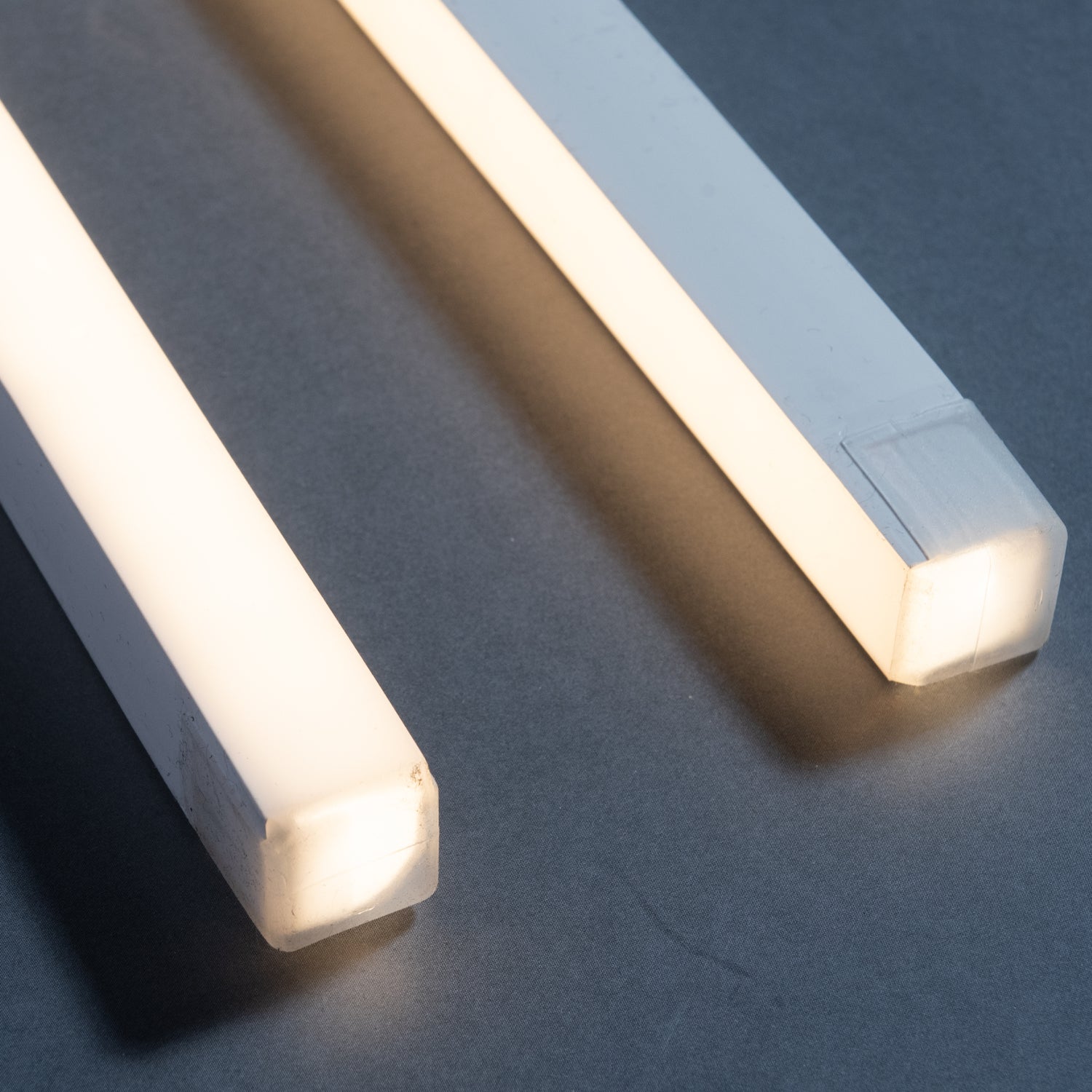

Separate model options with vertical or horizontal bend. Minimum bend radius: 5.9" (150mm)
