Specification highlights

Lumens Per Foot
199
Power
3.6W
TM-30
86

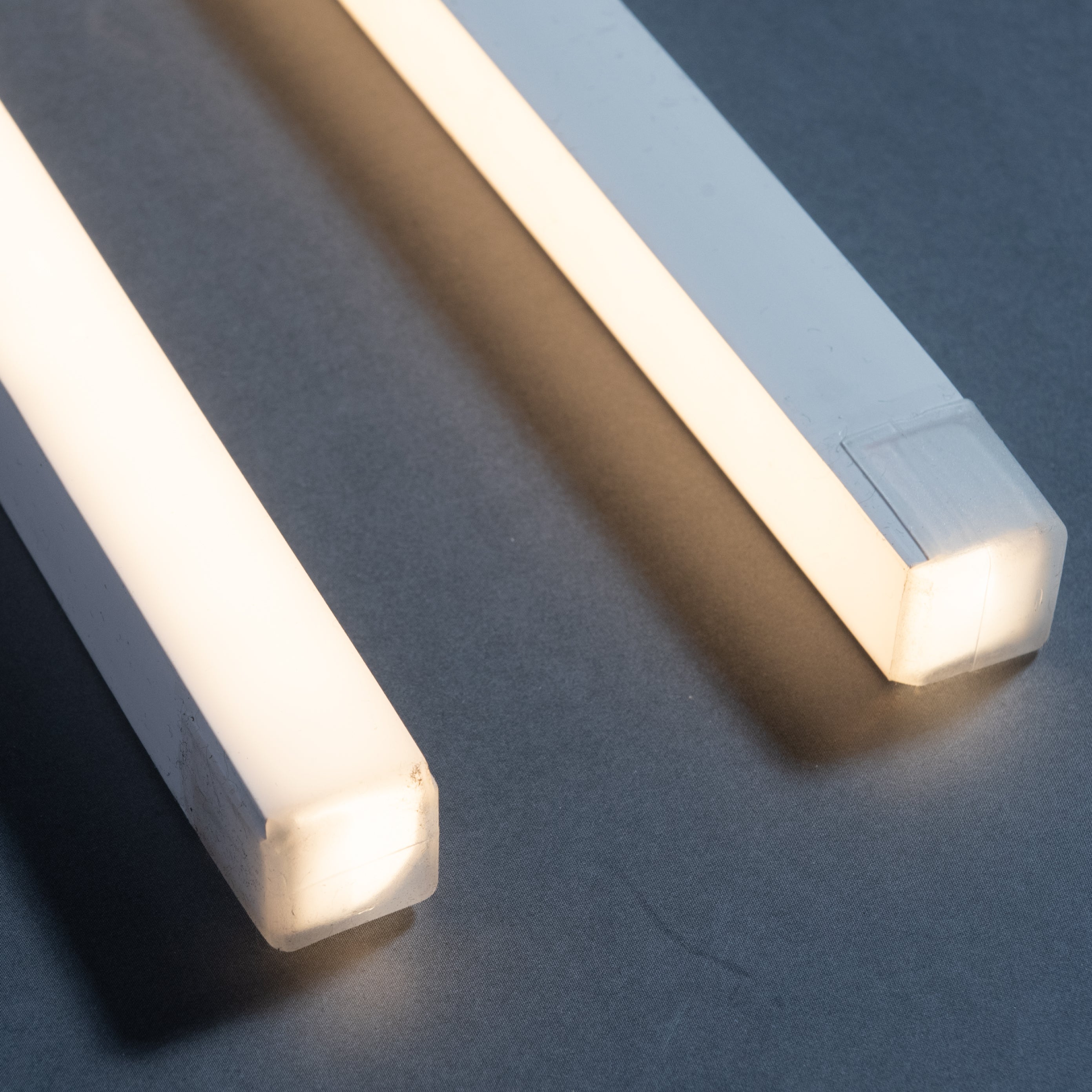

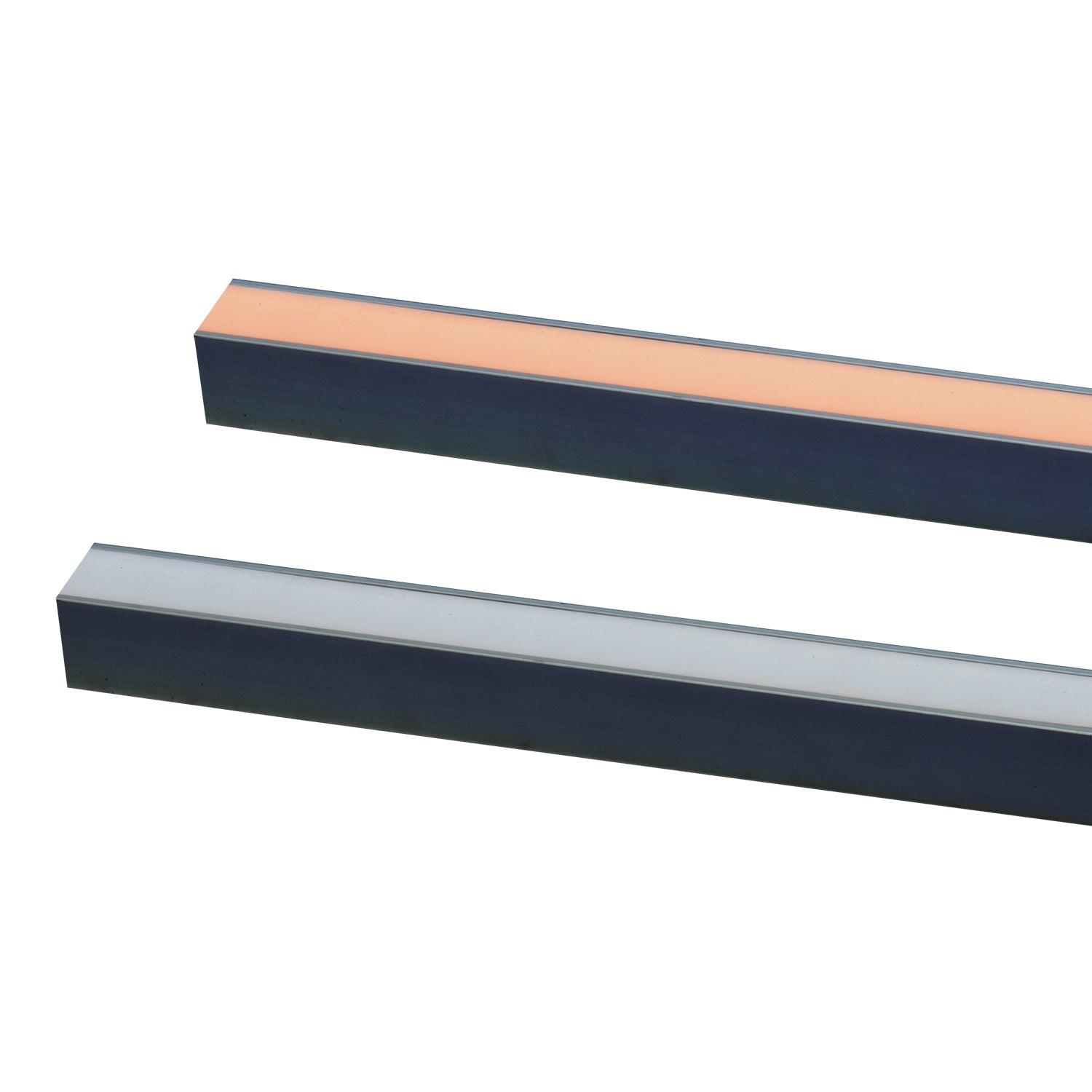

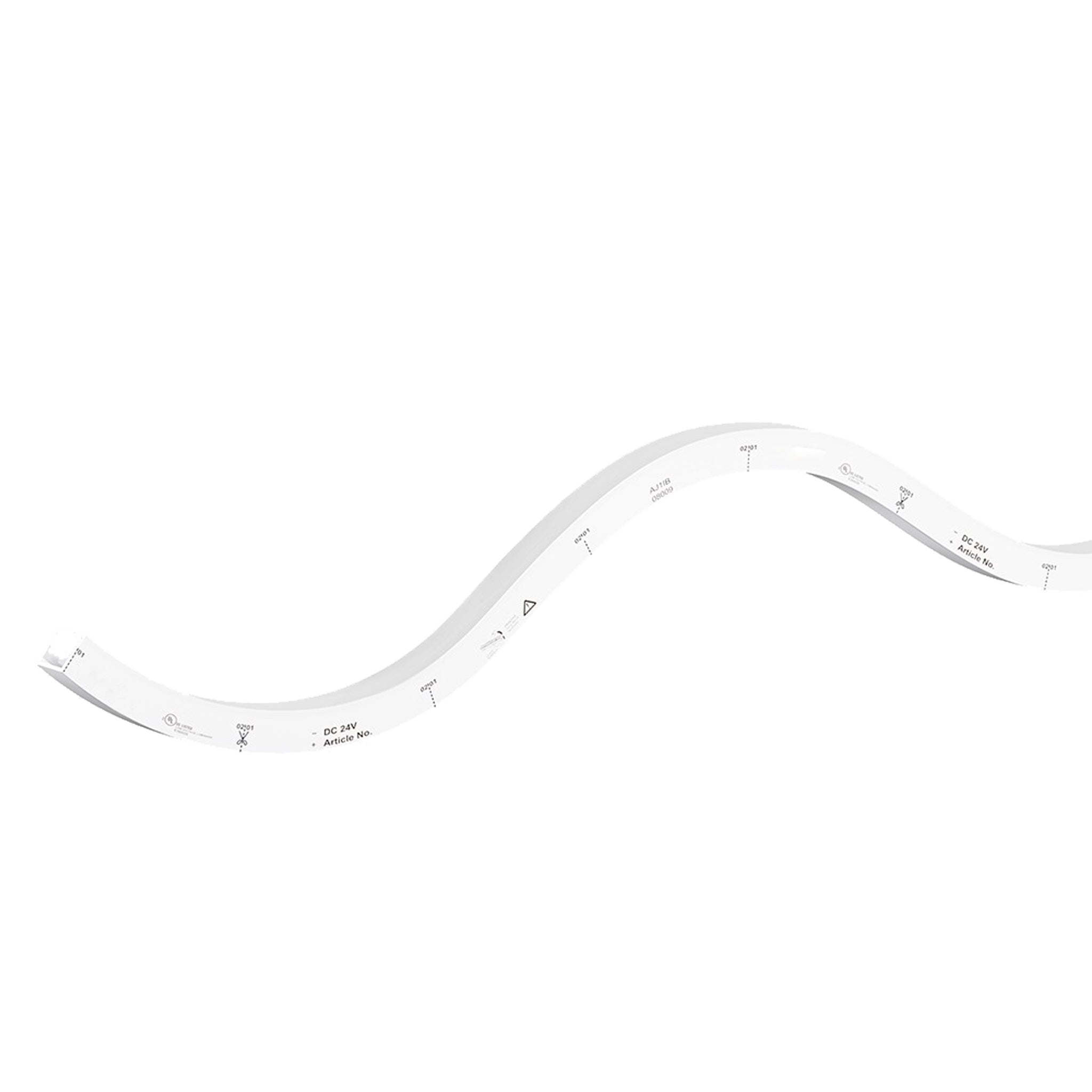

Flex Tube DW is a flexible, dynamic white, outdoor LED strip with the ability to create multiple CCTs of dedicated white with a single fixture. It comes in a seven-meter spool or custom-built lengths to suit project requirements and features a highly durable second-generation silicone body, which is outdoor rated, high impact resistant, and 3G vibration rated.
SKU: F2#-22#-#AXN

Downloads

Filename Document type File type
Flex Tube DW Specification Sheet - March 2025 Specification Sheet PDF
Flex Tube G2 User Guide User Guide PDF
Flex Tube Gen 2 2D Drawings Drawings ZIP
Flex Tube DW IES Files IES Files ZIP

Tech Specs

Certifications
UL, CE, Ctick, 3G, EPD
Operating Voltage
24VDC
Power Consumption
3.7W per foot
Control
Low voltage control via optional AL Driver: DMX (0-100%) or DALI (0-100%) - 2 channels required
Lumen Maintenance
L70 50,000 hours (@ 25° C)
Optics
120°
Output
Up to 199 lumens per foot
Connection
16.4' (5m) injection molded feed cable with bare tails
Emitters
Dynamic white: 2200K to 5700K
Finish
White
Length
Built to order lengths from 6.56" (166.6mm) to 22.96' (7m). Section points every 3.28" (83.34mm)
Material
UV resistant silicone
Mounting

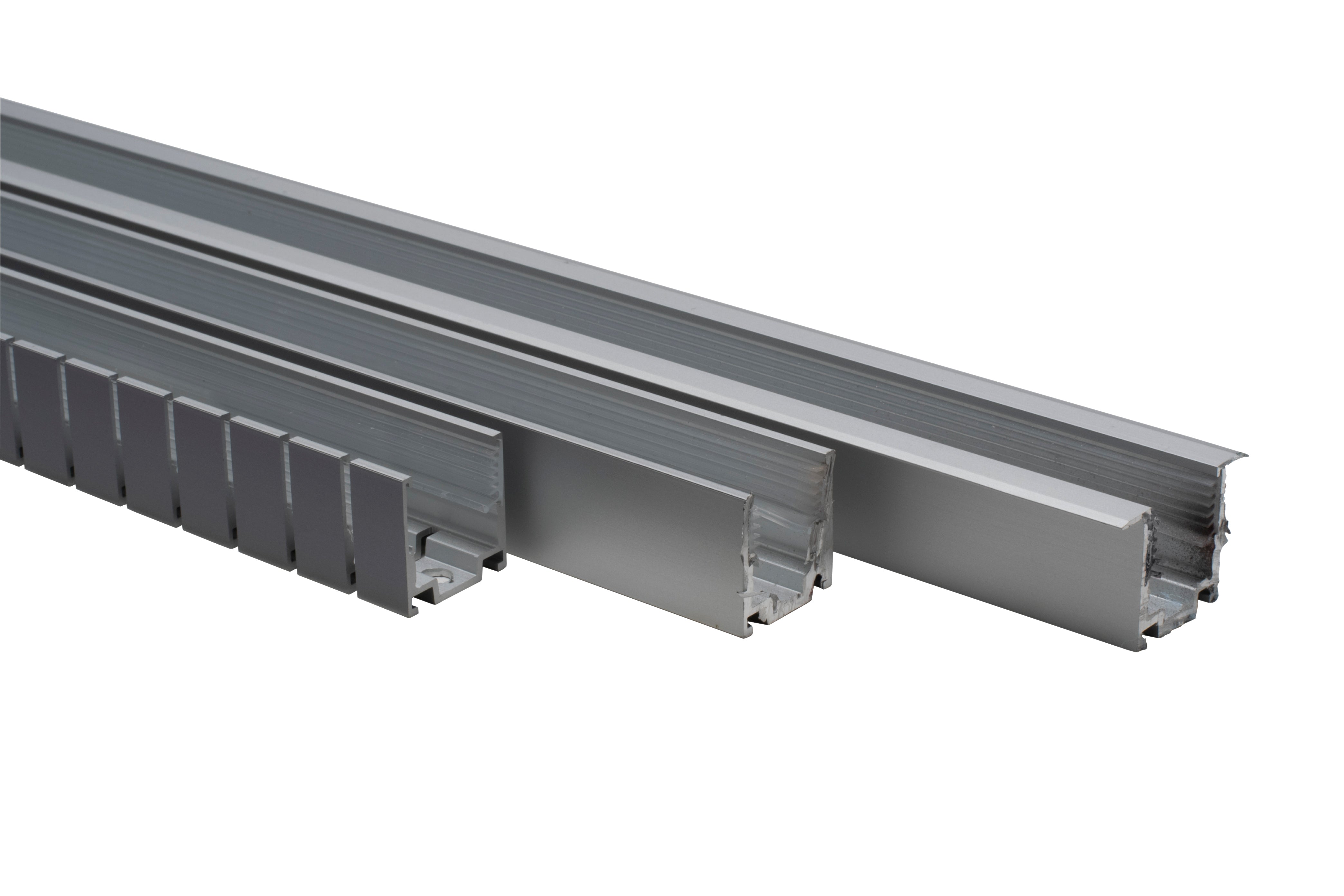

Press-fit aluminum channels in various lengths: 0.78" (20mm), 3.28' (1m) or 6.5' (2m)
Weight
5.73 lbs (2.59 kg) for 7m spool
Ambient Temperature Range
-40° F to 131° F (-40° C to 55° C)
Impact Protection
IK08, protection against 5 joule impact (30cm distance)
Ingress Protection
IP68, wet location, submersible* to 6.56' (2m)
Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applications
Maximum Fixtures In Series
22.96’ (7M)
Minimum Bends
Separate model options with vertical or horizontal bend. Minimum bend radius: 5.9" (150mm)
