Flex Tube Spectrum G2


Specification highlights

Lumens Per Foot
244
Power
4.6W

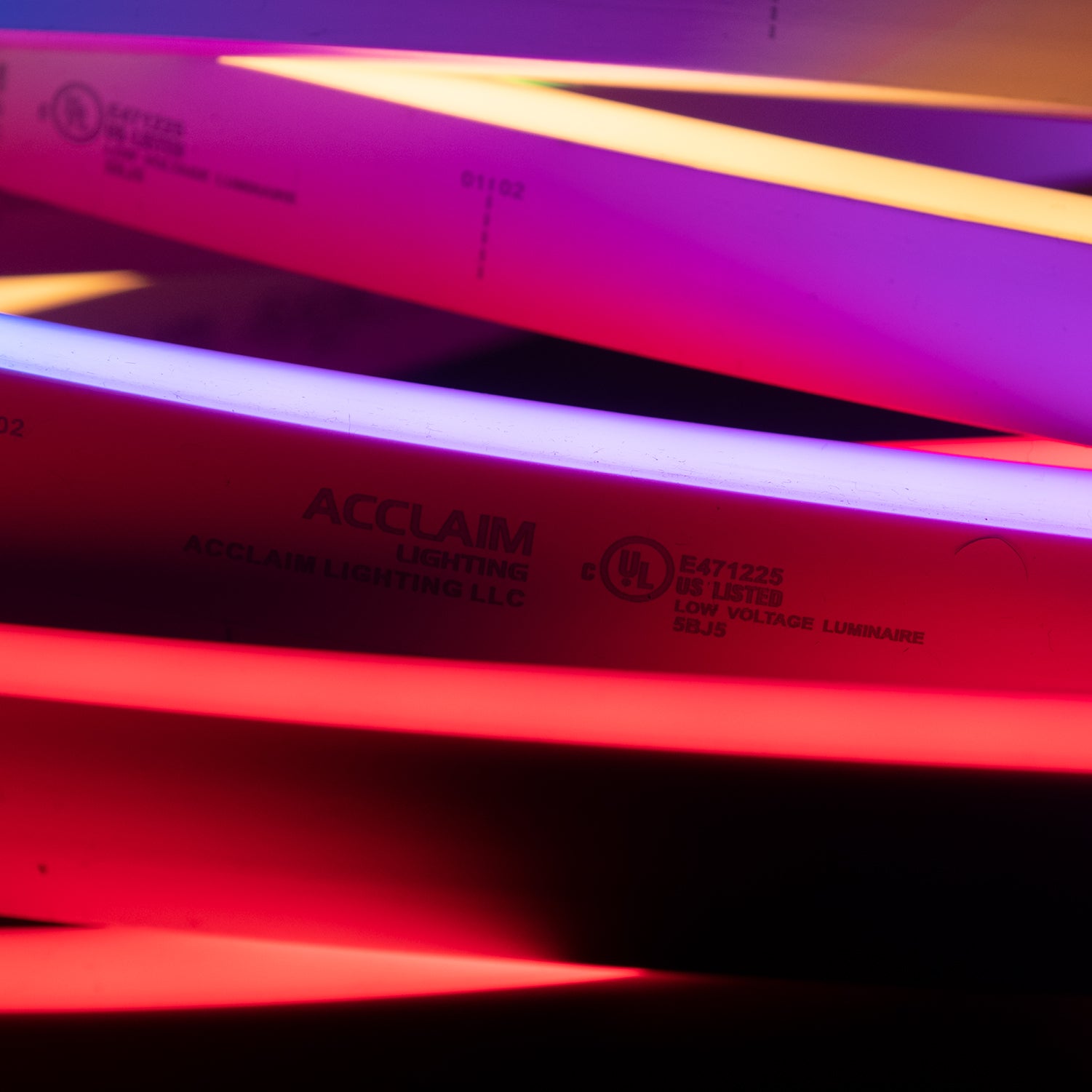

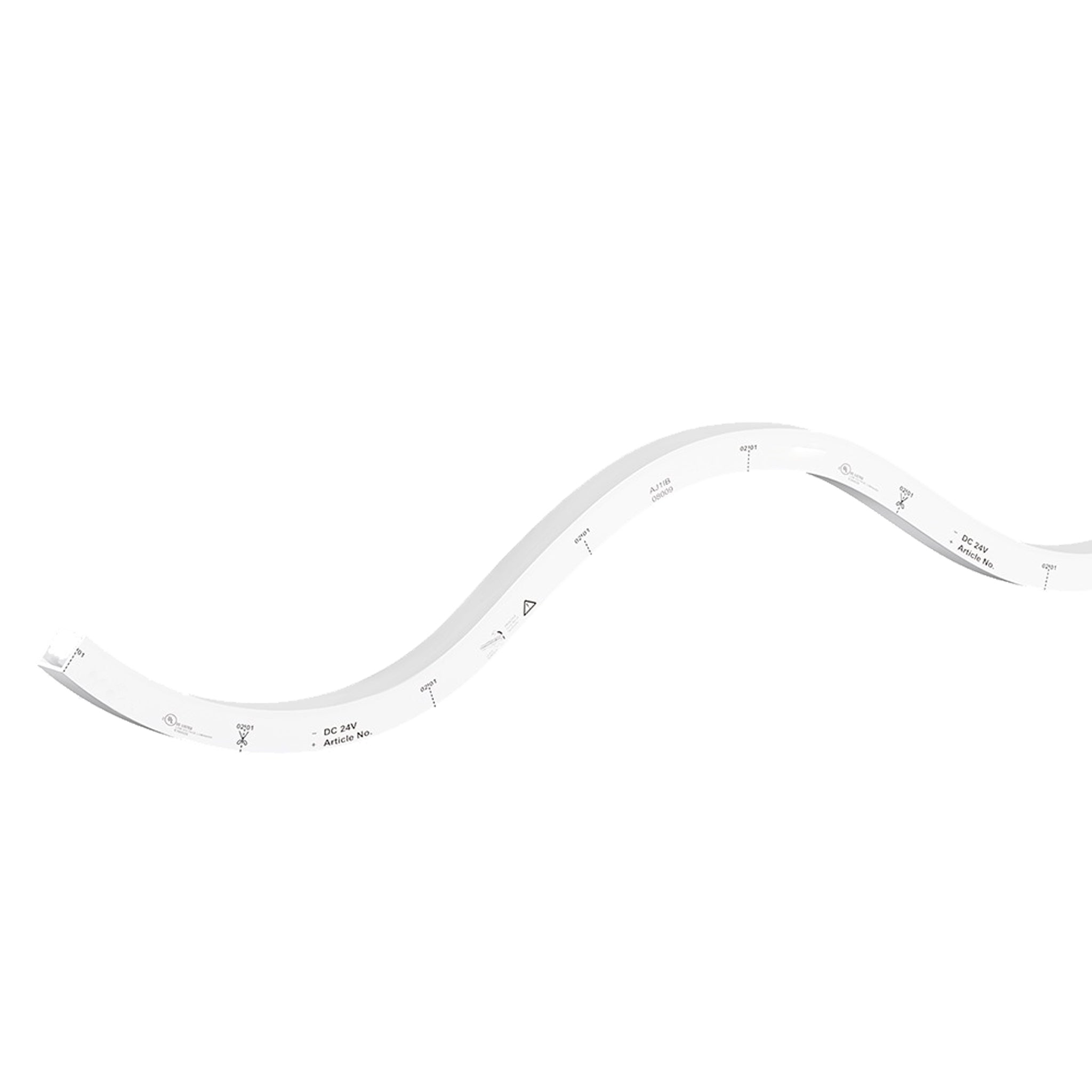

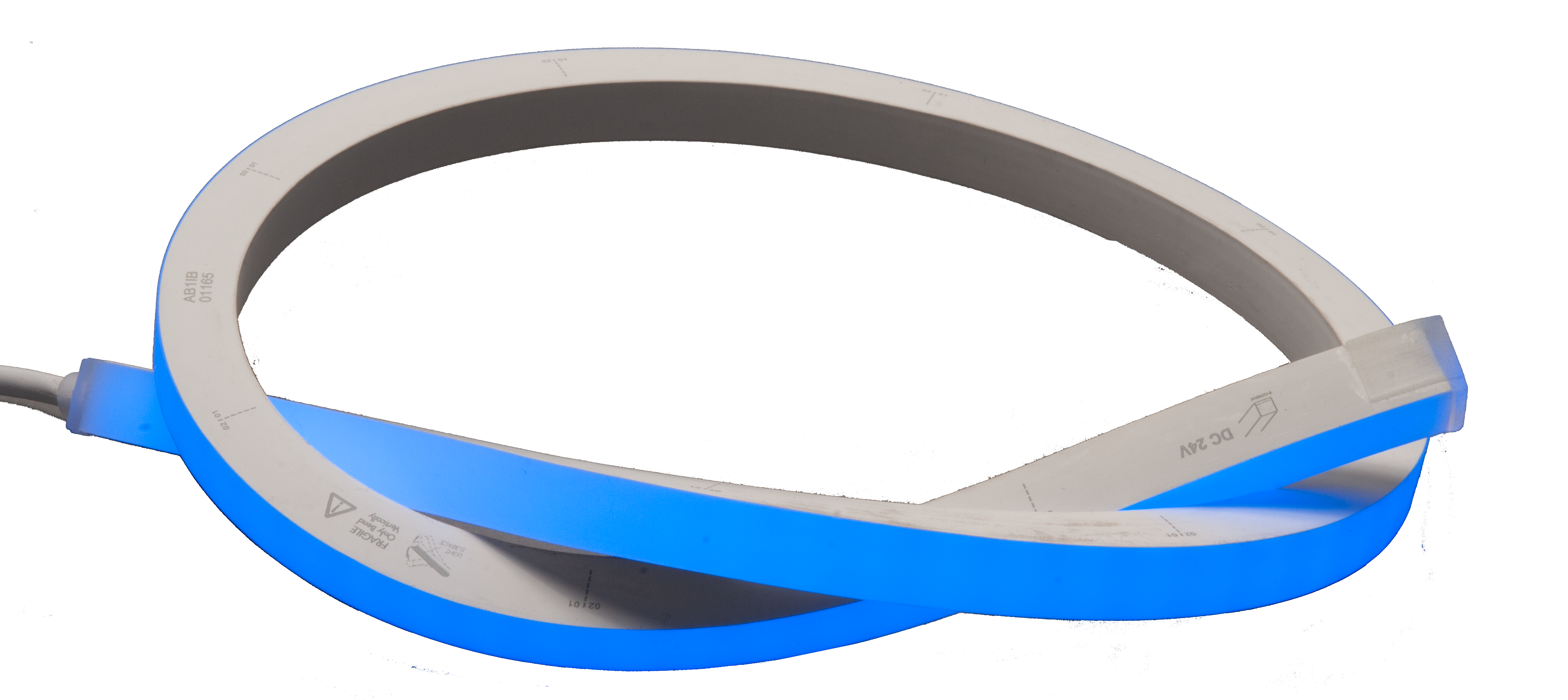

Flex Tube Spectrum is a flexible, direct view, outdoor LED strip. The Quad Spectrum (or QS) version has the ability to create dedicated whites, dynamic white, and color-changing from the same product. It comes in a six-meter spool or custom-built lengths to suit project requirements and features a highly durable second-generation silicone body, which is outdoor rated, high impact resistant, and 3G vibration rated.
SKU: F2H/J-22#-#A#N

Downloads

Filename Document type File type
Flex Tube Spectrum Specification Sheet - March 2025 Specification Sheet PDF
Flex Tube Gen 2 User Guide v3-0b User Guide PDF
Flex Tube Spectrum IES IES Files ZIP
Flex Tube Gen 2 2D Drawings Drawings ZIP

Tech Specs

Certifications
UL, CE, Ctick, 3G, EPD
Operating Voltage
24VDC
Power Consumption
4.6W per foot
Control
Low voltage control via optional AL Driver: DMX (0-100%) or DALI (0-100%)
Lumen Maintenance
L70 50,000 hours (@ 25° C)
Optics
120°
Output
Up to 244 lumens per foot
Connection
16.4' (5m) injection molded feed cable with bare tails
Emitters
QS (Quad RGBW, W=3000K), QW4 (Quad RGBW, W=4000K) or RGBA
Finish
White
Length
Built to order lengths from 6.56" (166.6mm) to 19.6' (6m). Section points every 3.28" (83.34mm)
Material
UV resistant silicone
Mounting

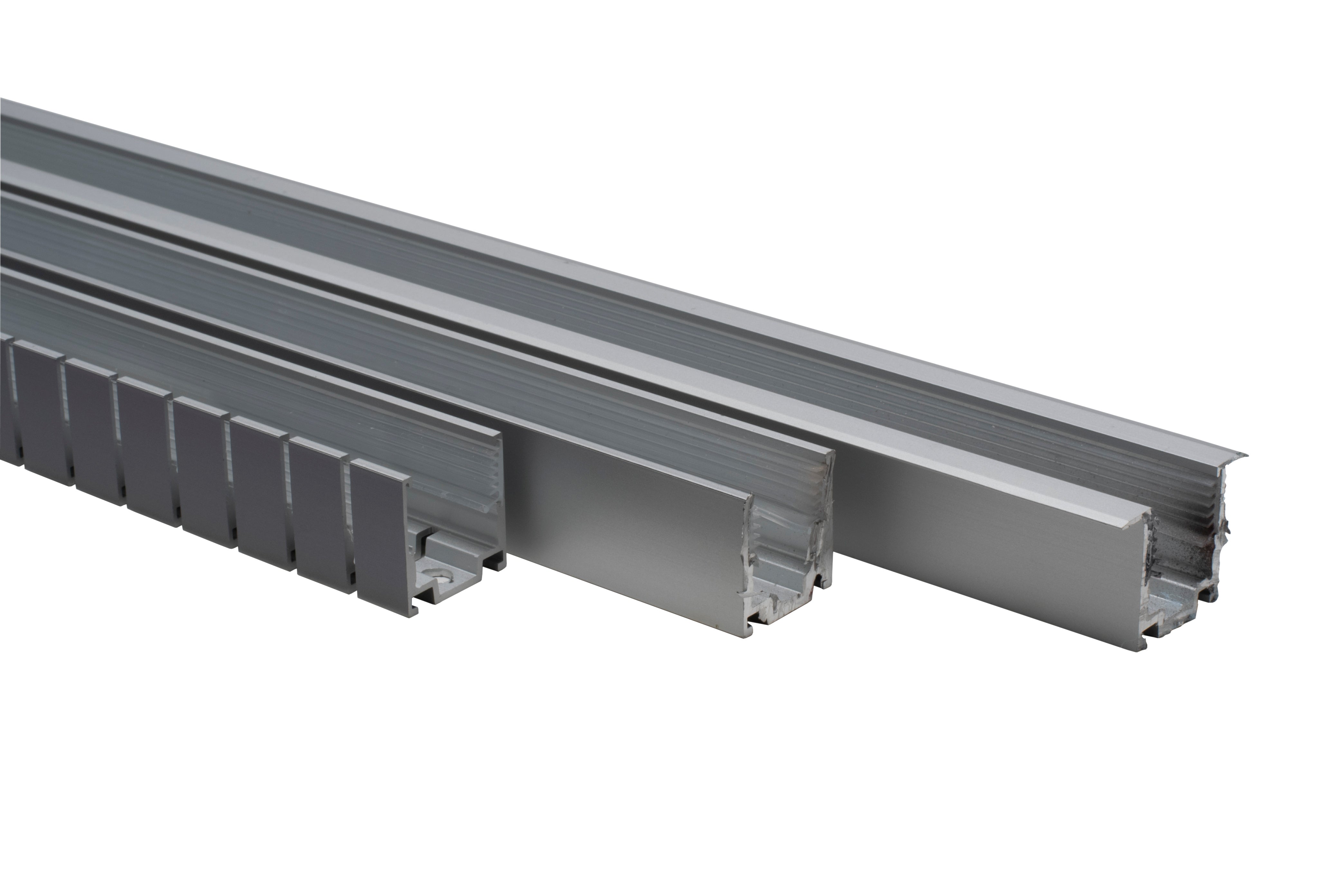

Press-fit aluminum channels in various lengths: 0.78" (20mm), 3.28' (1m) or 6.5' (2m)
Weight
4.3 lbs (1.95 kg) for 6m spool
Ambient Temperature Range
-40° F to 131° F (-40° C to 55° C)
Impact Protection
IK08, protection against 5 joule impact (30cm distance)
Ingress Protection
IP68, wet location, submersible* to 6.56' (2m)
Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applications
Maximum Fixtures In Series
19.6’ (6M)
Minimum Bends
Separate model options with vertical or horizontal bend. Minimum bend radius: 5.9" (150mm)
