Flex Tube HO SC
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens Per Foot
- 515
- Power
- 5.5W
- TM-30
- 86

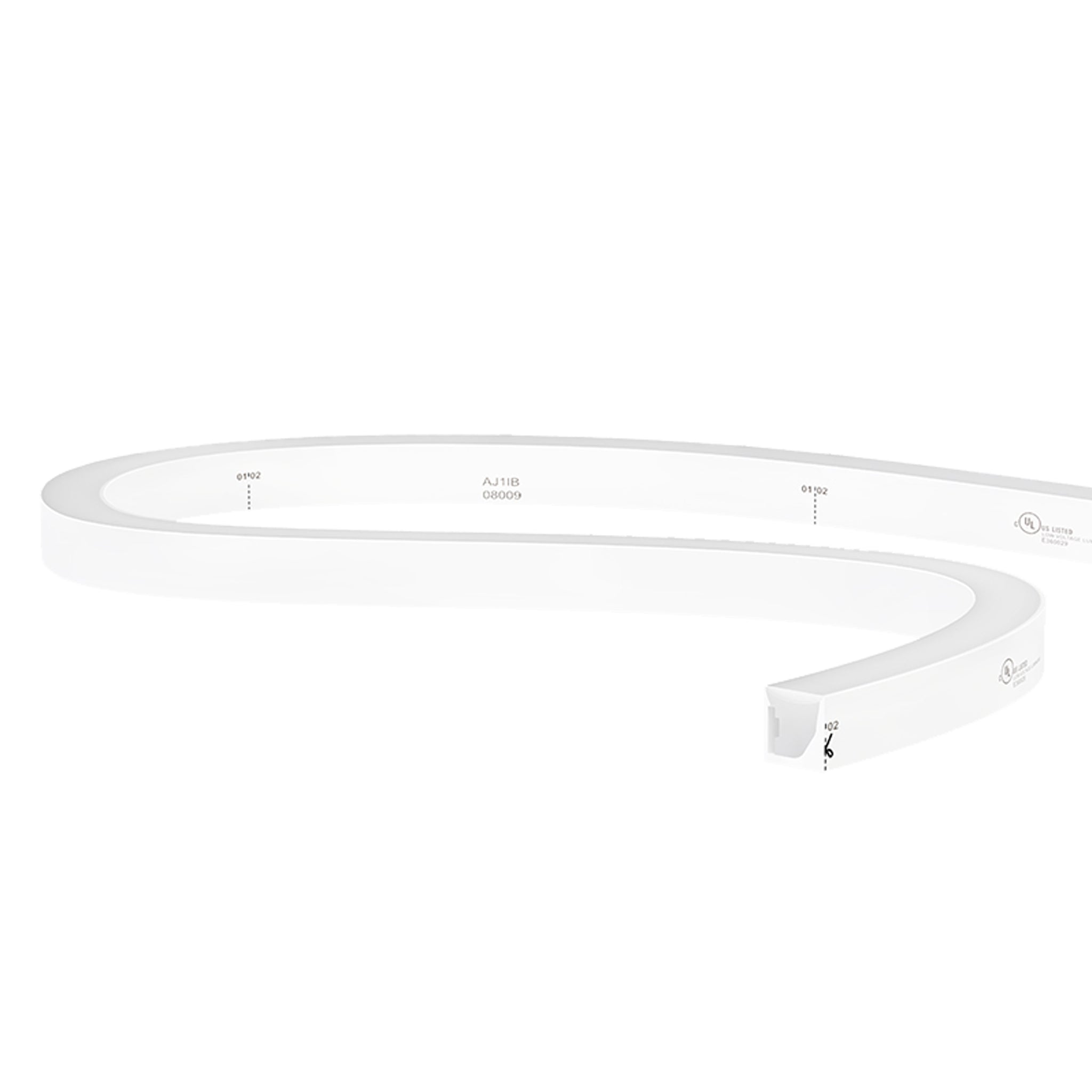

Flex Tube HO sets a new standard for high-output flexible LED products. Delivering enough lumens to replace a traditional high-power cove fixture, it is available in two bend directions and an extensive range of white color temperatures. Its durable silicone housing, IP68, IK10, and 3G certification suit extremely harsh environments, including extreme hot and cold operating temperatures.
Flex Tube HO SC
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Flex Tube HO SC
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Flex Tube HO SC Specification Sheet - March 2025 | Specification Sheet | |
| Flex Tube HO SC User Guide | User Guide | |
| Flex Tube HO SC Revit File | Revit Files | RFA |
| Flex Tube HO IES Sept 2024 | IES Files | ZIP |
| Flex Tube HO Channel 2D | Drawings | ZIP |
Tech Specs
Certifications
UL, CE, Ctick, 3G, RoHS, EPDOperating Voltage
24VDCPower Consumption
5.5W per footControl
Low voltage control via optional AL Driver: DMX (0-100%), DALI (0-100%) or 0-10V (1-100%)Lumen Maintenance
L70 50,000 hours (@ 25° C)Optics
120°Output
Up to 515 lumens per foot (80 CRI)Connection
16.4' (5m) injection molded feed cable with bare tails. Optional IP68 outdoor connectors availableEmitters
2200K, 2700K, 3000K, 3500K, 4000K or 5700KFinish
WhiteLength
Built to order lengths from 6.57" (167mm) to 16.4' (5m). Section points every 2.18" (55.56mm)Material
UV, solvent and flame resistant siliconeMounting

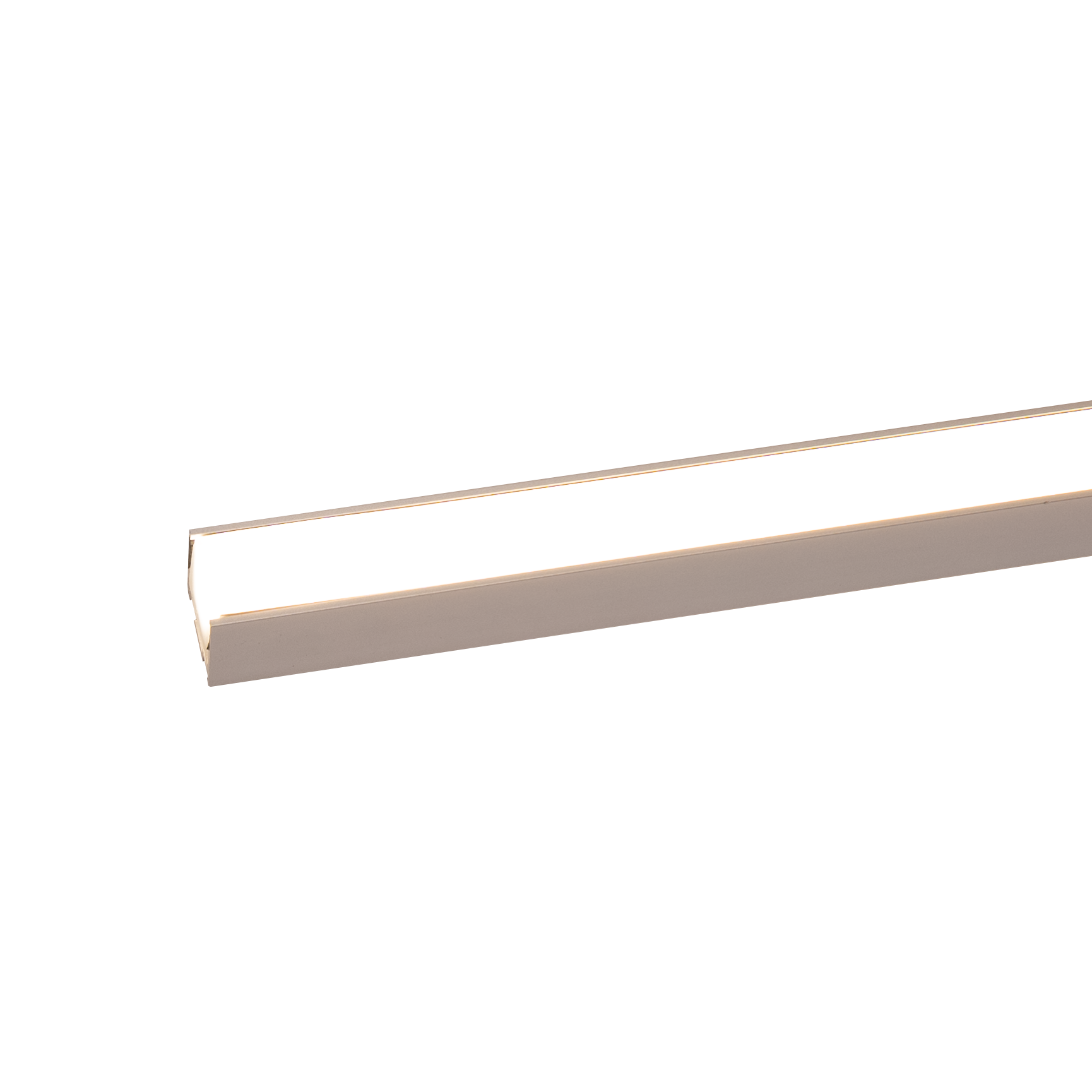

Press-fit aluminum channels in various lengths: 0.78" (20mm), 3.28' (1m) or 6.5' (2m)Weight
5.5 lbs (2.5 kg) for 5m spoolAmbient Temperature Range
-40° F to 131° F (-40° C to 55° C)Impact Protection
IK10, protection against 20 joule impact (40cm distance)Ingress Protection
IP68, wet location, submersible* to 6.56' (2m)Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applicationsMaximum Fixtures In Series
16.4' (5M)Minimum Bends

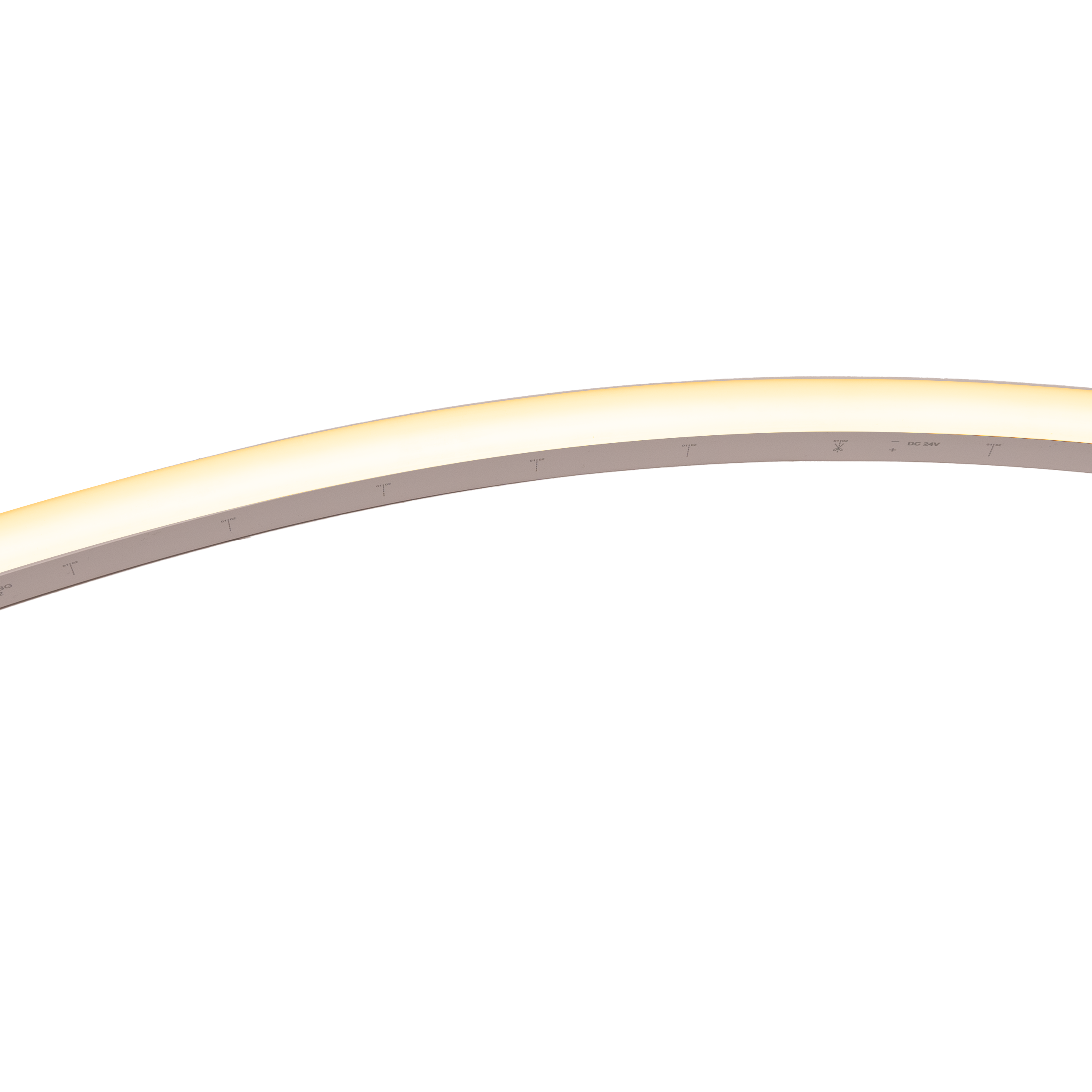

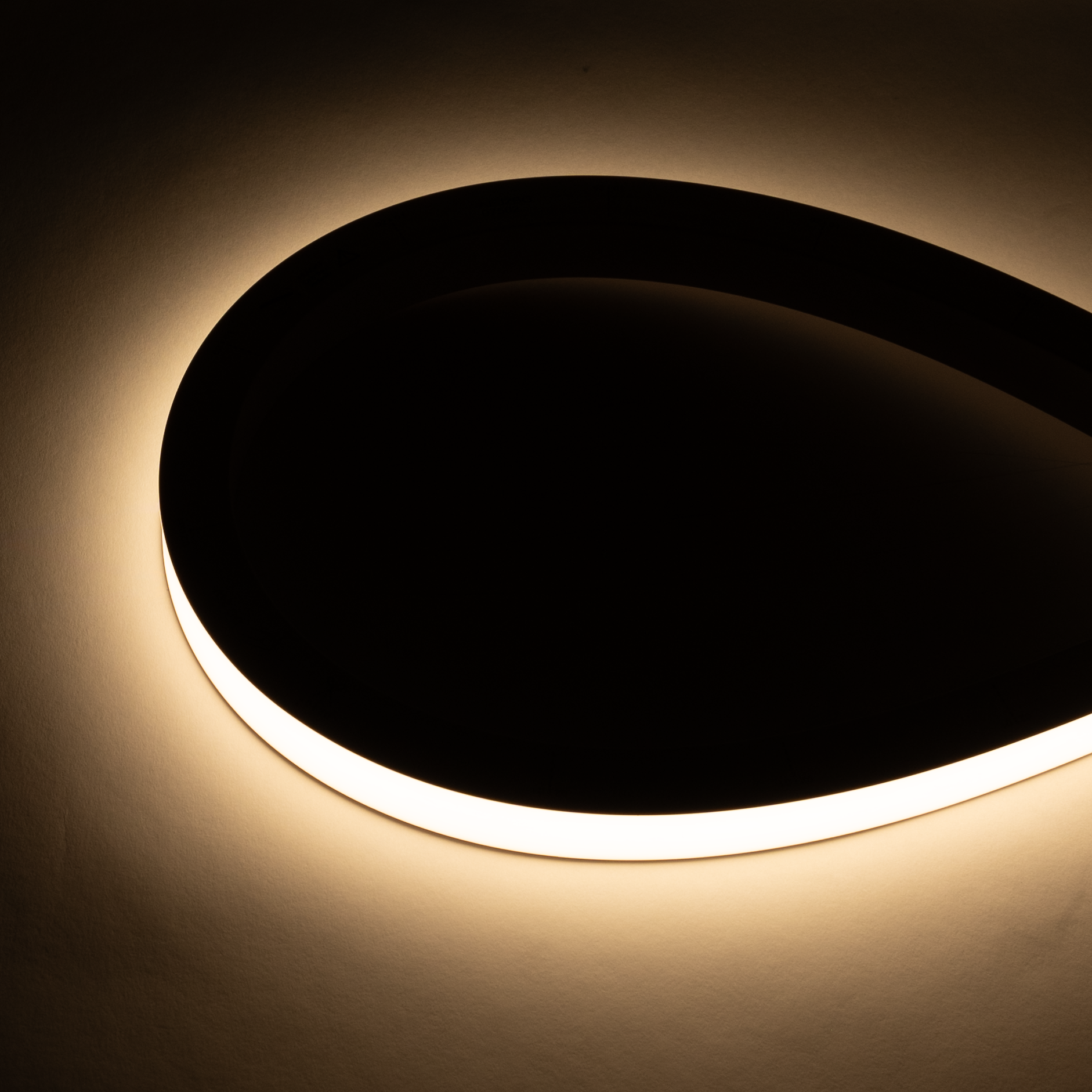

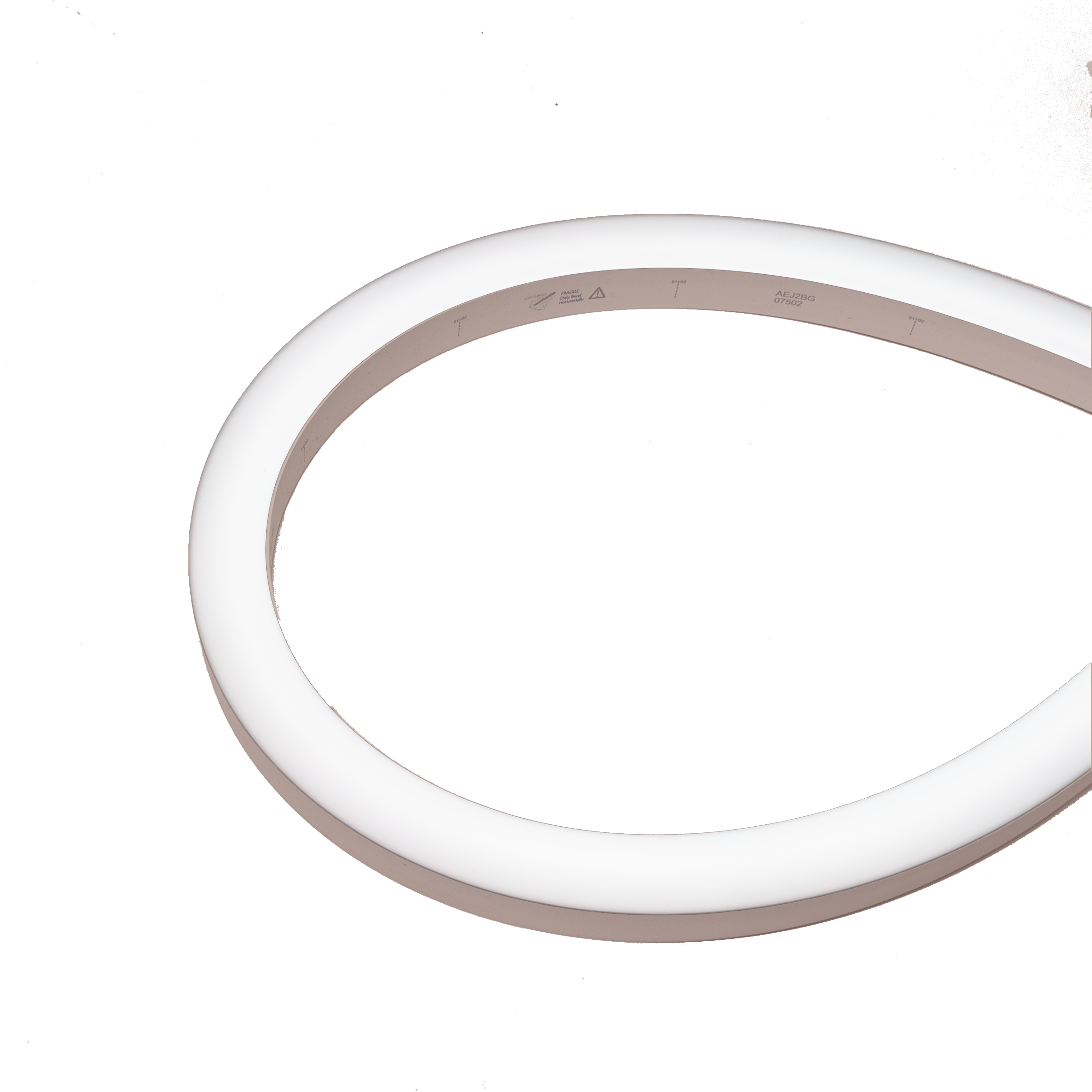

Separate model options with vertical or horizontal bend. Minimum bend radius: 15.74" (400mm)
