Flex Tube Pixel G2
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens Per Foot
- 287
- Power
- 6.7W

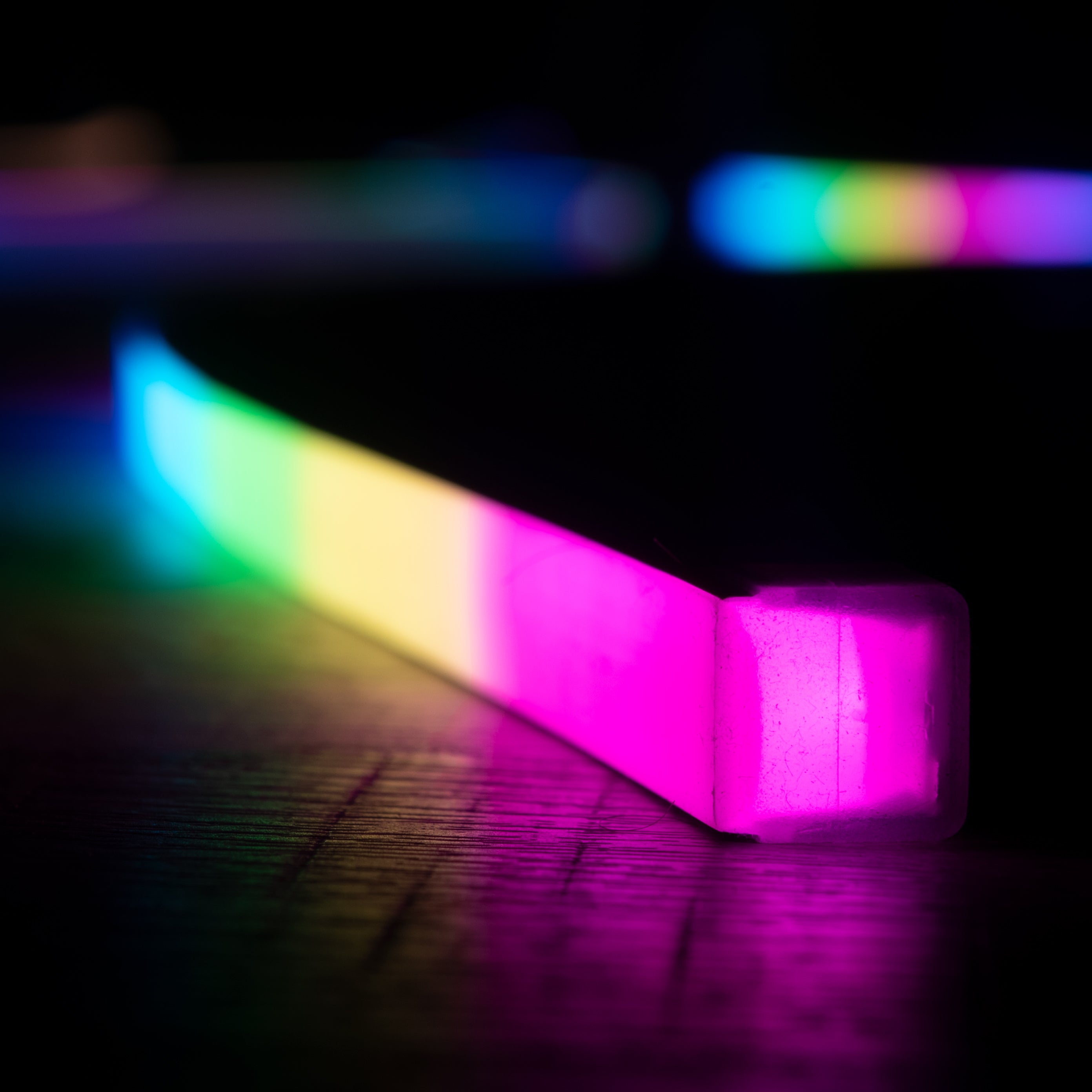

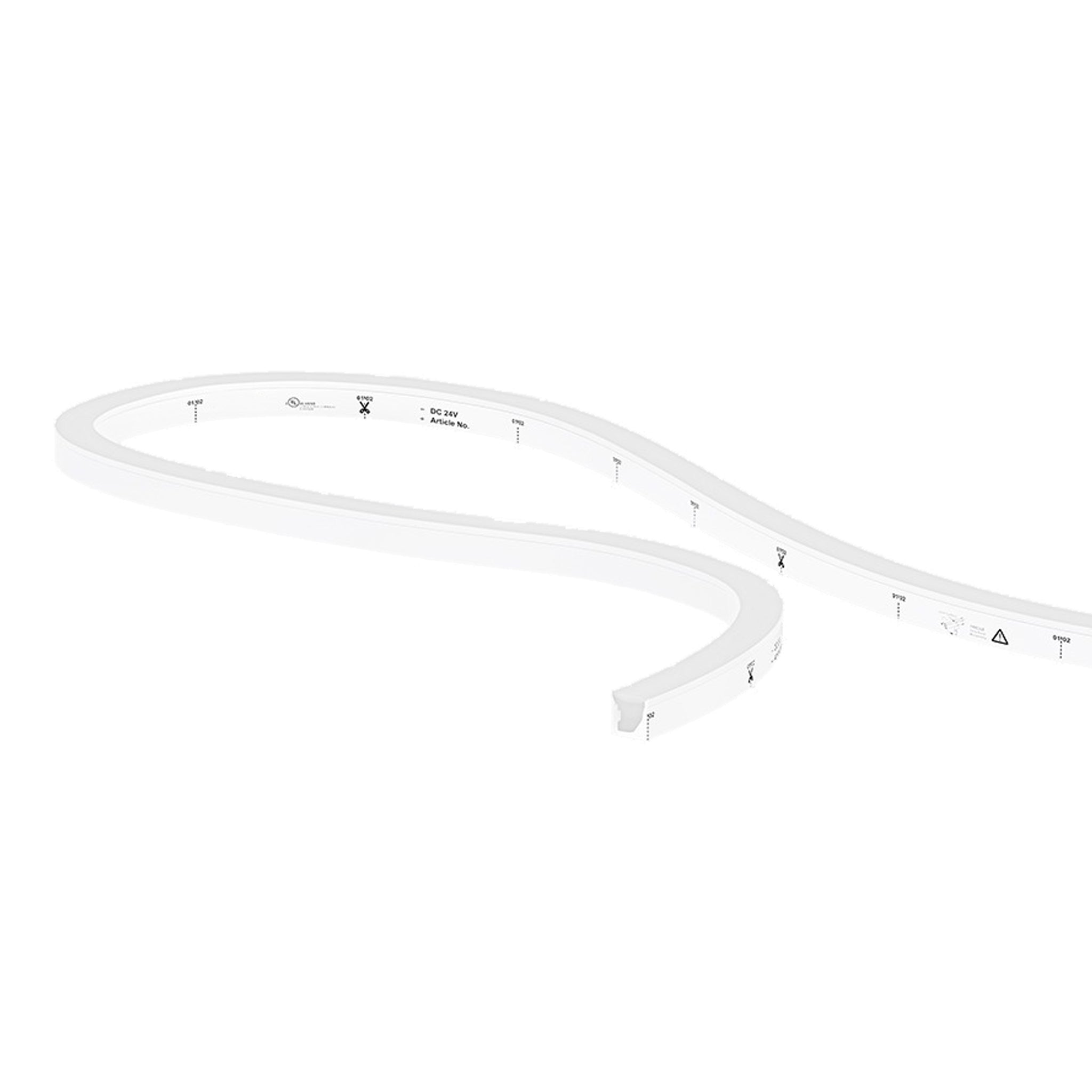

Flex Tube Pixel is a flexible, direct view LED strip, that features individual control of every 3.28” (83.34mm) section. It comes in a 5M spool or custom-built lengths to suit project requirements and features a highly durable second-generation silicone body, which is outdoor rated, high impact resistant, and 3G vibration rated.
Flex Tube Pixel G2
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Flex Tube Pixel G2
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Flex Tube Pixel G2 Specification Sheet - March 2025 | Specification Sheet | |
| Flex Tube G2 User Guide | User Guide | |
| Flex Tube Pixel G2 IES Files | IES Files | ZIP |
| Flex Tube Gen 2 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
UL, CE, Ctick, 3G, EPDOperating Voltage
24VDCPower Consumption
6.7W per footControl
0-100% dimming via DMX, 3 or 4 channels per 3.28" pixel, 180 or 240 channels per 16.4' (5m)Segments/Pixels
Pixel distance of 3.28" (83.34mm), 60 RGB or RGBW sections per 16.4' (5m)Lumen Maintenance
L70 50,000 hours (@ 25° C)Optics
120°Output
Up to 287 lumens per footConnection
16.4' (5m) injection molded feed cable with bare tailsEmitters
RGB, QS (Quad RGBW, W=3000K) or QW4 (Quad RGBW, W=4000K)Finish
WhiteLength
Built to order lengths up to 16.4' (5m)Material
UV resistant siliconeMounting
Press-fit aluminum channels in various lengths: 0.78" (20mm), 3.28' (1m) or 6.5' (2m)Weight
3.57 lbs (1.62 kg) for 5m spoolAmbient Temperature Range
-40° F to 131° F (-40° C to 55° C)Impact Protection
IK08, protection against 5 joule impact (30cm distance)Ingress Protection
IP68, wet location, submersible* to 6.56' (2m)Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applicationsMaximum Fixtures In Series
16.4' (5M)Minimum Bends
Separate model options with vertical or horizontal bend. Minimum bend radius: 5.9" (150mm)
