Pixel Driver 400
Pixel Driver 400
Pixel Driver 400

Pixel Driver 400

Specification highlights

Input Voltage
100-277VAC
Output Power
8A
Output Voltage
24VDC

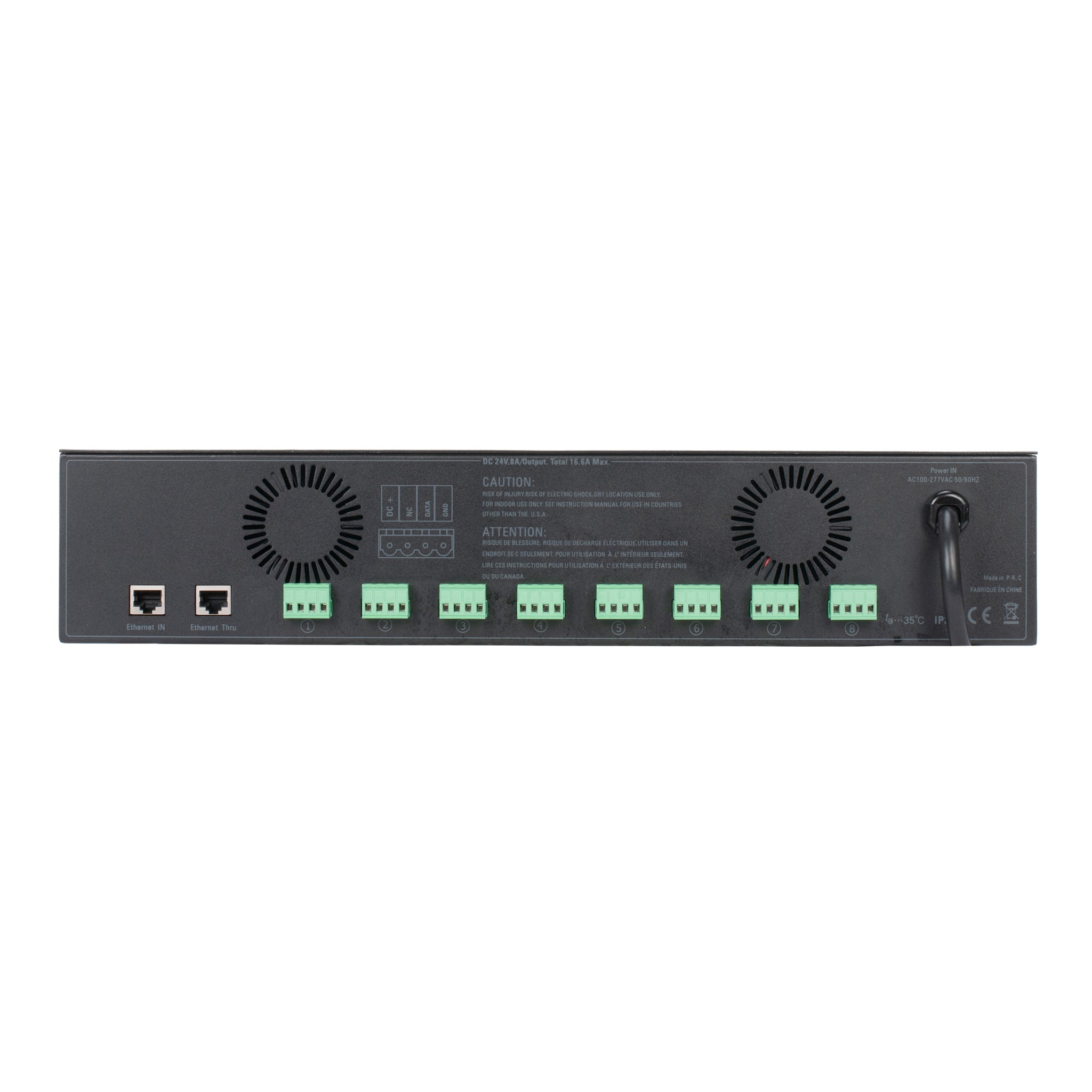

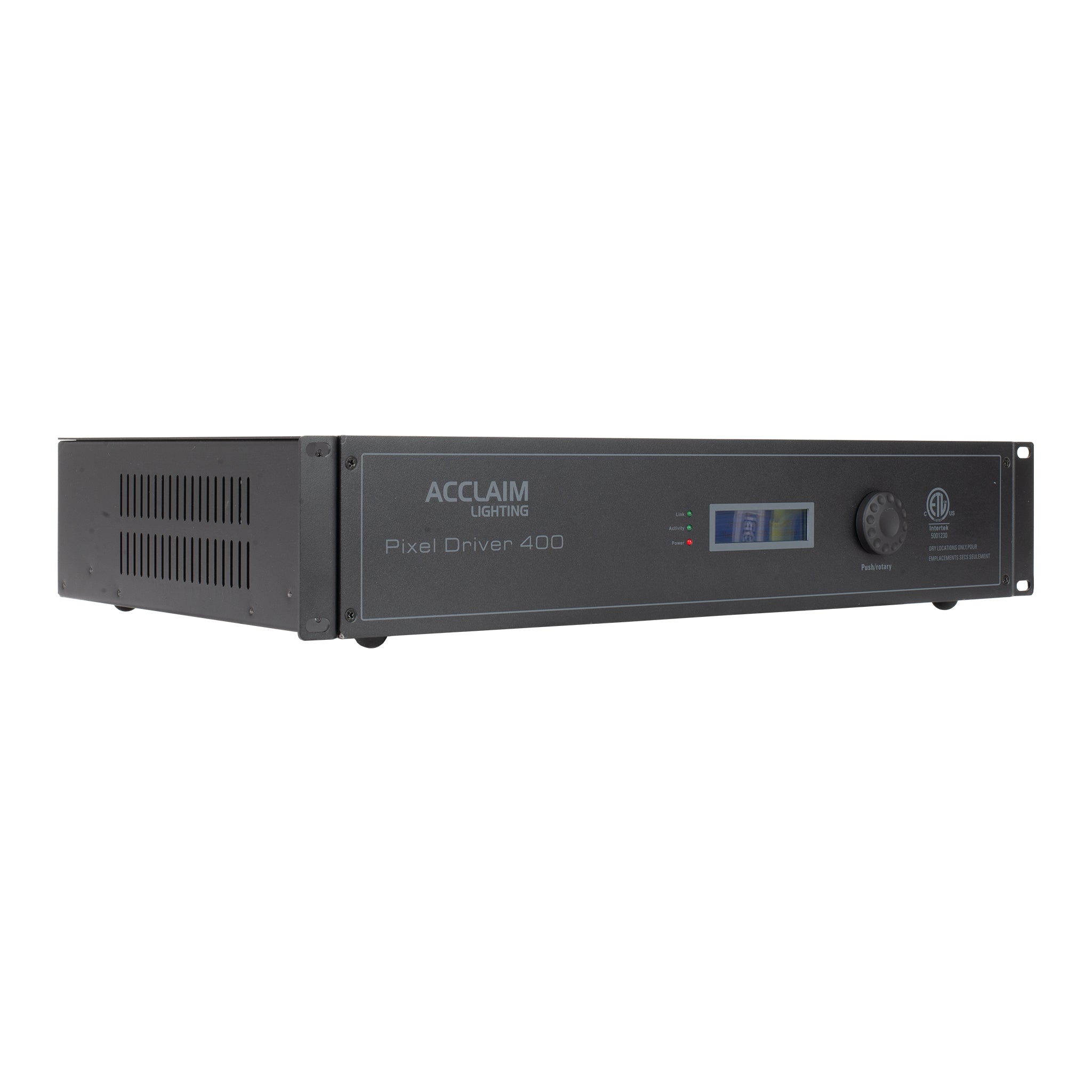

Pixel Driver 400 is an ARTNET to SPI driver designed for Acclaim Flex Tube Pixel products. It has built-in 24VDC power, Artnet input networking, and can directly drive up to two (5m) spools or up to four (4.2m) spools of Flex Tube Pixel.
UPC: 815853025946SKU: PIX400

Downloads

Filename Document type File type
Pixel Driver 400 guide v1-0b User Guide PDF
Pixel Driver 400 ATM Certifications PDF
Pixel Driver 400 2.0.1 Specification Sheet PDF
Pixel Driver 400 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, CE
Operating Voltage
100-277VAC, 50/60Hz
Control
Art-Net via ethernet (up to and including Art-Net III)
Finish
Finished aluminum, black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)
Connectors
Removable multi-pin terminal blocks
Material
Aluminum
Mounting
Removable 2U 19" rackmount ears or desktop with included feet
Weight
12.3 lbs (5.6 kg)
Ambient Temperature Range
14° F to 131° F (-10° C to 55° C)
Impact Protection
IK02, protection against 0.2 joule impact
Ingress Protection
IP20, dry location
