Pharos VLC

DMX Universes: 50-1500
Input Voltage: 100-240VAC

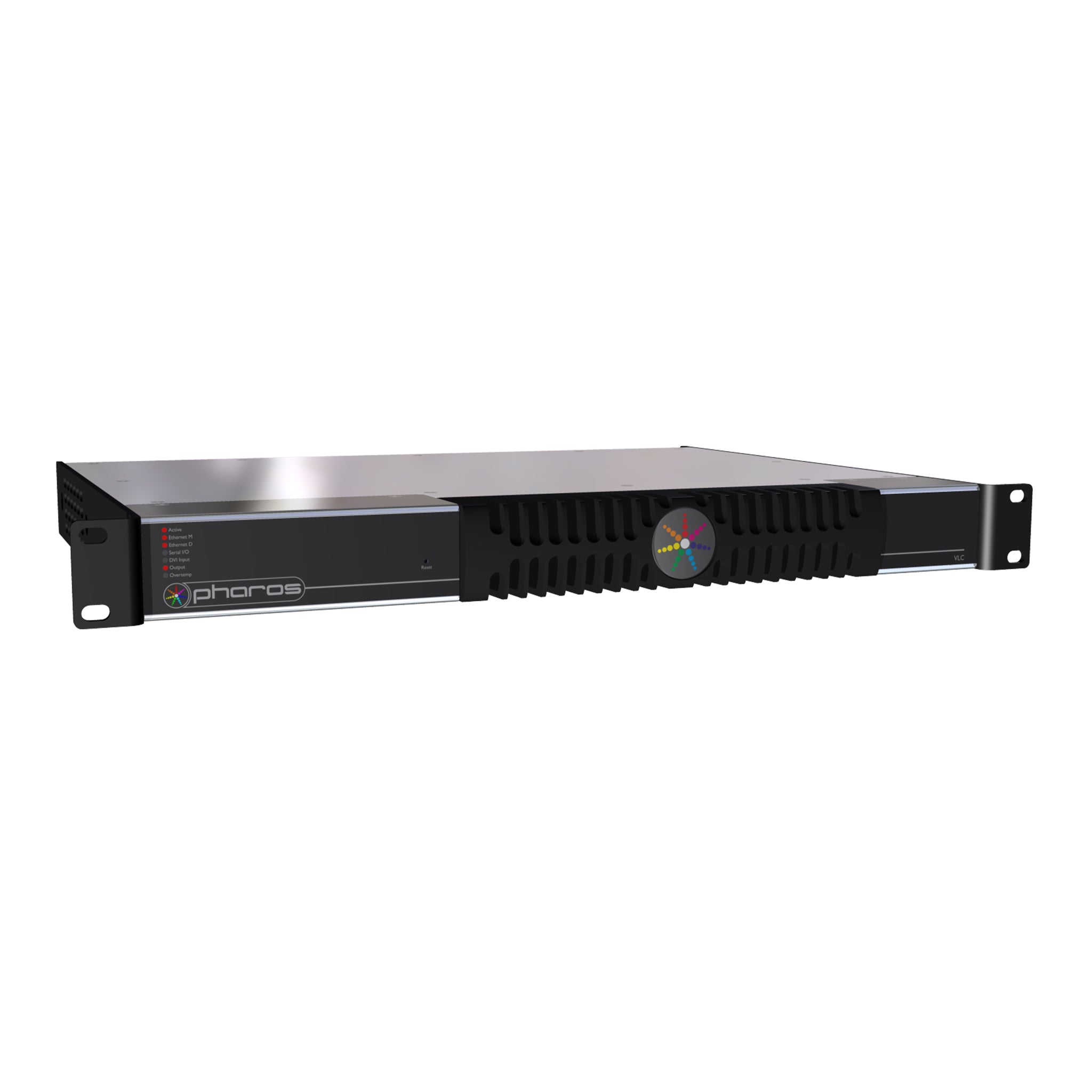

The Pharos VLC (Video Lighting Controller) is an extremely capable and cost effective solution for large LED pixel arrays; such as building façades, bridges, and presentation walls. It makes it simple to play video content across your array, either from locally stored HD media files or a DVI-D video input. It also offers a range of creative, generative effects and the versatility of powerful show control and integration features.

SKU: Pharos VLC

Downloads

Filename	Document type	File type
Pharos VLC Specification Sheet	Specification Sheet	PDF
Pharos Installation Guide	User Guide	PDF
Pharos VLC 2D Drawings	Drawings	DWG

Tech Specs

Certifications

ETL, CE

Operating Voltage

100-240VAC / 50-60HZ / 0.4-0.2A

Art-Net

ArtNet, ArtNet II and ArtNet III (configurable broadcast override)

Astronomical

Sunrise/Sunset/Twilight and Lunar phases

Audio Level

Stereo 30-band spectrum analysis via RIO A

Audio Outputs

Stereo analog & digital audio ports (for future development)

Clock

Battery-backed real-time clock for calendar and time-based

Conditions

Full conditional logic support

Dvi-I Output

DVI-I output for monitoring

Fixture Library

Pharos offers a cloud library with over 13,000 fixture profiles, for

Inputs

Contact closure, active low, active high or 0-24V analog level via

Kinet

KiNET V1 (DMX out) and V2 (Port out); PDS/Data Enabler

Midi

MIDI Notes, SysEx or Timecode via RIO A

Pathport

Pathway Connectivity protocol

Scalable

Supports Pharos Remote Devices | Synchronises with up to 40 Pharos Controllers over network

Scripting

Lua scripting for total flexibility

Serial Data

RS232; configurable port; send/receive free syntax in ASCII, HEX

Timecode

Linear Timecode via RIO A (SMPTE, Film, EBU, NTSC)

USB

Two USB 2.0 Type A ports

Wall Stations

Integrate with BPS or TPS

Web Interface

Built-in or custom designed

Data Storage

Internal 128GB SSD (supplied)

Ethernet

Neutrik etherCon (RJ45 compatible) for 10/100/1000Base-TX | UDP, TCP, Multicast; send/receive any Ethernet message

Ambient Temperature Range

0°C to 50°C (32°F to 122°F)

Ingress Protection

IP40
