Specification highlights

Screen Size
5"
Input Voltage
PoE

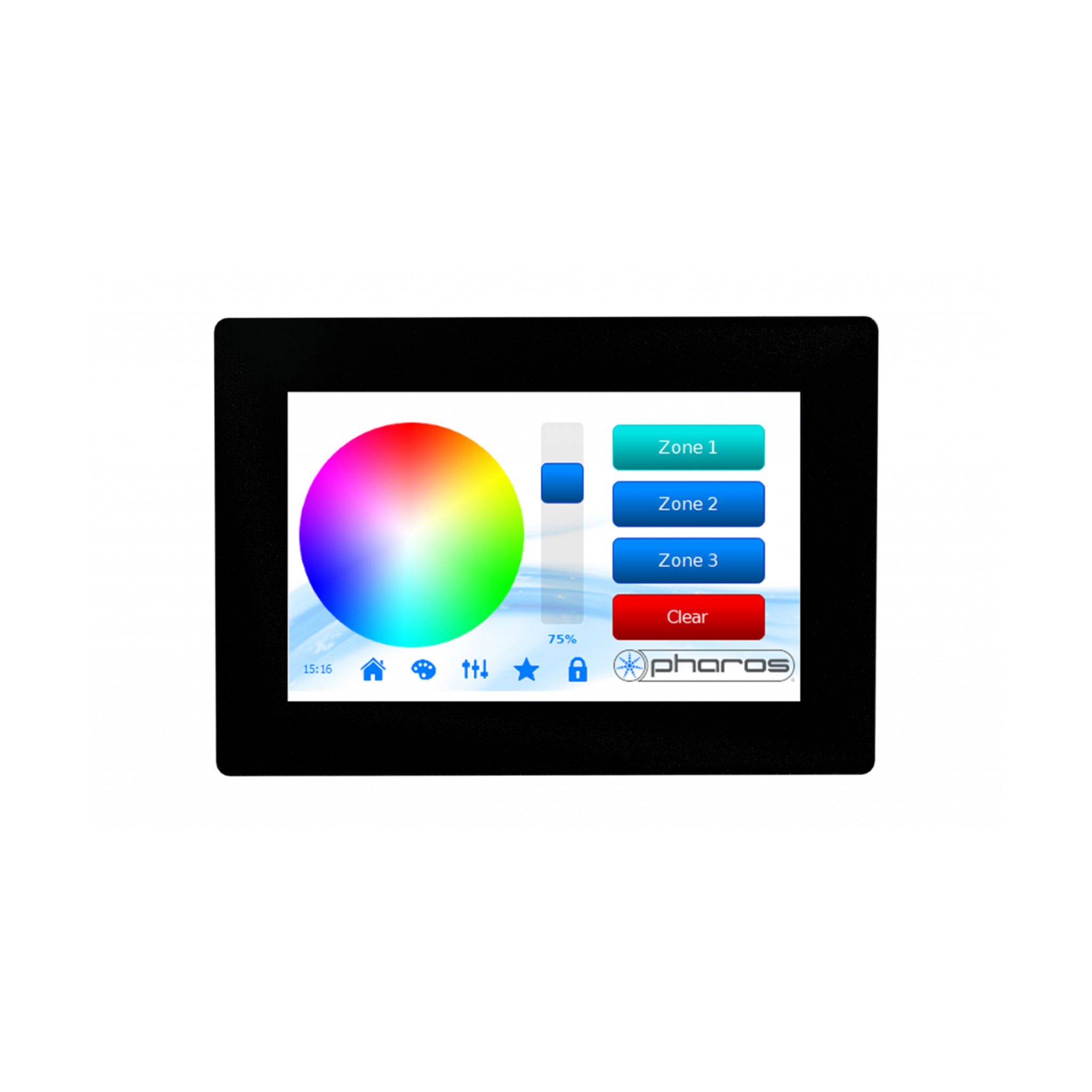

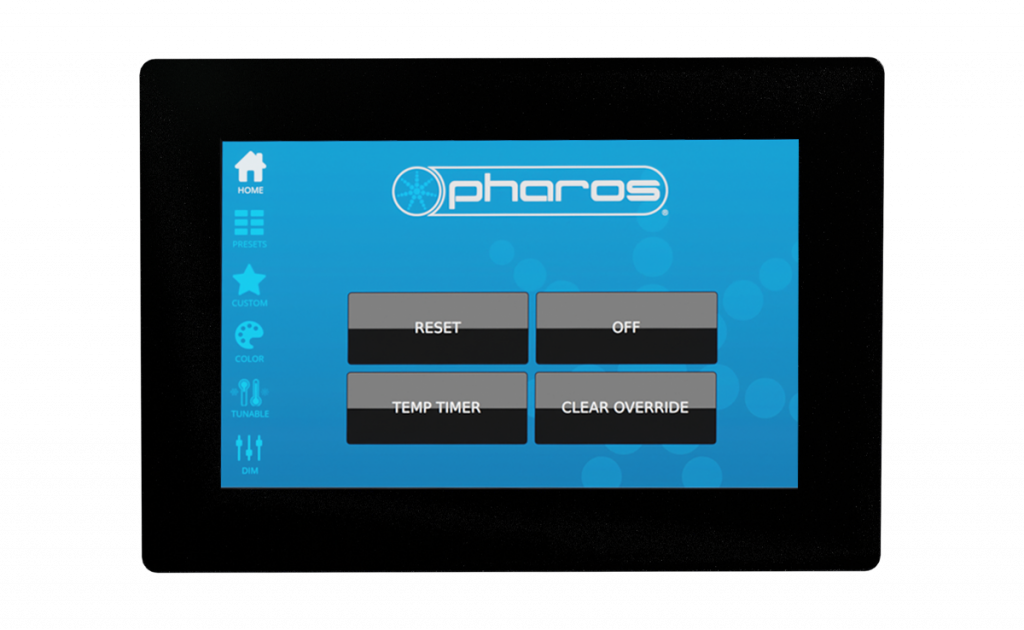

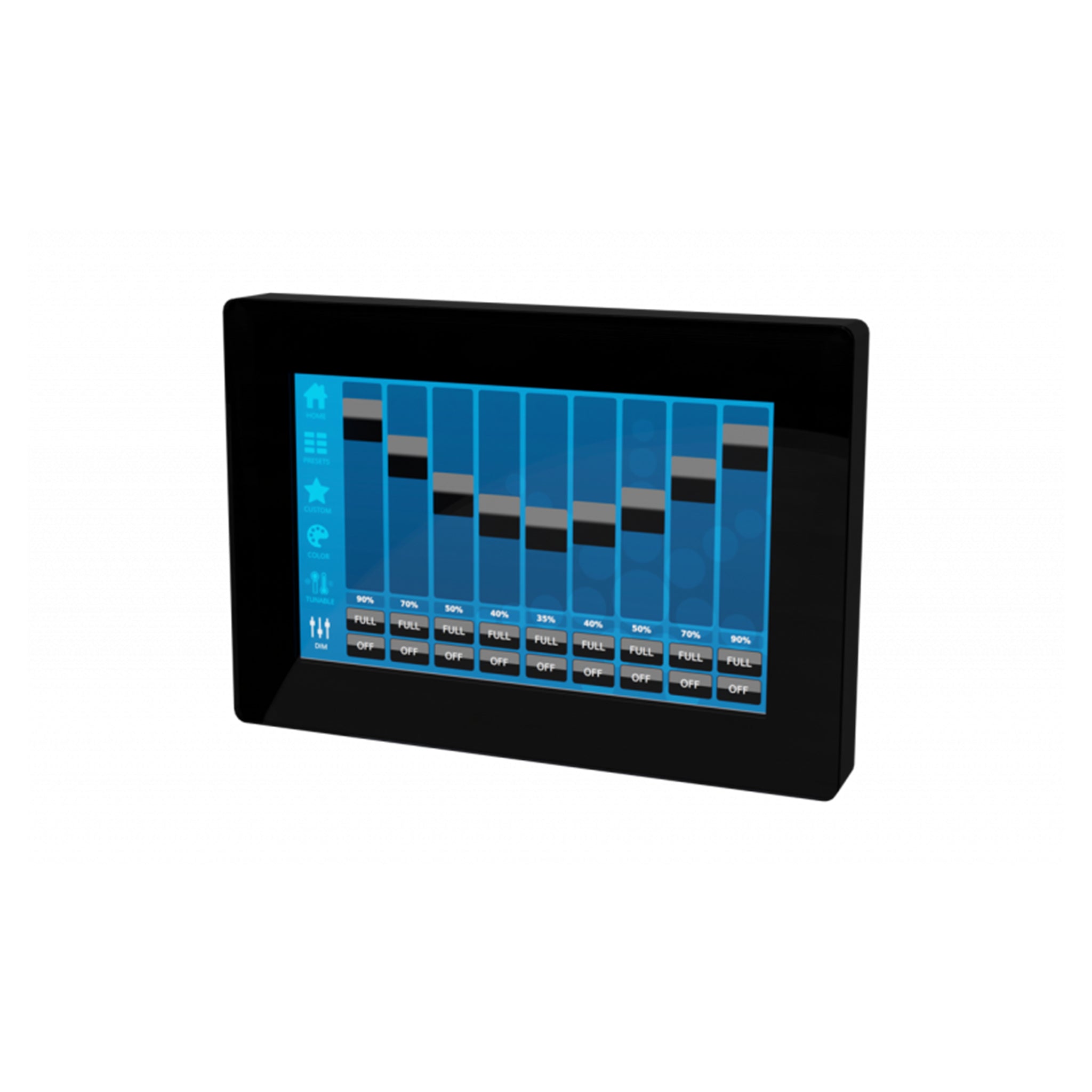

The Pharos TPS 5 (Touch Panel Station 5”) is a new, updated, elegant interface with a customizable, 5” capacitive touch screen, compatible with any Pharos Designer Controller.

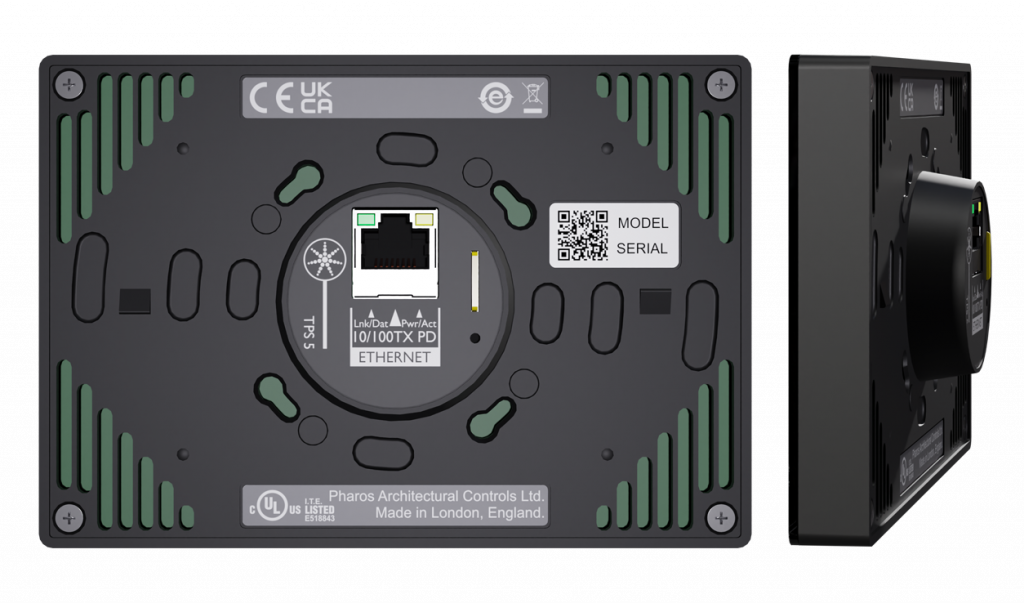

The new front panel is a seamless, uninterrupted glass plate, giving a more elegant touch experience, and with improvements to its core functionality, touch performance, screen resolution, and vastly superior aesthetics. And, with a unique and innovative universal mounting solution, the TPS 5 will be easy to wall mount in your installation, regardless of region.
SKU: Pharos TPS 5

Downloads

Filename Document type File type
Pharos TPS 5 Specification Sheet Specification Sheet PDF

Tech Specs

Certifications
ETL, CE
Operating Voltage
PoE (IEEE802.3af, Class 0) 7W typical
Recovery
Hardware watchdog and recessed reset
Data Storage
Removable MicroSD Card (supplied)
Physical
Wall mounted
Ambient Temperature Range
0°C to 50°C (32°F to 122°F)
Humidity
10-95% relative, non-condensing
Ingress Protection
IP40
Required
Any Pharos Designer Controller
