Pharos Switch
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.

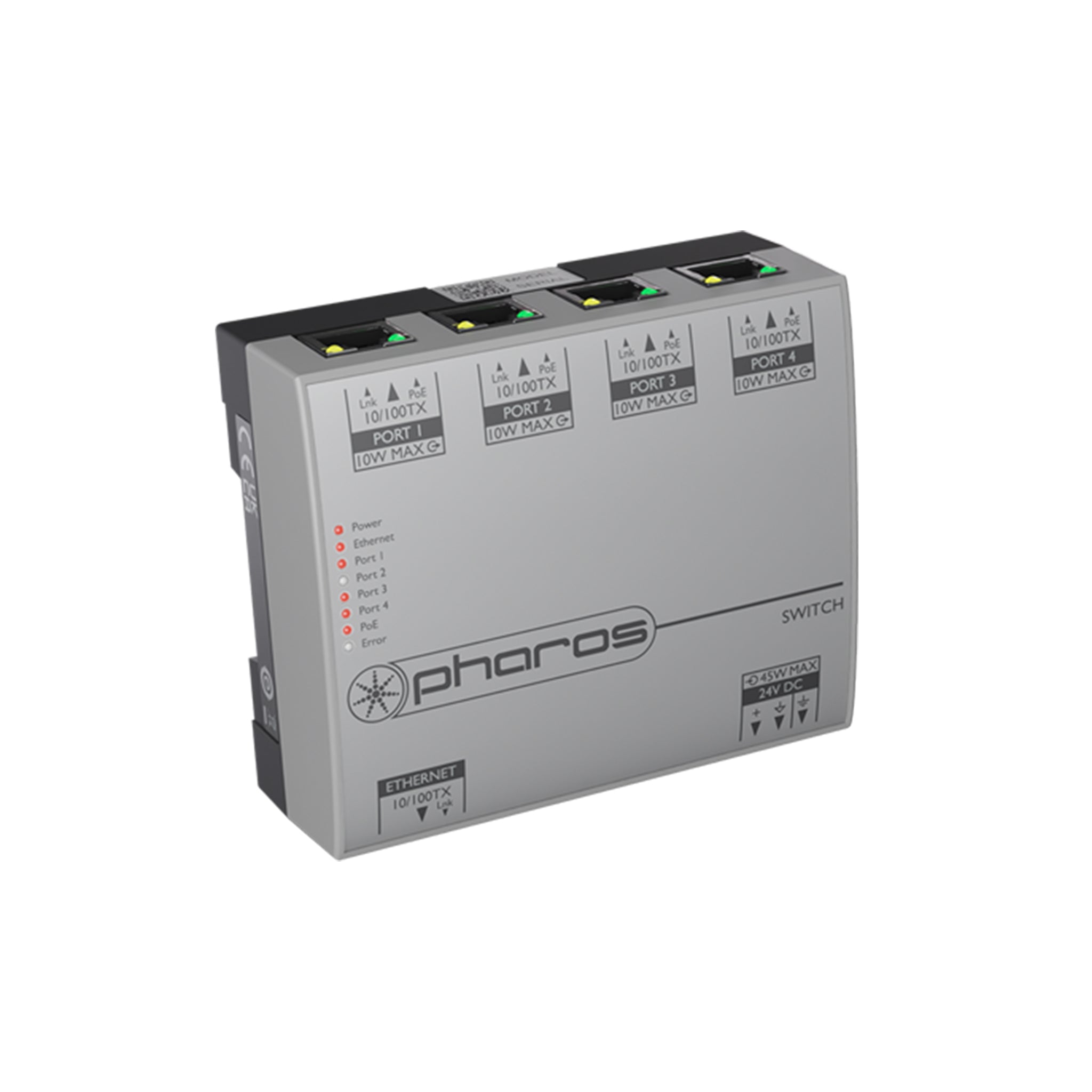

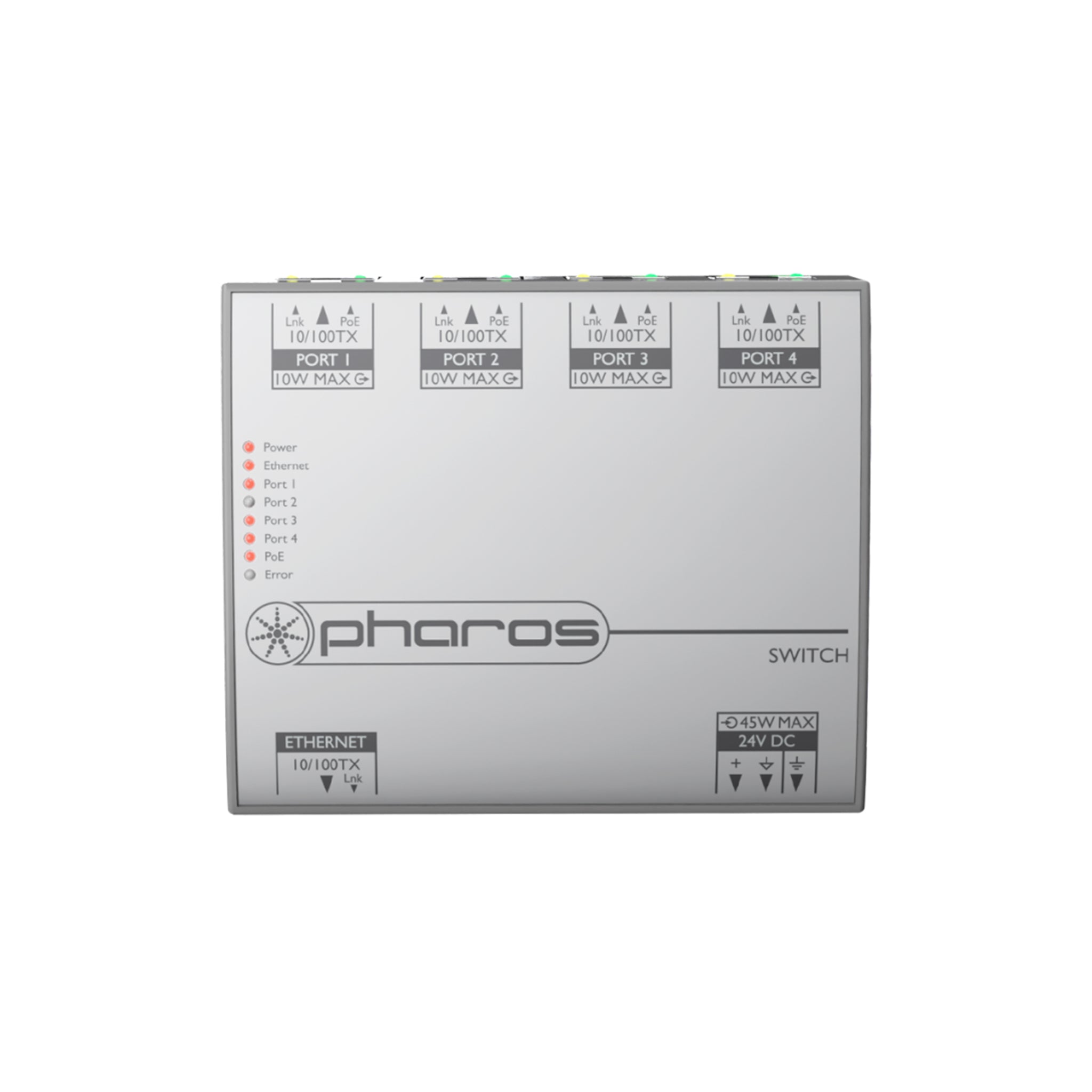

Pharos Switch is a convenient unmanaged Ethernet switch providing simple power and networking solutions for up to four Power-over-Ethernet devices. An elegant and easy solution to connect and power PoE controllers, remote devices and touch devices, with the Ethernet-in non-powered port connecting directly to the programming laptop or joining to a local network. This DIN rail mount PoE network switch only requires a 24V DC power supply. Compatible with Pharos Designer and Pharos Expert systems.
Pharos Switch
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| Pharos Switch Specification Sheet |
Tech Specs
Certifications
UL, CE, UKCAOperating Voltage
24VDCPower Consumption
45W maximumPhysical
6 unit wide DIN rail mounting enclosure (35/7.5 rail)Ports
Four RJ45 sockets for 10/100Base-TX Ethernet with PoE (10W max on each port)Weight
0.9 lbs (0.4 kg)Ambient Temperature Range
0°C to 50°C (32°F to 122°F)Ingress Protection
IP40Compatibility
Pharos Expert and Pharos Designer controllers
