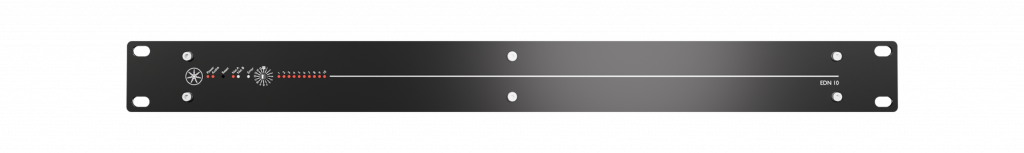

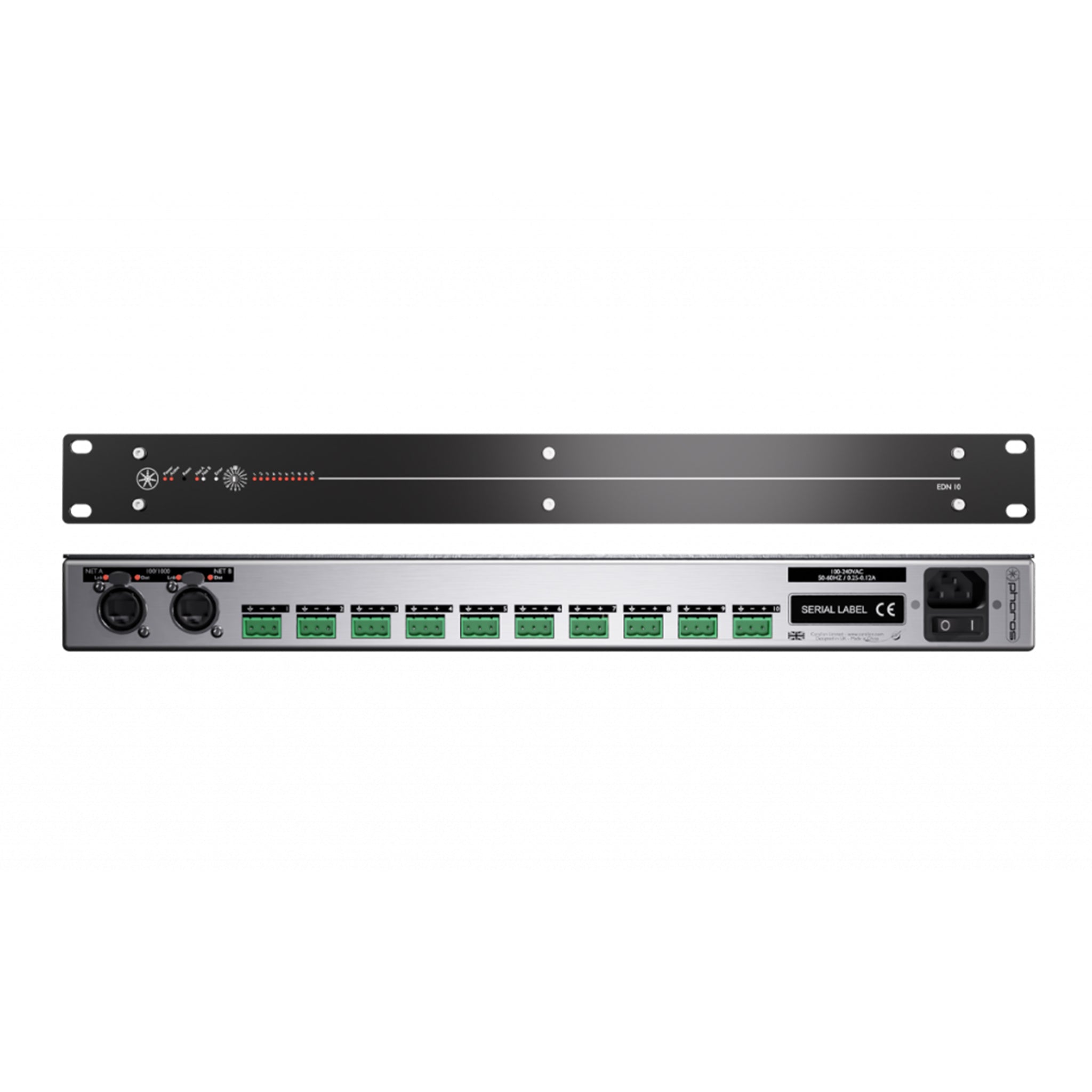

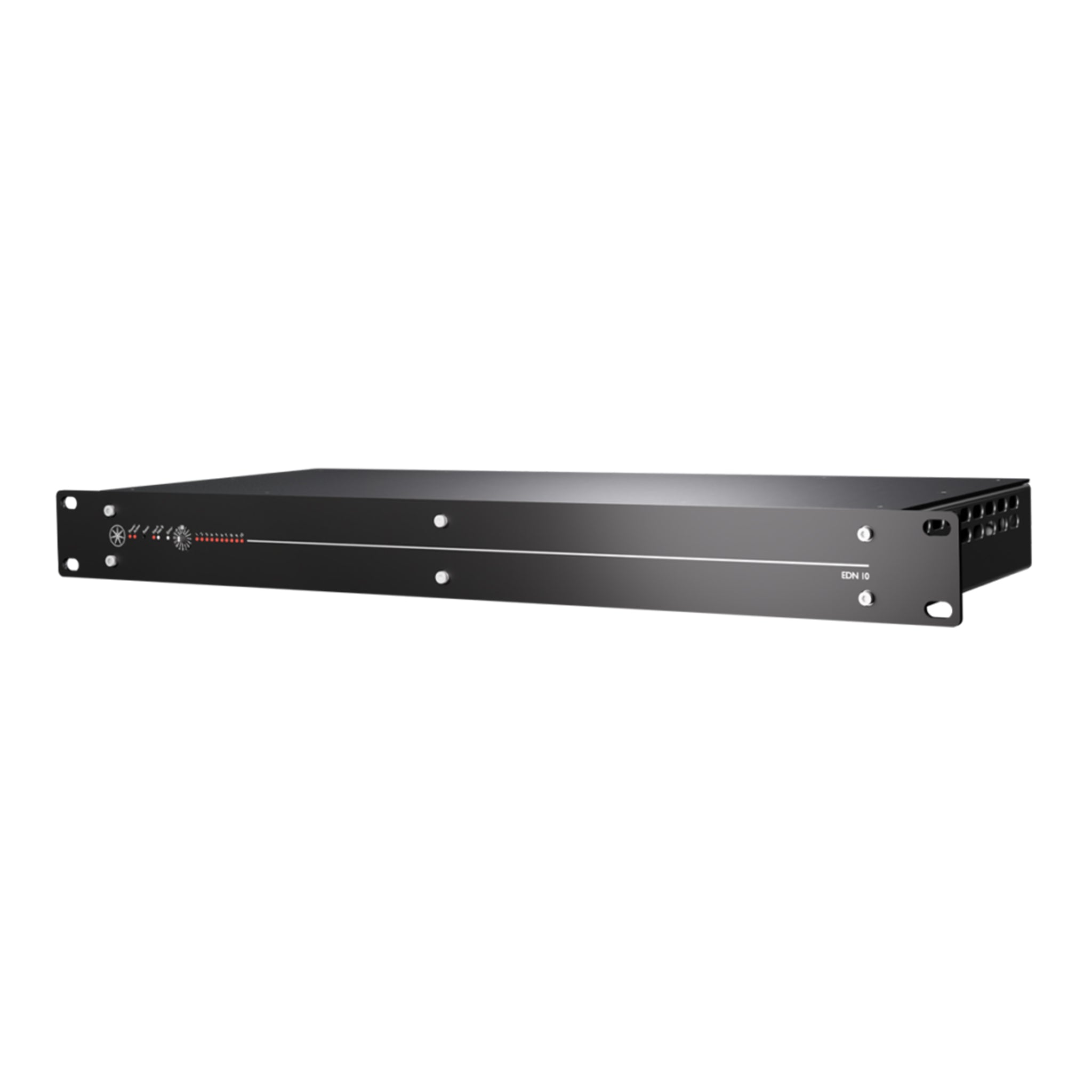

The Pharos EDN (Ethernet Data Node) is a convenient and scalable solution, providing cost-effective Ethernet-distributed DMX ports for large control projects. The EDN is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos Designer Controllers and integrates natively with the full Pharos Designer range. It can also control low-voltage SPI products such as Acclaim's Flex Tube Pixel by adding optional SPI nodes.
Pharos EDN Series
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| Pharos_Designer_EDN_Datasheet | Specification Sheet | |
| 40xx - EDN and EDN - SPI wiring examples (all) | Drawings |
Tech Specs
Certifications
ETL, CE, UKCAOperating Voltage
100-240V AC, 50-60HzPower Consumption
25W typical (30W maximum)Surge Protection
Self-healing ports can withstand continuous AC voltage up to 300V or peak impulse voltage up to 650V with duration less than 10msDMX Input
via Pharos system eDMXDMX Output
10 or 20 DMX512 output ports to control your fixturesInputs
Two Neutrik etherCON (RJ45 compatible) for 100†/1000 Base-TX Ethernet with Link/Data LEDsRDM
Supports discovery and addressing via Designer SoftwareRecovery
Hardware watchdog and recessed reset buttonSegments/Pixels
add SPI control with optional SDI unitsSerial Data
add SPI pixel control with optional SDI units
