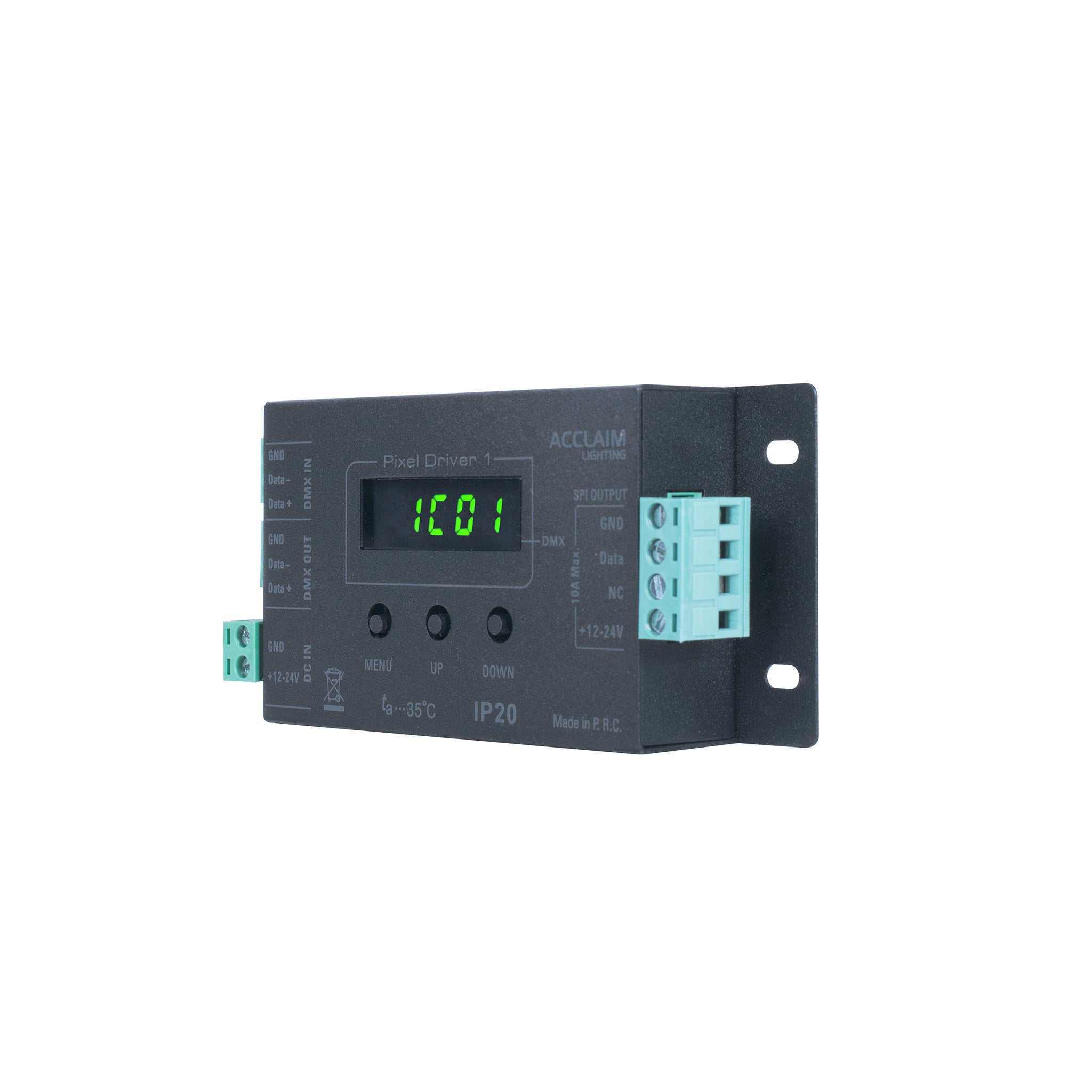

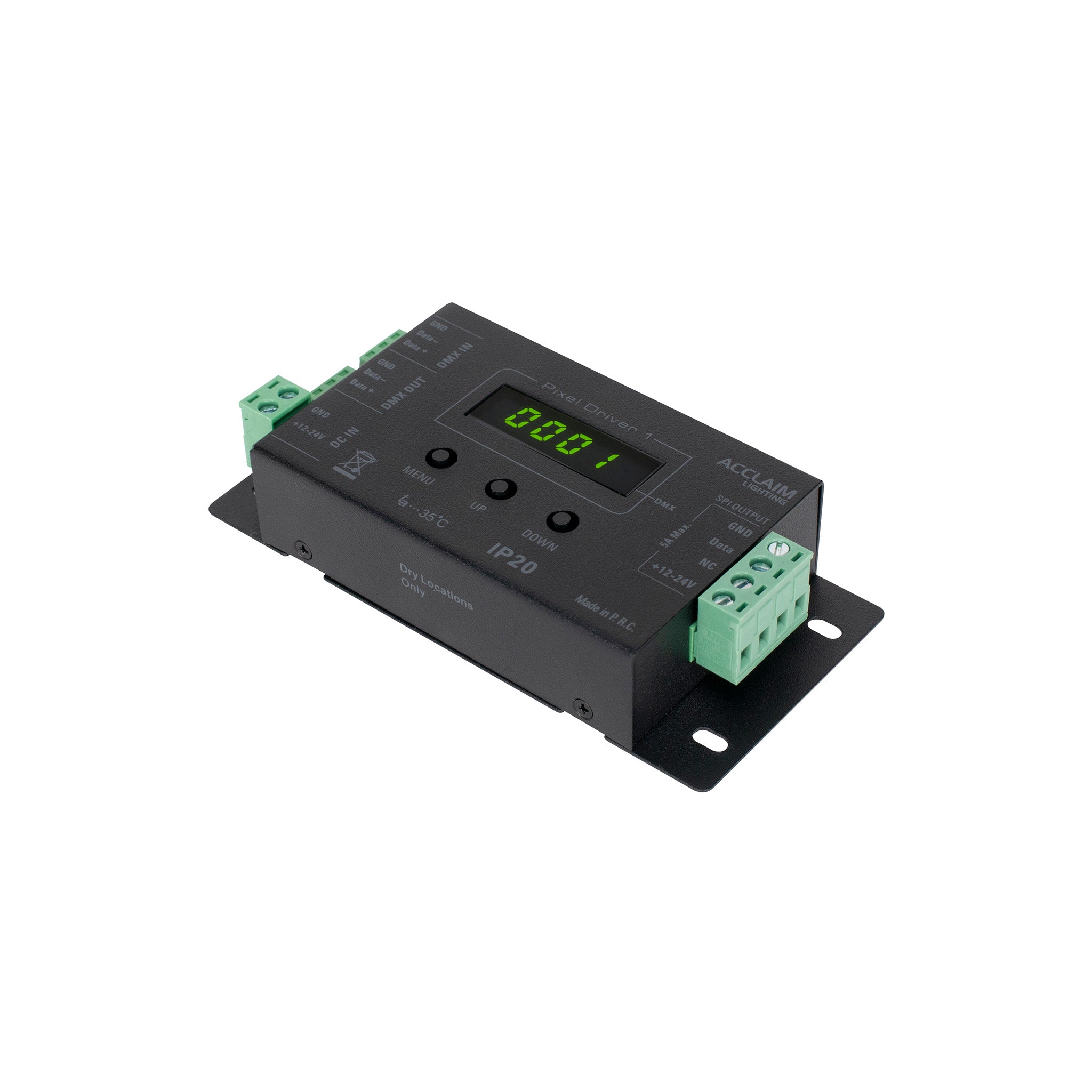

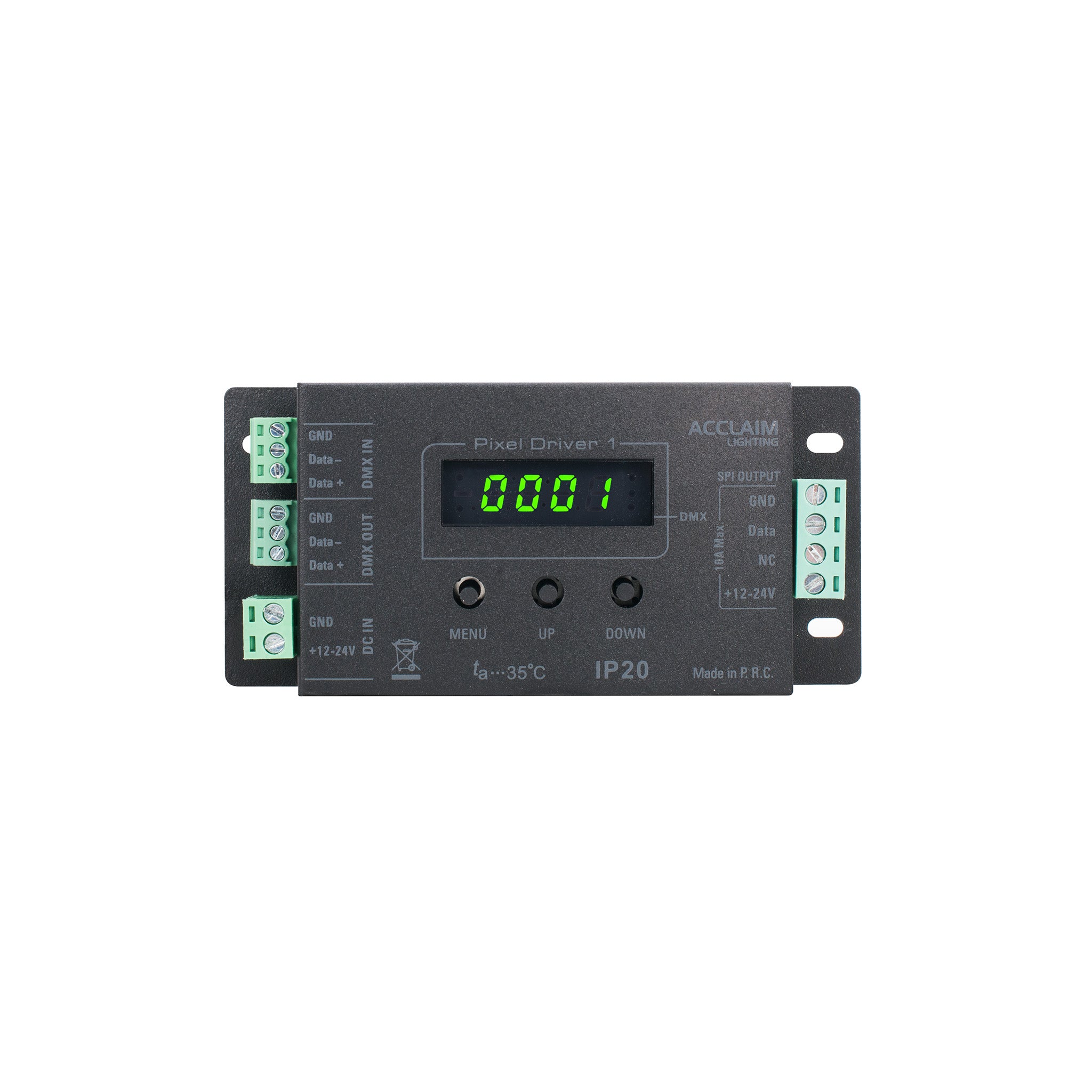

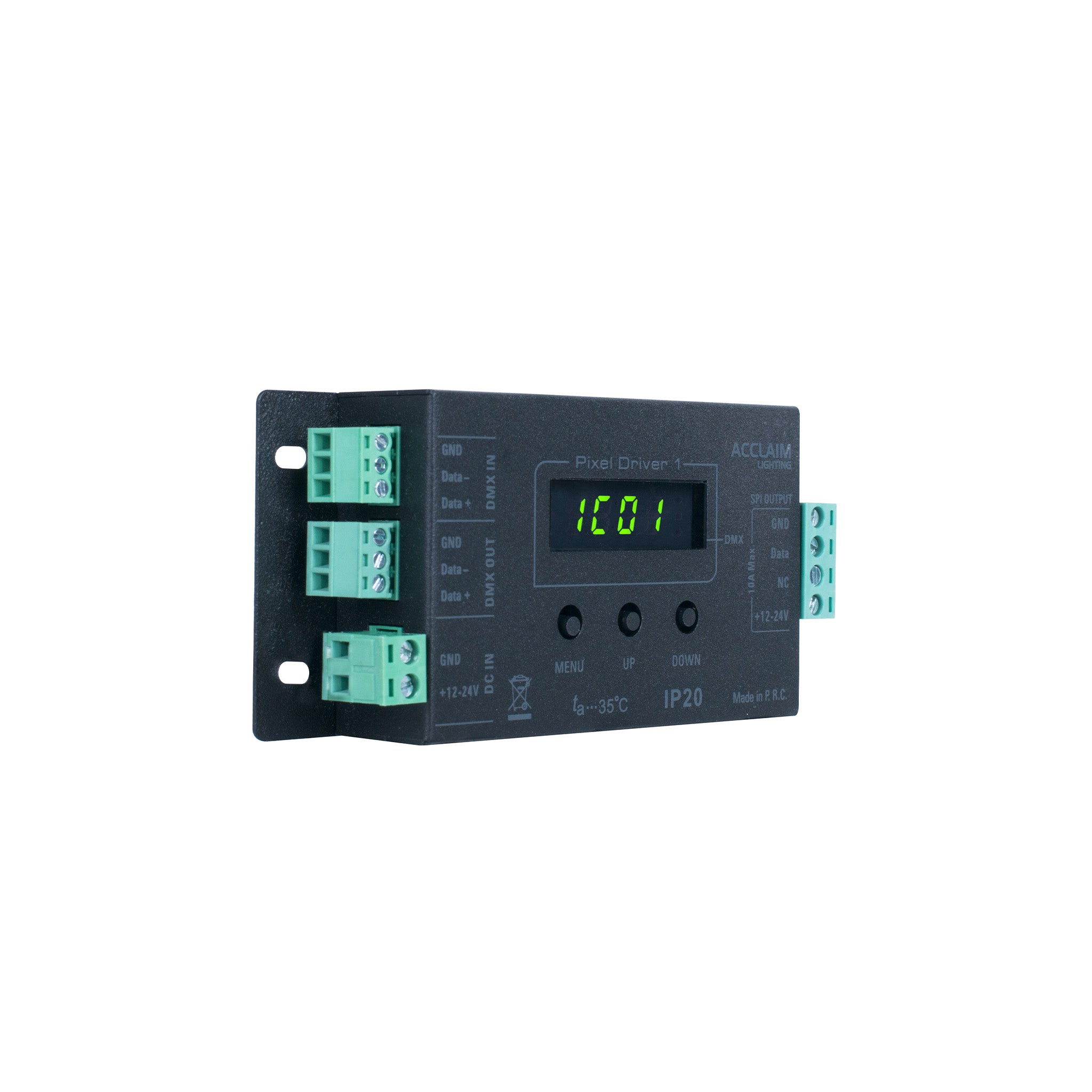

Pixel Driver 1
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Input Voltage
- 12-24VDC
- Output Power
- 5A
- Output Voltage
- 12-24VDC
AL Driver 4 is a four-channel PWM dimming driver for low voltage LED products with a wired digital communication network. It can take a DC input from 12-24VDC and dims each channel via DMX. It can control up to 5A of multi-color LED products, and manual colors can be set in instances where external control is not desired.
Pixel Driver 1
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| Pixel Driver 1 Specification Sheet - August 2025 | Specification Sheet | |
| Flex Tube G2 User Guide (includes Pixel Driver 1) | User Guide | |
| Pixel Driver 1 2D Drawings | Drawings | DWG |
Tech Specs
Certifications
ETL, CEControl
DMXFinish
BlackConnectors
Removable multi-pin terminal blocksMaterial
Black polycarbonateWeight
1.6oz (45g)Ambient Temperature Range
14° F to 131° F (-10° C to 55° C)Impact Protection
IK02, protection against 0.2 joule impactIngress Protection
IP20, dry location
