ALPS-200-24
ALPS-200-24
ALPS-200-24

ALPS-200-24

Specification highlights

Ingress
IP67
Input Voltage
100-277VAC
Output Voltage
24VDC

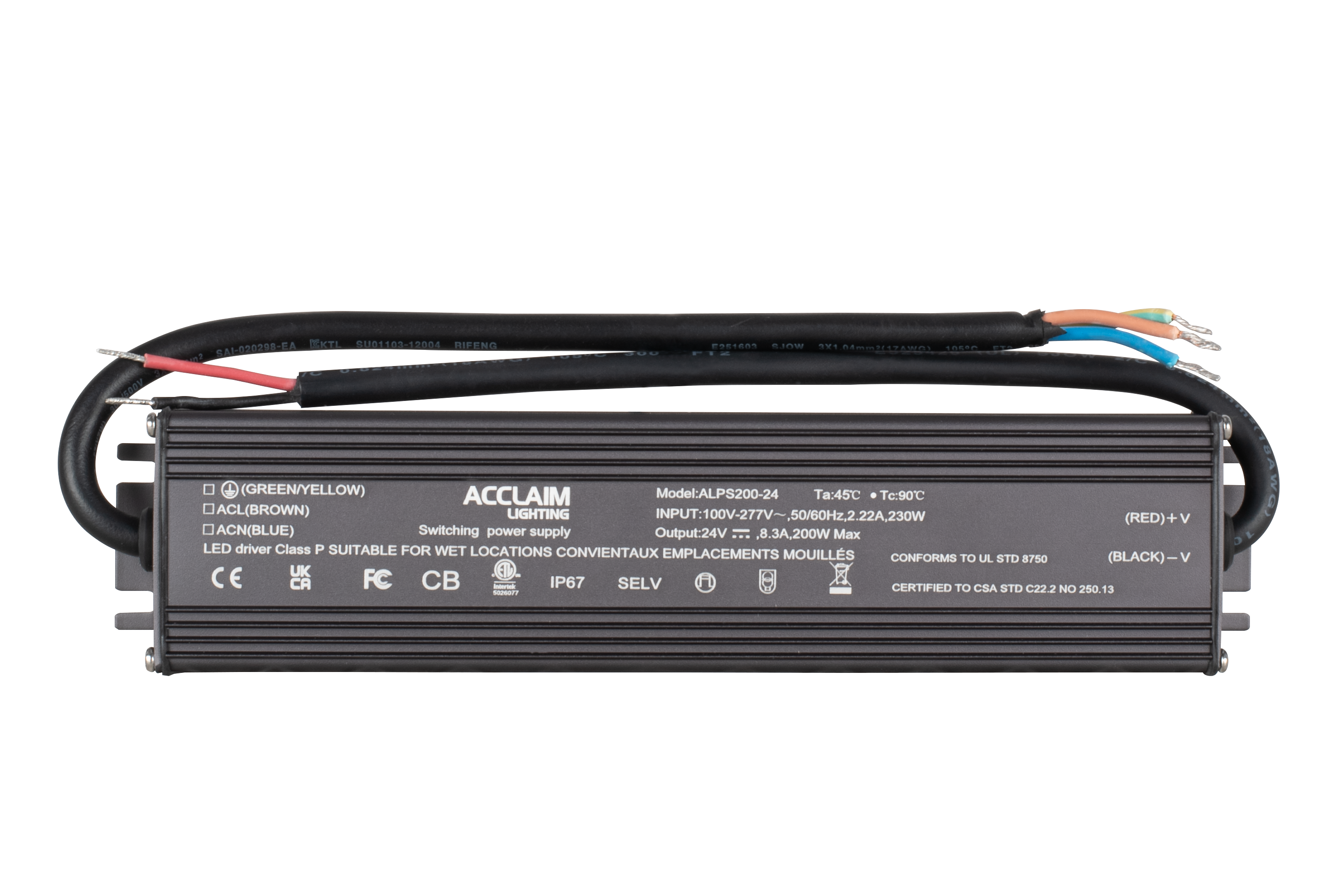

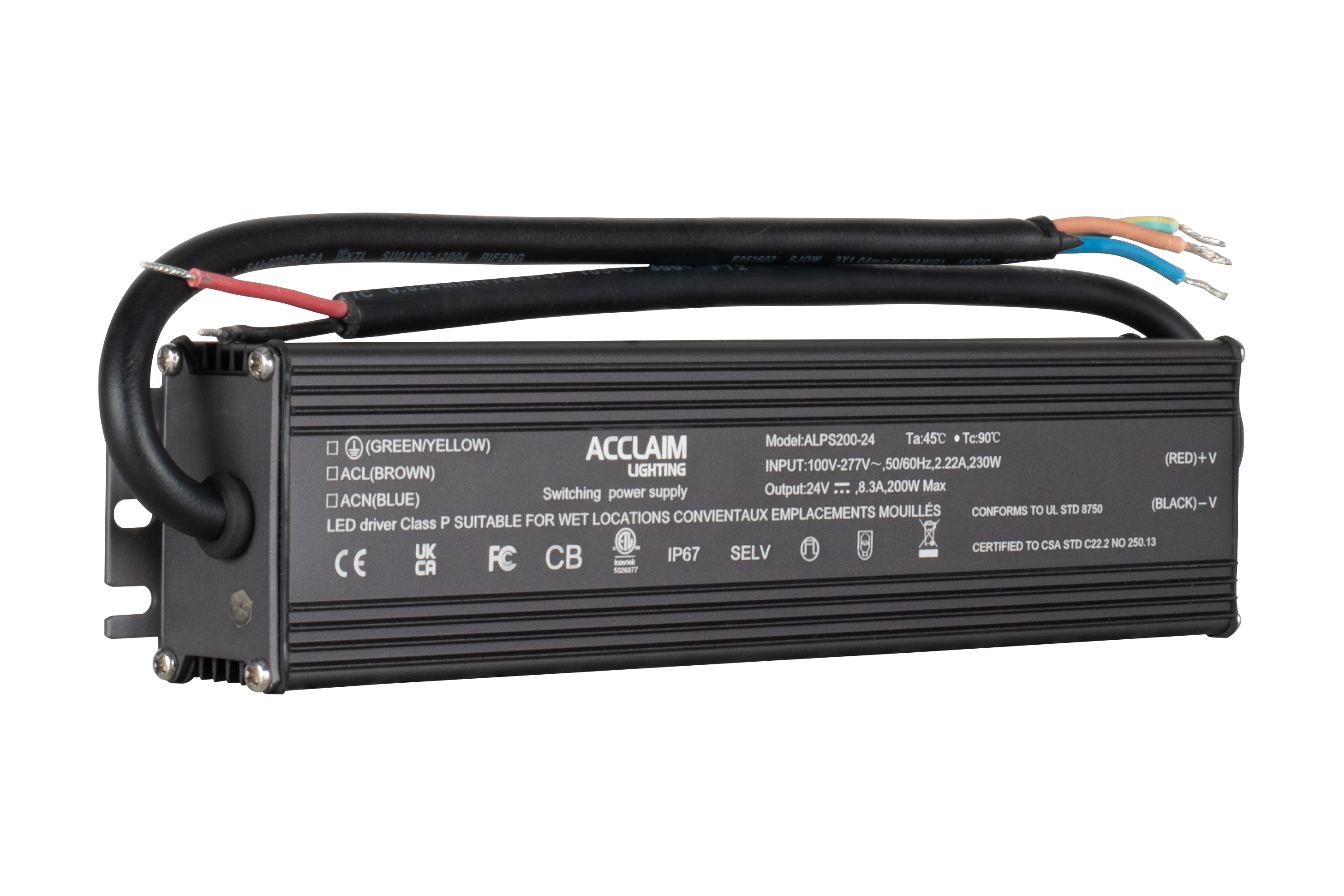

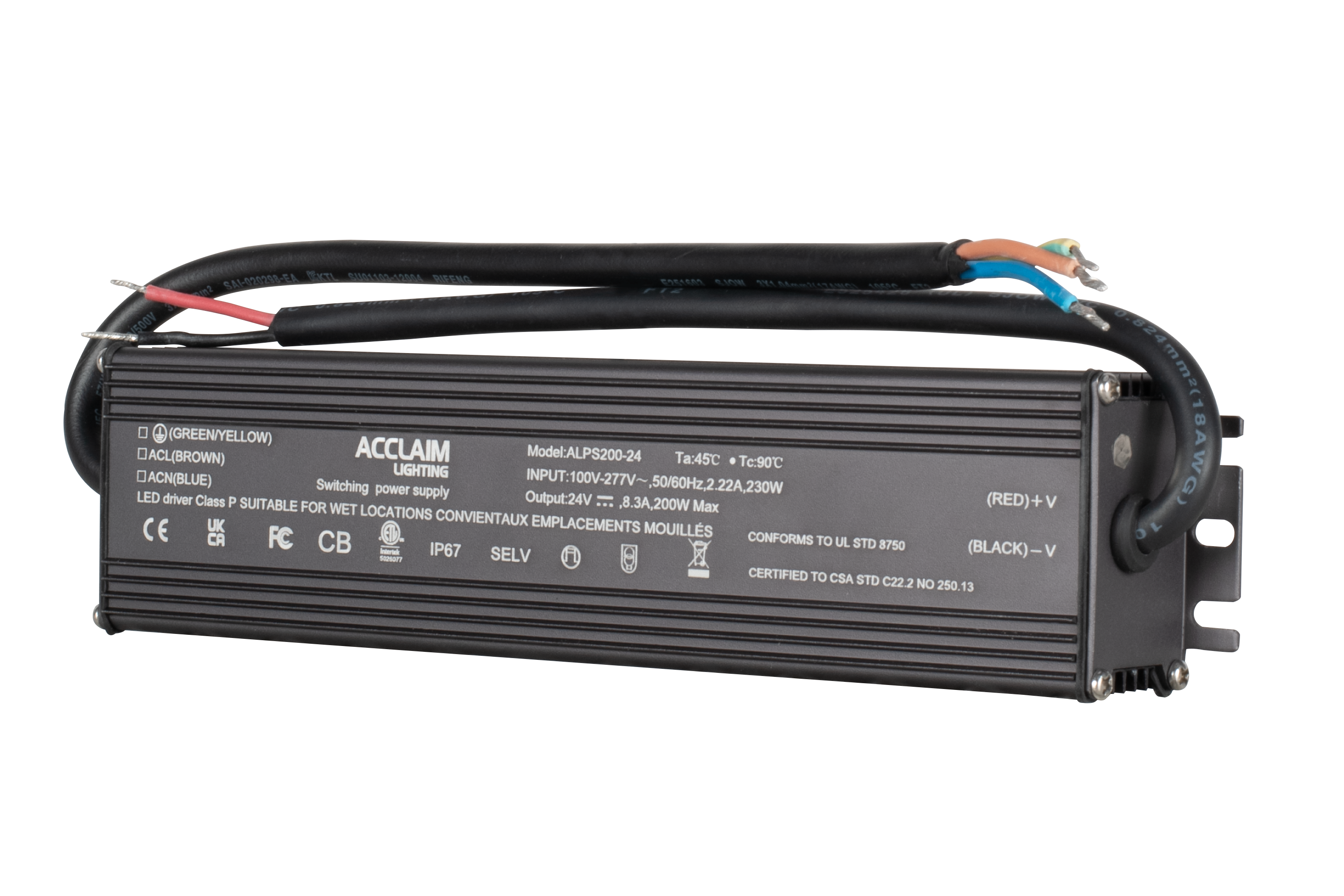

The ALPS series is a range of high-quality switched-mode power supplies that offer auto-sensing voltage inputs and over-current and over-voltage protections. Available in varying maximum power capacities, the stabilized 24VDC output is perfect for use with any low-voltage device.

The powder-coated aluminum casing is rated to IP67 for wet locations when connections are made in a suitable enclosure, and the base has four slotted holes for secure mounting.
UPC: 840063535893SKU: ALPS-200-24

Downloads

Filename Document type File type
ALPS - Specs - November 2023 Specification Sheet PDF

Tech Specs

Certifications
ETL, FCC, CE, RoHS, UKCA
Inrush Current
Meets NEMA-410 requirements
Operating Voltage
100-277VAC, 50/60Hz
Output Voltage
24VDC
Over-Current Protection
110-130%
Over-Voltage Protection
24-32VDC, SELV protection
Cables
10" (250mm) input and output cables, bare wire tails
Finish
Black powder coat
Housing Material
Aluminum
Material
Aluminum
Weight
See table below
Ingress Protection
IP67, wet location
