Outdoor Link System Gen 2
Specification highlights
- Capacity
- 15A
- Protection
- 1kV
- Ingress
- IP67

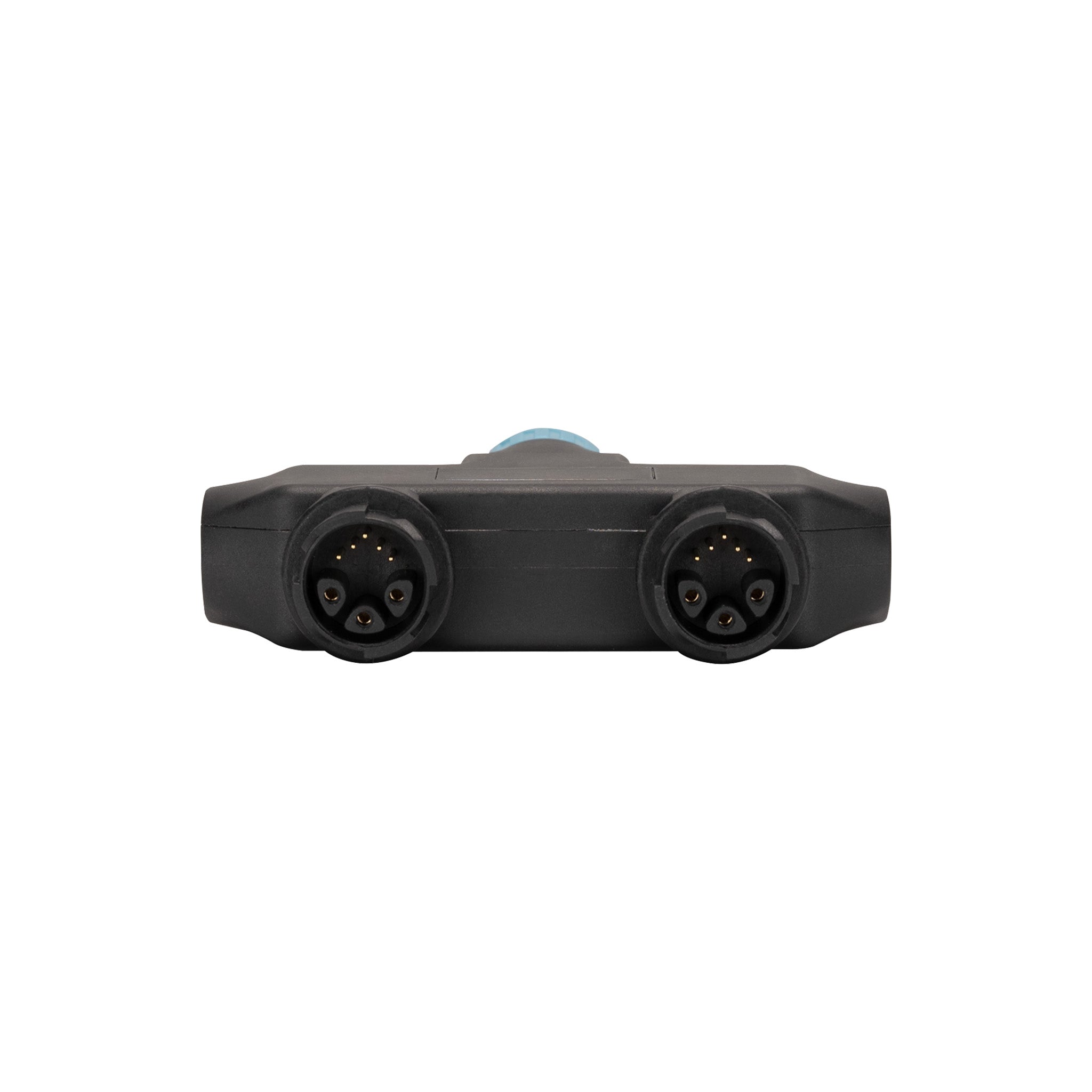

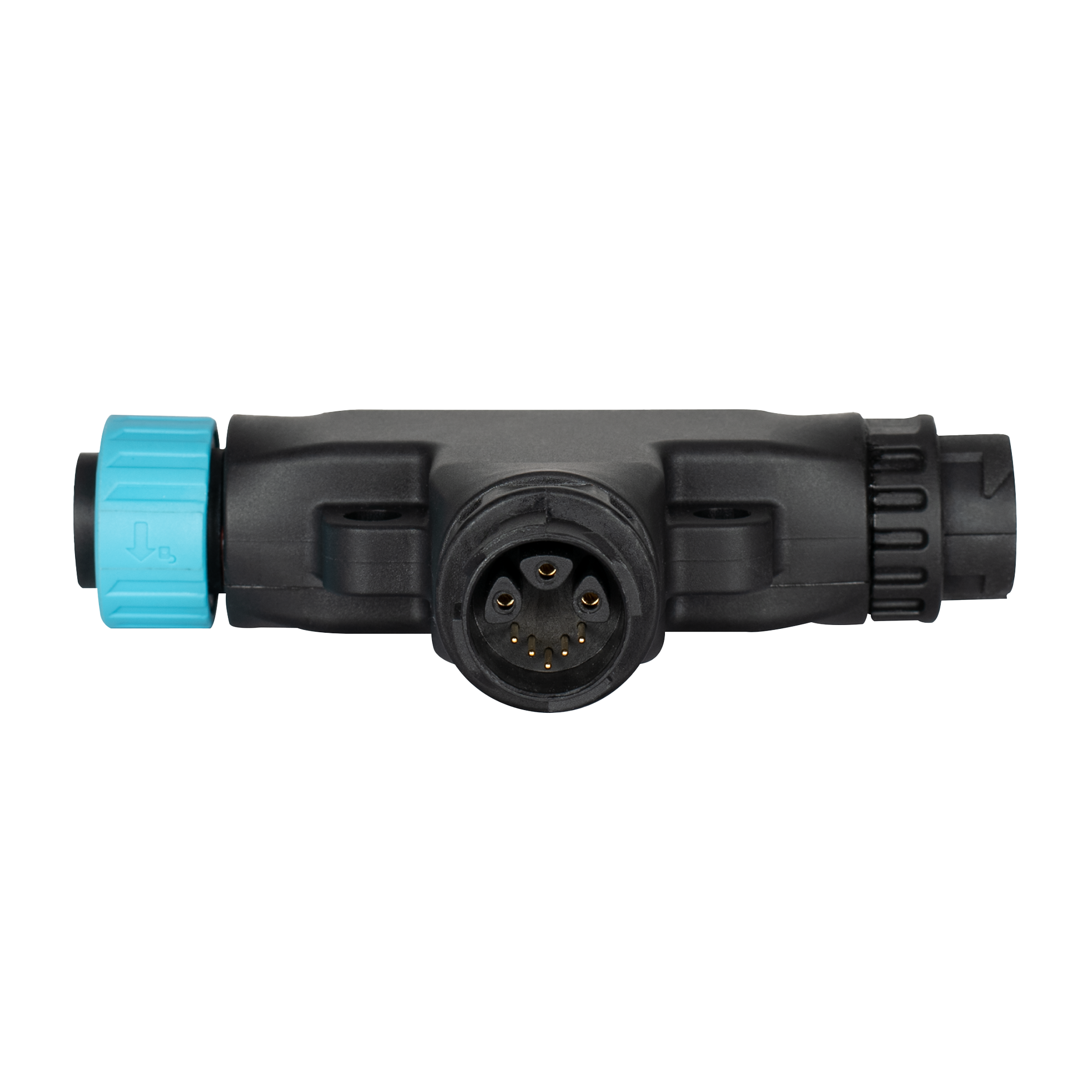

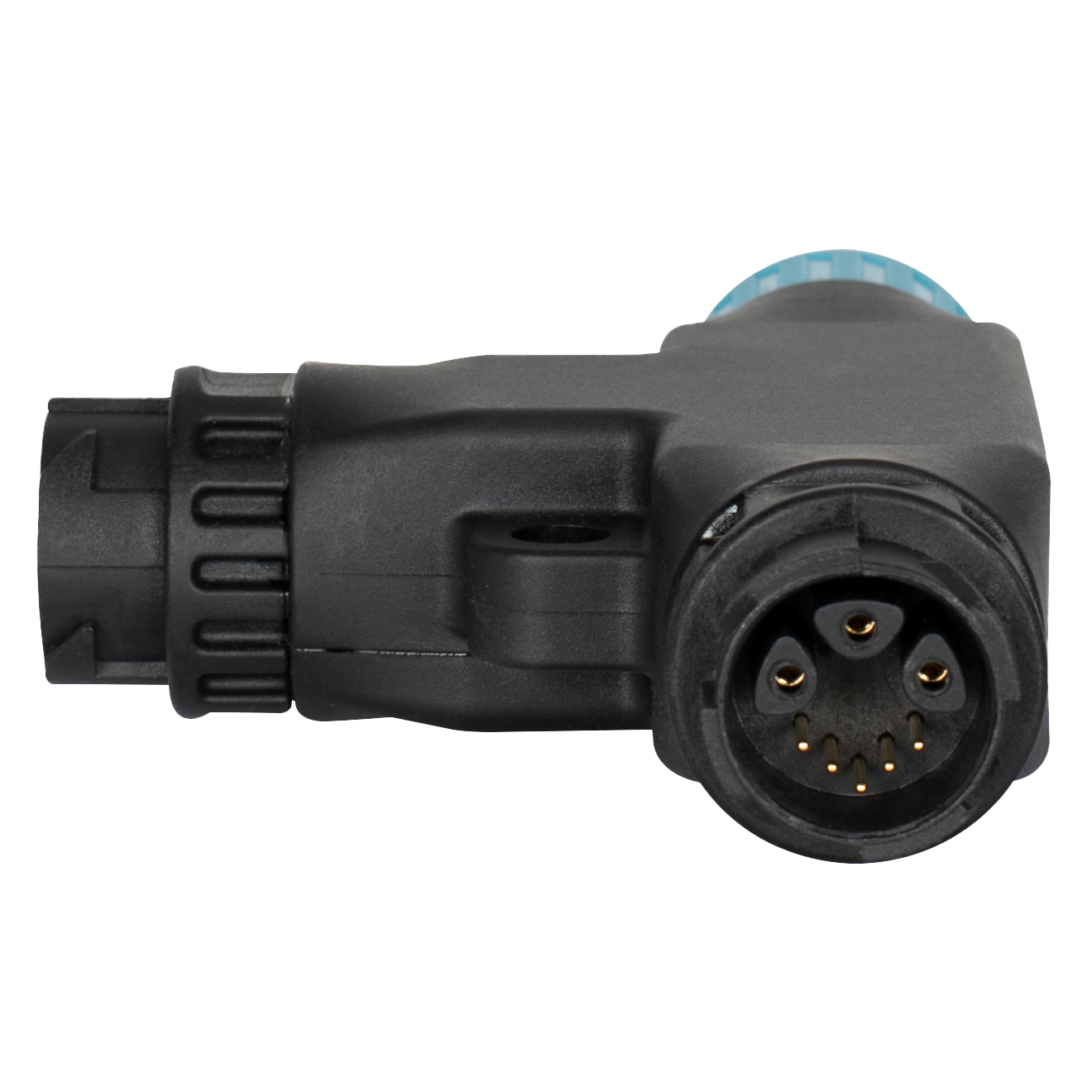

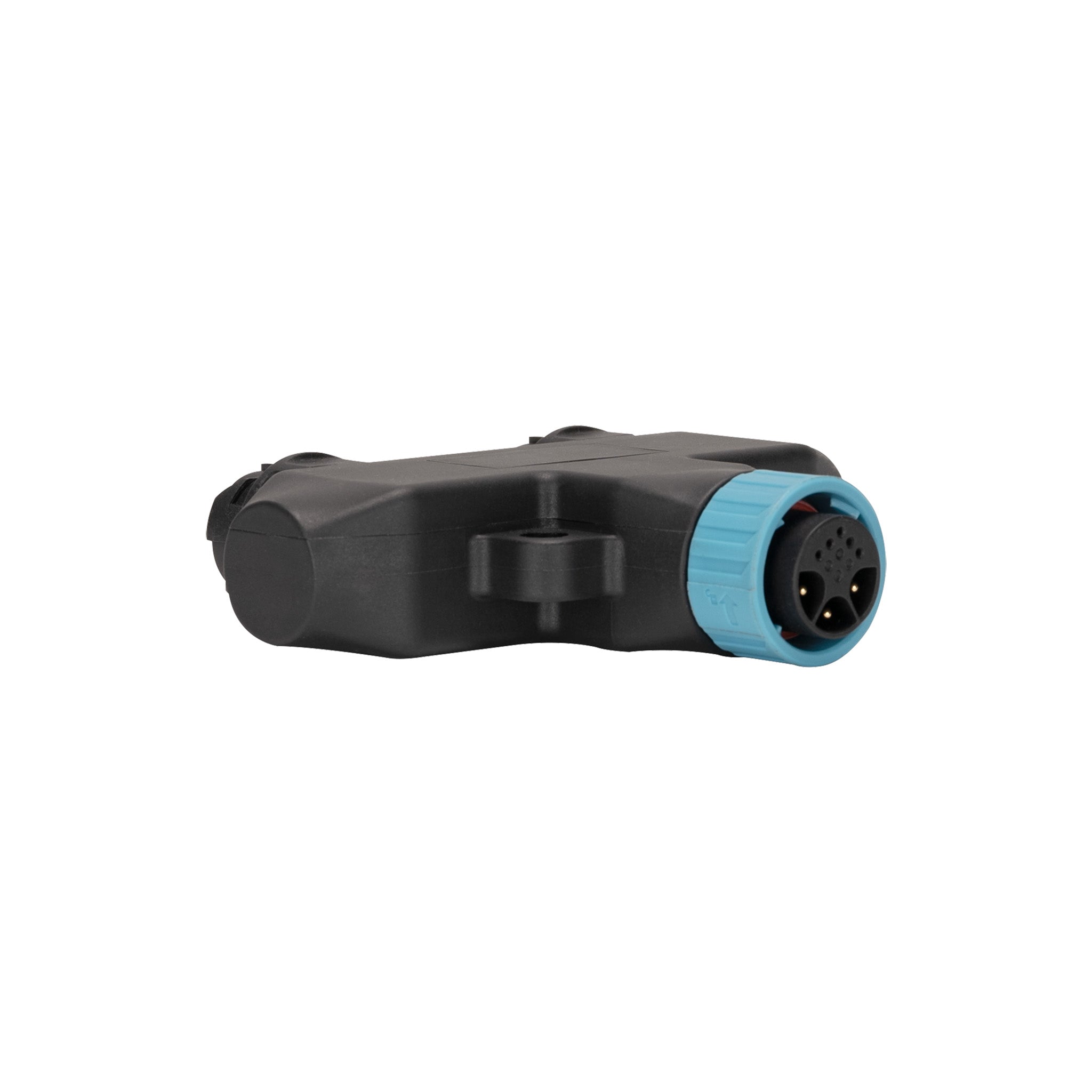

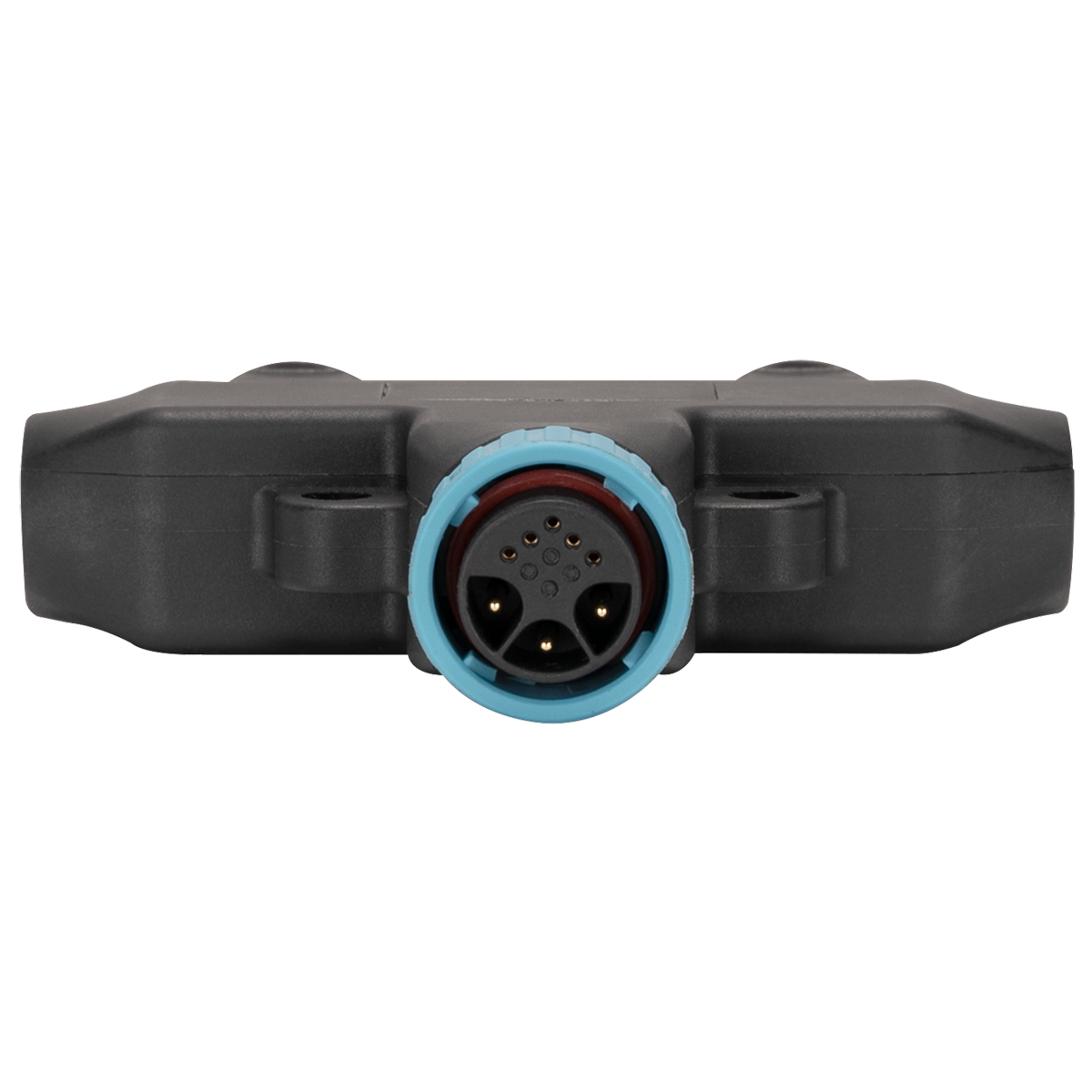

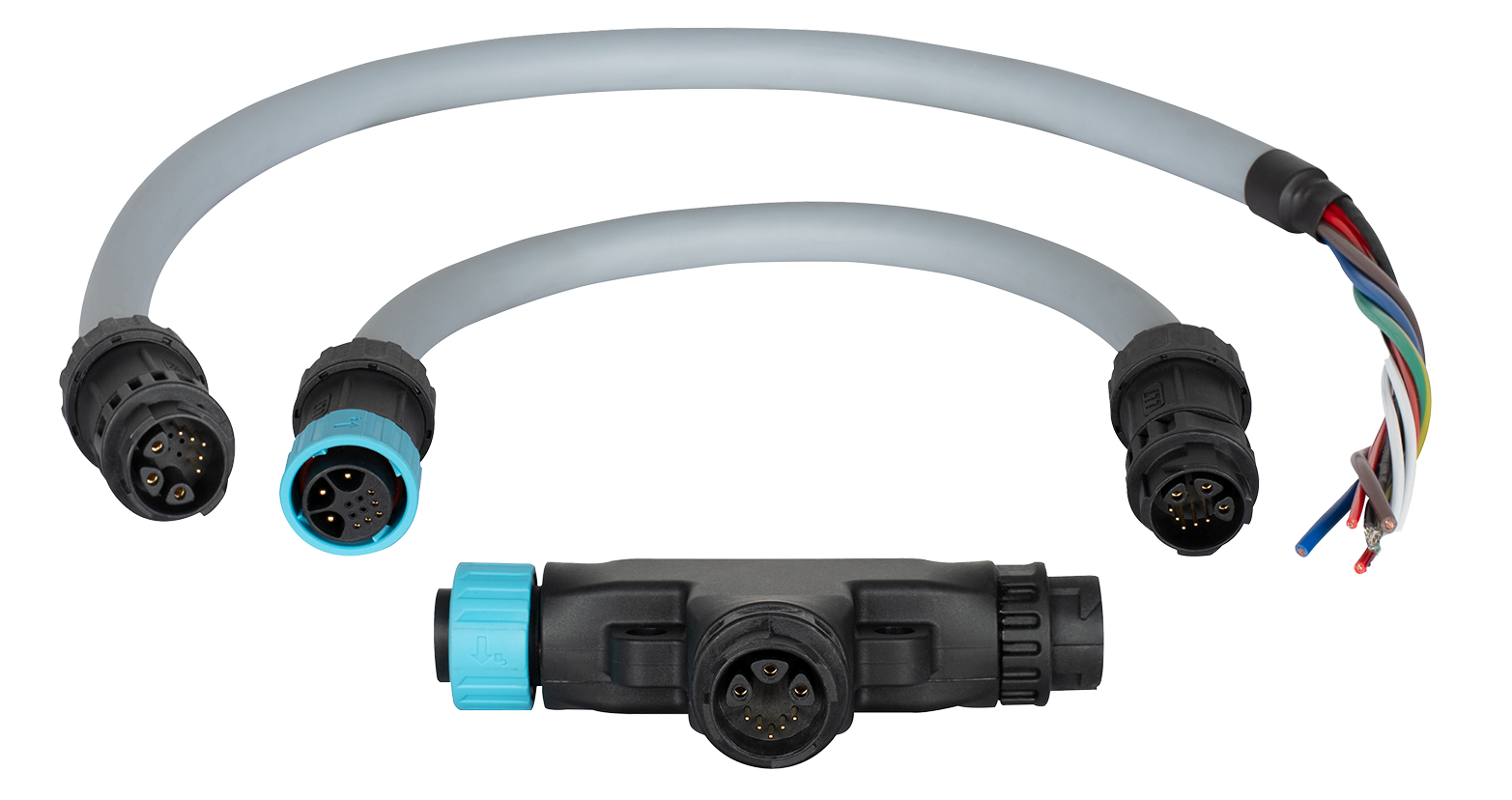

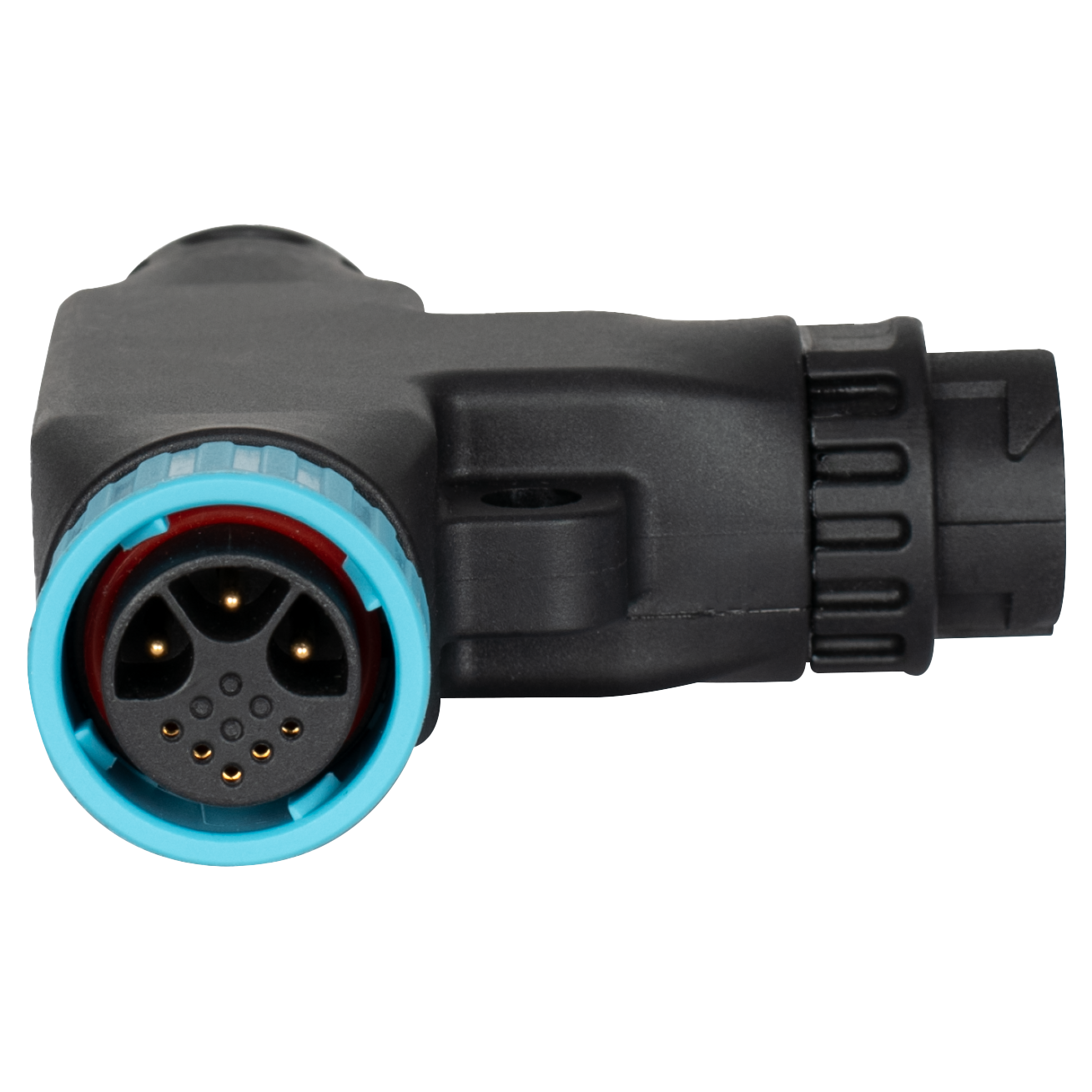

The Acclaim Lighting Outdoor Link System™ is a smart solution to the time-consuming challenge of distributing power and control to multiple exterior lighting fixtures. Utilizing fast-fit IP67-rated hybrid connectors and compact junctions, you can rapidly customize your supply to suit any fixture layout.
Dyna Drum and Dyna Accent fixtures can be fitted with an OLS connector as an option, while Unity fixtures directly accept OLS link cables as standard.

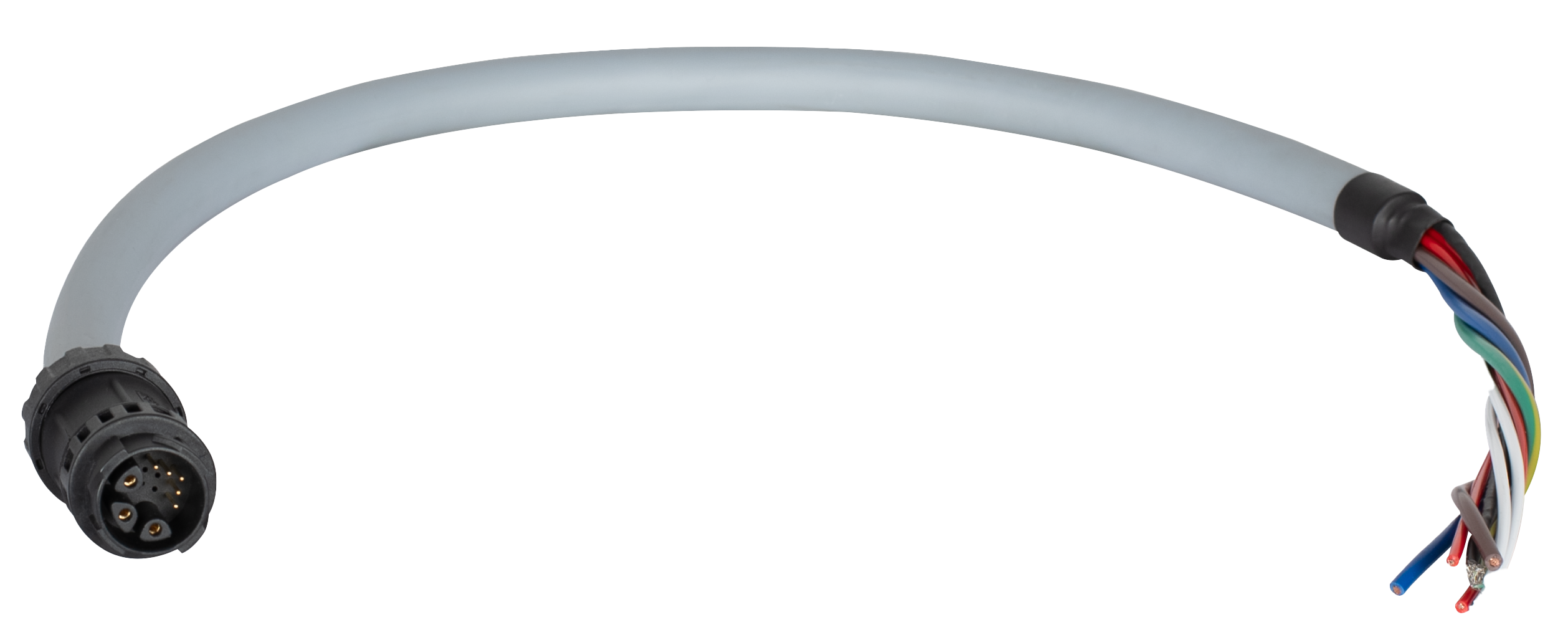

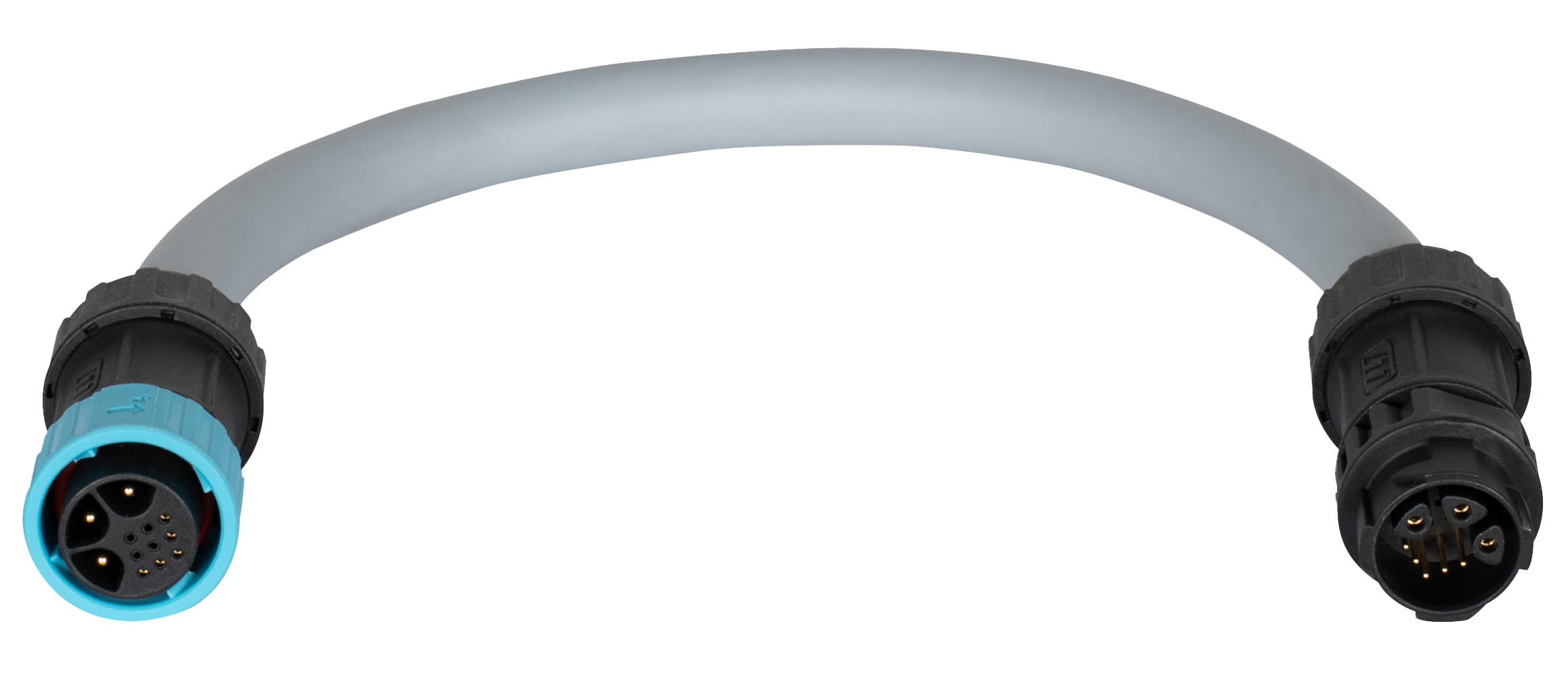

OLS cables and connectors are fully UV-stabilized, NEC compliant and flame resistant to UL standards 94-V0 and VW-1. The DMX signal cores are internally shielded within their own sub-cable and the power cores are rated to 15A.
Outdoor Link System Gen 2
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Outdoor Link System Gen 2
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| OLS Gen 2 guide v2-0a | User Guide | |
| OLS G2 - Specs - March 2024 | Specification Sheet | |
| OLS Gen 2 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CEAC Power Capacity
120VAC: 1,800W, 230VAC: 3,450W, 277VAC: 4,155WPower Conductors
3 x 14 AWGSurge Voltage
1000VCable Shaping
Minimum bend radius: 4" (101mm)Cables
NEC compliant: physical separation of power and low voltage signal conductorsConnection
8-pin push-lock with IP67-rated sealConnectors
8-pin push-lock with IP67-rated sealSignal Conductors
4 x 20 AWG plus shieldAmbient Temperature Range
-40° F to 176° F (-40° C to 80° C)Flame Resistance
UL 94 V-0 and UL 1581 VW-1Ingress Protection
IP67, wet location

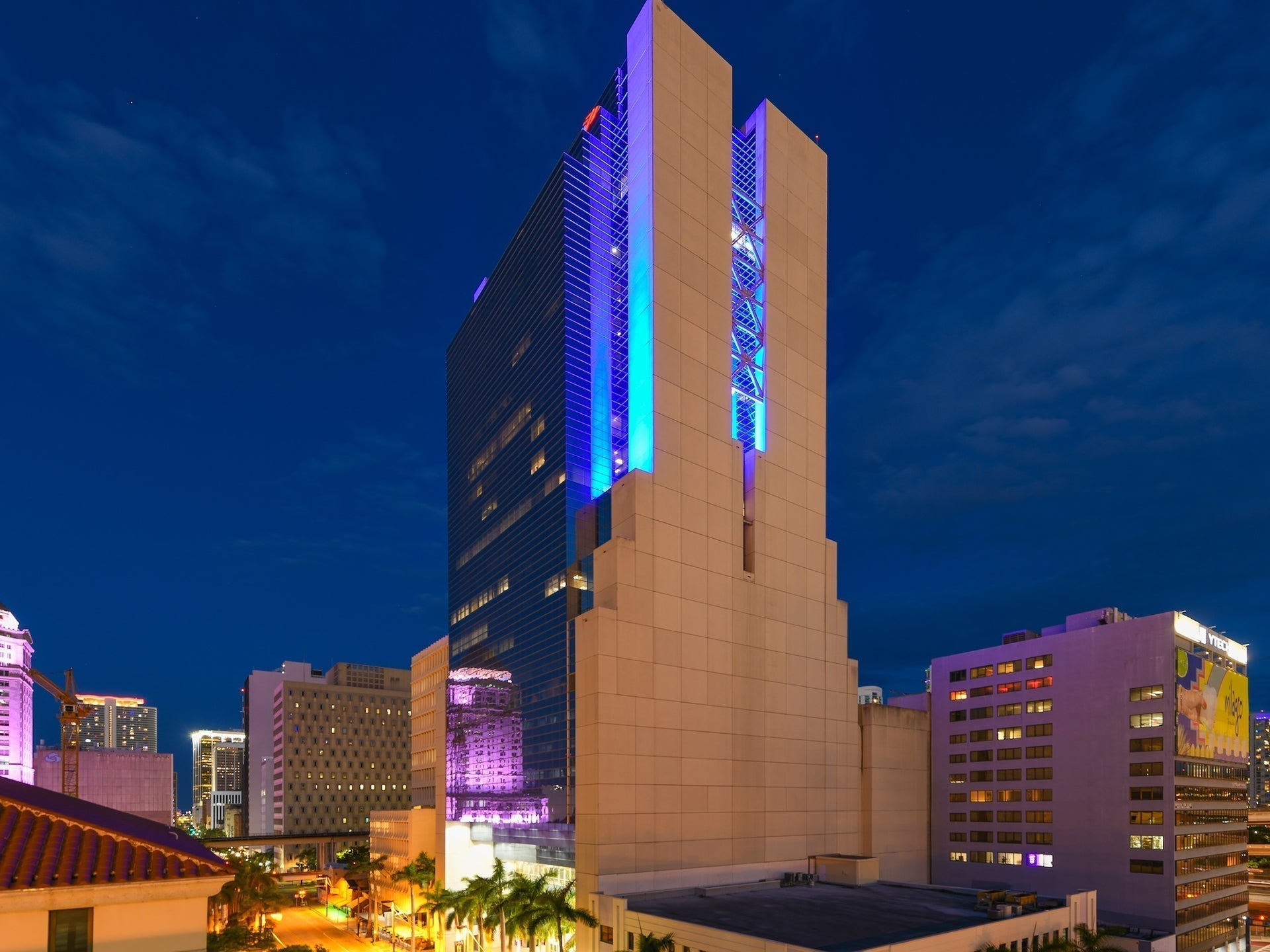

Related Projects
