Dyna Drum EO White
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens
- 3431
- Power
- 72W
- TM-30
- 90

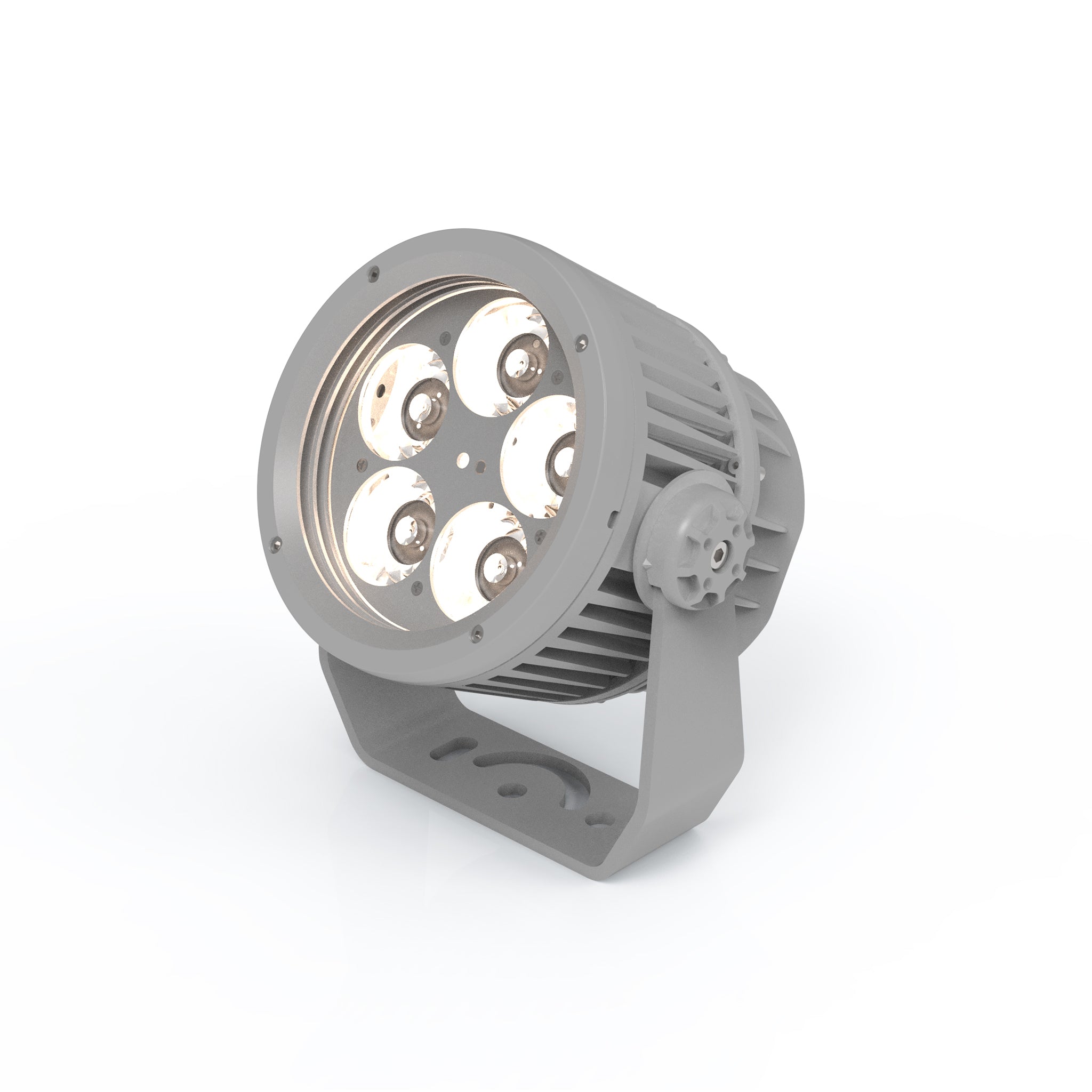

Dyna Drum EO White is a high output, outdoor rated, white LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a narrow 5º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.
Dyna Drum EO White
Sale price$0.00
Featured Technologies
01
02
01
02
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Dyna Drum EO White
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Dyna Drum EO White Specification Sheet - August 2025 | Specification Sheet | |
| Dyna Drum EO User Guide v1-1c | User Guide | |
| Dyna Drum EO White Revit Files | Revit Files | RFA |
| Dyna Drum EO IES | IES Files | ZIP |
| Dyna Drum EO 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, 3GOperating Voltage
100-277VAC, 50/60HzPower Consumption
72WLumen Maintenance
L70 150,000 hours (@ 25° C)Optics
5° x 5º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60°Output
Up to 3,431 lumens, 202,231 center candelaEmitters
2700K, 3000K, 3500K, 4000K, 5700KFinish

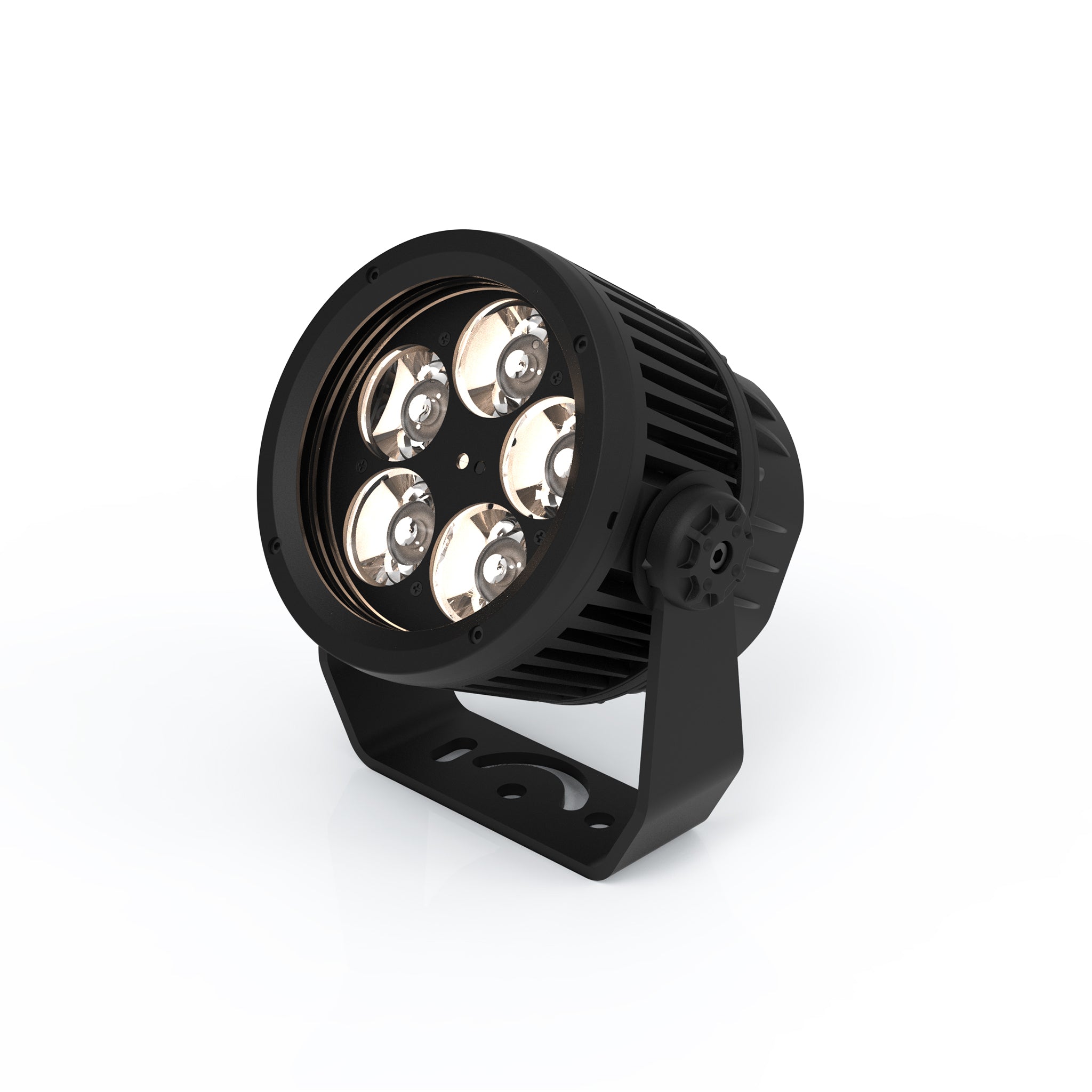

Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optionalMaterial
Die cast aluminum, glass top lens, optional marine coating availableAmbient Temperature Range
-40° F to 122° F (-40° C to 50° C)Ingress Protection
IP66, wet locationMaximum Fixtures In Series
32 via DMX (with power connections local to each fixture)
