Specification highlights

Lumens
2268
Power
72W
TM-30
80

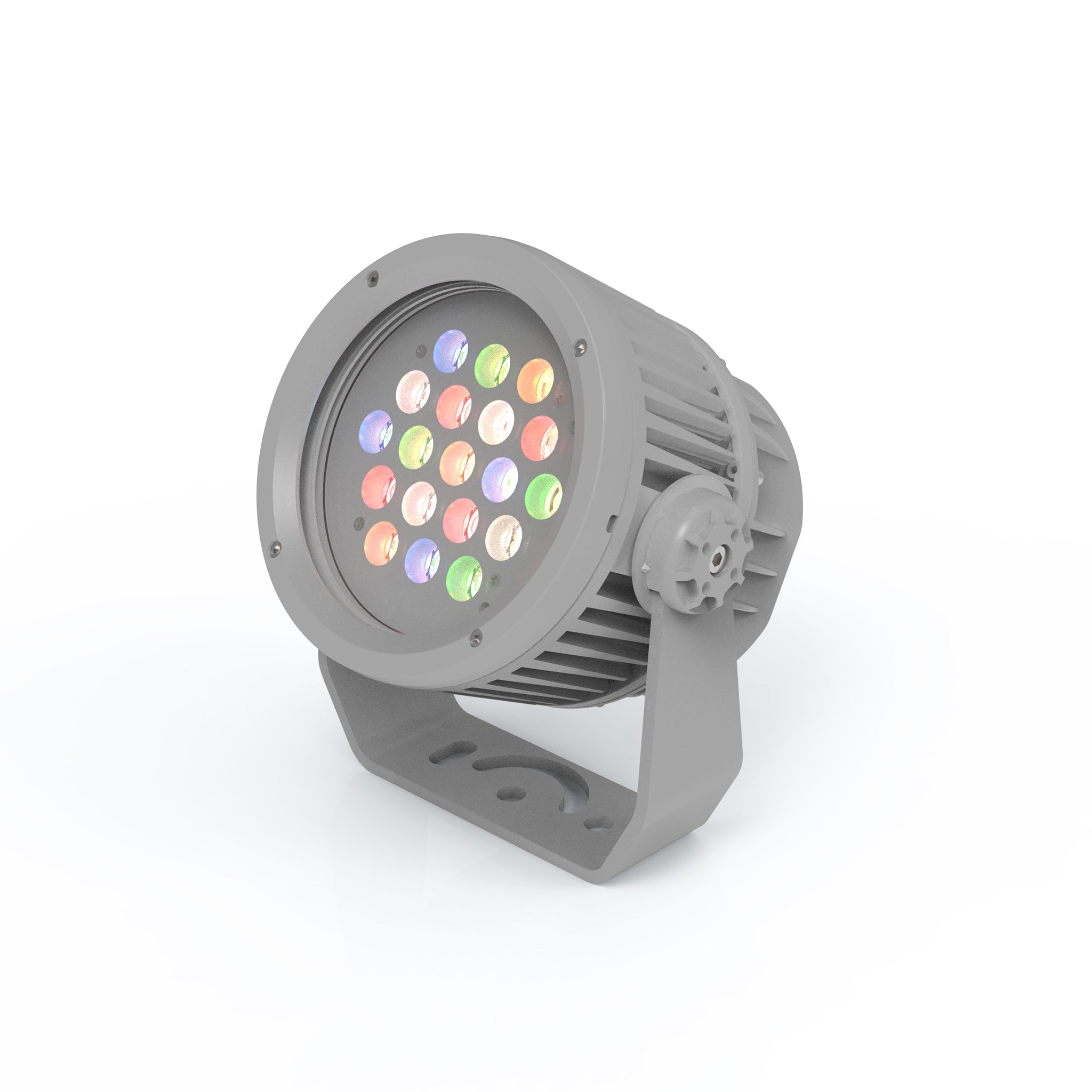

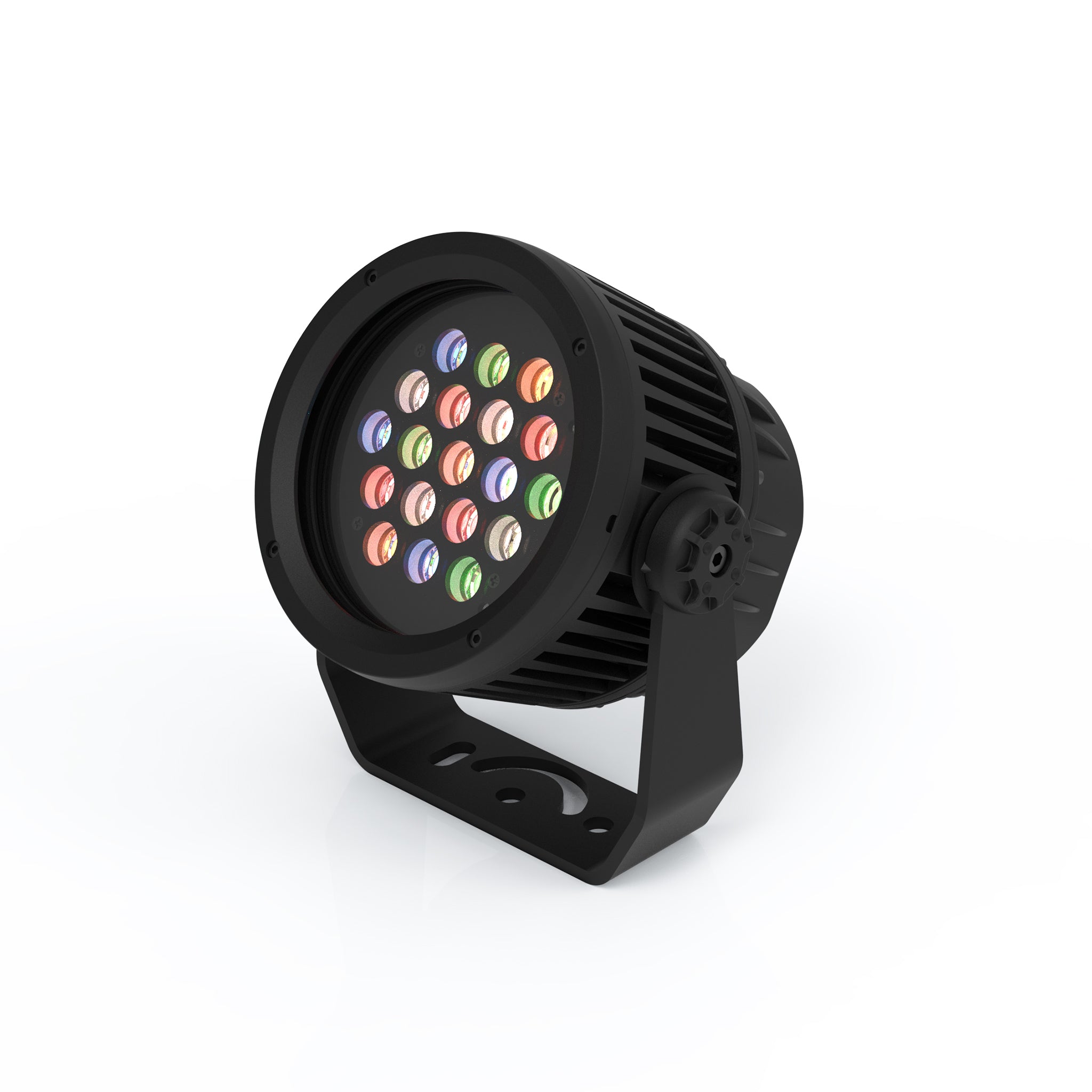

Dyna Drum EO SCS is a high output, outdoor rated, multi-color LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a narrow 8º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.
SKU: DDW-2#1-#A#N-1

Featured Technologies

01

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

02

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.
01

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

02

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Dyna Drum EO SCS Dyna Drum EO SCS
Configuration code
Configuration code
Finish:
Cable system:
Emitters:

Downloads

Filename Document type File type
Dyna Drum EO SCS Specification Sheet - August 2025 Specification Sheet PDF
Dyna Drum EO User Guide v1-1c User Guide PDF
Dyna Drum EO SCS Revit Files Revit Files RFA
Dyna Drum EO IES IES Files ZIP
Dyna Drum EO 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, CE, 3G
Operating Voltage
100-277VAC, 50/60Hz
Power Consumption
72W
Lumen Maintenance
L70 150,000 hours (@ 25° C)
Optics
8° x 8º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60°
Output
Up to 2,268 lumens, 104,302 center candela
Emitters
RGBW (W=4000K), RGBA, RGBAW (W=4000K), DW (2400K-5500K)
Finish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optional
Material
Die cast aluminum, glass top lens, optional marine coating available
Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)
Ingress Protection
IP66, wet location
Maximum Fixtures In Series
32 via DMX (with power connections local to each fixture)
