Specification highlights

Lumens
760
Power
13W
TM-30
80

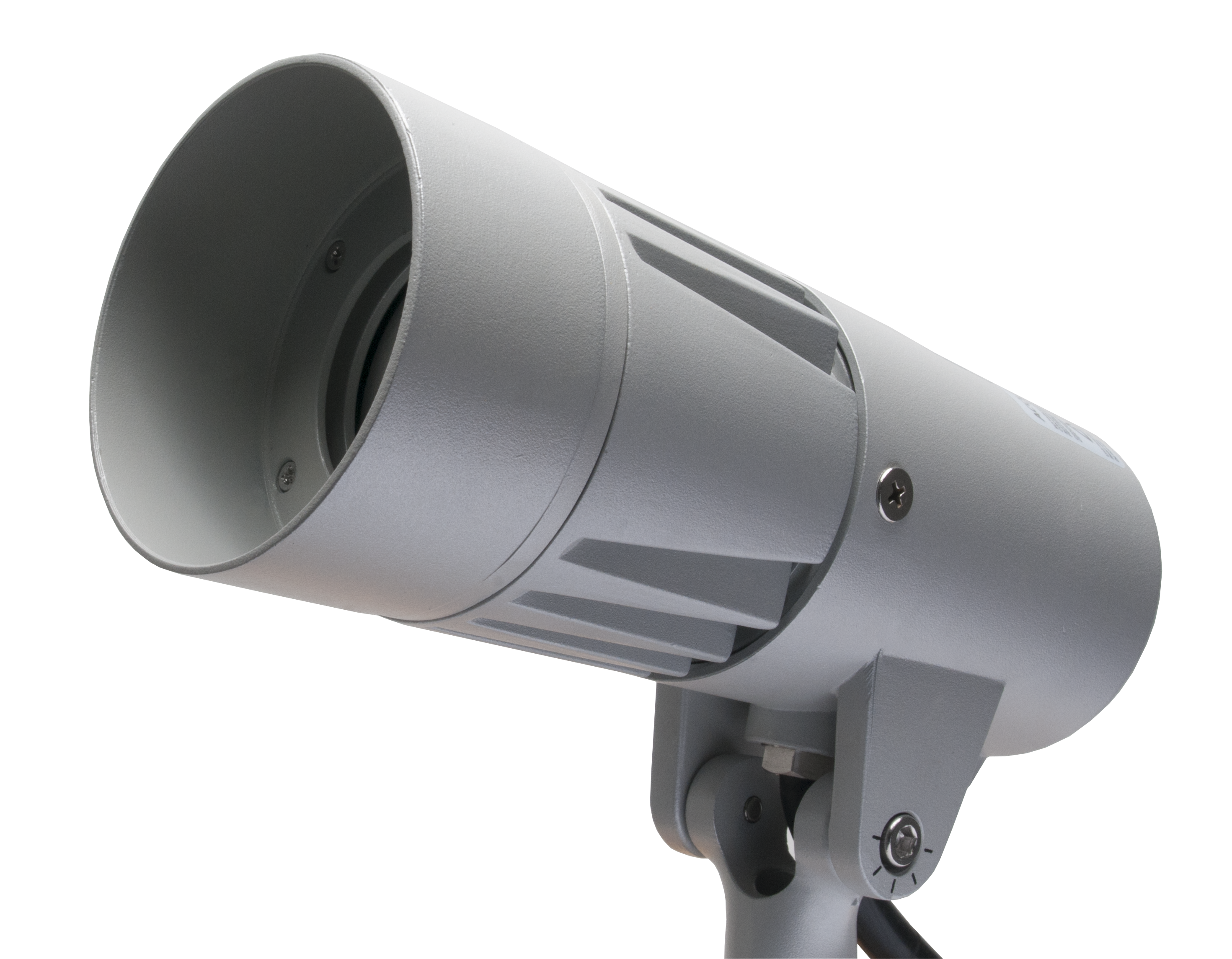

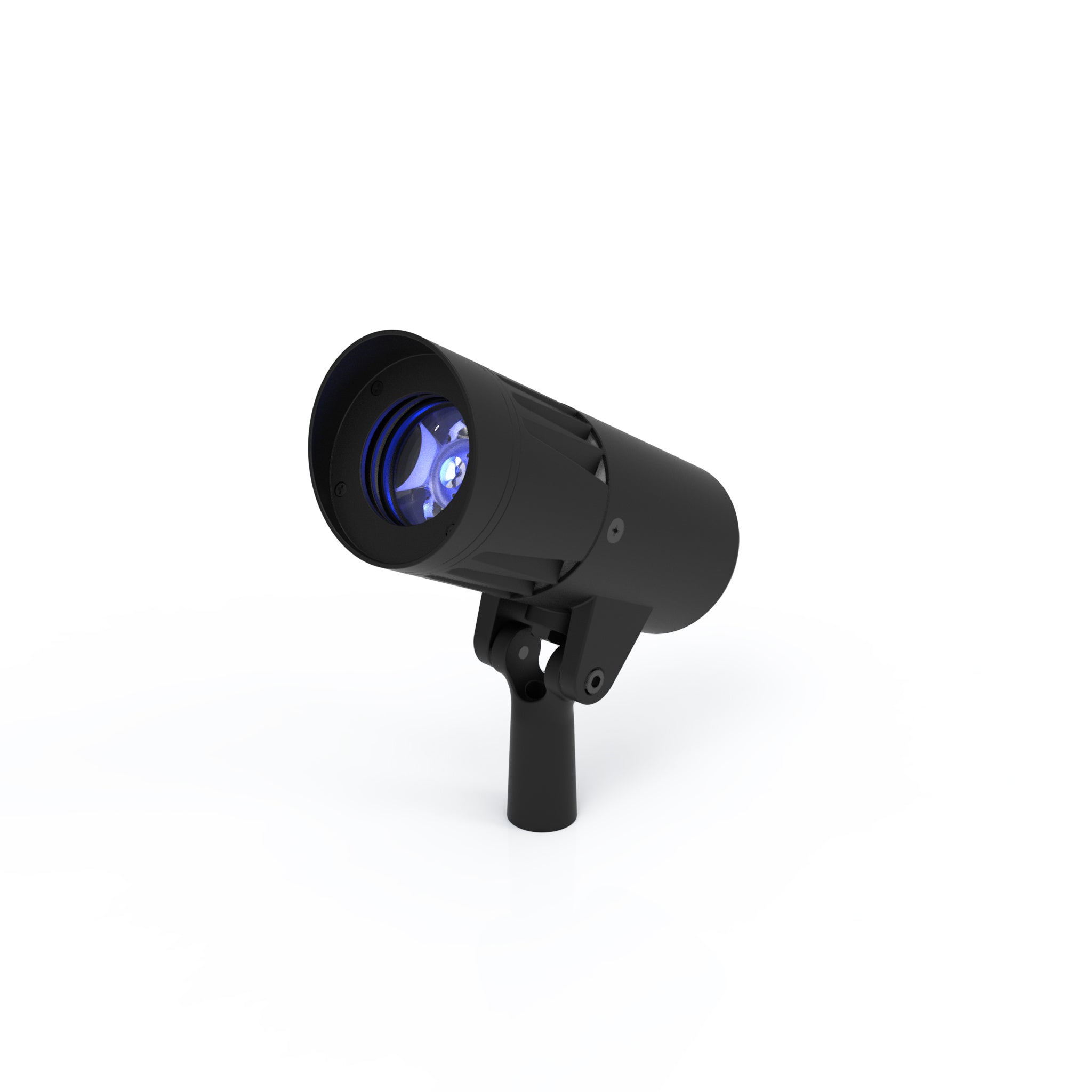

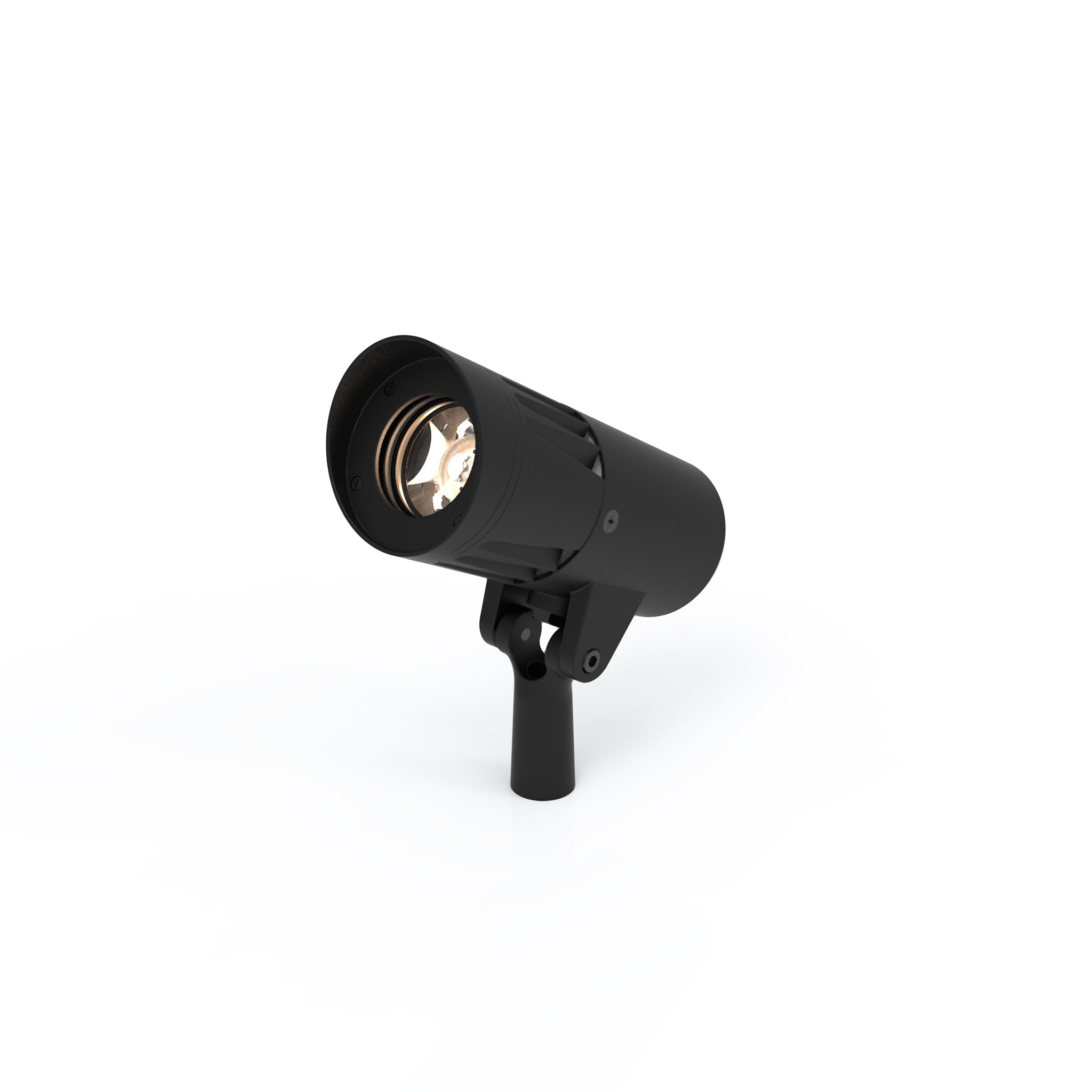

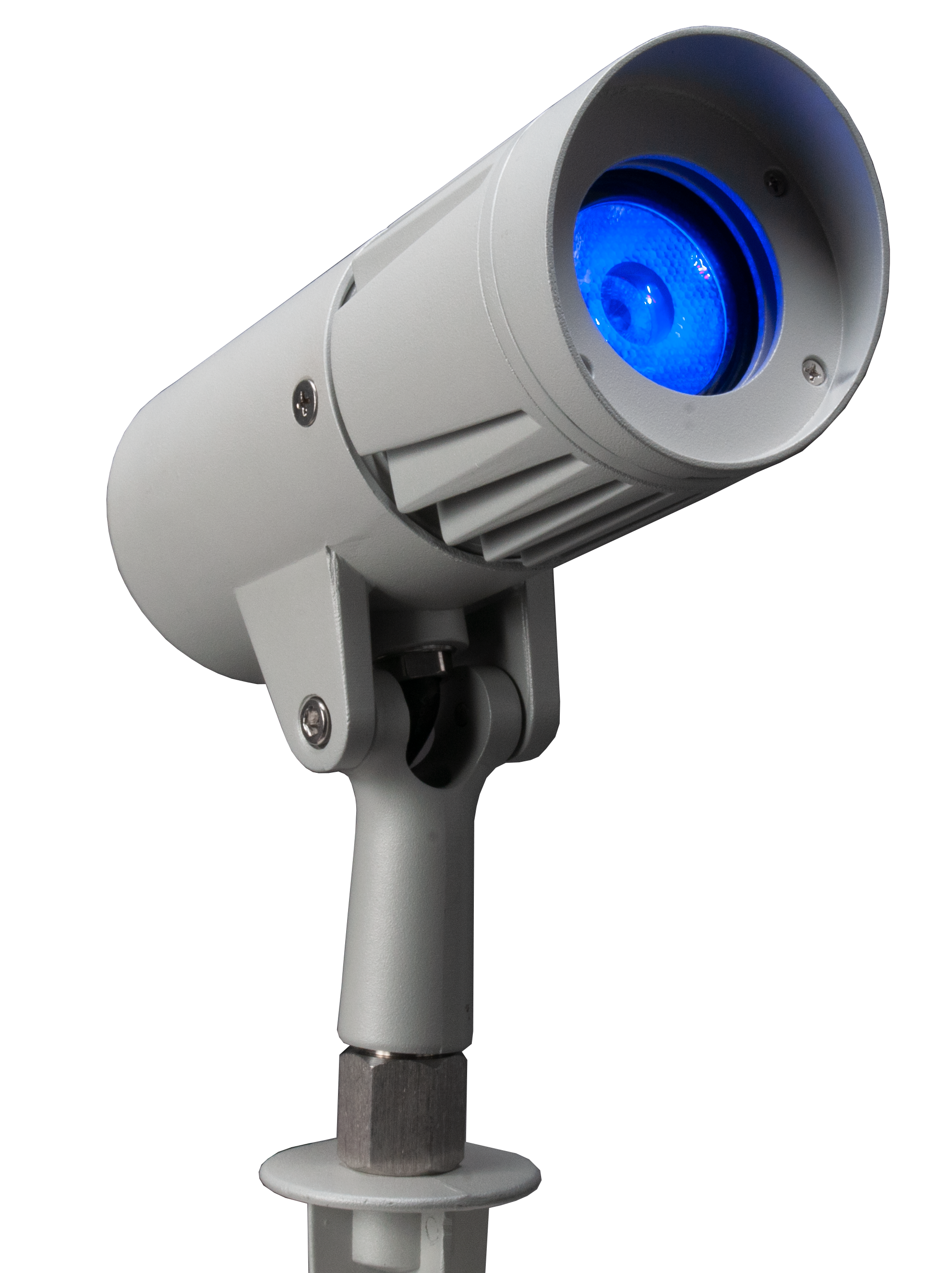

Dyna Accent Mini is a compact, high power, LED floodlight designed to fit in the tightest of spaces. It features an internal

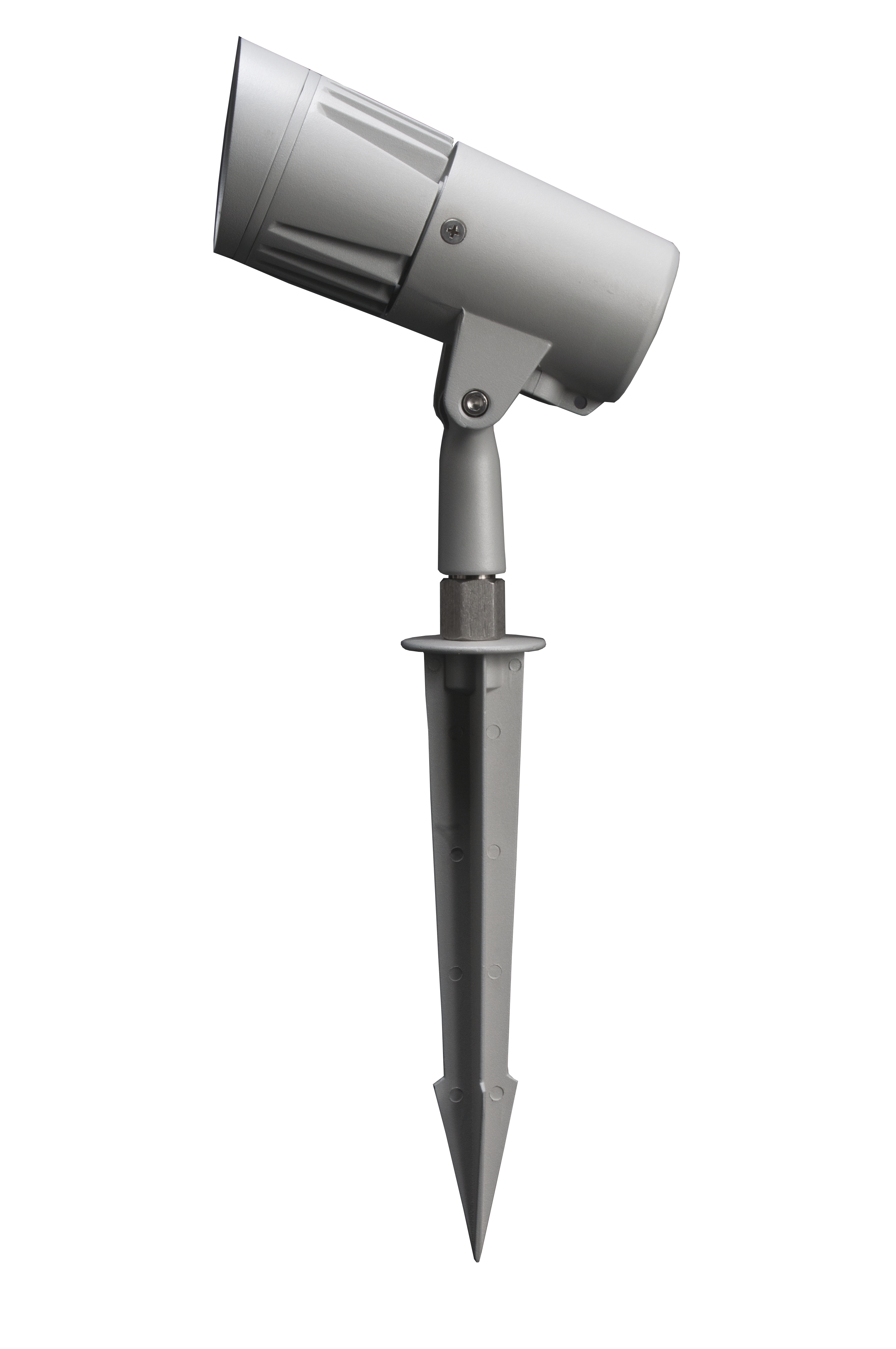

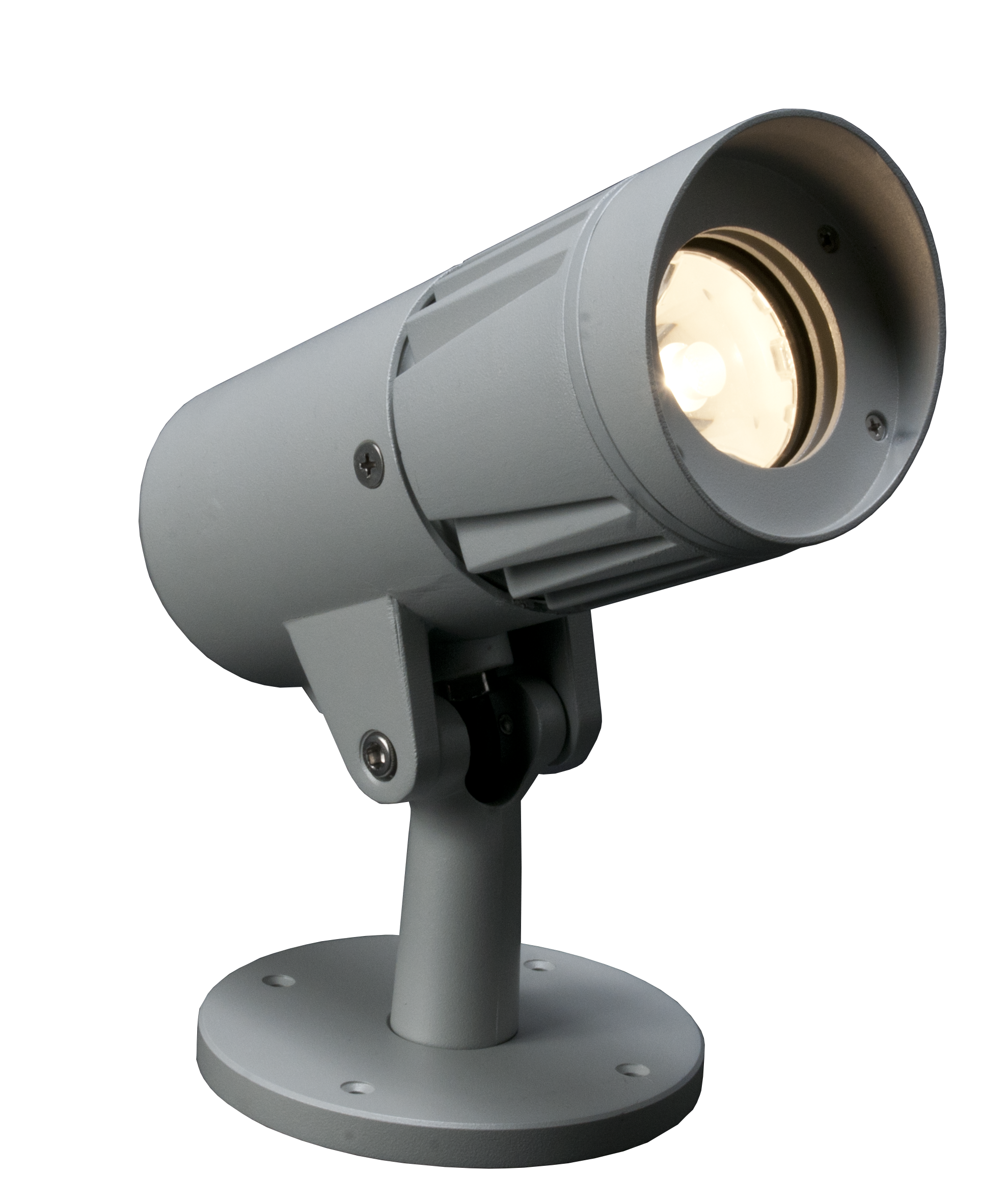

100-240VAC + 277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. Dyna Accent Mini can be mounted in three ways, via the junction box mount, surface mount, or stake mount for landscape applications. It comes with a narrow 7º or 12º beam standard, with optional quick-change spread lenses for wider applications. It’s low profile and high output make it the perfect solution for outdoor commercial and landscape flood projects.

SKU: DMA-2#1-###P-1

Featured Technologies

01

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

03

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.
01

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

03

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Dyna Accent Mini Dyna Accent Mini
Configuration code
Configuration code
Finish:
Cable system:
Emitters:
Optics:

Downloads

Filename Document type File type
Dyna Accent Mini Specification Sheet - May 2025 Specification Sheet PDF
Dyna Accent Mini User Guide v1-0c User Guide PDF
Dyna Accent Mini Revit File Revit Files RFA
Dyna Accent Mini IES 09.20.21 IES Files ZIP
Dyna Accent Mini 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, CE, 3G
Operating Voltage
100-277VAC, 50/60Hz
Power Consumption
13W
Control
0-100% dimming via wired DMX (with RDM configuration) or DMX via built-in Aria wireless
Lumen Maintenance
L70 150,000 hours (@ 25° C)
Optics
7° x 7º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60°
Output
Up to 760 lumens, 30,865 center candela
Connection
Attached 5' (1.5m) hybrid IP66 cable (AWM 21388). Combined AC power and DMX/RDM
Emitters
2700K, 3000K, 3500K, 4000K, QS (W=3000K), QW4 (W=4000K) or QW6 (W=6000K)
Finish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optional
Material
Die cast aluminum, glass top lens, optional marine coating available
Mounting
Directly compatible with ½" NPT pipe (O.D.=0.855"). Mount options also include:
Weight
2.87 lbs (1.3kg)
Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)
Impact Protection
IK07, protection against 2 joule impact (40cm distance)
Ingress Protection
IP66, wet location
Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applications
Maximum Fixtures In Series
32 via DMX (with power connections local to each fixture)

Related Products

Dyna Drum EO ColorDyna Drum EO Color
Dyna Drum EO Color
UDM
UDM
Aria Wireless DMX
Aria Wireless DMX
Dyna Drum EO WhiteDyna Drum EO White
Dyna Drum EO White
UDM-W
UDM-W
Dyna Accent ColorDyna Accent Color
Dyna Accent Color
Dyna Accent WhiteDyna Accent White
Dyna Accent White

Related Projects

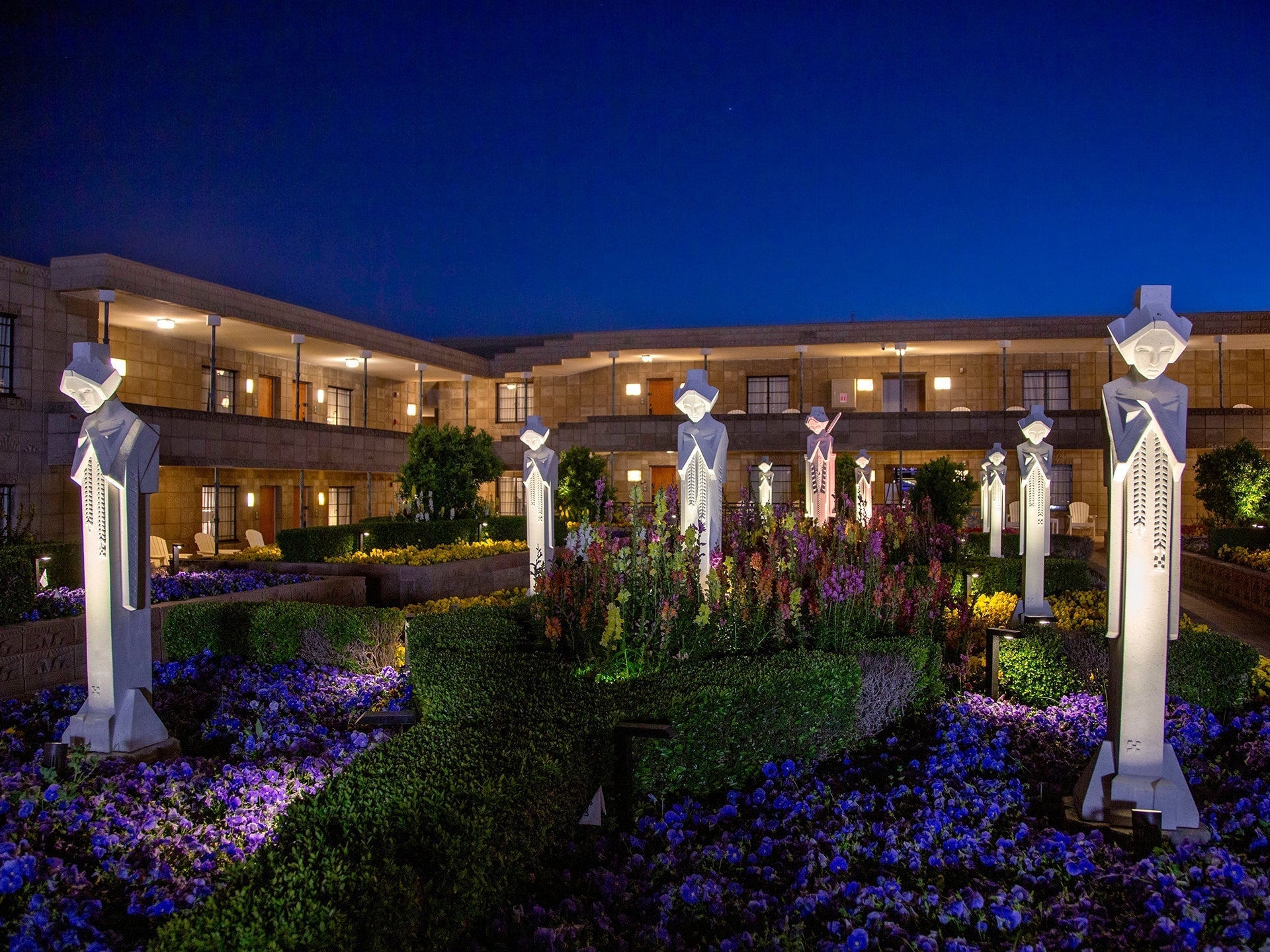

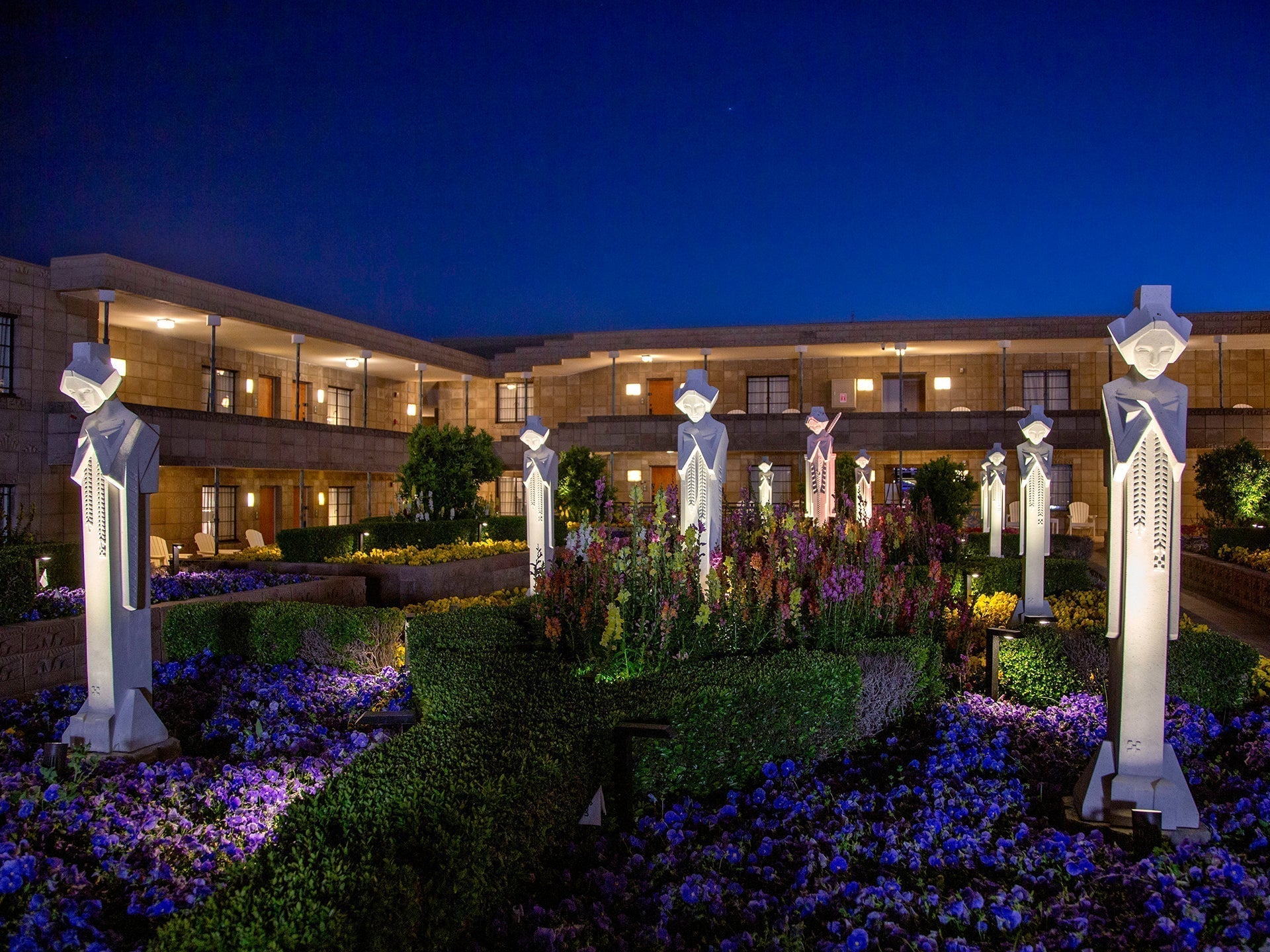

Arizona Biltmore

Arizona Biltmore

Laurel Hill Cemetery

Laurel Hill Cemetery

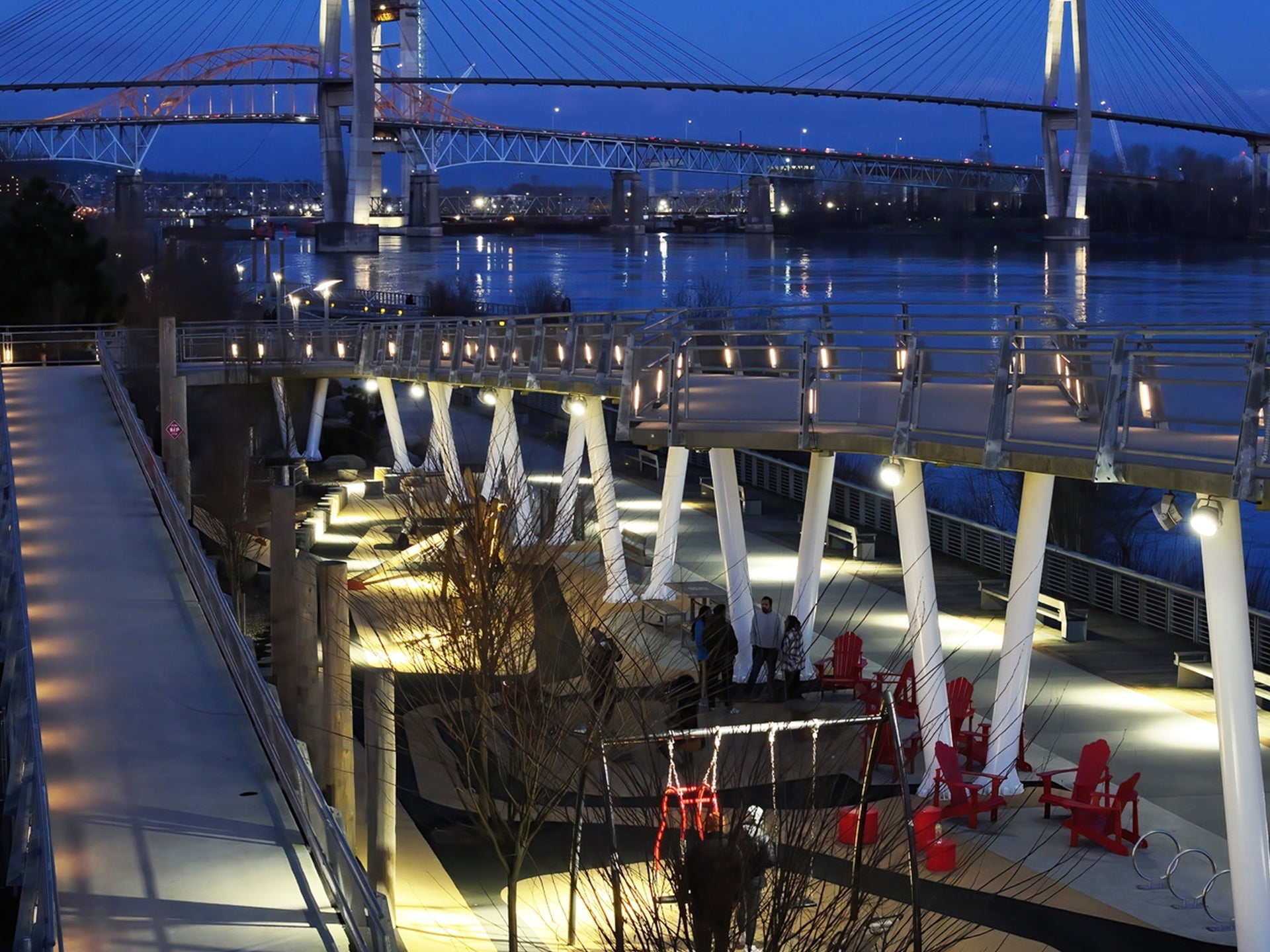

Pier West
