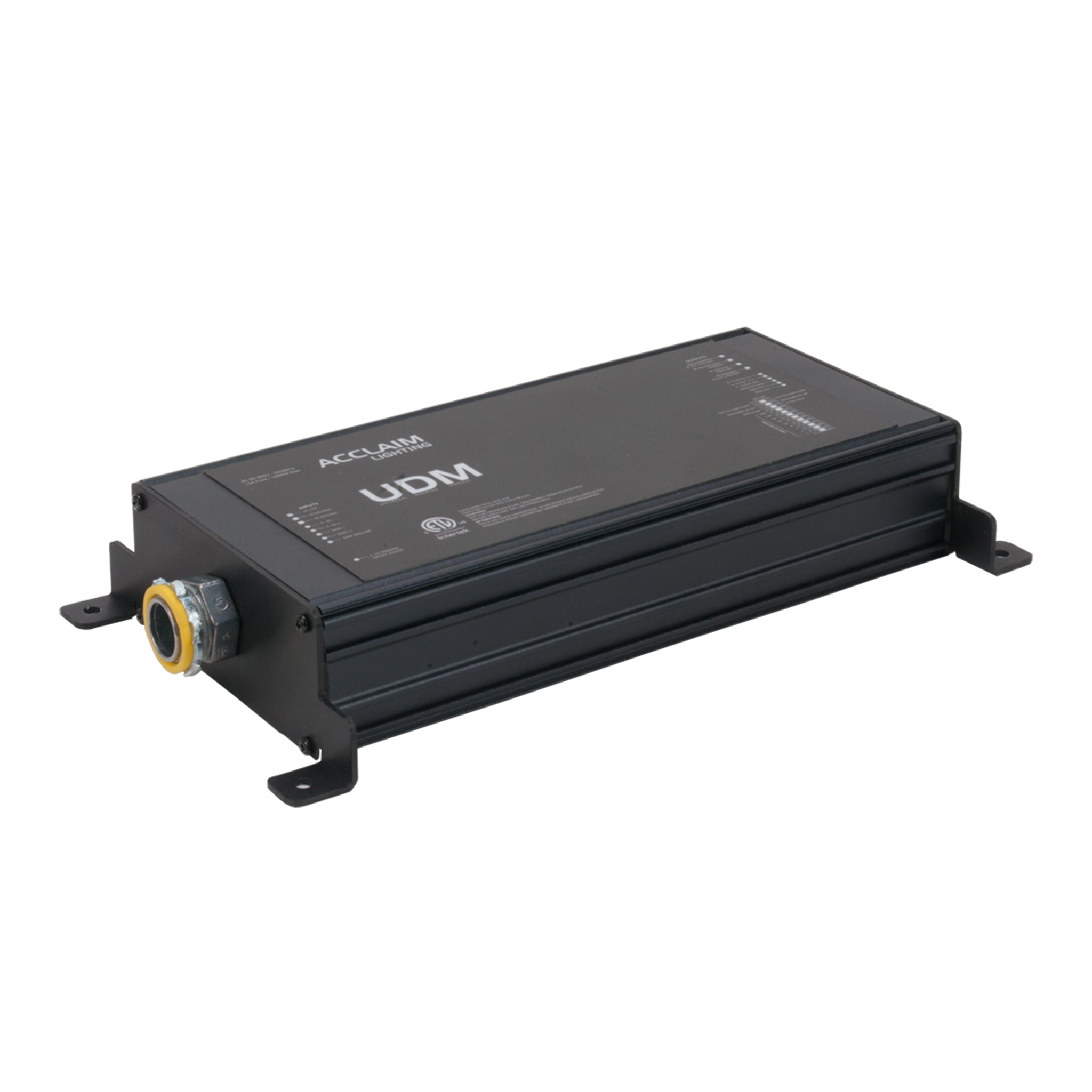

The UDM or Universal Dimming Module is a multi-protocol driver, designed to allow conversions between popular control protocols. It’s inputs are DMX 0-10V, while it’s outputs are DMX, 0-10V, and IGBT digital line voltage dimming. The UDM will allow for maximum control flexibility and integration with Acclaim Lighting products.

UPC: 813127019561SKU: UDM

Downloads

Filename Document type File type
UDM User Guide v2-1a User Guide PDF
UDM Specification Sheet 2.0.6 Specification Sheet PDF
UDM Revit File Revit Files RFA

Tech Specs

Certifications
ETL, CE, RoHS
AC Power Capacity
1000W Maximum
DC Output Current
Up to 25mA
Operating Voltage
100-277VAC, 50/60Hz
Output Voltage
100-277VAC, 50/60Hz
Addressing
Via on-board dip switch or RDM
Inputs
DMX + RDM, 0-10V (source or sink)
Connection
1/2” conduit nipples, 1 input + 1 output
Finish
Black
Housing Material
Aluminum
Physical
L 10.26” x W 5.16” x H 1.76” (L 260 x W 131 x H 45mm)
Weight
1 lb. (16 oz)
Ambient Temperature Range
-31º F to 122º F (-35º C to 50º C)
Ingress Protection
IP64, Damp Location
Mode Adjustment
Dim smoothing available via dip switch setting
