Ai Cove

This product is MetaobjectDrop certified. This product is MetaobjectDrop certified.

Specification highlights

Lumens Per Foot
616
Power
13W
TM-30
95

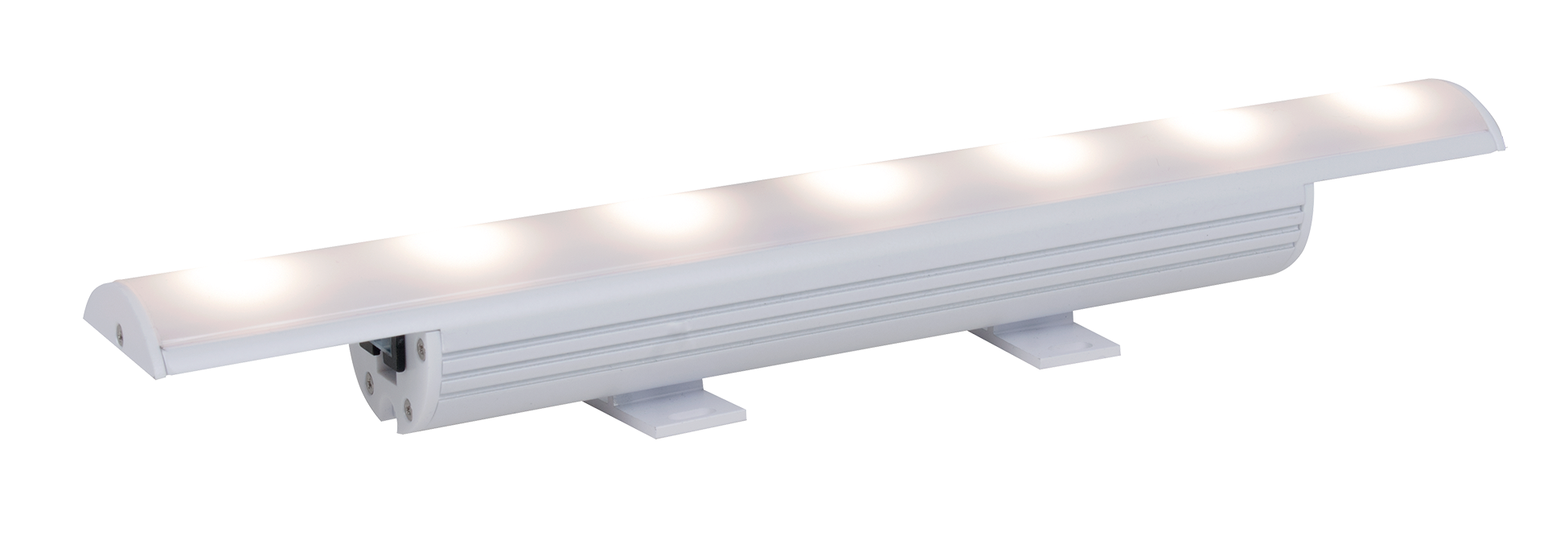

Ai Cove is a unique, dim to warm interior cove fixture. Available in 1’ and 4’ sections, it features Acclaim’s proprietary Ai Dim (Acclaim Intelligent Dimming) technology. Ai Dim is a combination of a finely tuned dimming curve and a specific grouping of LEDs which results in a near-perfect representation of incandescent dimming.
SKU: AIC-1#2-#AW#-1

Featured Technologies

01

Ai Dim

Ai Dim™ doesn't just dim your lights, it transforms them. Through precisely engineered LED groupings and our proprietary dimming curve, we've captured the soul of incandescent lighting in solid-state technology. Watch as your spaces breathe with the familiar warmth of traditional dimming, from brilliant whites to intimate amber glows, all while maintaining the efficiency and longevity of modern LEDs.

01

Ai Dim

Ai Dim™ doesn't just dim your lights, it transforms them. Through precisely engineered LED groupings and our proprietary dimming curve, we've captured the soul of incandescent lighting in solid-state technology. Watch as your spaces breathe with the familiar warmth of traditional dimming, from brilliant whites to intimate amber glows, all while maintaining the efficiency and longevity of modern LEDs.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Ai Cove Ai Cove
Configuration code
Configuration code
Finish:
Length:
Input Voltage:

Downloads

Filename Document type File type
Ai Cove User Guide v1-1b User Guide PDF
Ai Cove Specification Sheet 2.0.2 Specification Sheet PDF
Ai Cove Revit File Revit Files RFA
Ai Cove IES IES Files ZIP

Tech Specs

Certifications
ETL, CE
Operating Voltage
120VAC, 240VAC or 277VAC - 50/60Hz
Power Consumption
13W per foot
Lumen Maintenance
L70 130,000 hours (@ 25° C)
Optics
120º
Output
Up to 500 lm/ft
Emitters
3000K - 1800K
Finish
White standard - Optional black, gray, or custom (supply RAL #)
Length
1' (305mm) or 4' (1220mm)
Material
Aluminum body, Polycarbonate Lens
Ambient Temperature Range
-4° F to 113° F (-20° C to 45° C)
Ingress Protection
IP40, dry location
Maximum Fixtures In Series
50‘ (15.2m) @ 120V, 100‘ (30.4m) @ 240V+
