UDM-W
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.

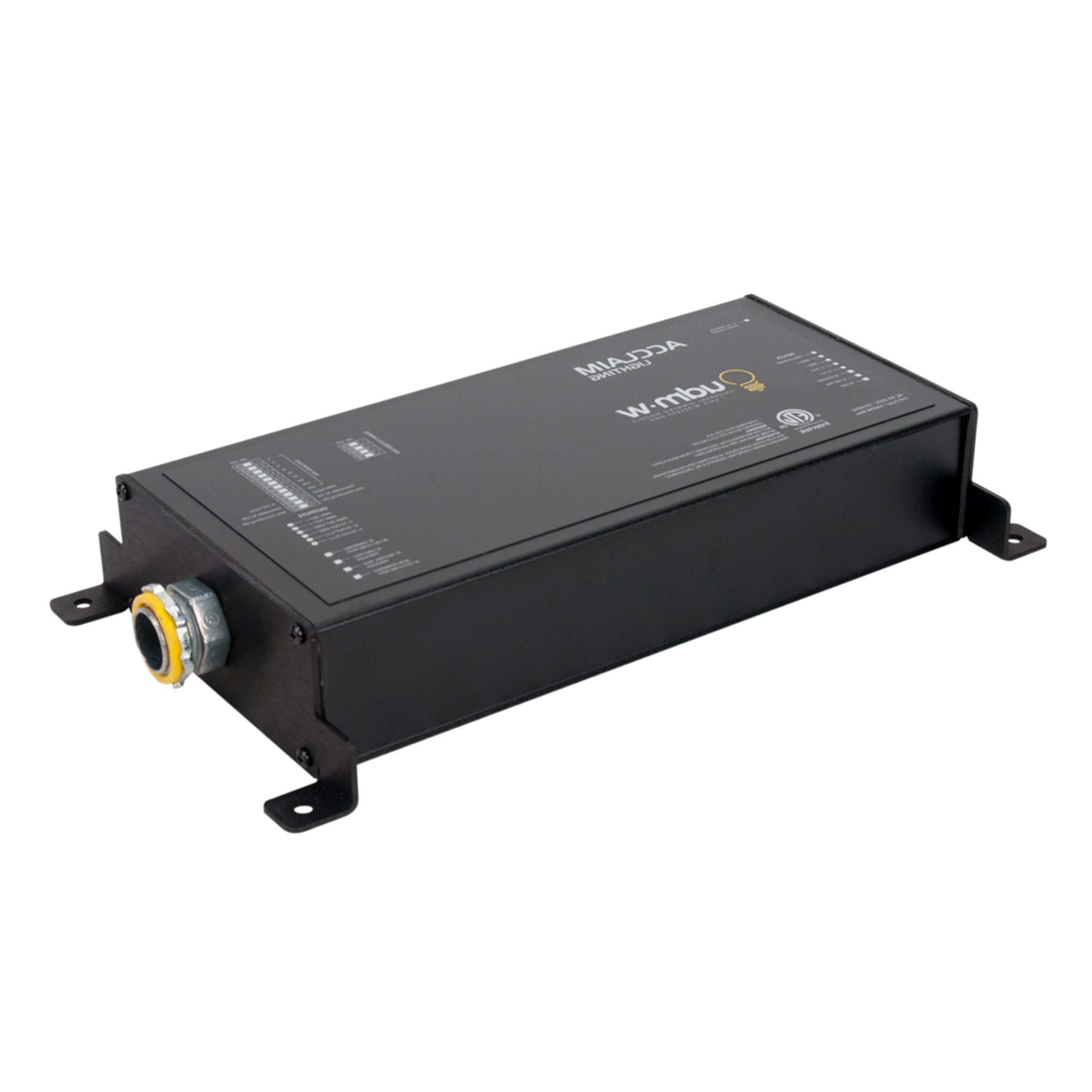

The UDM-W or Universal Dimming Module with Aria Wireless is a multi-protocol driver, designed to allow conversions between popular control protocols. It’s inputs are DMX (wired and wireless) 0-10V, while it’s outputs are DMX, 0-10V, and IGBT digital line voltage dimming. The UDM-W will allow for maximum control flexibility and integration with both Acclaim Lighting and 3rd party products.
UDM-W
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| UDM-W Specification Sheet 2.0.0 | Specification Sheet | |
| UDM User Guide v2-1a | User Guide | |
| UDM-W Revit File | Revit Files | RFA |
Tech Specs
Certifications
ETL, CE, RoHSAC Power Capacity
1000W MaximumDC Output Current
Up to 25mAOperating Voltage
100-277VAC, 50/60HzOutput Voltage
100-277VAC, 50/60HzAddressing
Via on-board dip switch or RDMDMX Output
8 bit or 16 bit dimmingInputs
Wired and wireless (Aria) DMX + RDM, 0-10V (source or sink)Wireless Protocol
2.4 GHz, IEEE 802.15.4, 15 selectable channelsConnection
1/2” conduit nipples, 1 input + 1 outputFinish
BlackHousing Material
AluminumPhysical
L 10.26” x W 5.16” x H 1.76” (L 260 x W 131 x H 45mm)Weight
1 lb. (16 oz)Ambient Temperature Range
-31º F to 122º F (-35º C to 50º C)Ingress Protection
IP64, Damp LocationMode Adjustment
Dim smoothing available via dip switch setting
