Dyna Drum EO Color

Lumens: 2200
Power: 72W
TM-30: 80

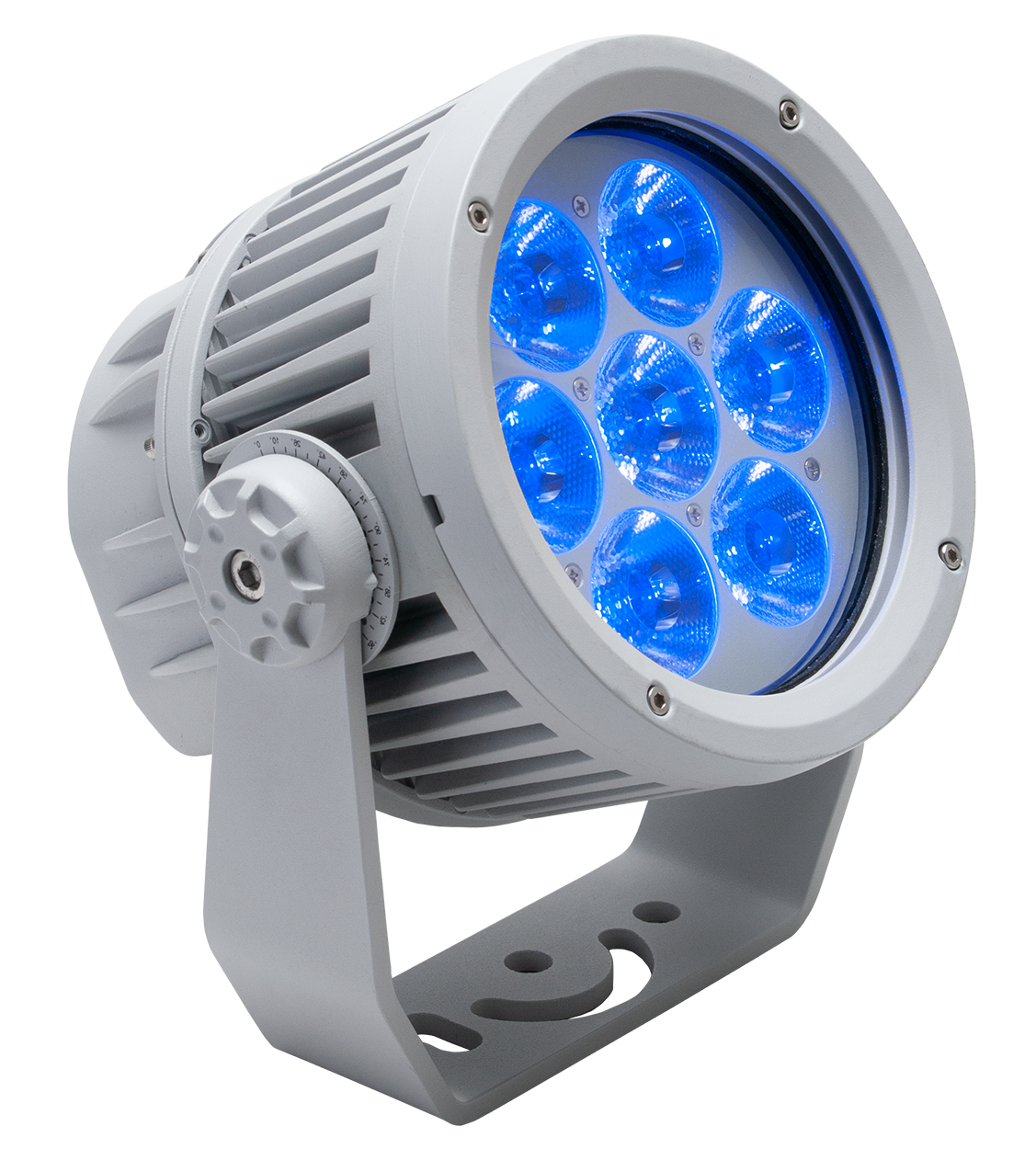

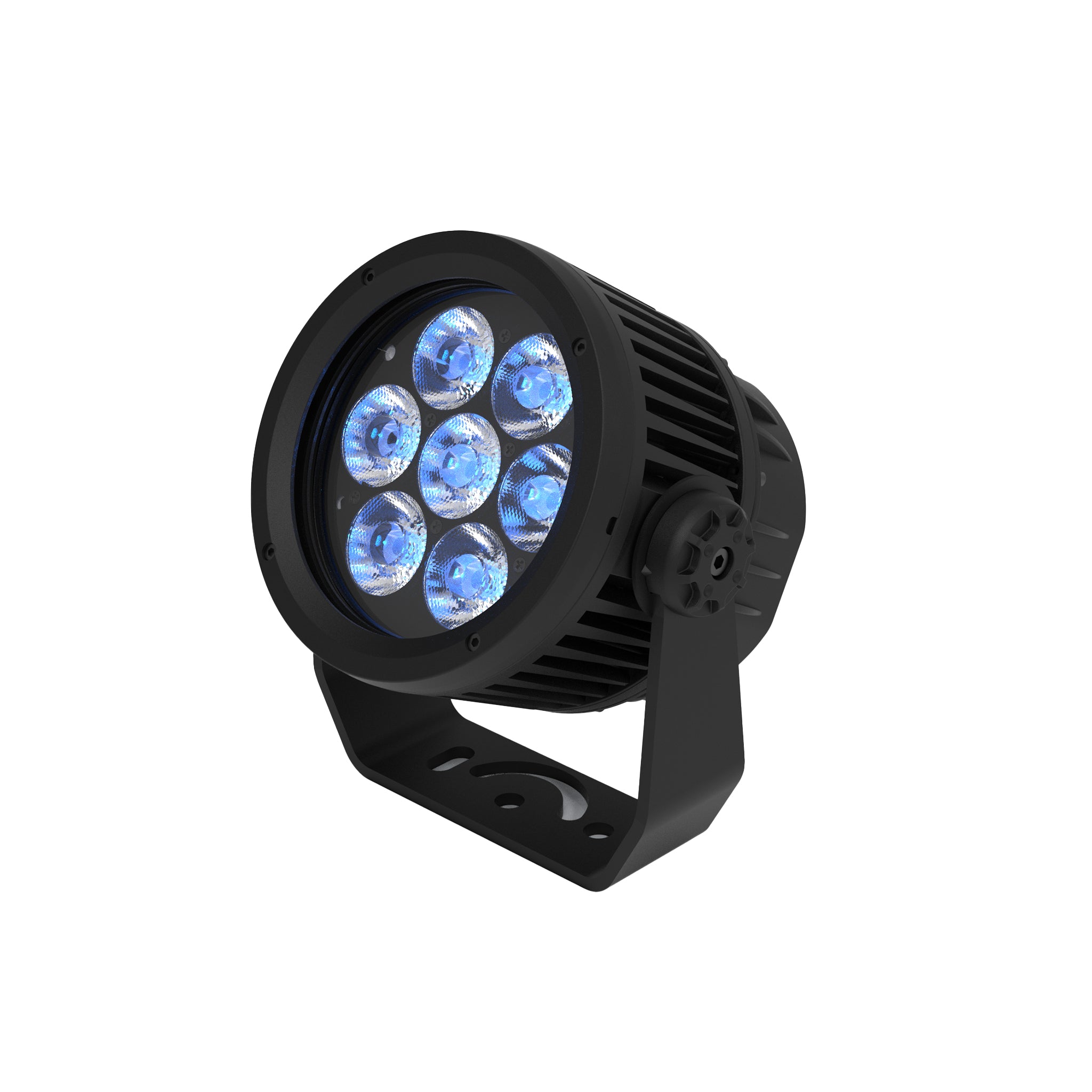

Dyna Drum EO is a high output, compact outdoor rated LED floodlight with wired digital communication network. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a 10º narrow beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.

SKU: DDV-2#1-#C#N-1

Featured Technologies

01

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

02

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

03

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

01

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

02

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

03

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Configurator

Dyna Drum EO Color

Configuration code

Finish:

Black (RAL 9005)

White (RAL 9003)

Gray (RAL 7047)

Custom (provide RAL #)

Cable system:

Standard Bare Wires

Outdoor Link System

Emitters:

QW6 (RGBW, W=6000K)

QW4 (RGBW, W=4000K)

QS (RGBW, W=3000K)

Downloads

Filename	Document type	File type
Dyna Drum EO Color Specification Sheet - August 2025	Specification Sheet	PDF
Dyna Drum EO User Guide v1-1c	User Guide	PDF
Dyna Drum EO Color Revit Files	Revit Files	RFA
Dyna Drum EO IES	IES Files	ZIP
Dyna Drum EO 2D Drawings	Drawings	ZIP
