Dyna Accent White
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens
- 2581
- Power
- 40W
- TM-30
- 91

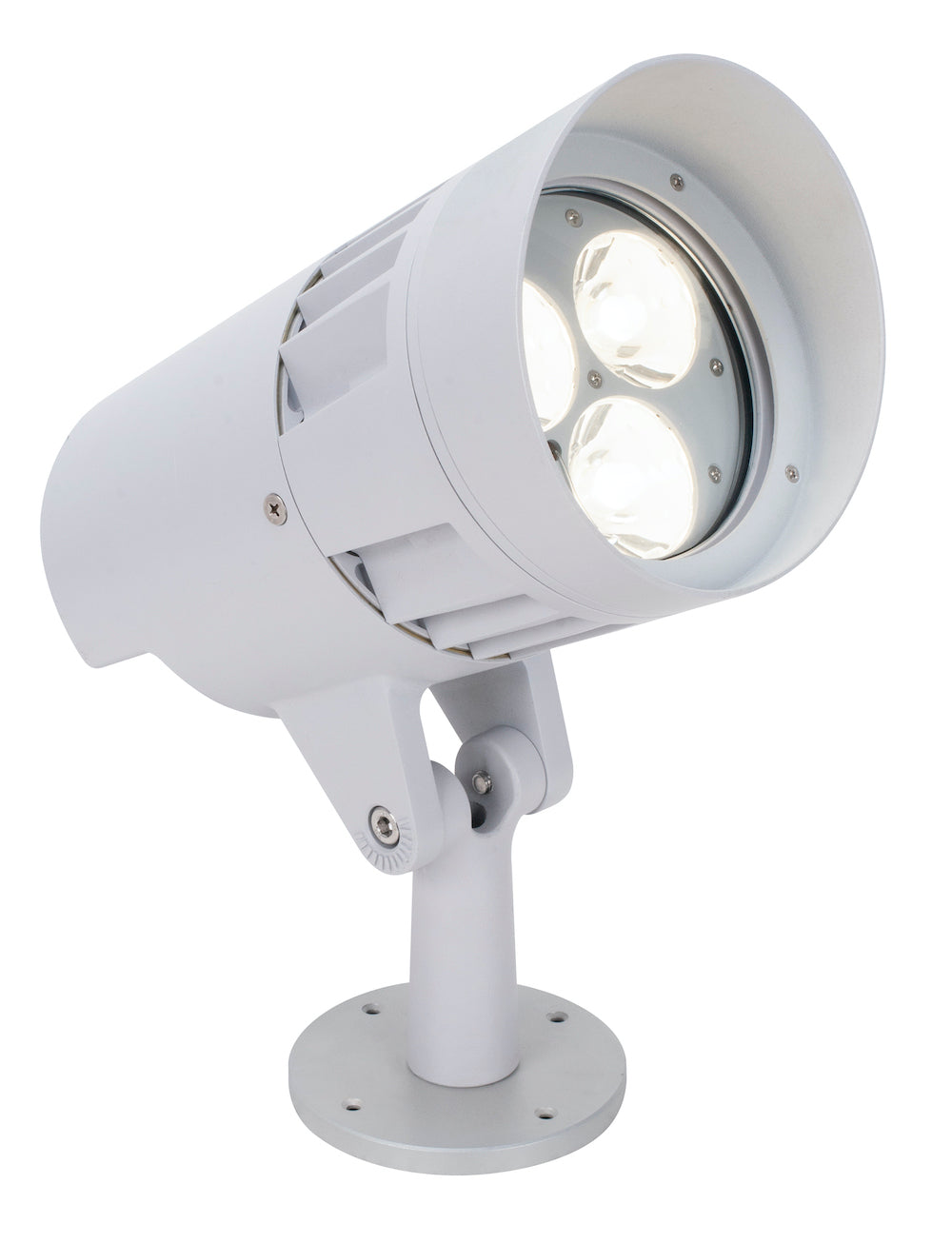

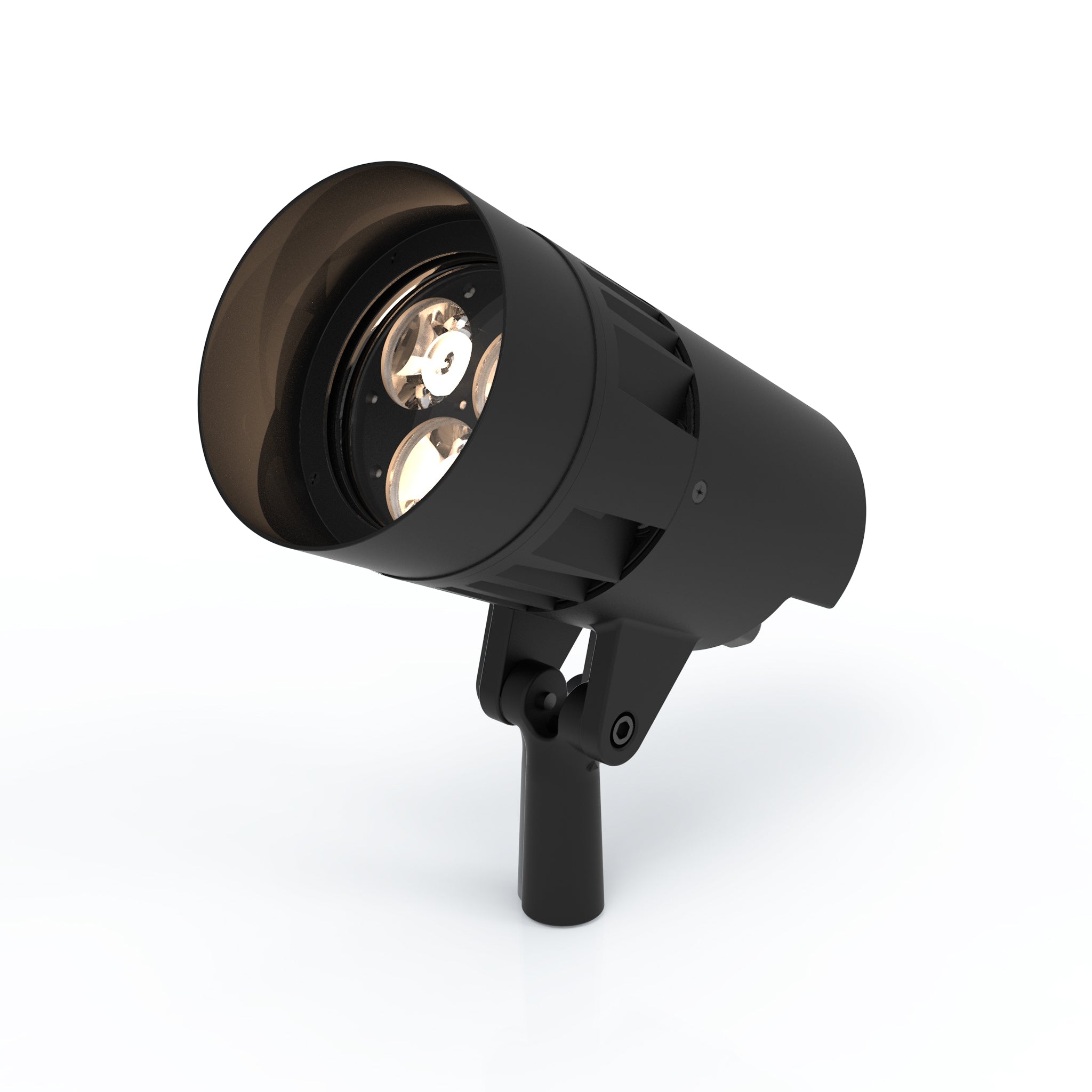

Dyna Accent White is a high output, outdoor rated, white color LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. The optical system and high power LED provide exceptional output and efficacy. It comes with a narrow 5º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.
Dyna Accent White
Sale price$0.00
Featured Technologies
01
02
01
02
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Dyna Accent White
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Dyna Accent White Specification Sheet - July 2025 | Specification Sheet | |
| Dyna Accent (Gen 2) User Guide v2-1c | User Guide | |
| Dyna Accent White Revit Files | Revit Files | RFA |
| Dyna Accent Gen 2 IES 04.30.21 | IES Files | ZIP |
| Dyna Accent Gen 2 2D Drawings | Drawings | ZIP |
| Acclaim OLS Quick Reference Chart | Other | XLSX |
Tech Specs
Certifications
ETL, CE, 3GOperating Voltage
100-277VAC, 50/60HzPower Consumption
40WControl
0-100% dimming via wired DMX (with RDM configuration) or DMX via built-in Aria wirelessLumen Maintenance
L70 150,000 hours (@ 25° C)Optics
5° x 5º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60° or 100° x 100°Output
Up to 2,581 lumens, 186,642 center candelaConnection
Attached 5' (1.5m) hybrid IP66 cable (AWM 21388). Combined AC power and DMX/RDMEmitters
2700K, 3000K, 3500K, 4000K, 5700KFinish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optionalMaterial
Die cast aluminum, glass top lens, optional marine coating availableMounting
Directly compatible with ½" NPT pipe (O.D.=0.855"). Mount options also include:Weight
10 lbs (4.53kg)Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)Impact Protection
IK07, protection against 2 joule impact (40cm distance)Ingress Protection
IP66, wet locationVibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applicationsMaximum Fixtures In Series
32 via DMX (with power connections local to each fixture)
