Dyna Drum HO White G2
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens
- 16418
- Power
- 200W
- TM-30
- 90

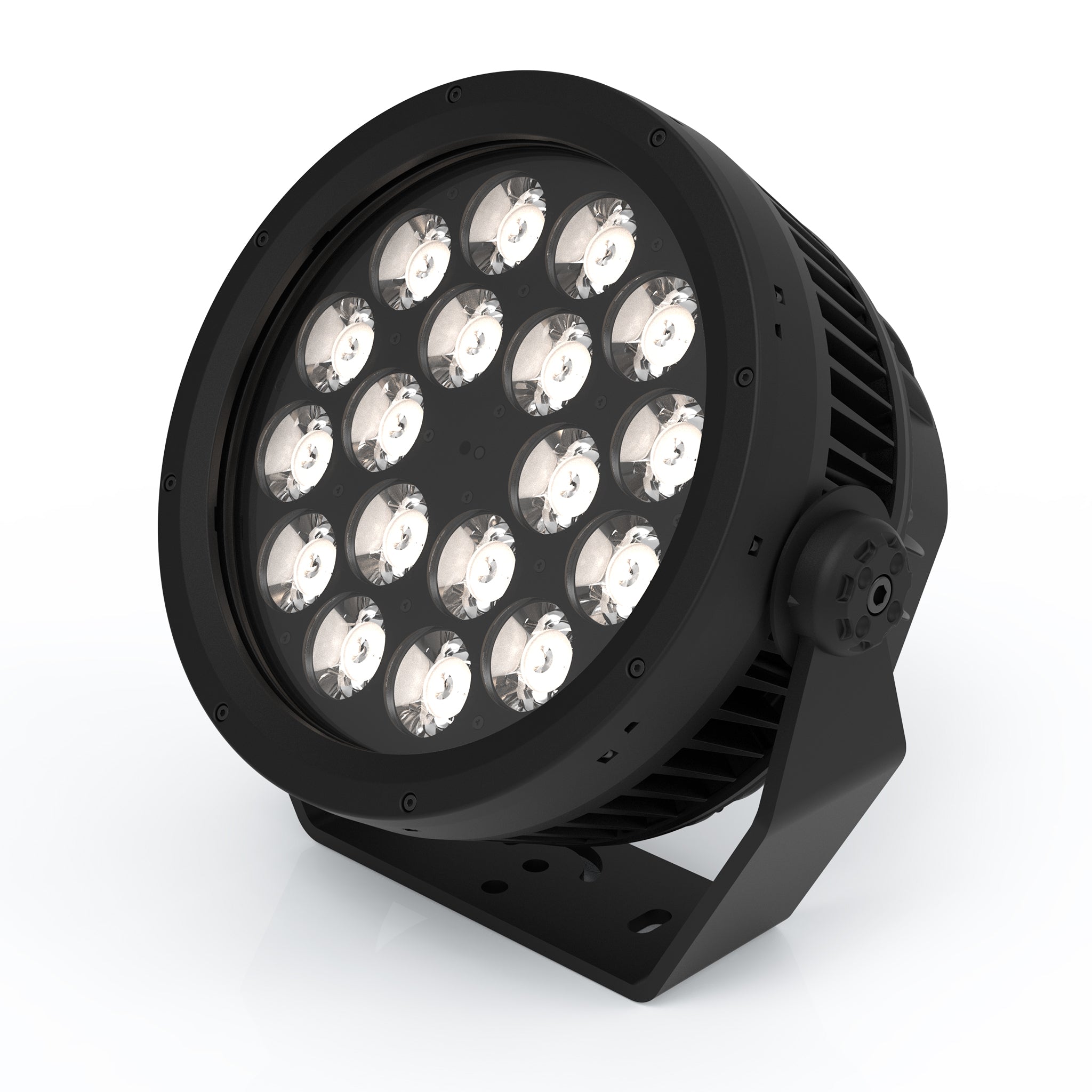

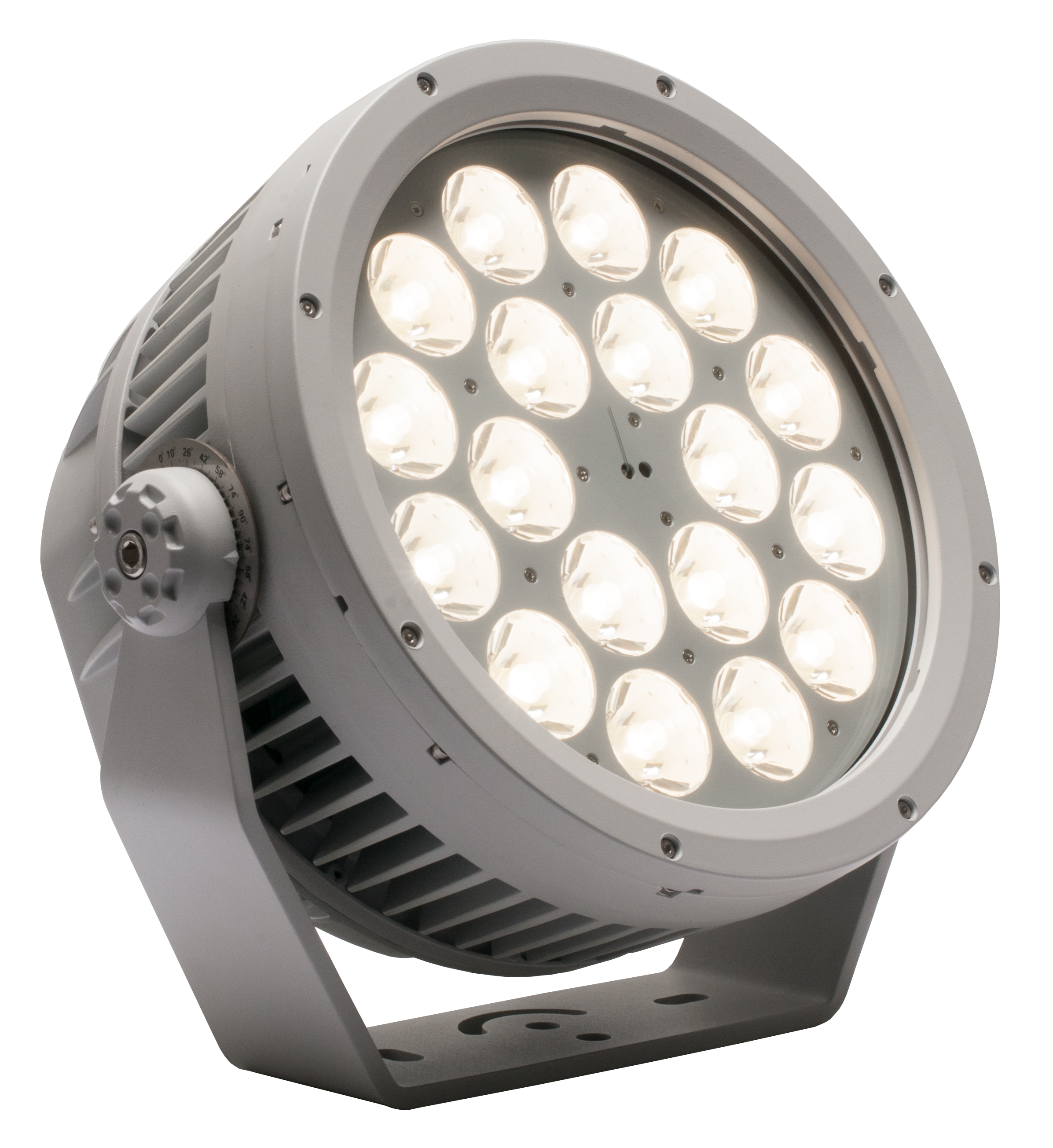

Dyna Drum HO White is a high output, outdoor rated, white color LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. The optical system and high power LED provide exceptional output and efficacy. It comes with a narrow 5º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.
Dyna Drum HO White G2
Sale price$0.00
Featured Technologies
01
02
01
02
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Dyna Drum HO White G2
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Dyna Drum HO White Gen 2 Specification Sheet - August 2025 | Specification Sheet | |
| Dyna Drum HO User Guide v2-1d | User Guide | |
| Lighting-Accent-Acclaim-Dyna Drum HO White | Revit Files | RFA |
| Dyna Drum HO Gen 2 IES Files | IES Files | ZIP |
| Dyna Drum HO Gen 2D Drawings | Drawings | ZIP |
| Dyna Drum HO Gen 2 Approvals | Approvals | ZIP |
Tech Specs
Certifications
ETL, CE, 3GOperating Voltage
100-277VAC, 50/60HzPower Consumption
200WLumen Maintenance
L70 150,000 hours (@ 25° C)Optics
5° x 5º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60°Output
Up to 16,418 lumens, 1,101,345 cdEmitters
2700K, 3000K, 3500K, 4000K, 5700KFinish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optionalMaterial
Die cast aluminum, glass top lens, optional marine coating availableAmbient Temperature Range
-40° F to 122° F (-40° C to 50° C)Ingress Protection
IP66, wet locationMaximum Fixtures In Series
32 via DMX (with power connections local to each fixture)
