Dyna Drum SO White G2
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens
- 7591
- Power
- 150W
- TM-30
- 90

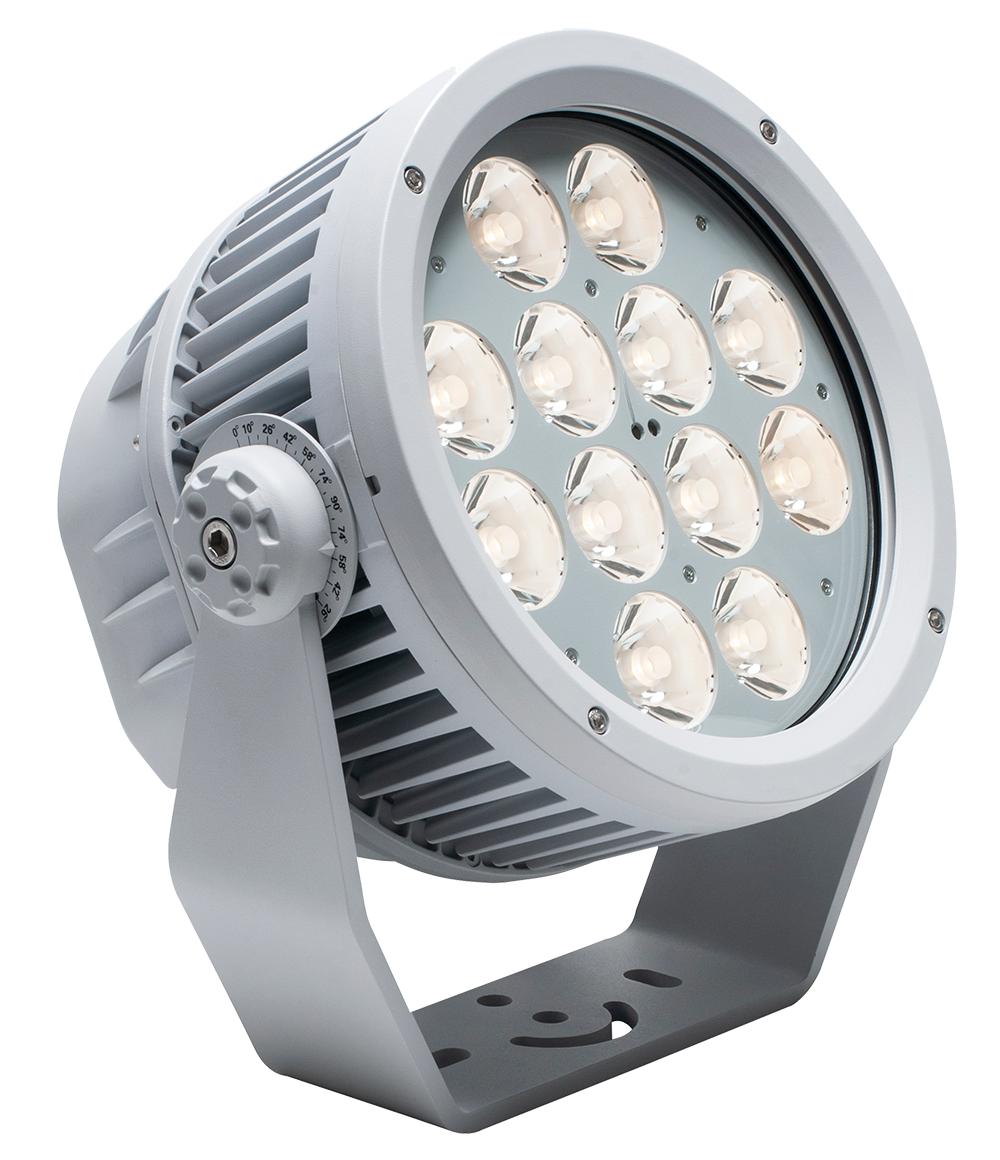

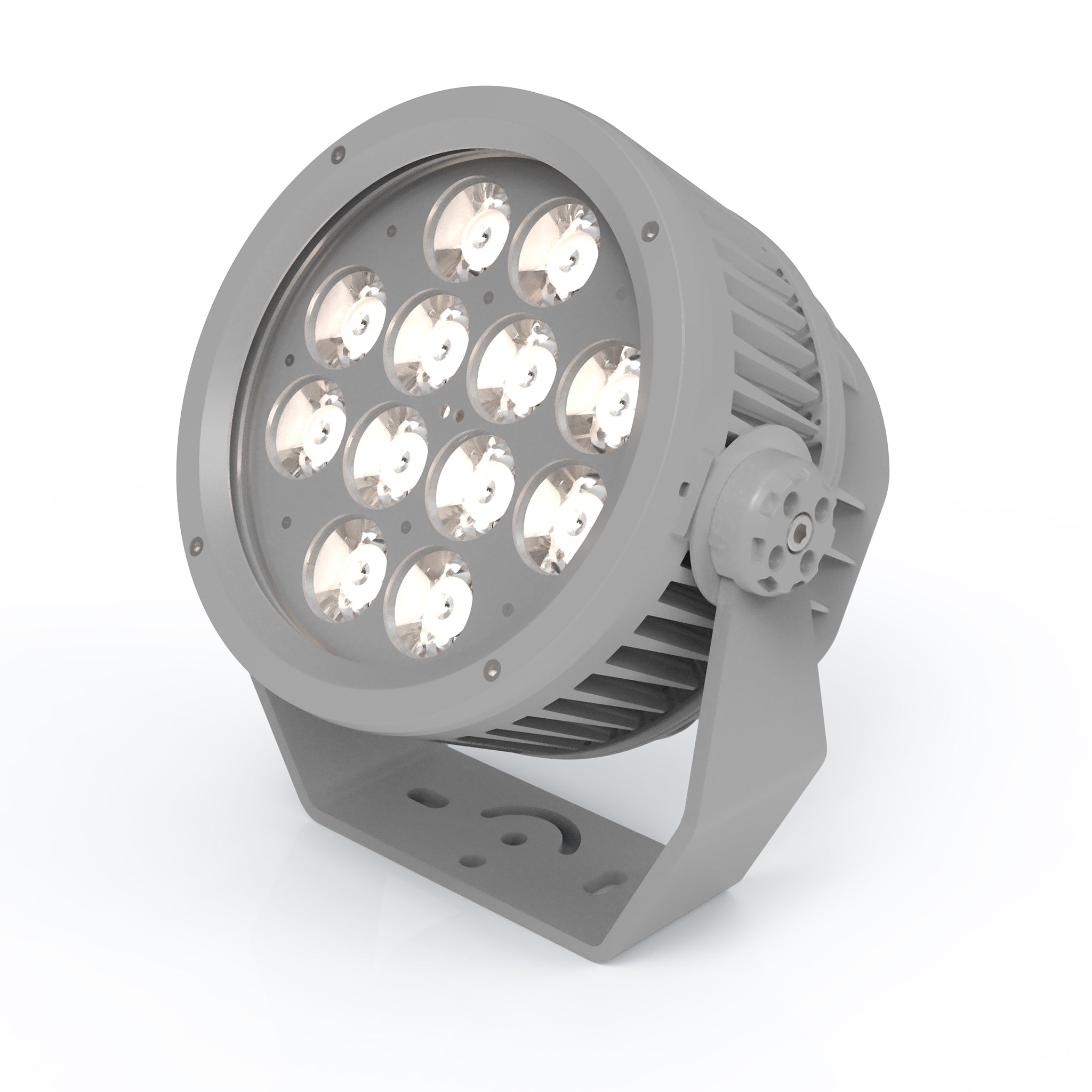

Dyna Drum SO White is a high output, outdoor rated, white LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a narrow 5o beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.
Dyna Drum SO White G2
Sale price$0.00
Featured Technologies
01
02
01
02
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Dyna Drum SO White G2
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Dyna Drum SO White Specification Sheet - August 2025 | Specification Sheet | |
| Dyna Drum SO (Gen 2) guide v2-1c | User Guide | |
| Dyna Drum SO White Gen 2 Revit Files | Revit Files | RFA |
| IES Dyna Drum SO Gen2 | IES Files | ZIP |
| Dyna Drum SO Gen 2 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, 3GOperating Voltage
100-277VAC, 50/60HzPower Consumption
150WLumen Maintenance
L70 150,000 hours (@ 25° C)Optics
5° x 5º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60°Output
Up to 7,591 lumens, 755,050 center candelaEmitters
2700K, 3000K, 3500K, 4000K, 5700KFinish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optionalMaterial
Die cast aluminum, glass top lens, optional marine coating availableAmbient Temperature Range
-40° F to 122° F (-40° C to 50° C)Ingress Protection
IP66, wet locationMaximum Fixtures In Series
32 via DMX (with power connections local to each fixture)

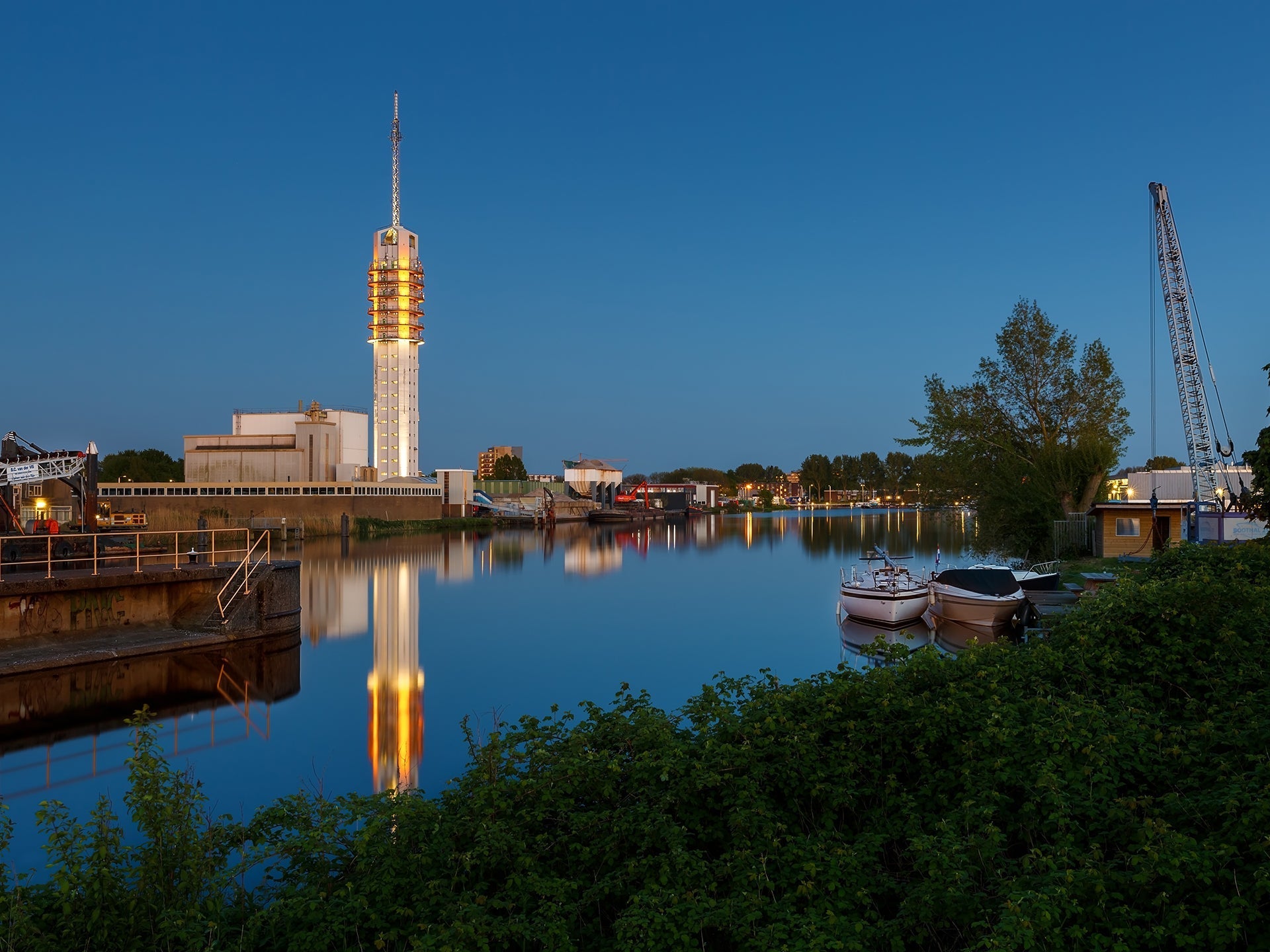

Related Projects
