Linear XTR Direct View
Linear XTR Direct View
Linear XTR Direct View
Linear XTR Direct View

Linear XTR Direct View

This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified.

Specification highlights

Lumens Per Foot
752
Power
12W
5W
2.5W
TM-30
85

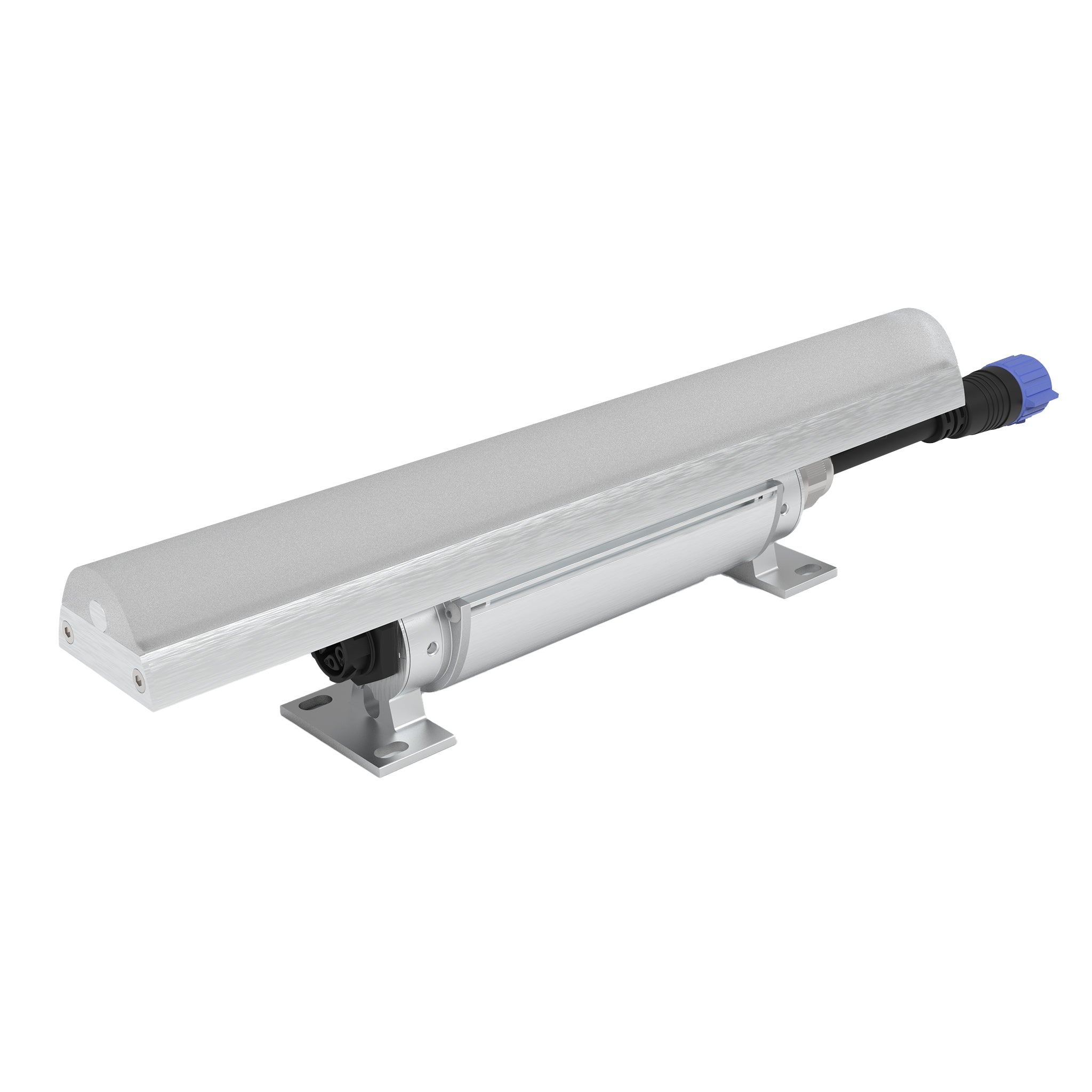

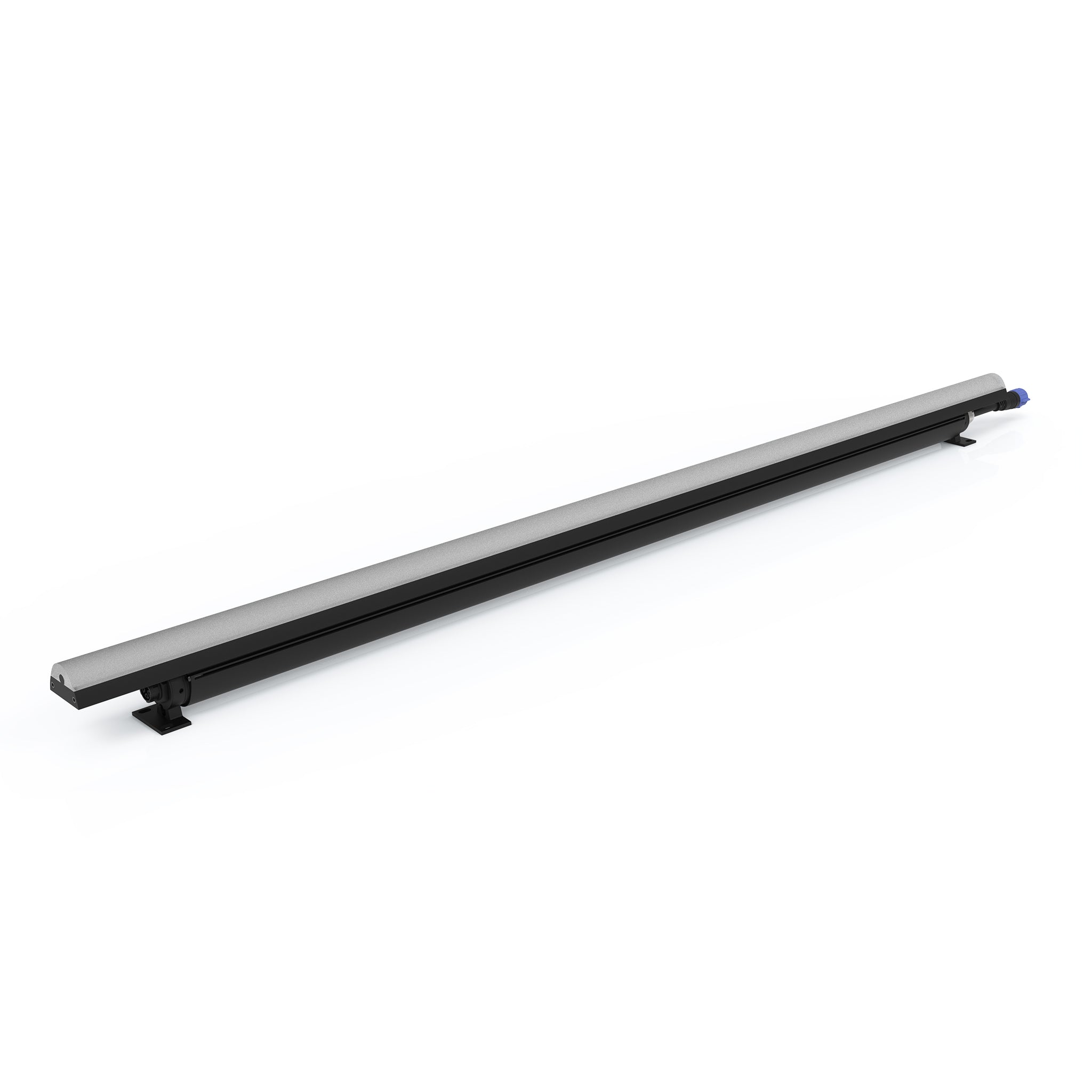

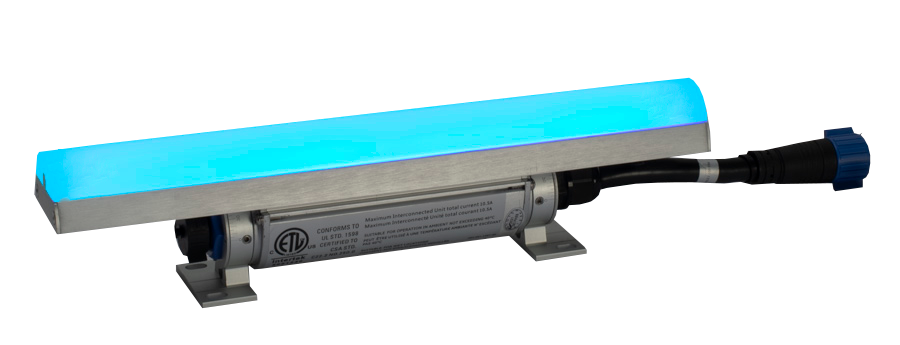

Linear XTR Direct View is a direct view LED linear fixture designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product, and up to 1400’ on a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where long-distance runs are desired.
SKU: XD#-2#2-#N#N-1

Featured Technologies

01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.
01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Linear XTR Direct View Linear XTR Direct View
Configuration code
Configuration code
Finish:
Length:
Emitters:
Power:

Downloads

Filename Document type File type
Linear XTR DV Specification Sheet - July 2025 Specification Sheet PDF
Linear XTR DV User Guide v3-0a User Guide PDF
Linear XTR DV Revit Files Revit Files RFA
Linear XTR Revit Files Revit Files RFA
Linear XTR IES 2022.09.21 IES Files ZIP
Linear XTR 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, FCC, CE, 3G, RoHS
Operating Voltage
100-277VAC, 50/60Hz direct or 380VDC via XTR Driver 4000/8000 (200-300VAC input to XTR Driver)
Power Consumption
12W per foot, 5W per foot, 2.5W per foot
Control
0-100% dimming via wired DMX (with RDM configuration). 0-10V and DALI via XTR Driver
Ambient Temperature Range
-40º F to 131º F (-40º C to 55º C)
Impact Protection
IK10, protection against 20 joule impact (40cm distance)
Ingress Protection
IP68, wet location and temporary submersion for up to 1 hour at 3.28' (1m)
Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applications
Maximum Fixtures In Series
Up to 700' (213m) via XTR Driver 4000 /8000

Related Products

AJBOX1AJBOX1
AJBOX1
Linear XTRLinear XTR
Linear XTR
XTR Driver 8000
XTR Driver 8000
XTR DRIVER 4000
XTR DRIVER 4000

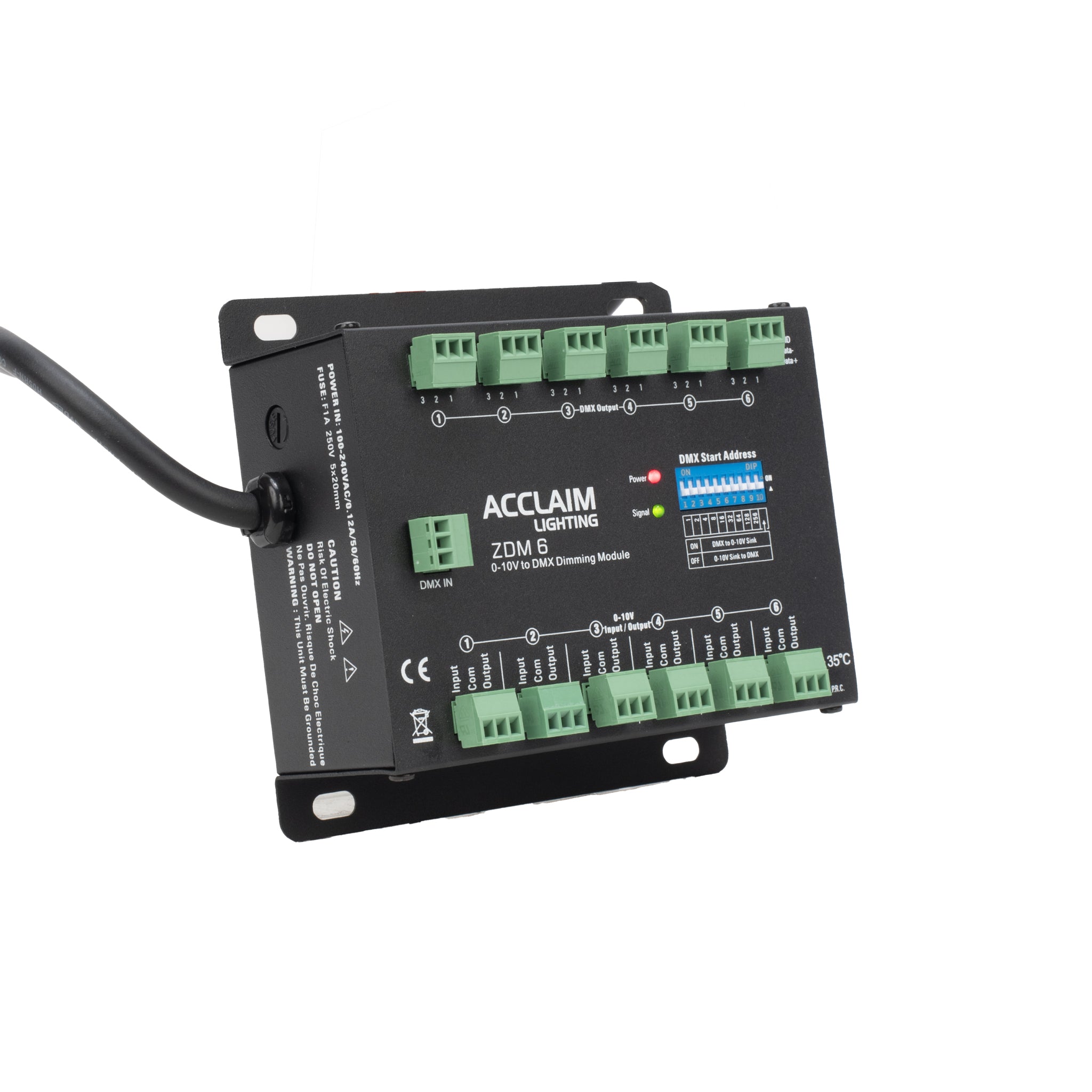

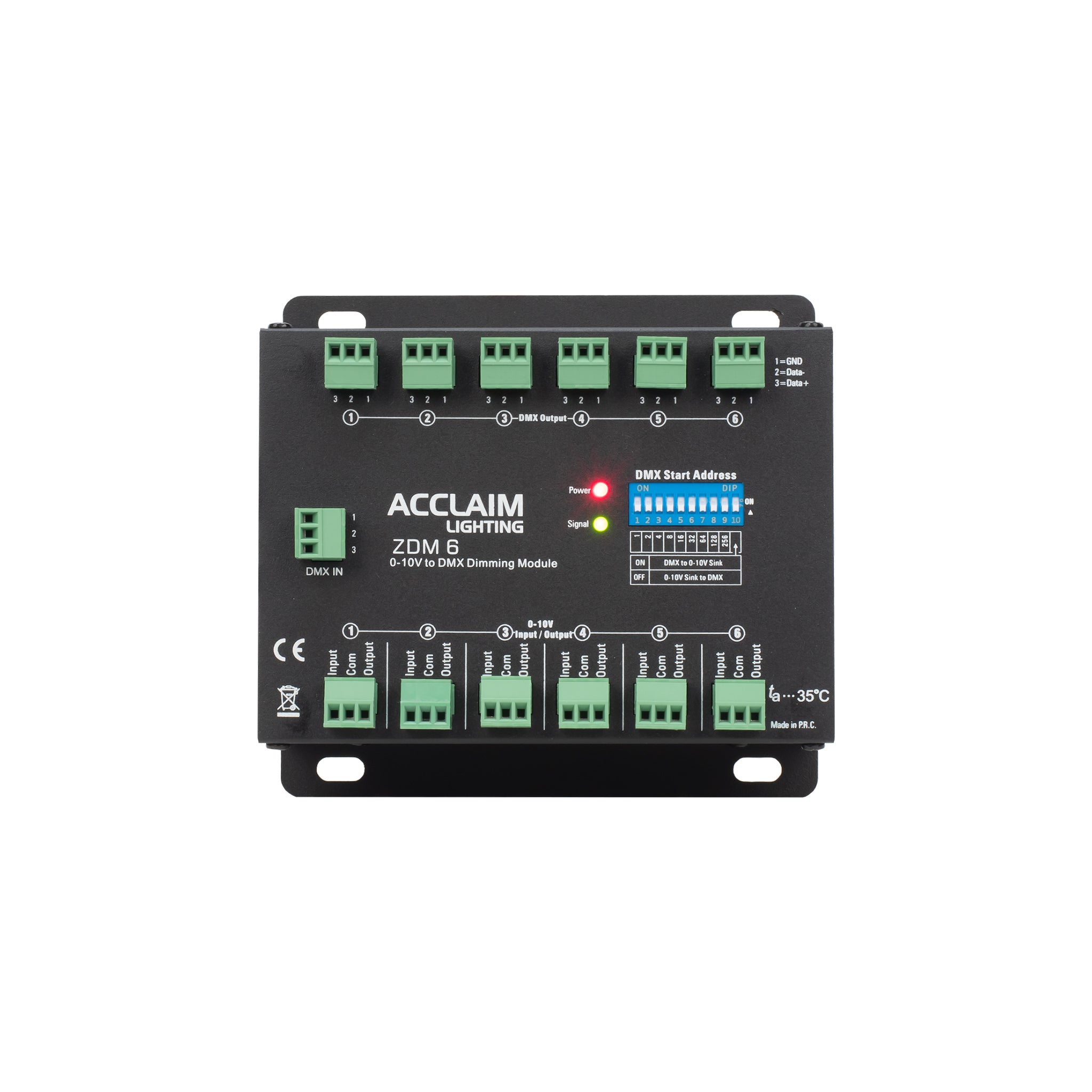

ZDM 6ZDM 6
