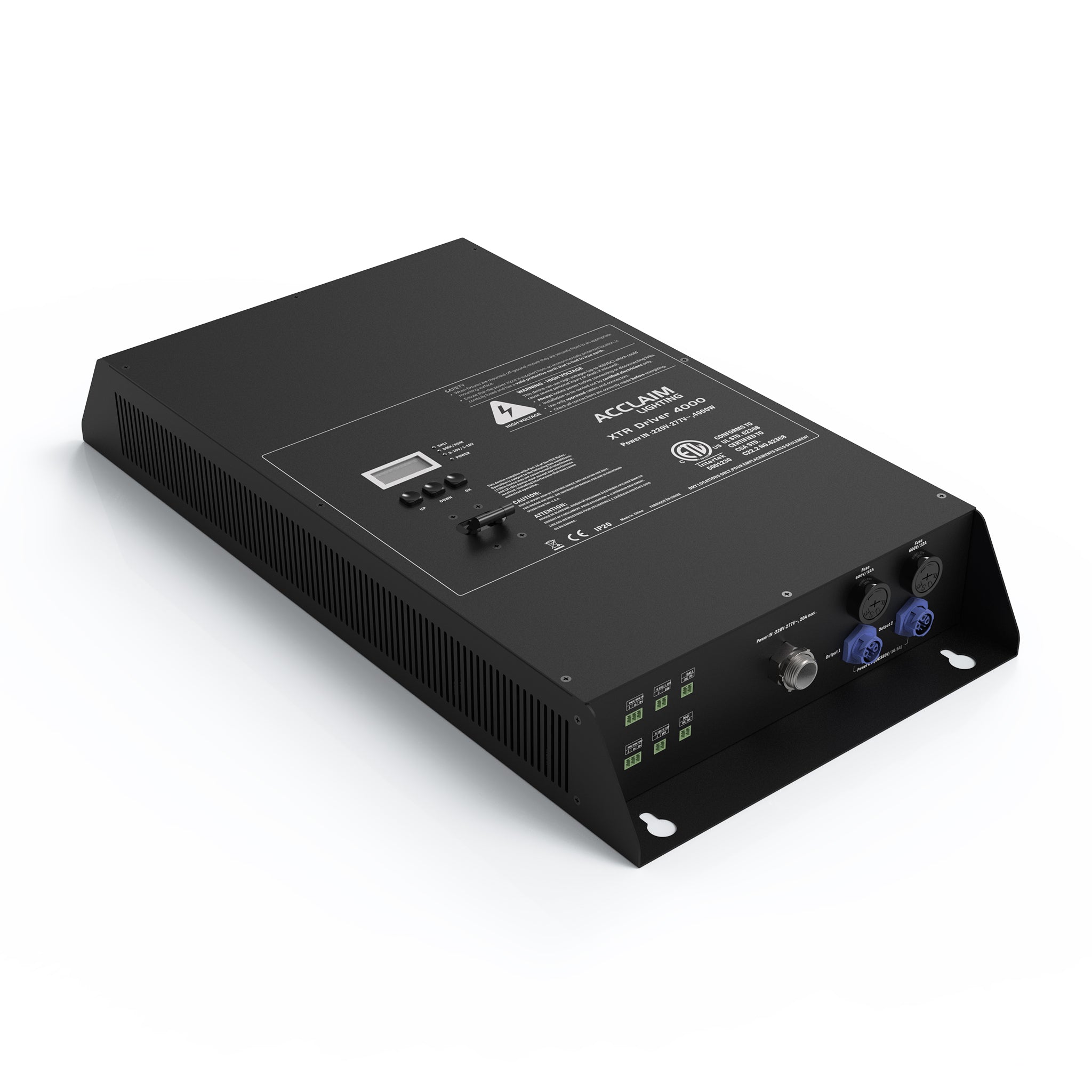

XTR DRIVER 4000

XTR DRIVER 4000

Specification highlights

Input Voltage
220-277VAC
Output Power
4kW
Output Voltage
380VDC
The XTR Driver 4000 is a key component in the XTR Link System, allowing for maximum runs of up to 700’ in series with XTR Link compatible products. It is quite flexible on control input protocol, accepting DMX, RDM, DALI, 0-10V Sink (noted as 1-10V), and 0-10V source. It features a 220V-277VAC input, an onboard display for control input selection, and up to 4000W of output power.
UPC: 840063508156SKU: XTRD4000

Downloads

Filename Document type File type
XTR Driver guide v1-0d User Guide PDF
XTR Driver 4000 - Specs - March 2023 Specification Sheet PDF
Lighting-Driver-Acclaim-XTR 4000 Revit Files RFA
XTR Driver 2D CAD Drawings ZIP

Tech Specs

Certifications
ETL, CE
Operating Voltage
220-277VAC, 50/60Hz
Power Output
4000W, 380VDC 10.5A maximum
Control
DMX + RDM, DALI, 0-10V Sink (noted as 1-10V), 0-10V Source
Finish
Black
Connectors
Control inputs: Terminal blocks Outputs: 2 x composite quick lock connectors, IP67
Material
Aluminum
Mounting
Wall mount: 4x Ø0.65" (Ø16.5 mm) surface mount holes
Weight
21 lbs (9.52 kg)
Ambient Temperature Range
-14° F to 131° F (-10° C to 55° C)
Impact Protection
IK02, protection against 0.20 joule impact
Ingress Protection
IP20, dry location
Compatibility
XTR Link fixtures: Linear XTR, Linear XTR Direct View and/or Terra Linear
