Linear XTR

Lumens Per Foot: 864
Power: 12W; 5W; 2.5W
TM-30: 85

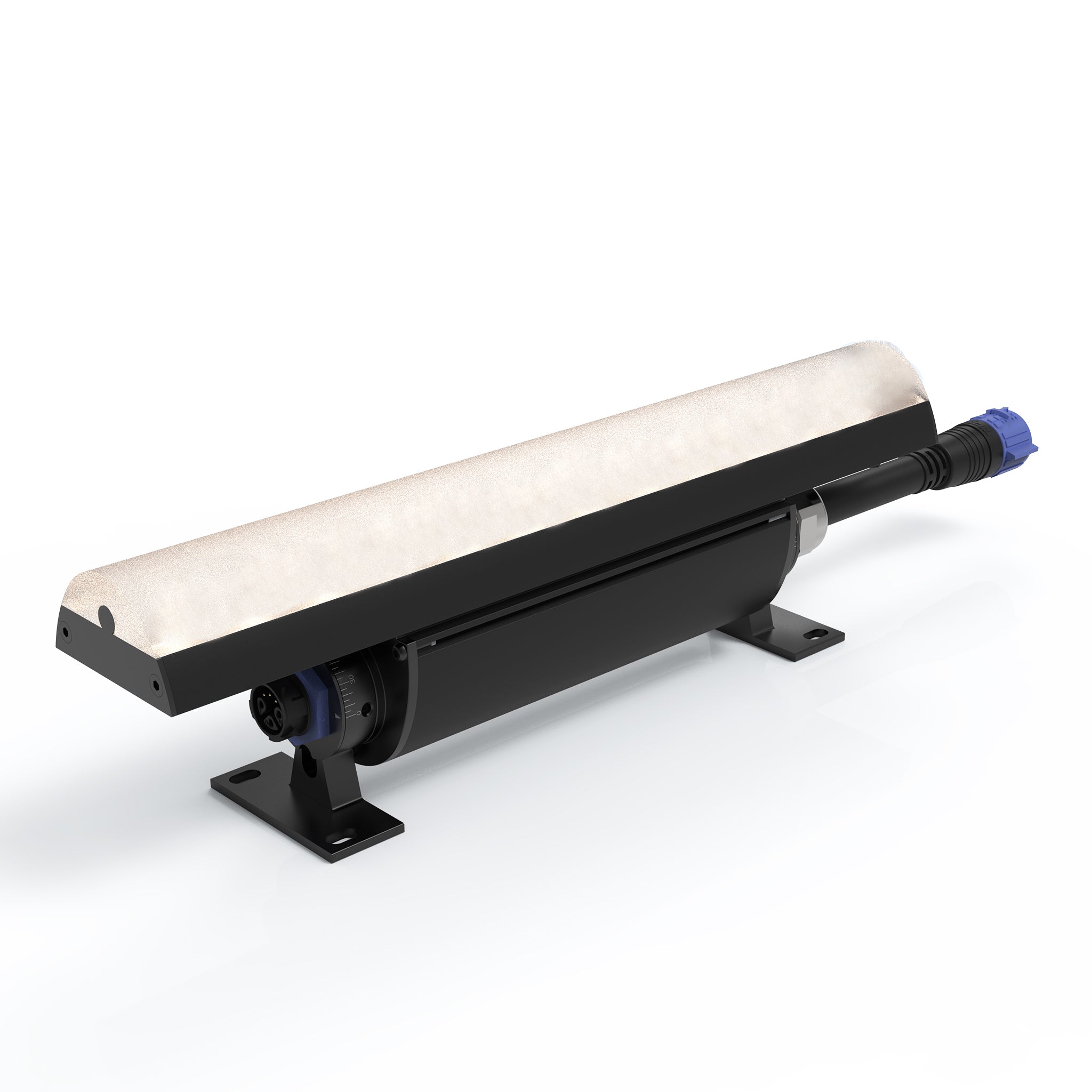

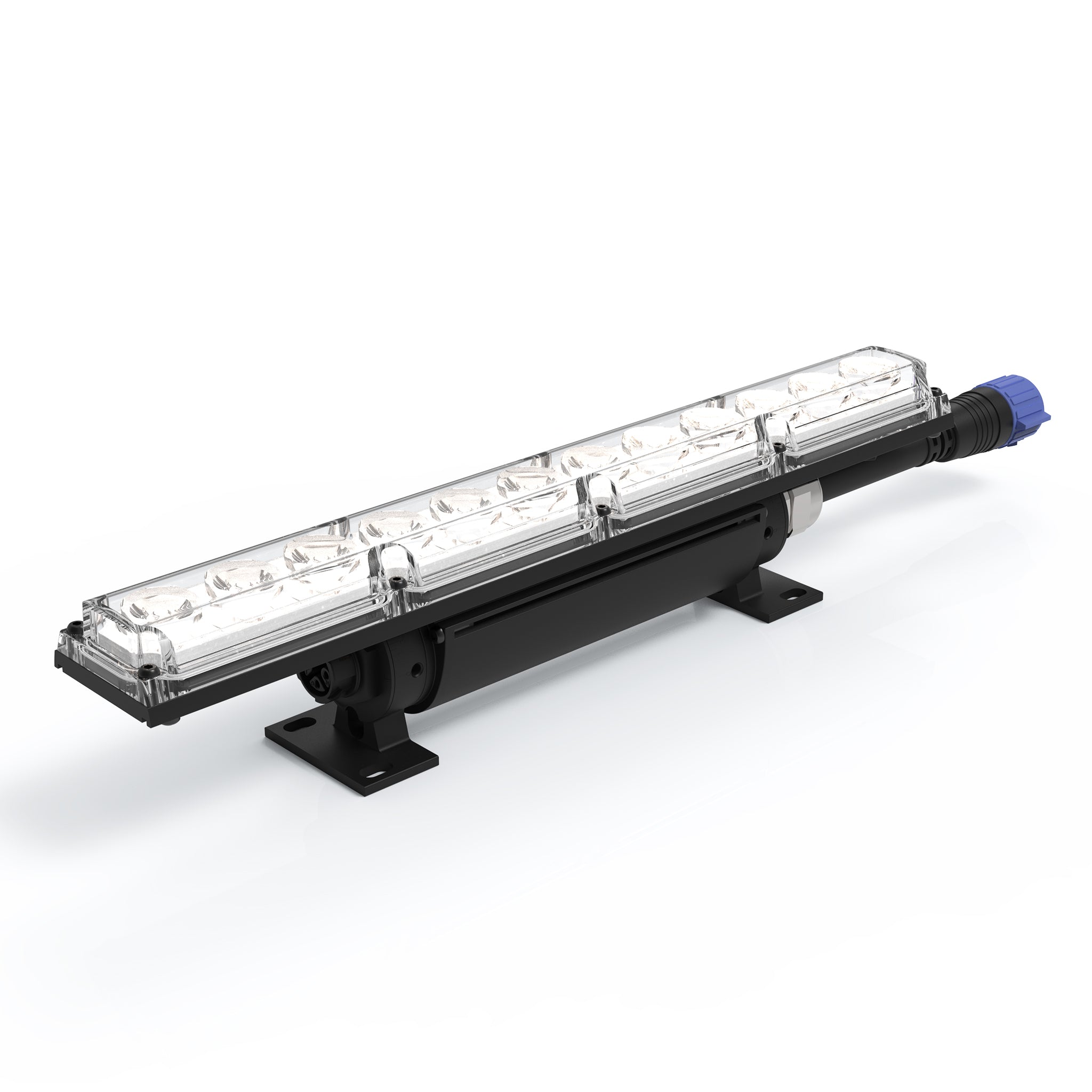

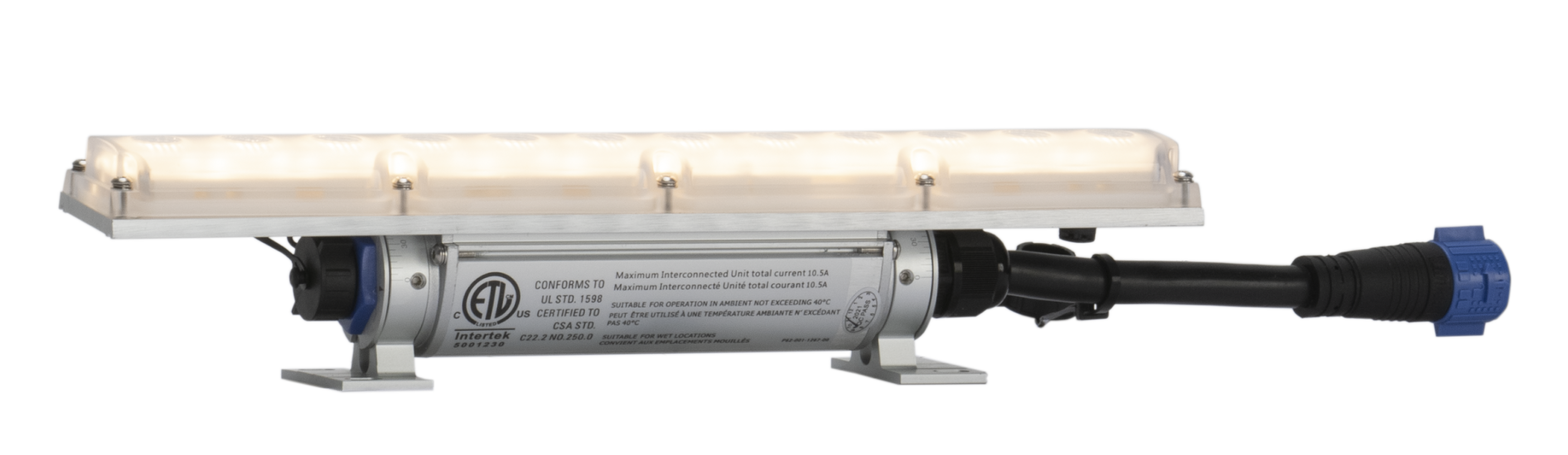

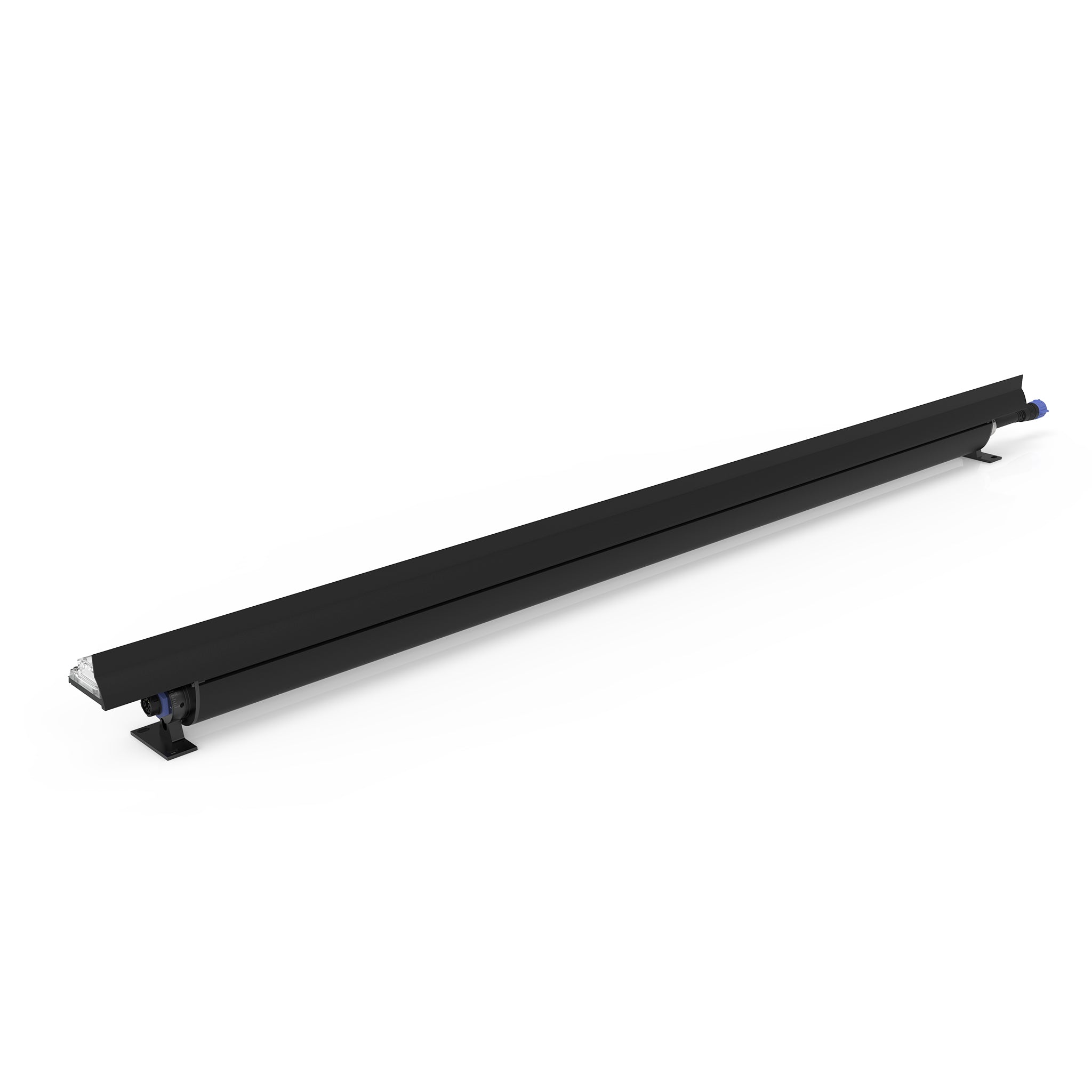

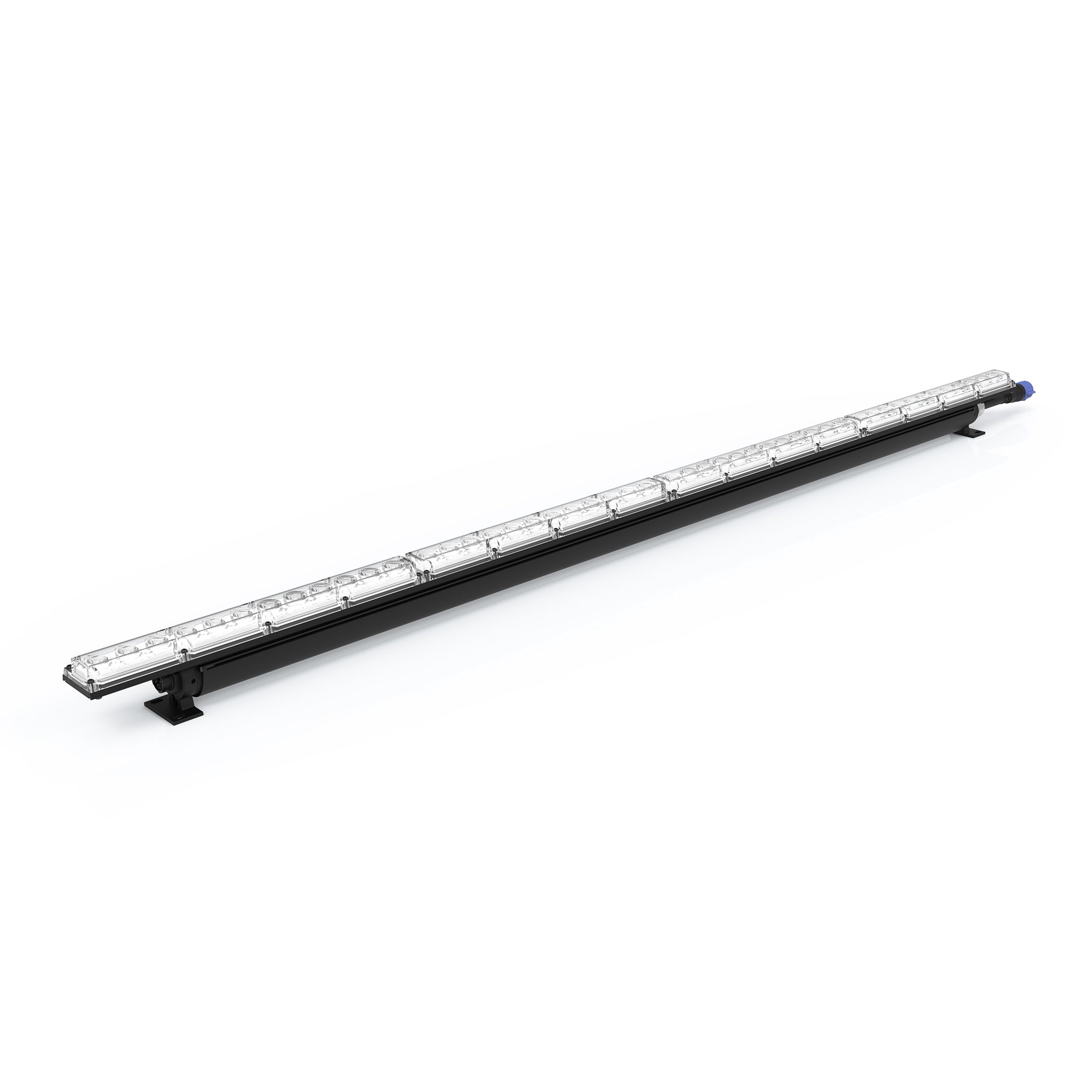

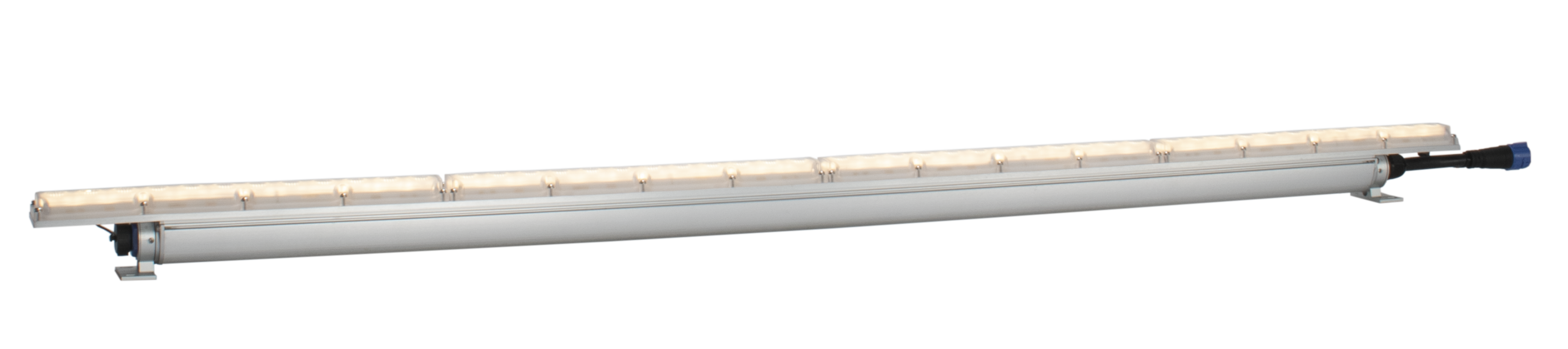

Linear XTR is a family of LED linear fixtures designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product and up to 1400’ off of a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where long-distance runs are desired.

SKU: XT#-2#1-###N-1

Featured Technologies

01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

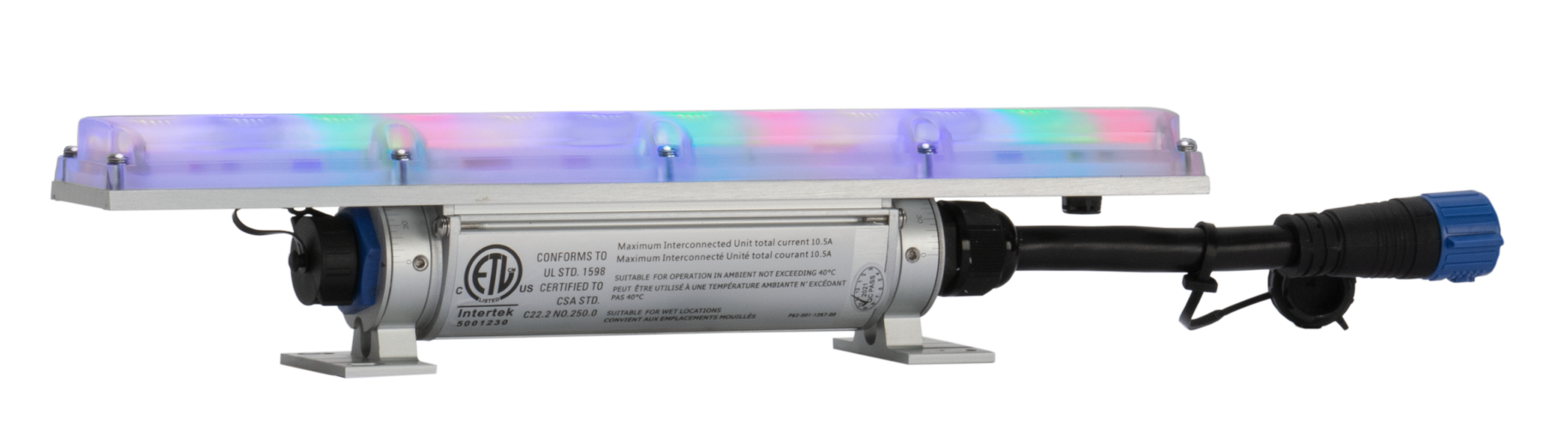

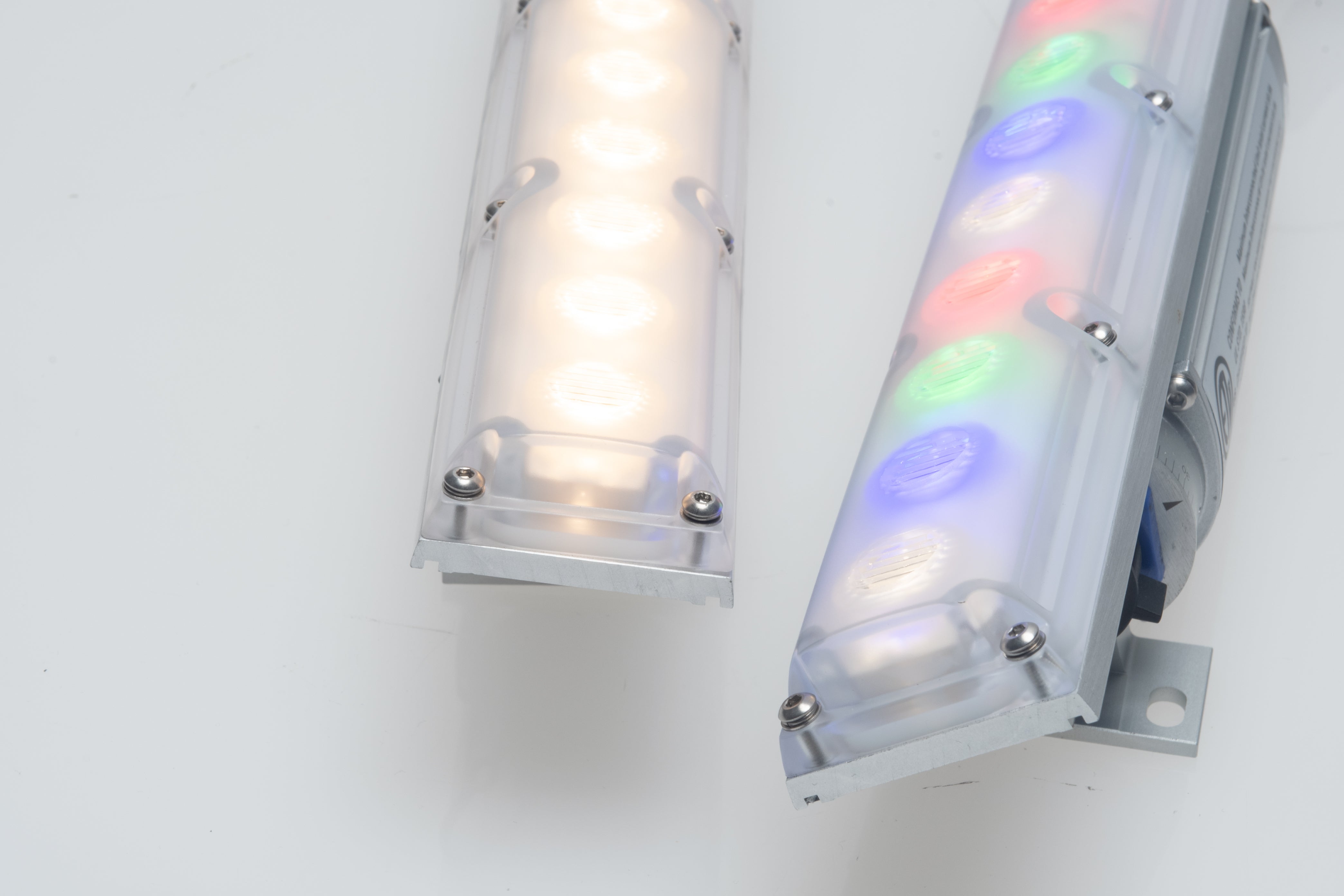

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Downloads

Filename	Document type	File type
Linear XTR Specification Sheet - July 2025	Specification Sheet	PDF
XTR Driver guide v1-0d	User Guide	PDF
Linear XTR Revit Files	Revit Files	RFA
Linear XTR IES 2022.09.20	IES Files	ZIP
Linear XTR 2D Drawings	Drawings	ZIP

Tech Specs

Certifications

ETL, FCC, CE, 3G, RoHS

Operating Voltage

100-277VAC, 50/60Hz direct or 380VDC via XTR Driver 4000/8000 (200-300VAC input to XTR Driver)

Power Consumption

12W per foot, 5W per foot, 2.5W per foot

Control

0-100% dimming via wired DMX (with RDM configuration). 0-10V and DALI via XTR Driver

Lumen Maintenance

L70 150,000 hours (@ 25° C)

Optics

10° x 10°, 25° x 25°, 40° x 40°, 30° x 10°, 60° x 10°, 60° x 60°, 100° x 100°, 10° x 35°, 10° x 60°, 30° x 60º, 60° x 30°, 90° x 10°, Asymmetric Left, Asymmetric Right
