DDC 1 AC
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- DALI Channels
- 64
- DMX Channels
- 64
- Input Voltage
- 100-277VAC

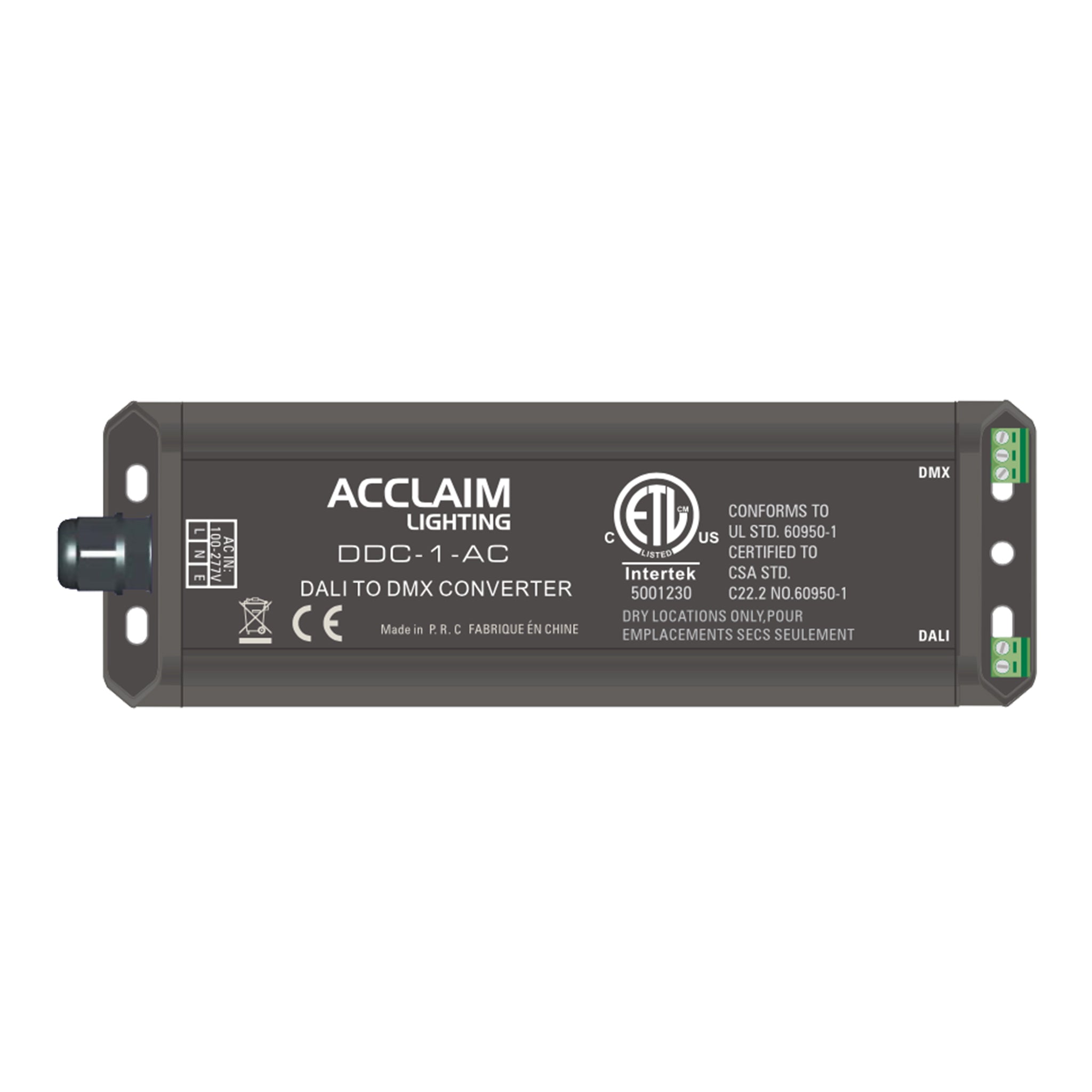

The DDC 1 AC is a two-way DALI to DMX converter. It features one DALI input and one DMX output, allowing conversion of up to 64 channels of DALI into DMX-512 signal. Via an internal dip switch, you can reverse the path, making it DMX input to DALI output.
DDC 1 AC
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| DDC 1 AC Specification Sheet 2.0.0 | Specification Sheet | |
| DDC-1-AC guide v1-0a | User Guide | |
| DDC 1 AC 2D Drawings | Drawings |
Tech Specs
Certifications
ETL, CEOperating Voltage
100-277VAC, 50/60HzControl
DALI & DMX-512DMX Input
64 channelsDMX Output
64 channelsFinish
BlackConnectors
Attached 14" (355 mm) leads for AC Input, terminal blocks for DMX and DALIHousing Material
Extruded aluminumMaterial
AluminumWeight
0.8 lbs (0.36 kg)Ambient Temperature Range
14°F to 122°F (-10°C to 50°C)Ingress Protection
IP40, dry locationIP Rating
IP20, Dry locationMode Adjustment
via internal dip switch, default is DALI -> DMX, optional mode is DMX -> DALI
