Specification highlights

Capacity
15A
Protection
10kV
5kA
Ingress
IP66

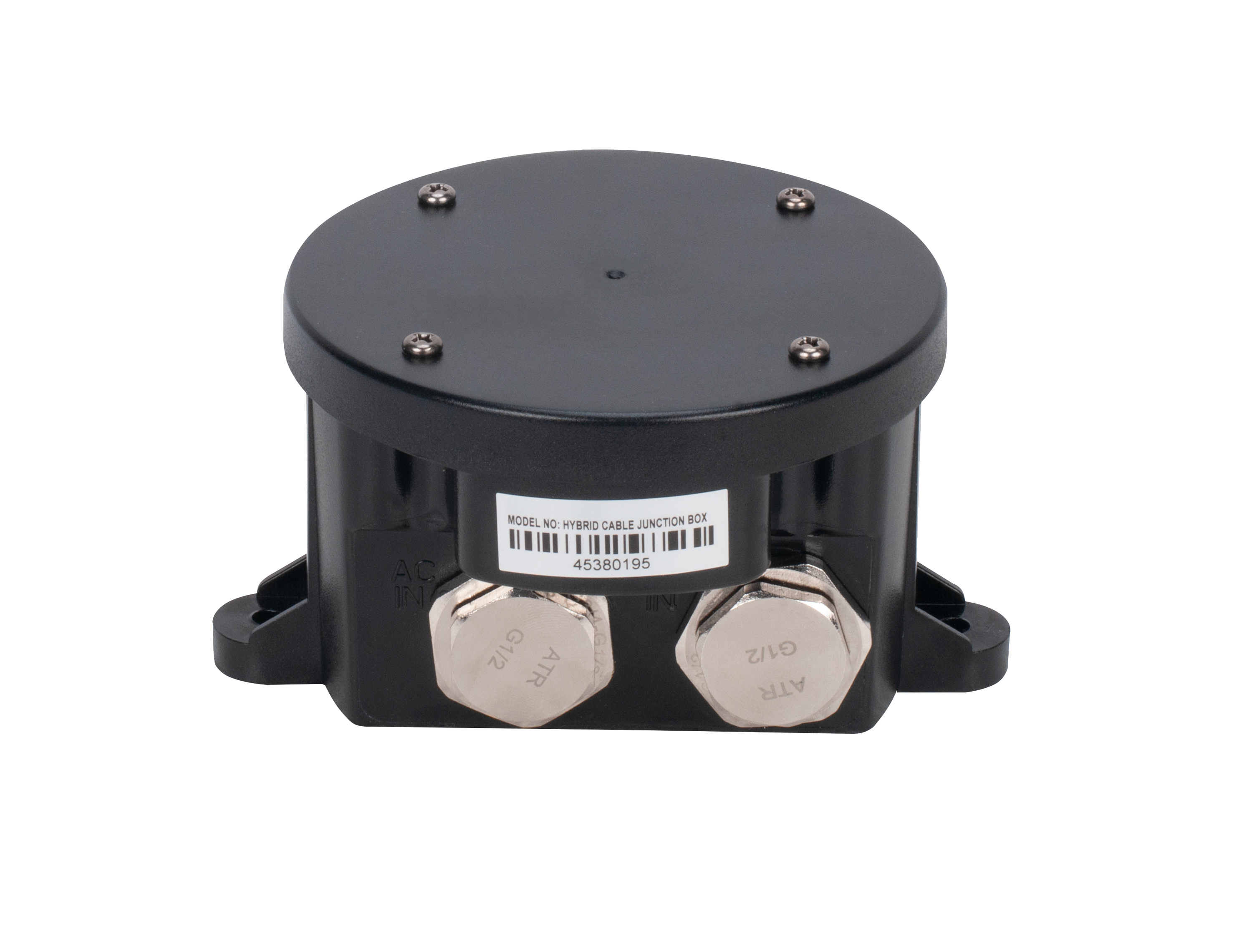

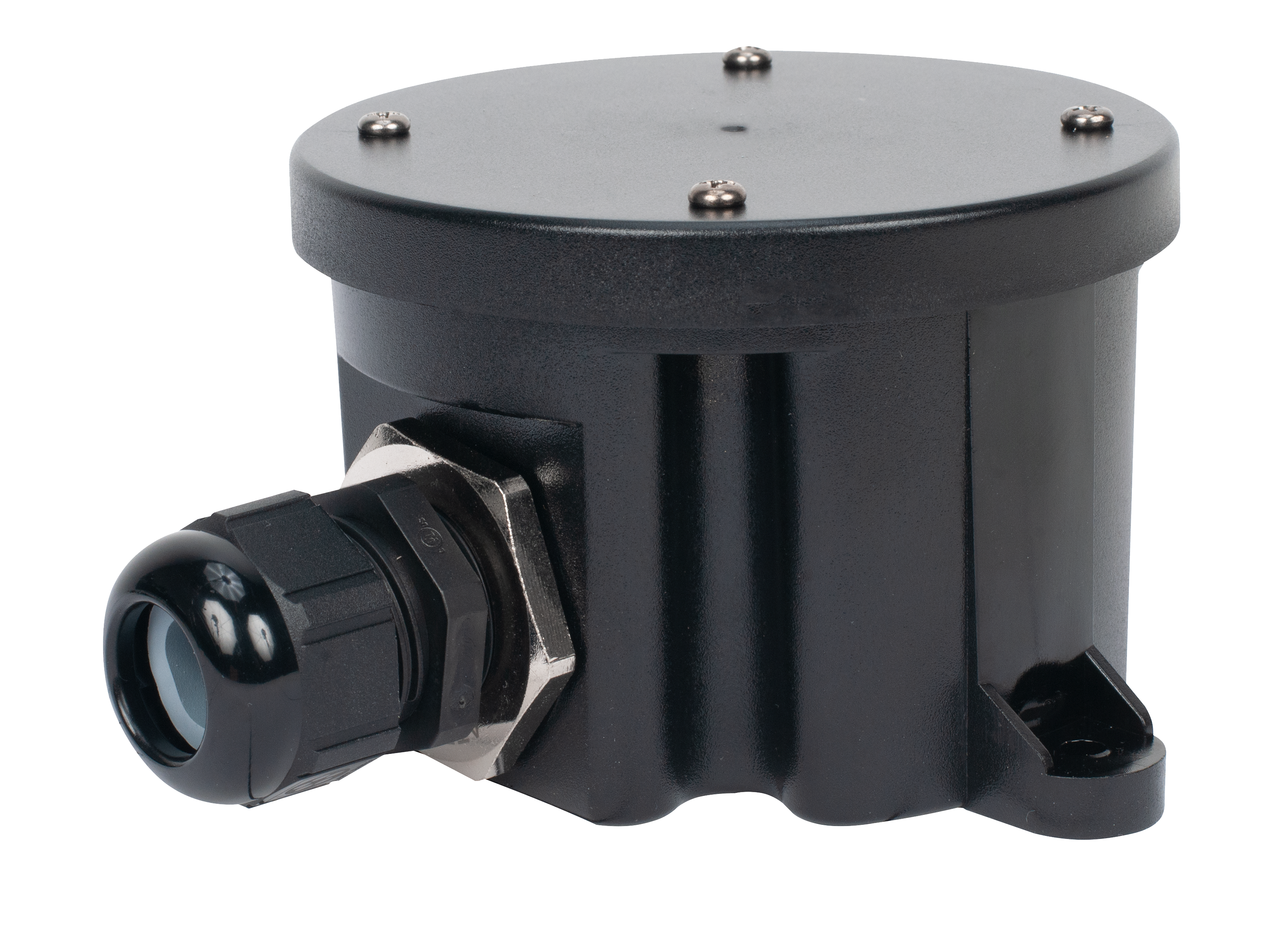

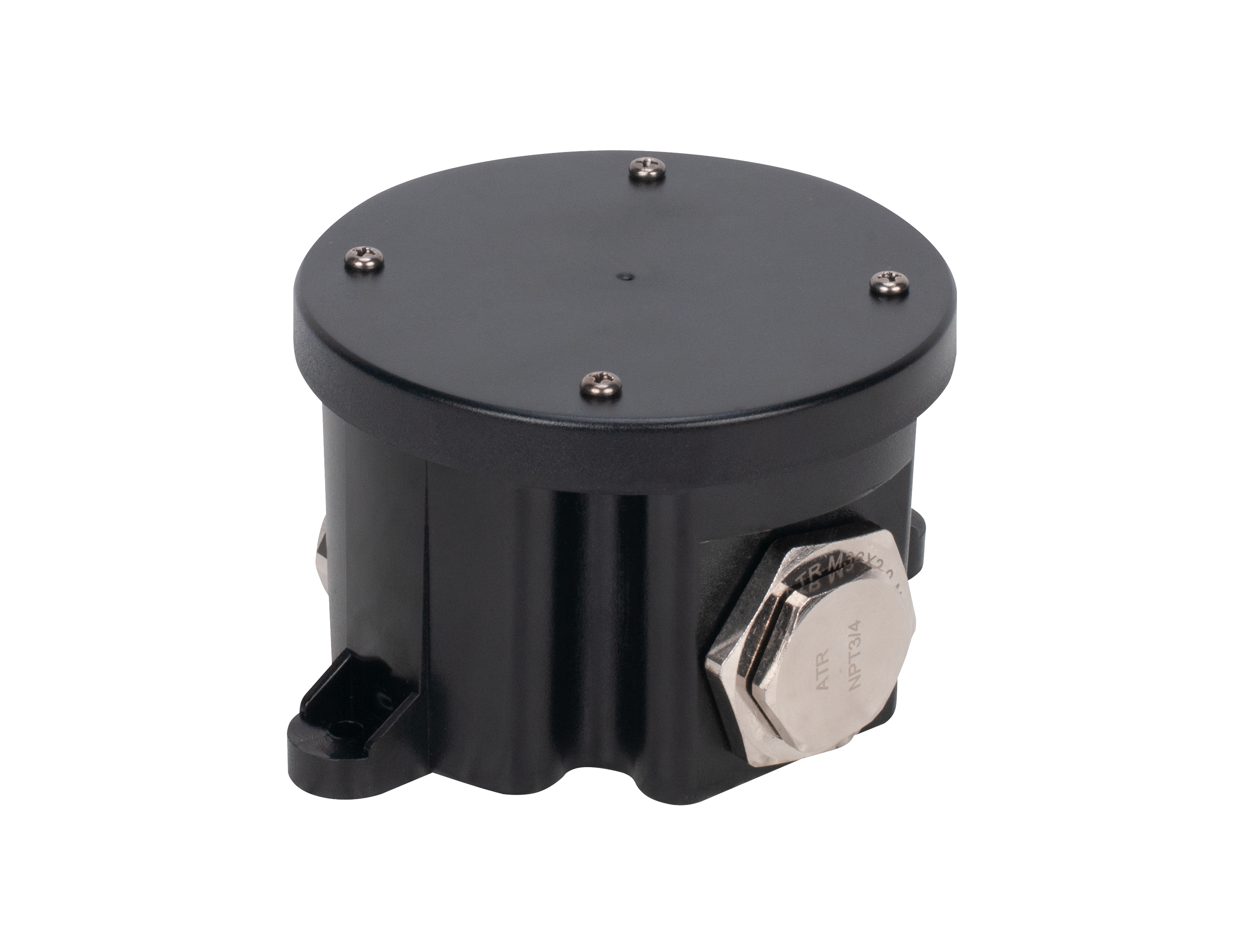

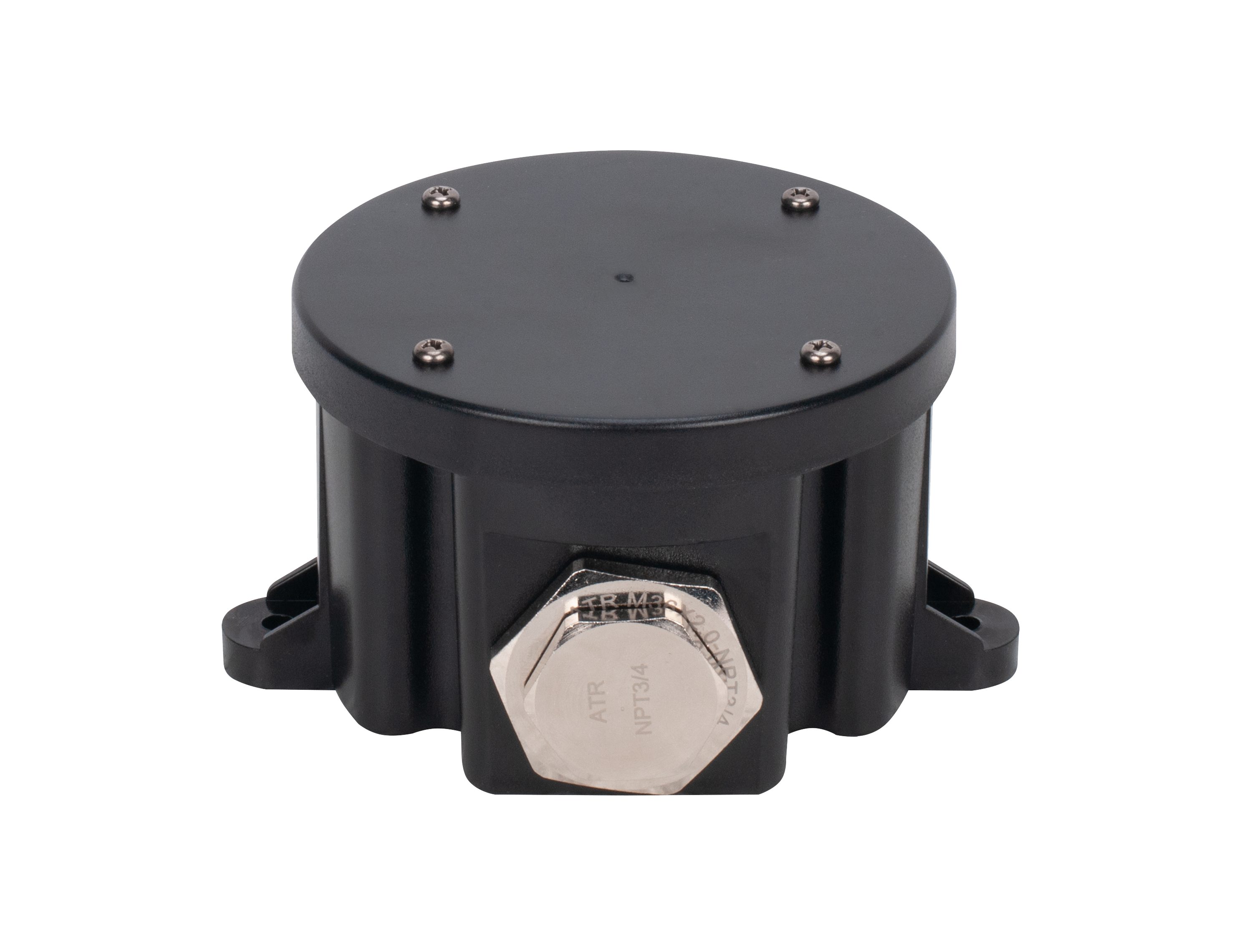

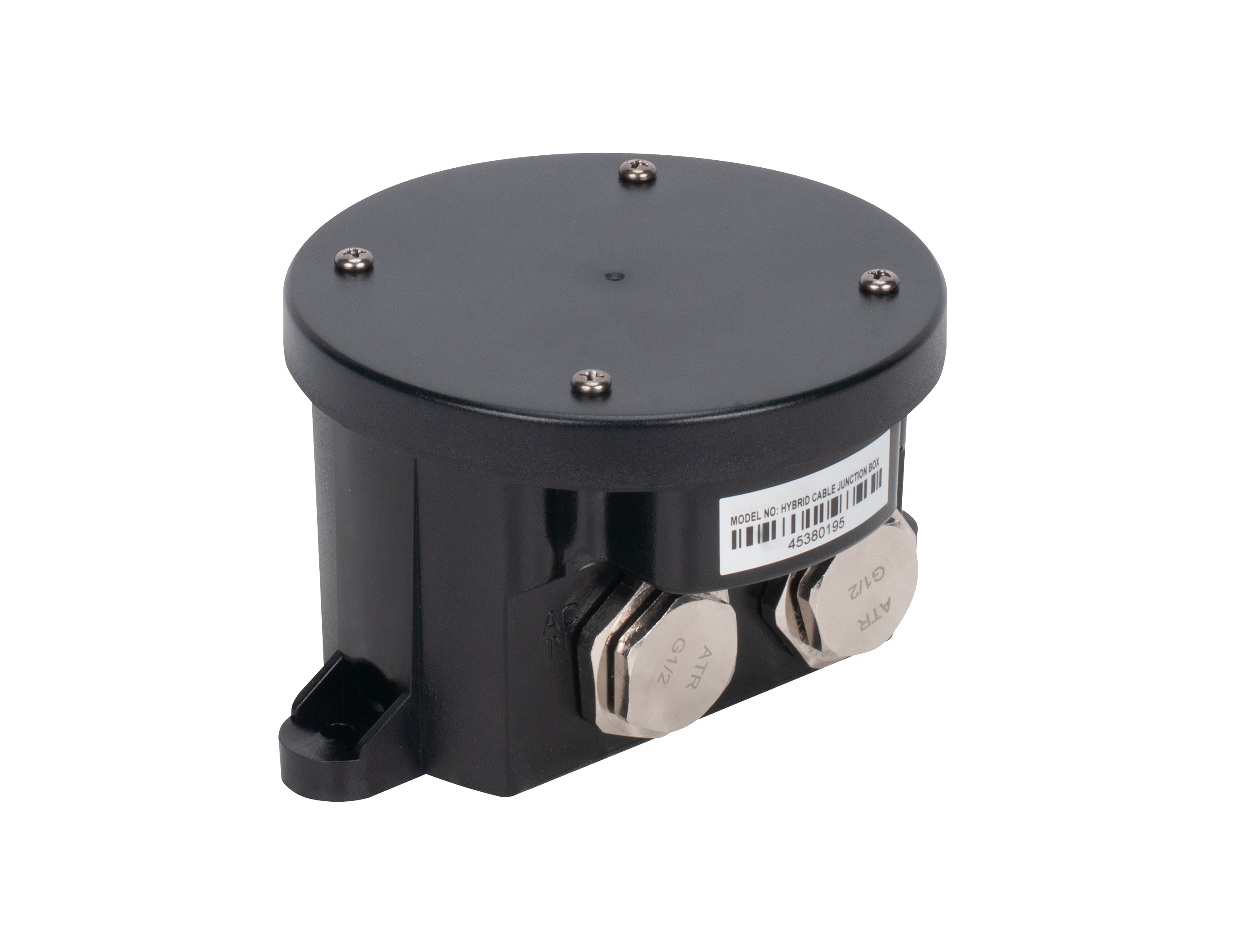

The AJBOX1 is an IP66 rated junction box designed to separate the Acclaim hybrid cables into AC power and DMX conduit runs. It features push terminals to quickly connect cables and built-in surge protection for any fixtures in line. The AJBOX1 can be used as part of an Outdoor Link System or an individual fixture with a hybrid feed cable. It provides a physical barrier between high and low voltage to comply with NEC code requirements.
UPC: 840063508163SKU: AJBOX1

Downloads

Filename Document type File type
AJBOX1 guide v1-0b User Guide PDF
AJBOX1 2.0.4 Specification Sheet PDF
Lighting-Acclaim-AJBox1 Revit Files RFA
AJBOX1 2D CAD Drawings ZIP

Tech Specs

Certifications
ETL, CE, RoHS, UKCA
AC Power Capacity
120VAC: 1,800W, 230VAC: 3,450W, 277VAC: 4,155W
Surge Protection
10kV, 5kA
Lumen Maintenance
L70 150,000 hours (@ 25° C)
Cables
NEC compliant: physical separation of power and low voltage signal conductors
Finish
Black or White

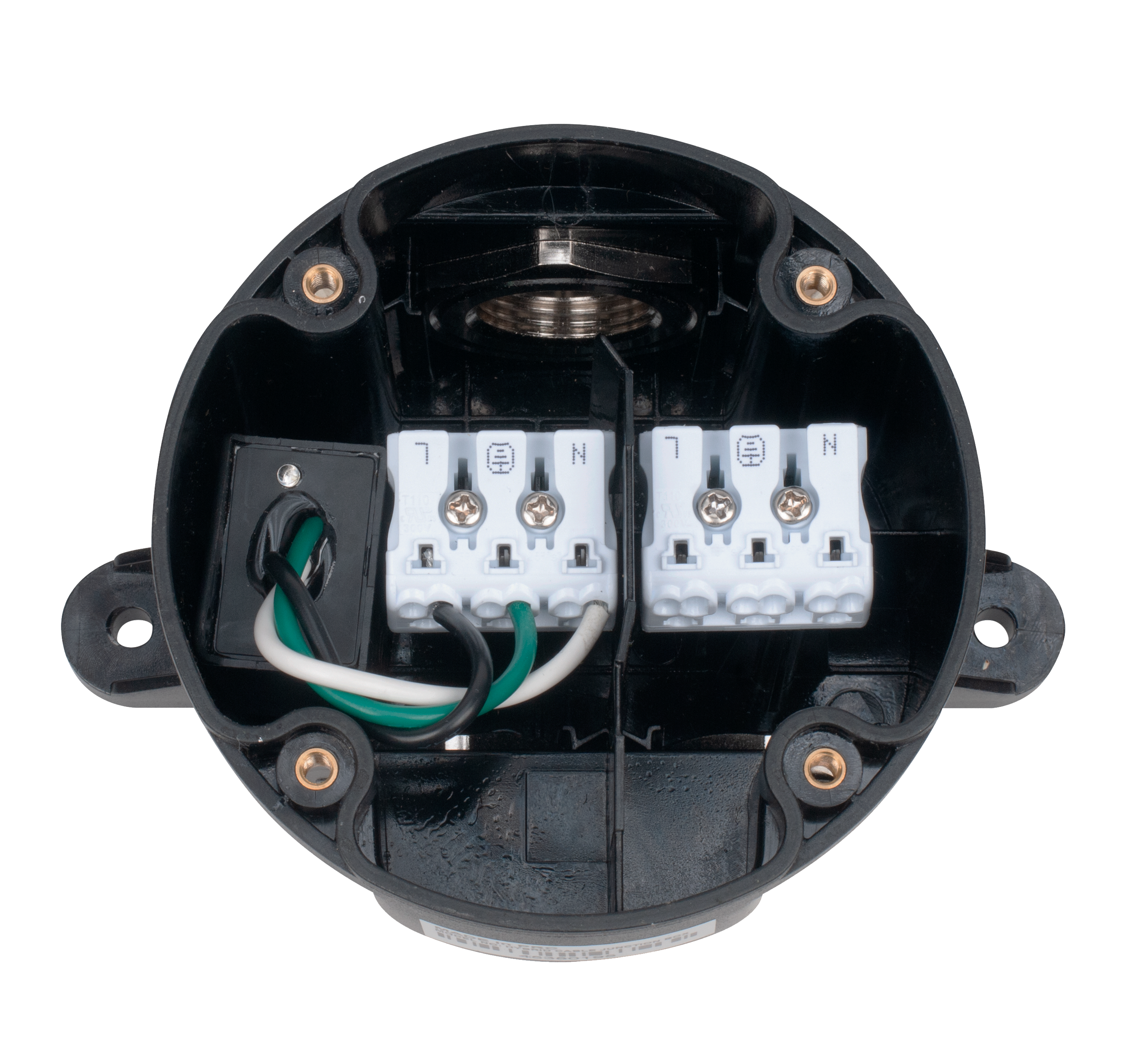

Internal Connections
Two separated 3-conductor push terminals for AC and control links
Material
Black polycarbonate body and lid, with aluminum conduit connection inserts
Weight
1.03 lbs (0.467 kg)
Ambient Temperature Range
-40° F to 140° F (-40° C to 60° C)
Ingress Protection
IP66 when connection points are correctly sealed by installer
