Lumens per foot: 1,496
Power per foot: 18W / 9W
Submersible To: 20'

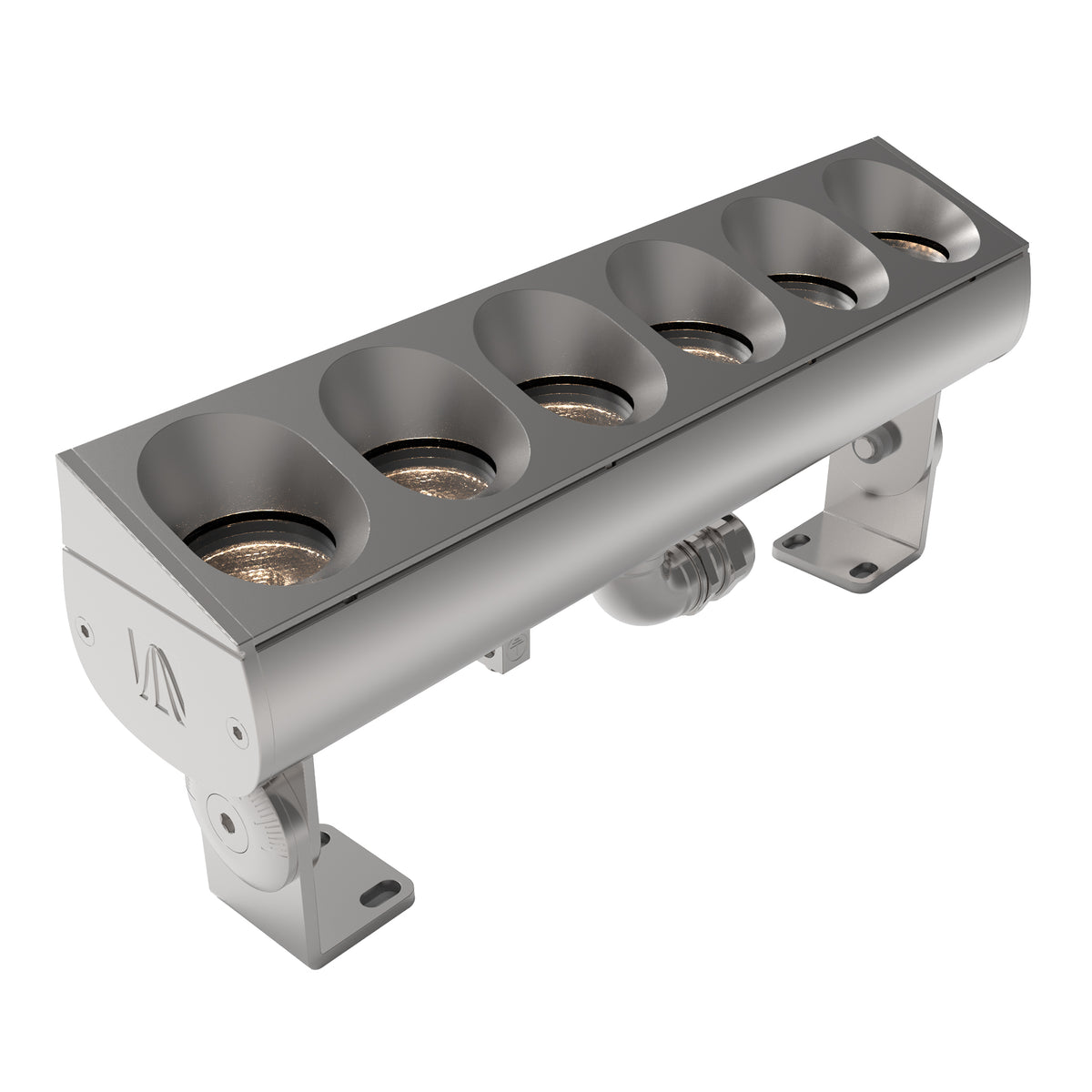

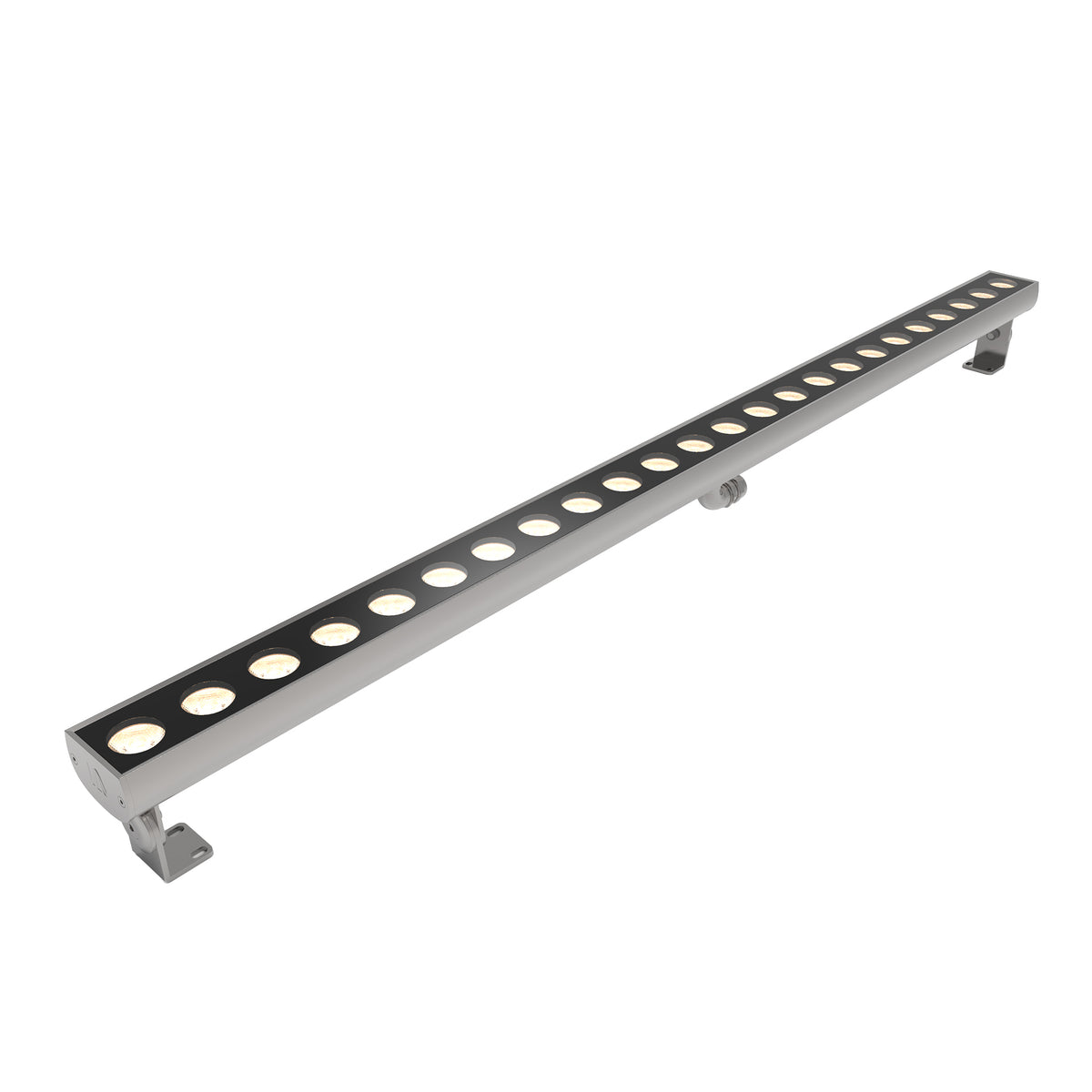

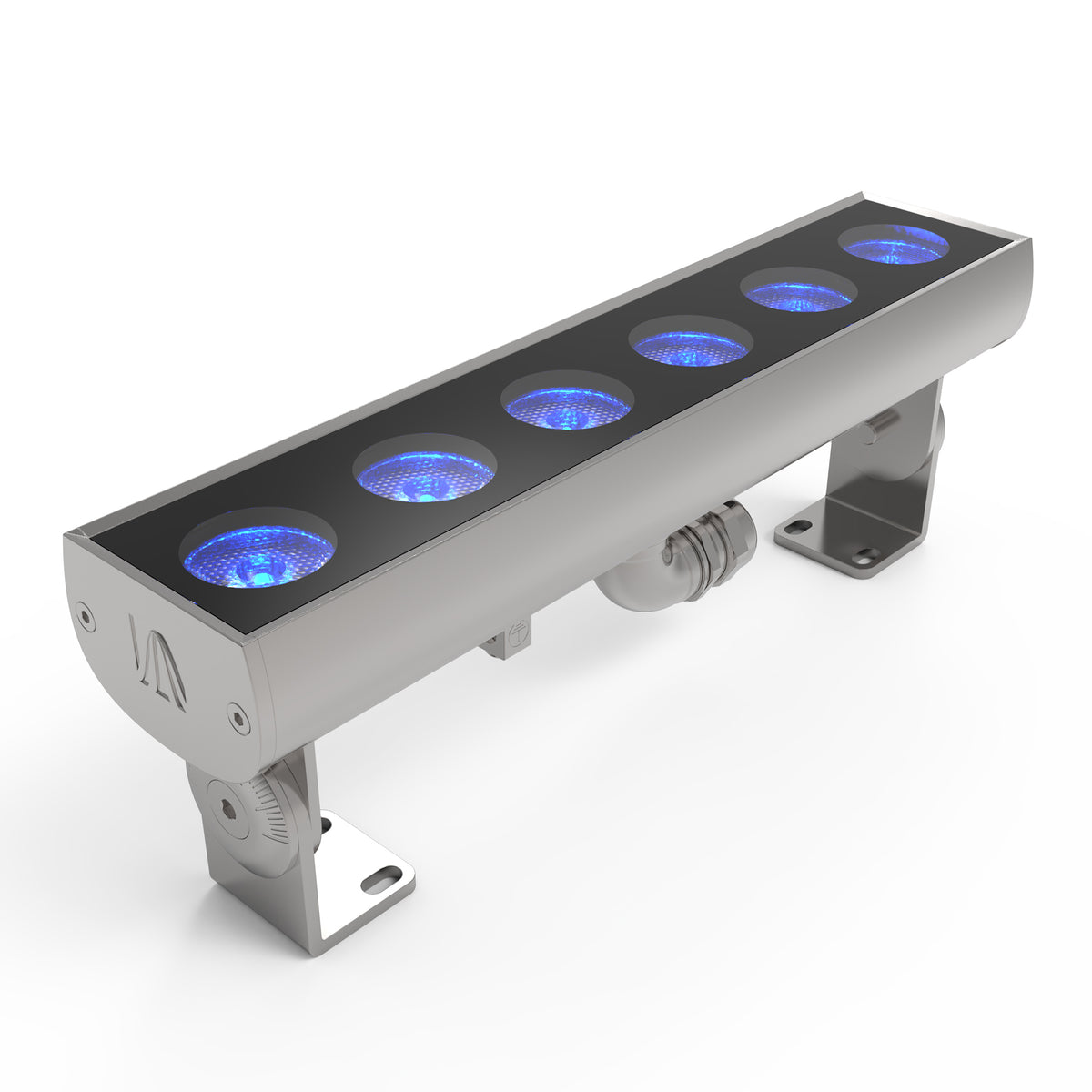

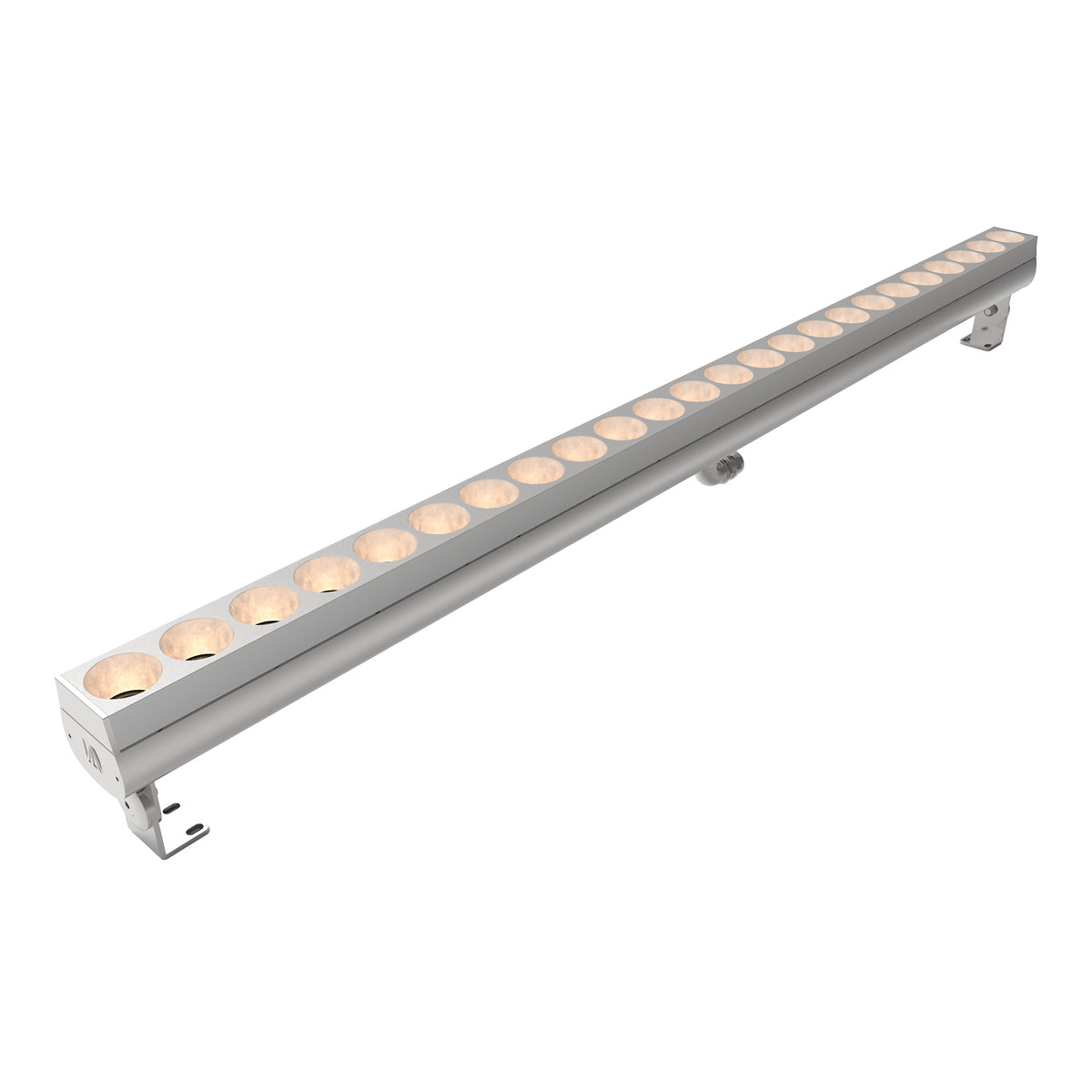

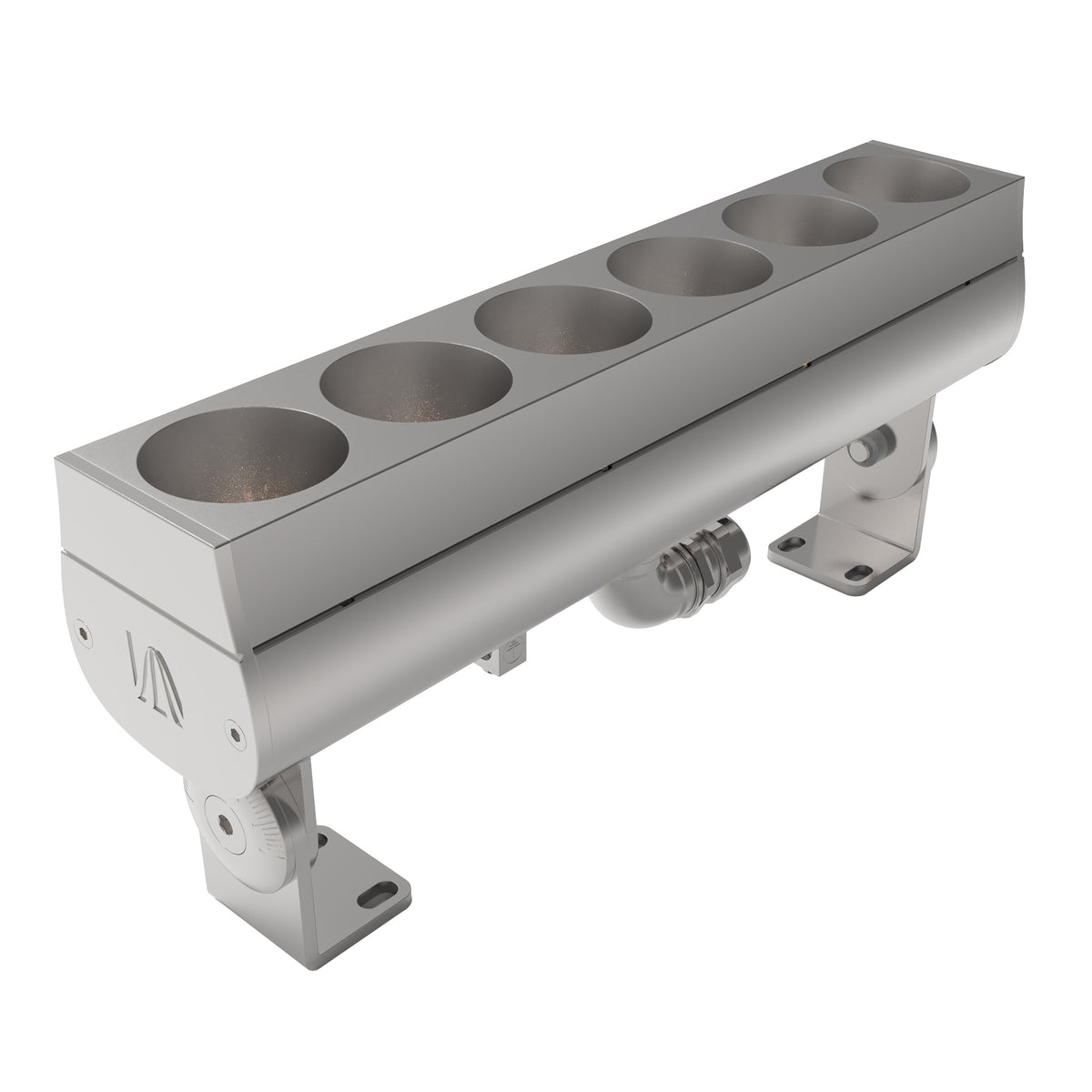

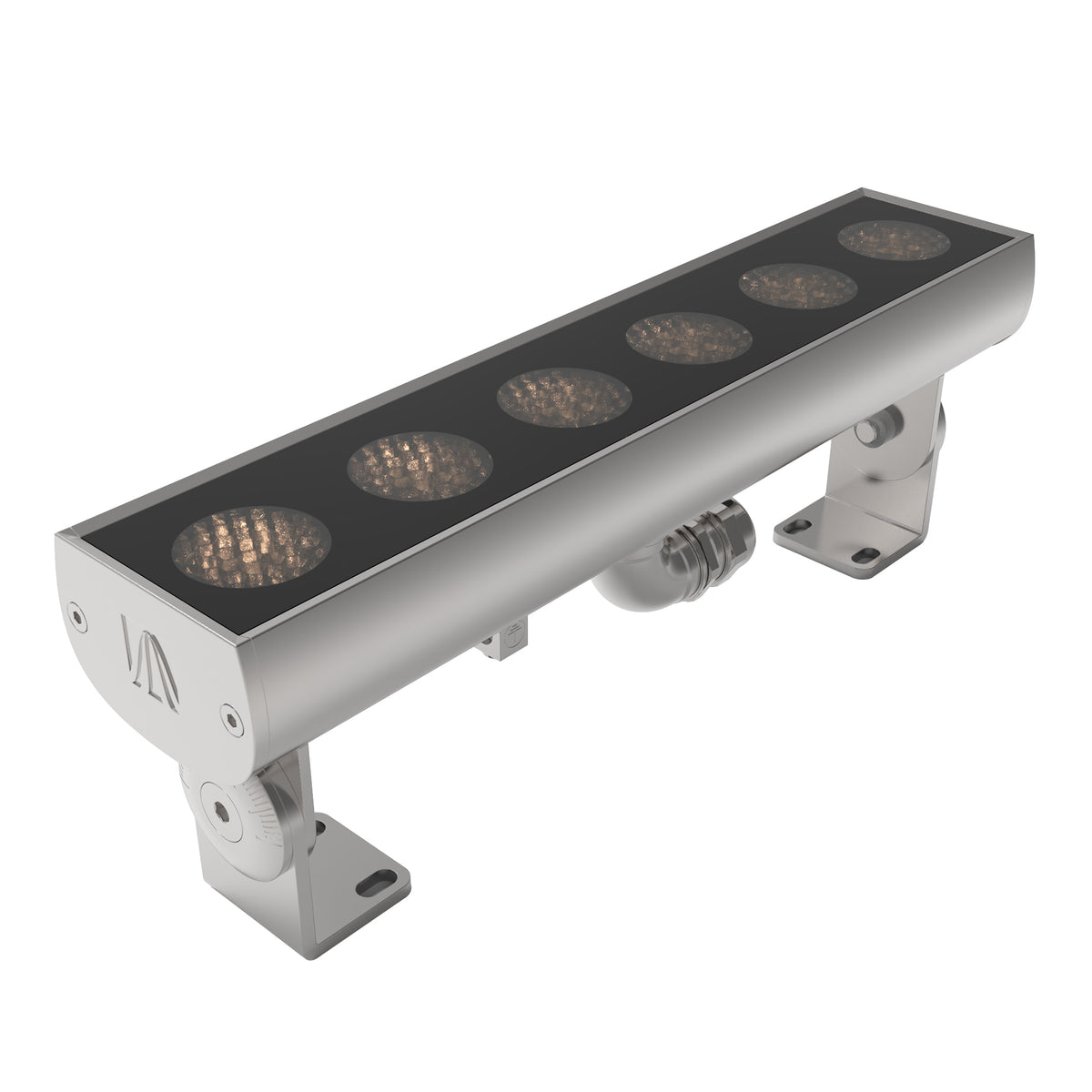

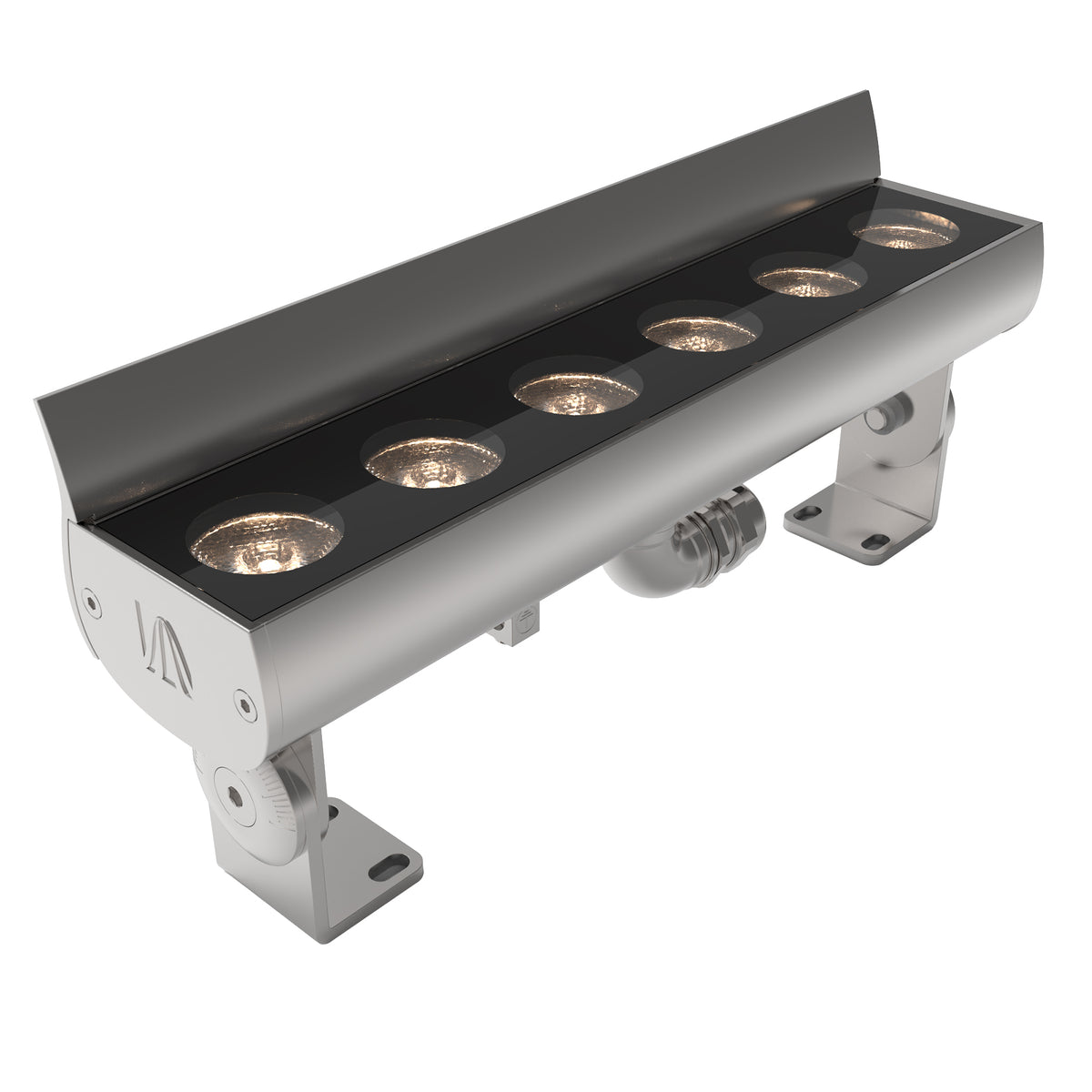

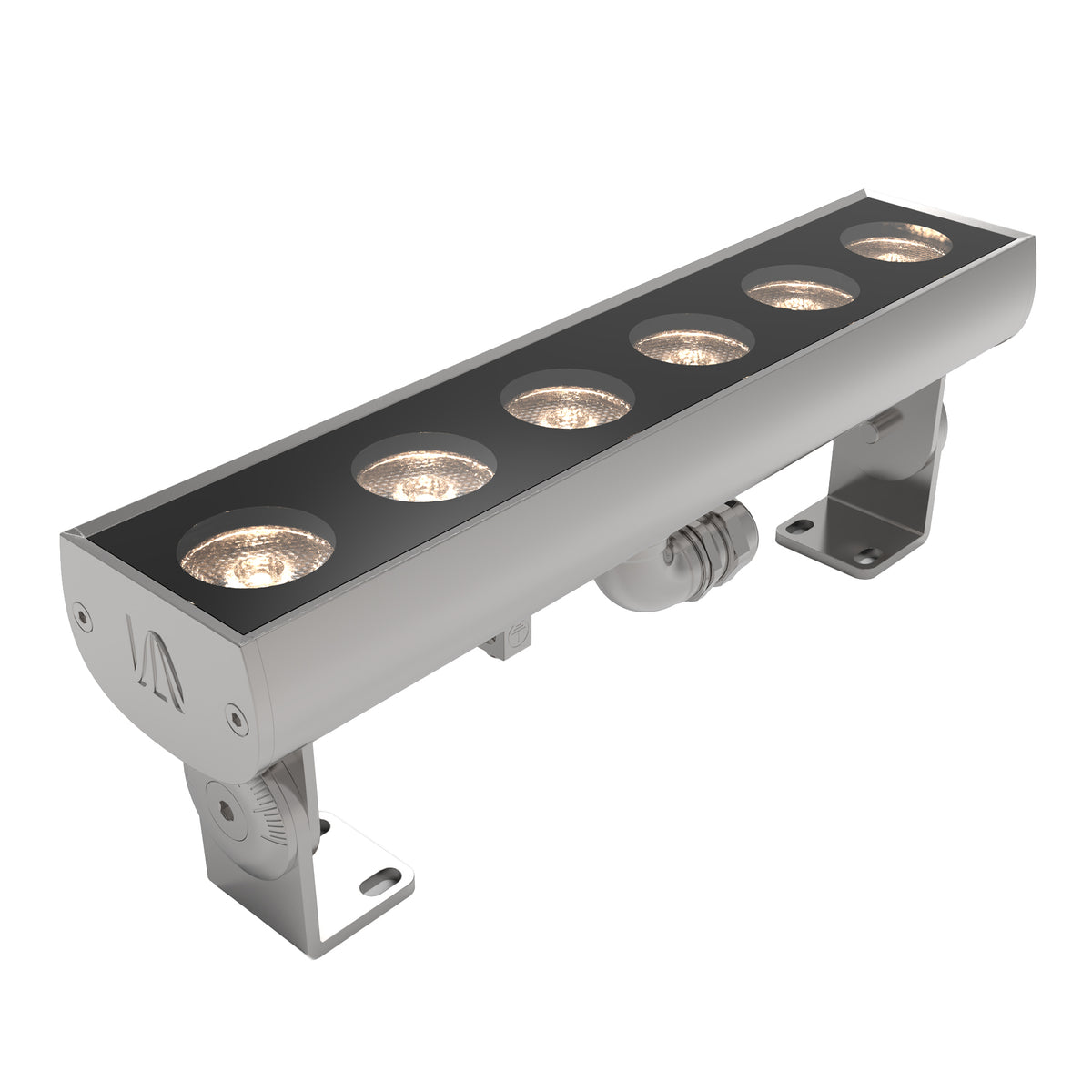

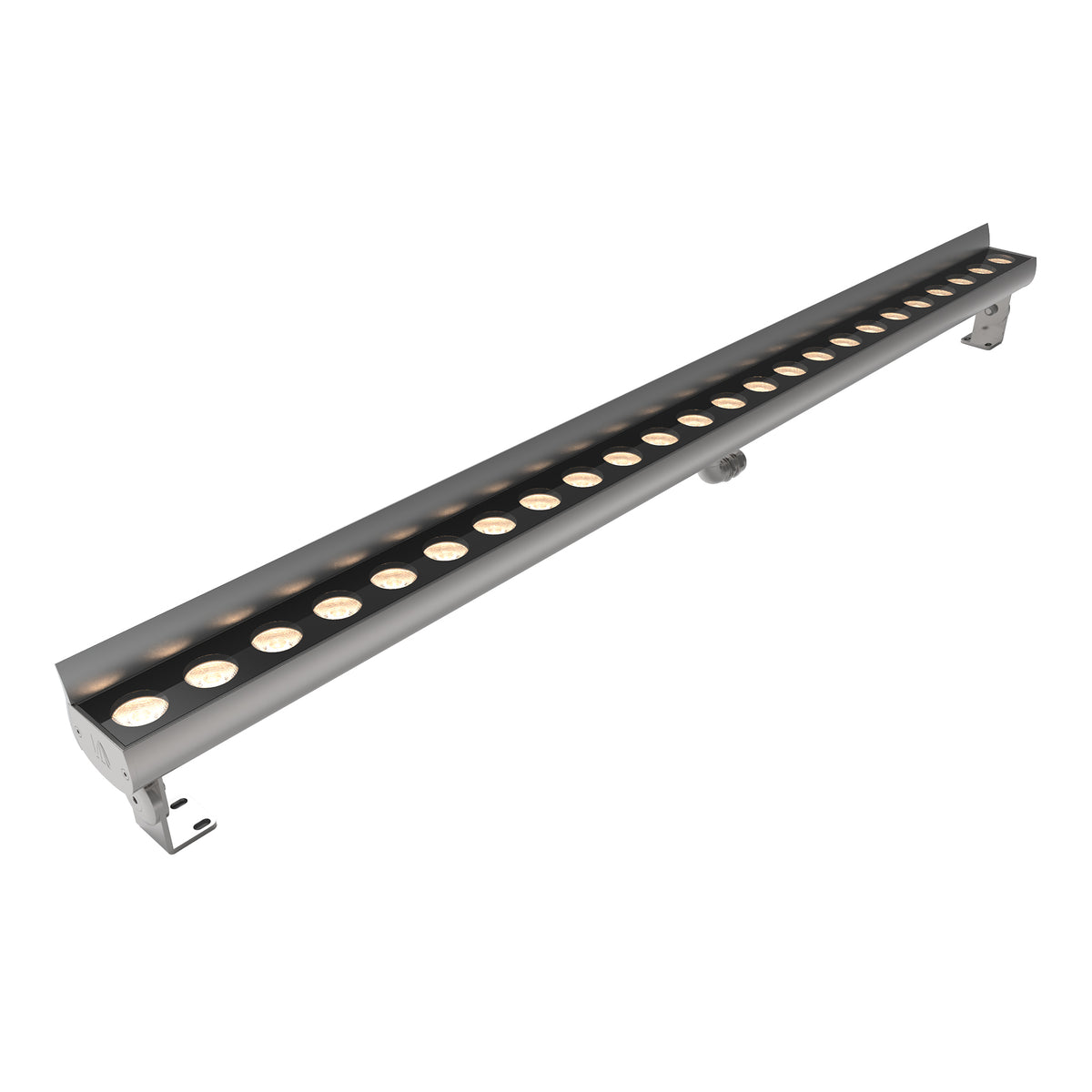

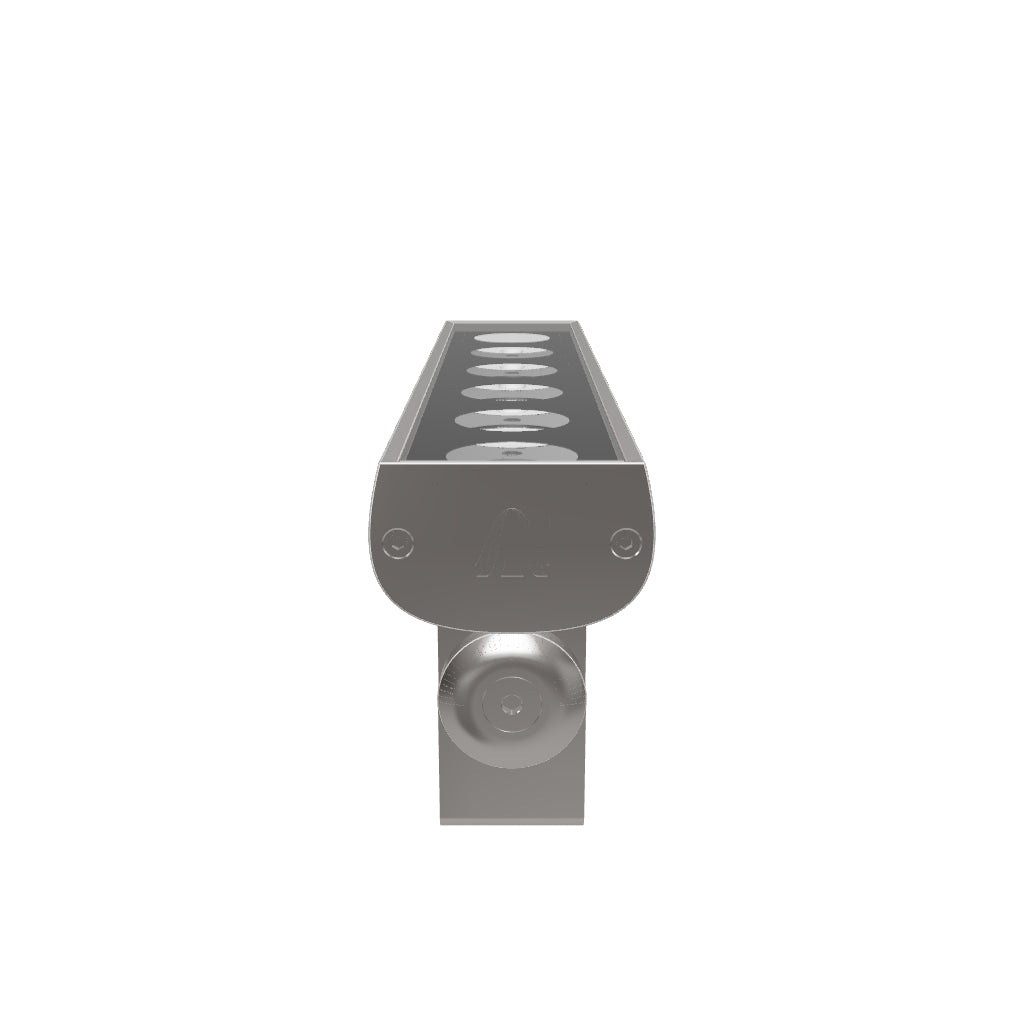

Aqua Linear™ fixtures are high-output, marine-grade 316L stainless steel submersible LED fixtures, fully rated for use in pool environments down to a depth of 20 feet (6m). A range of emitter types, lenses and beam shaping options make these fixtures particularly suited for exterior façade washing as well as fountain, pond and landscape applications.

SKU: ALI-26#-####, ALK-26#-####

Featured Technologies

01

ColorDrive

ColorDrive unleashes the hidden potential of static color applications, delivering up to 4x the output of traditional color-changing fixtures when you need one perfect hue. Our intelligent calibration maintains consistent saturation through the entire dimming range, ensuring your midnight blue stays midnight blue whether at 10% or 100%.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

03

AquaSense

AquaSense technology automatically detects the connected Aqua Series load at power-up and self-configures, with no manual setup required for operation or load management between different fixture types. The result is simpler commissioning, fewer installation errors, and a faster project turnaround.

01

ColorDrive

ColorDrive unleashes the hidden potential of static color applications, delivering up to 4x the output of traditional color-changing fixtures when you need one perfect hue. Our intelligent calibration maintains consistent saturation through the entire dimming range, ensuring your midnight blue stays midnight blue whether at 10% or 100%.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

03

AquaSense

AquaSense technology automatically detects the connected Aqua Series load at power-up and self-configures, with no manual setup required for operation or load management between different fixture types. The result is simpler commissioning, fewer installation errors, and a faster project turnaround.

Specifications & Downloads

Filename	Document type	File type
Aqua Linear Specification Sheet	Specification Sheet	PDF
Aqua Linear Photometric Library - IES, LDT, TM-33, PDF	Photometric Data	ACCLAIM-LIGHTING

Tech Data

Certifications

ETL, FCC, CE, 3G, UKCA, RoHS

Operating Voltage

24VDC. Aqua Driver 4 requires 100-277VAC, 50/60Hz

Power Consumption

Submersible mode: 18W per foot, Non-submersible mode: 9W per foot

Addressing

via RDM on the Aqua Driver 4

Control

0-100% dimming through DMX (via Aqua Driver 4). Use optional converters for 0-10V or DALI

Recovery

Power failure memory via Aqua Driver 4

Lumen Maintenance

L70 90,000 hours (@ 25° C)

Optics

10° x 10°, 25° x 25°, 40° x 40°, 60° x 60°, 90° x 90°, 10° x 35°, 10° x 60°, 30° x 60°or Asymmetric wall wash (60° x 60°, 20° tilt)

Output

Up to 1,496 lumens per foot

Connection

Attached STOW cable (6 x 16AWG), various cable length options available

Emitters

2400K, 2700K, 3000K, 3500K, 4000K, DW (2400K-5500K), RGBA or RGBL with CCT Select (1800K-6000K)

Finish

Stainless steel, suitable for freshwater, chlorinated, brominated and saltwater pool environments*

Material

316L stainless steel body, glass top lens

Mounting

Integrated 180° swivel mounting brackets included

Physical

L 12" or 48" (305mm or 1220mm) x W 2.67" (70mm) x H 4.29" (109mm)

Weight

1’: 8.8 lbs (4.0kg) 4’: 33.1 lbs (15.0kg)

Ambient Temperature Range

-40° F to 131° F (-40° C to 55° C)

Impact Protection

IK08, protection against 5 joule impact (40cm distance)

Ingress Protection

IP68, submersible to 20’ (6m)

Vibration Protection

ANSI C136.31, 3G-rated for high vibration and bridge applications
