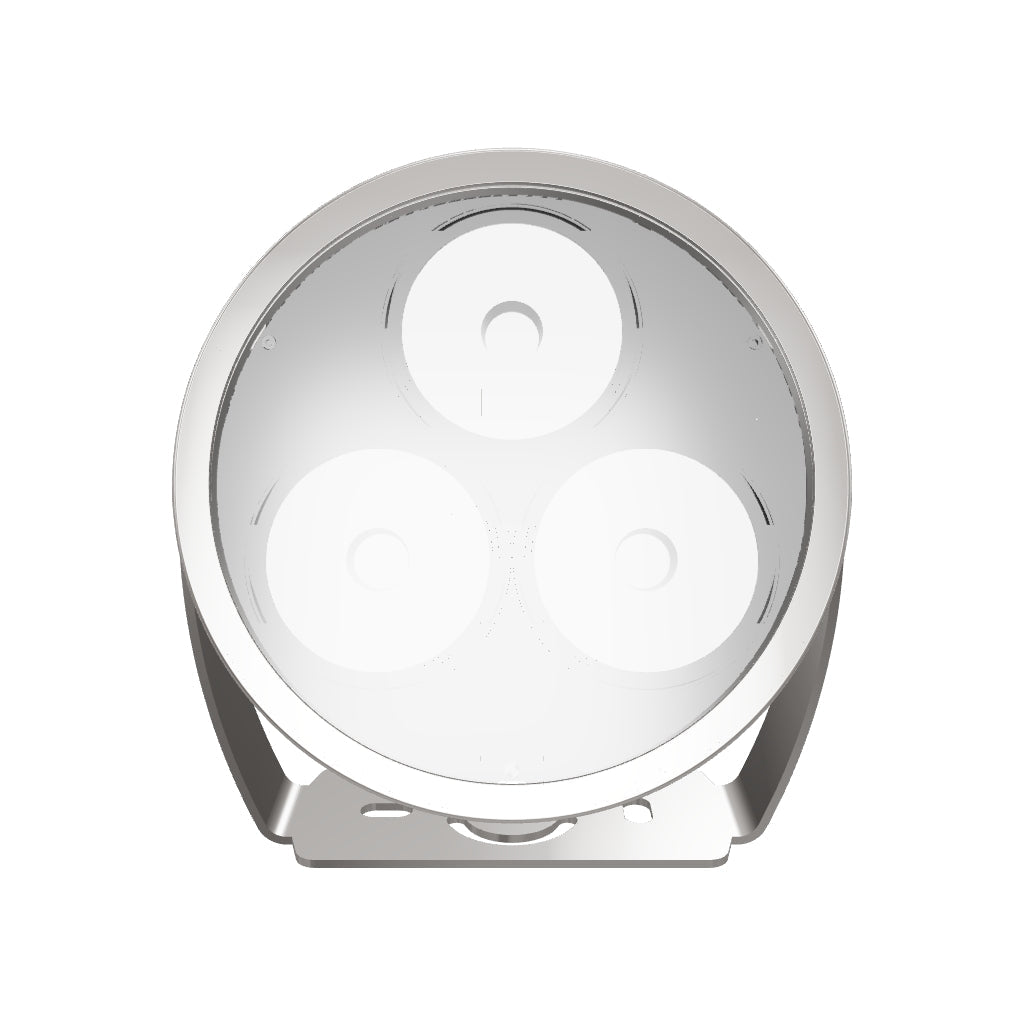

Aqua Drum S3

Lumens: 9,485
Power: 100W
Submersible To: 20'

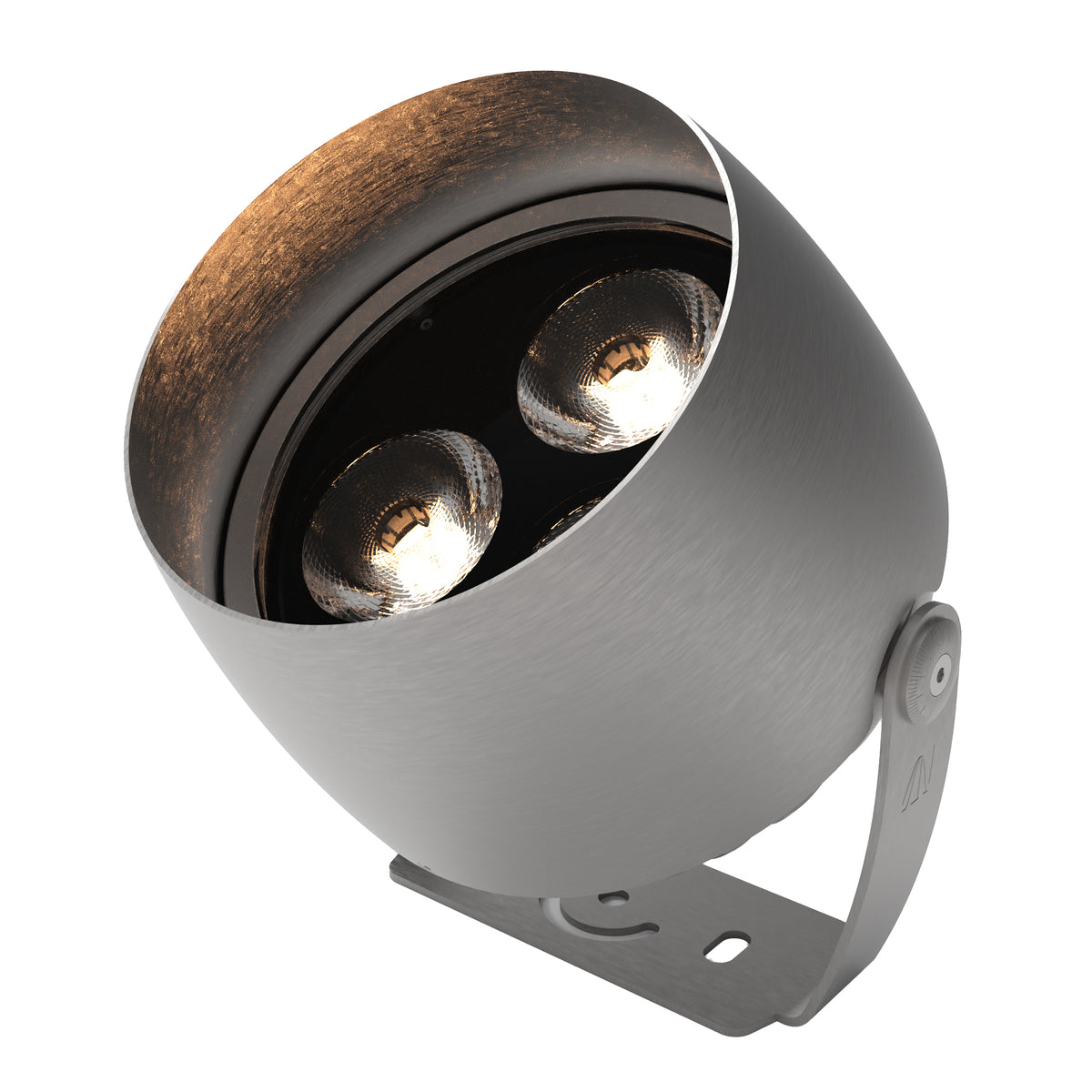

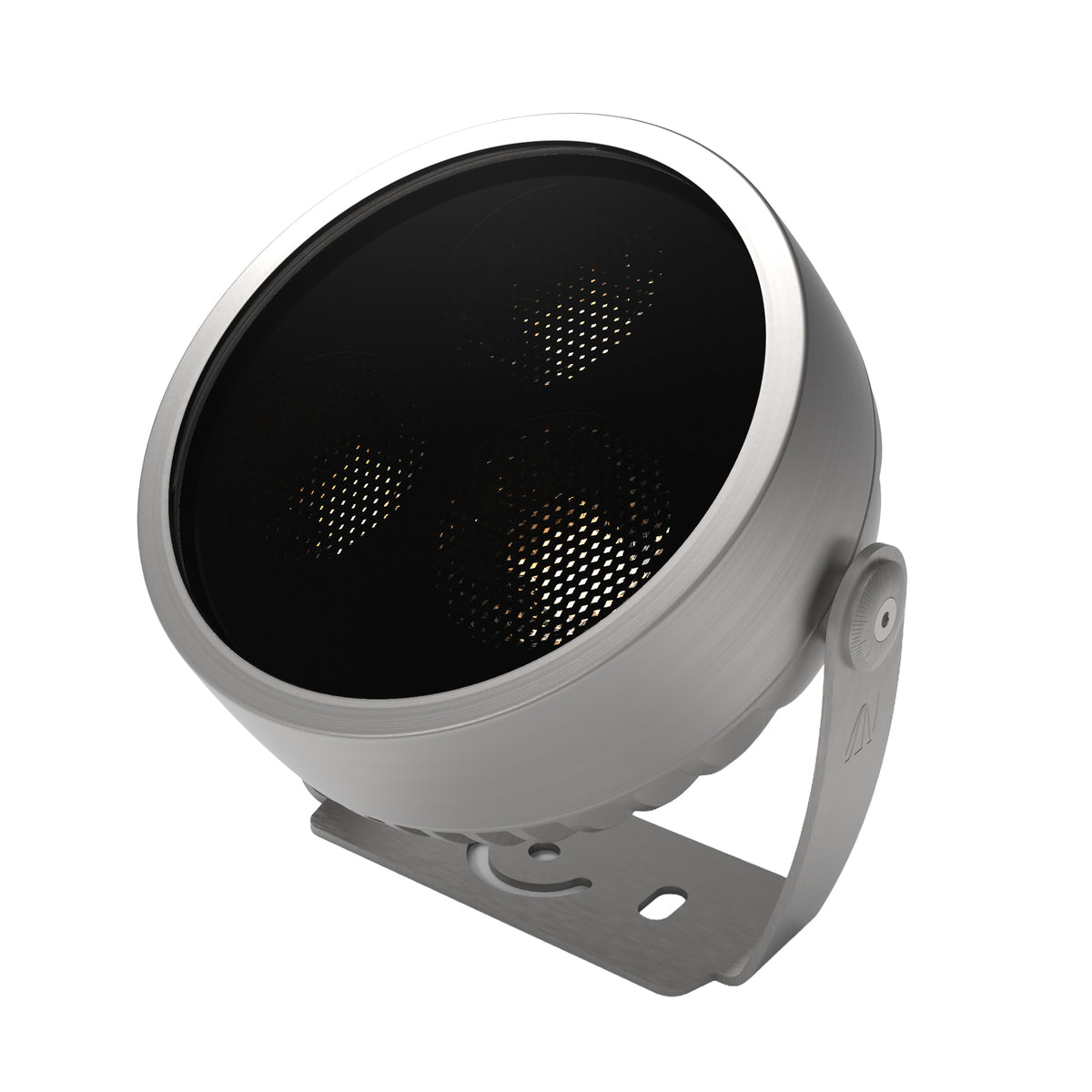

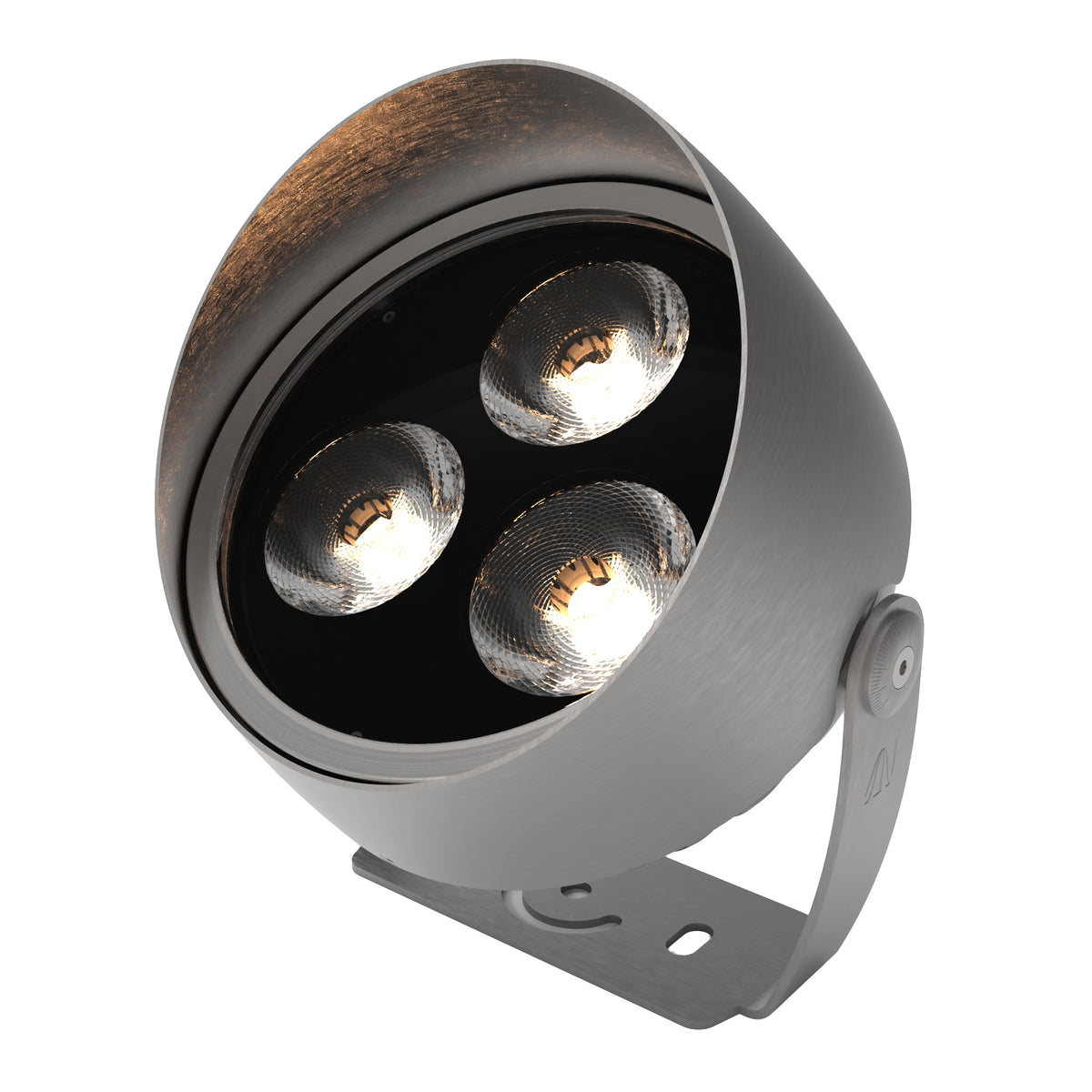

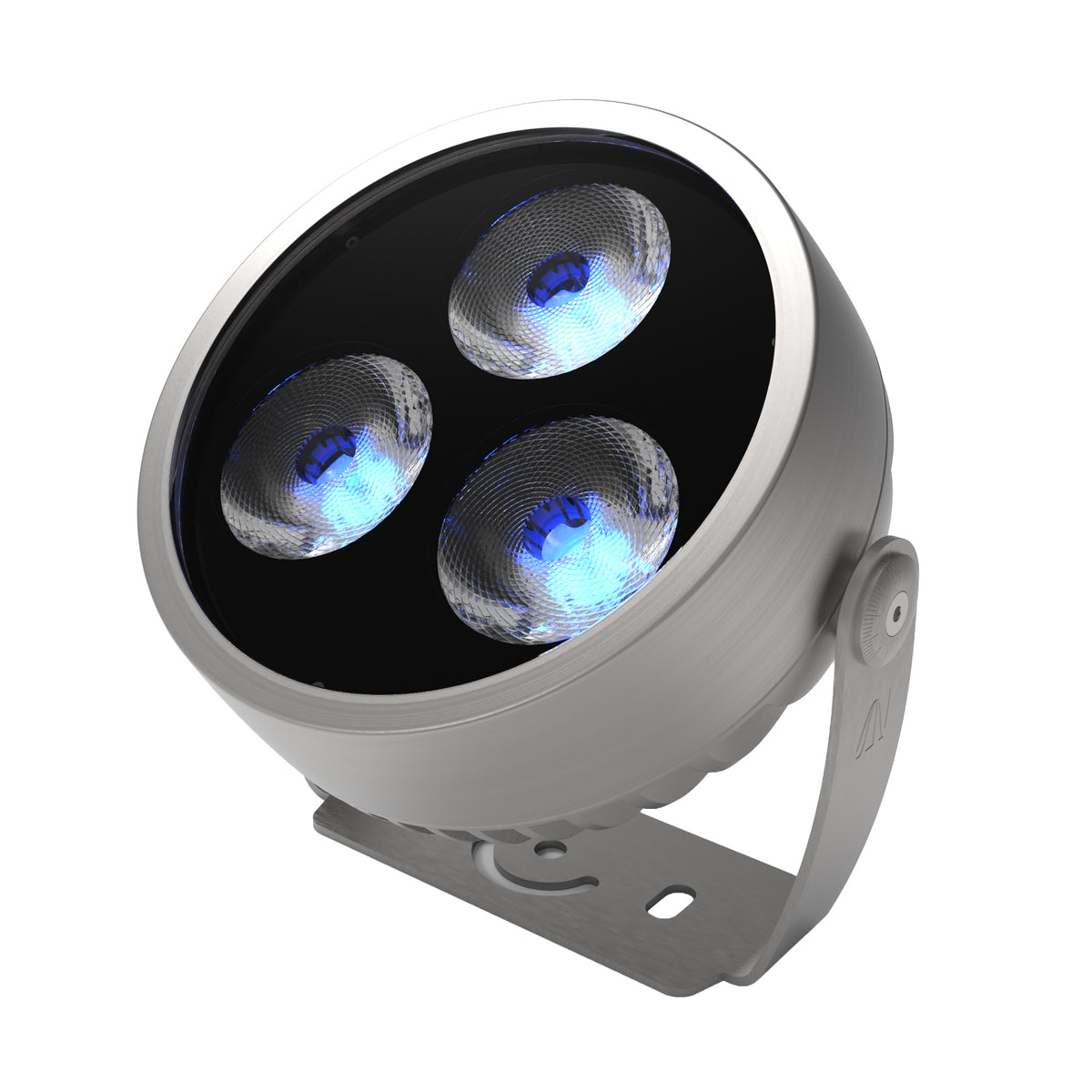

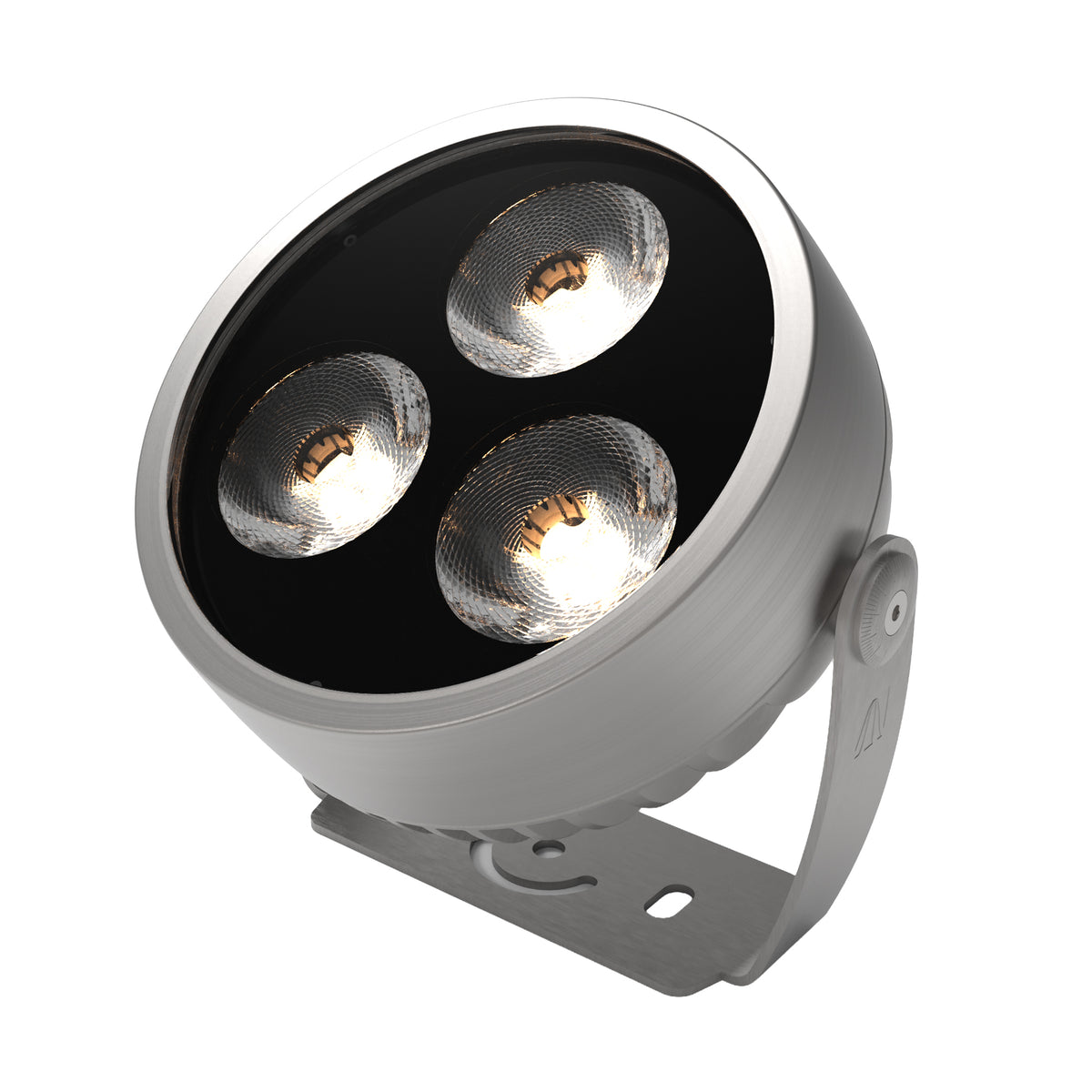

Aqua Drum S3 is a high-power, fully submersible LED floodlight luminaire purpose-built for pools, spas, fountains, and architectural water features. The IP68-rated 316L stainless steel housing pairs with adjustable mounting yokes, a full suite of optical options, and static white, tunable white, or Quad RGBW/RGBA/RGBL (with CCT Select) color mixing, all driven by the Aqua Driver 4 with AquaSense for DMX/RDM control.

SKU: AUB#-26#-A####

Featured Technologies

01

ColorDrive

ColorDrive unleashes the hidden potential of static color applications, delivering up to 4x the output of traditional color-changing fixtures when you need one perfect hue. Our intelligent calibration maintains consistent saturation through the entire dimming range, ensuring your midnight blue stays midnight blue whether at 10% or 100%.

02

AquaSense

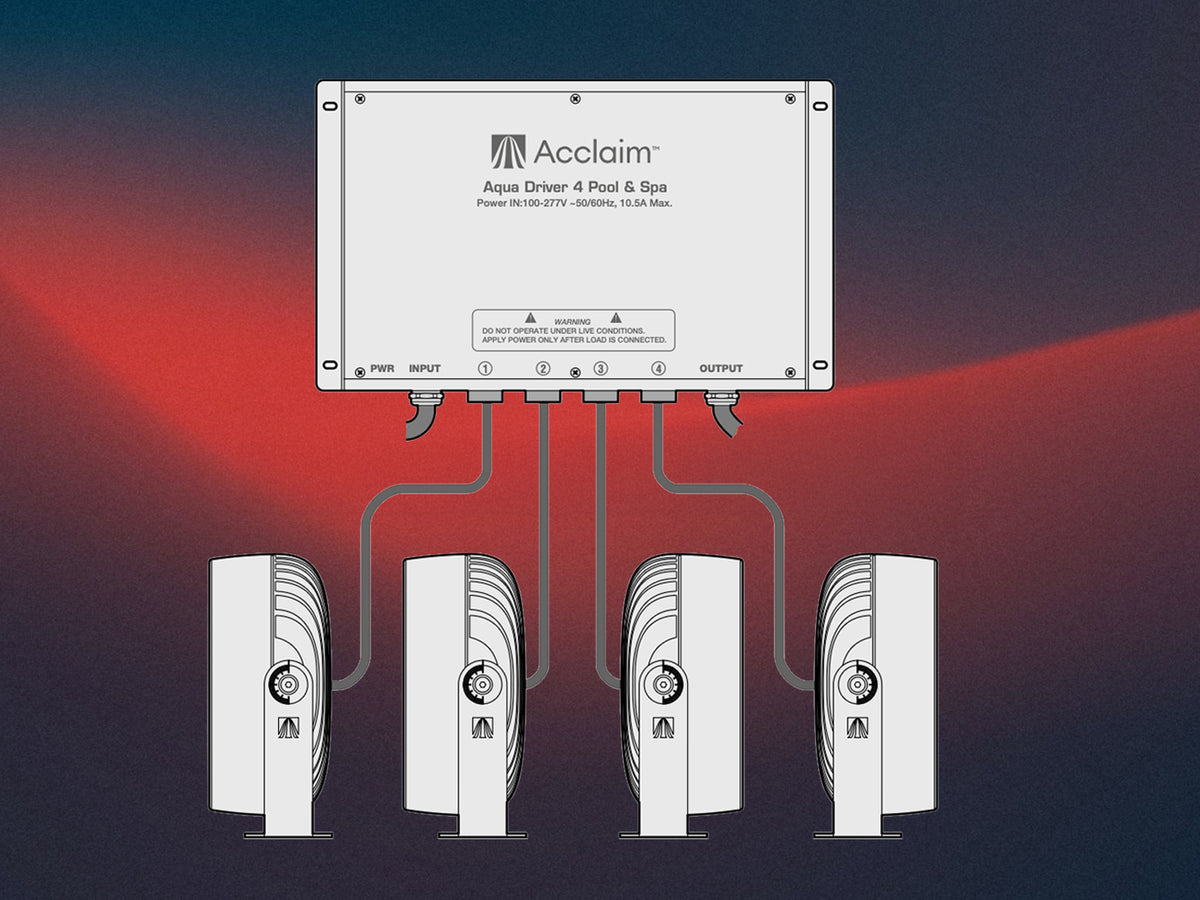

AquaSense technology automatically detects the connected Aqua Series load at power-up and self-configures, with no manual setup required for operation or load management between different fixture types. The result is simpler commissioning, fewer installation errors, and a faster project turnaround.

03

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

01

ColorDrive

ColorDrive unleashes the hidden potential of static color applications, delivering up to 4x the output of traditional color-changing fixtures when you need one perfect hue. Our intelligent calibration maintains consistent saturation through the entire dimming range, ensuring your midnight blue stays midnight blue whether at 10% or 100%.

02

AquaSense

AquaSense technology automatically detects the connected Aqua Series load at power-up and self-configures, with no manual setup required for operation or load management between different fixture types. The result is simpler commissioning, fewer installation errors, and a faster project turnaround.

03

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Specifications & Downloads

Filename	Document type	File type
Aqua Drum S3 Specification Sheet	Specification Sheet	PDF
Aqua Drum E3 & S3 2D Drawings	Drawings	ZIP
Aqua Drum S3 Photometric Library - IES, LDT, TM-33, PDF	Photometric Data	ACCLAIM-LIGHTING

Tech Data

Certifications

ETL, FCC, CE, 3G, UKCA, RoHS

Operating Voltage

24VDC. Aqua Driver 4 requires 100-277VAC, 50/60Hz

Power Consumption

Submersible mode: 100W, Non-submersible mode: 50W

Adjustable Start Address

via RDM on Aqua Driver 4

Control

0-100% dimming via DMX + RDM, built-in power failure memory, 0-10V or DALI 2 via external converter

Recovery

Built-in power failure memory

Lumen Maintenance

L70 @ 90,000 hours (@ 25º C)

Optics

3º x 3º, 6º x 6º, 10° x 10°, 20° x 20°, 40° x 40°, 60° x 60°, 100° x 100°, 10° x 60°, or 30°x 60°

Output

Up to 9,485 lumens, 401,009 center candela

Connection

STOW cable 6 x 16AWG, Select attached cable length from available options, IP68 connector

Finish

316L Stainless steel, suitable for freshwater, chlorinated, brominated, and saltwater pool environments*

Material

316L stainless steel body, glass top lens

Mounting

Integrated 180º yoke mounting brackets included

Physical

LxWxH: 4.88” x 6.77” x 7” (124 x 172 x 180mm)

Weight

17.6 lbs. (8 Kg)

Ambient Temperature Range

-40° F to 131° F (-40° C to 55° C)

Impact Protection

IK08, protection against 5 joule impact (40cm distance) - walk over rated

Ingress Protection

IP68, submersible to 20’ (6m)

Vibration Protection

3G certification

Maximum Fixtures In Series

4 fixtures maximum per auto-sensing Aqua Driver 4

Mode Adjustment

Via RDM on Aqua Driver 4
