Aqua Driver 4
Aqua Driver 4

Aqua Driver 4

Specification highlights

Output ports
4
Max Power
600W, 5A

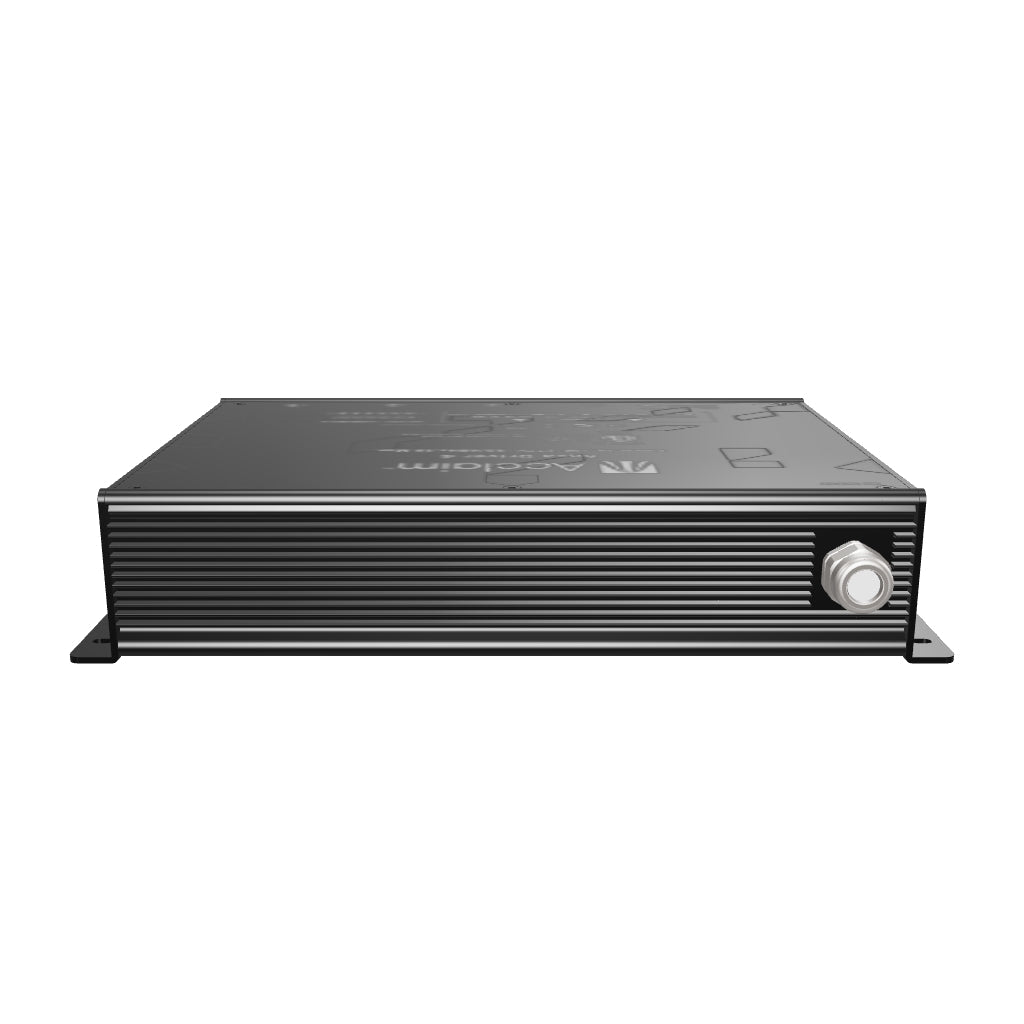

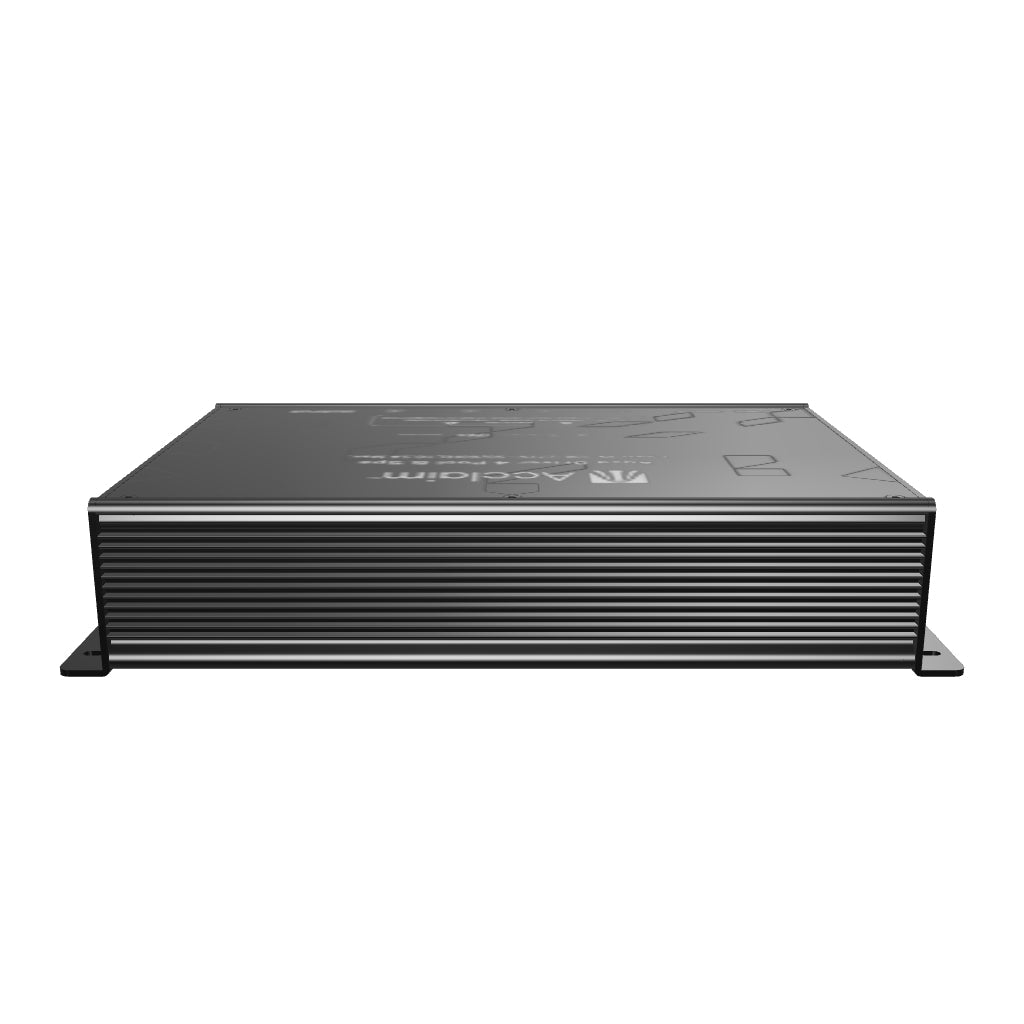

Aqua Driver 4™ units provide four outputs to drive Aqua Drum E3 and S3 plus Aqua Linear 1’ and 4’ fixture heads. The various head types can be mixed on a single driver on condition that the emitter options are consistent across all connected heads.

AquaSense technology automatically configures the current requirements of the connected heads at each power-up. This ensures that the current settings are always correct for each head and no switch settings are required.

SKU: AQDFR4S, AQDR4P

Featured Technologies

01

AquaSense

AquaSense technology automatically detects the connected Aqua Series load at power-up and self-configures, with no manual setup required for operation or load management between different fixture types. The result is simpler commissioning, fewer installation errors, and a faster project turnaround.
01

AquaSense

AquaSense technology automatically detects the connected Aqua Series load at power-up and self-configures, with no manual setup required for operation or load management between different fixture types. The result is simpler commissioning, fewer installation errors, and a faster project turnaround.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Aqua Driver 4 Aqua Driver 4
Configuration code
Configuration code
Version:

Specifications & Downloads

Filename Document type File type
Aqua Driver 4 Specification Sheet Specification Sheet PDF
Aqua Driver 4 2D & 3D Drawings Drawings ZIP

Tech Data

Certifications
ETL, FCC, CE, ROHS
Operating Voltage
100-277VAC, 50/60Hz
Output Power
125W @ 24VDC, 5.2A per port
Output Voltage
24VDC, constant current
Power Consumption
up to 600W, 5A at full load
Addressing
via RDM
Adjustable Start Address
Yes, DMX 1-512
Control
0-100% dimming via wired DMX. 0-10V or DALI via external converters
DMX Input
512 channels
DMX Output
512 channels
DMX Universes
1
Inputs
DMX/RDM via terminal blocks (standard version) or IP68 feed cable (pool & spa version)
Recovery
Embedded power failure memory
Connection
Four separate 6-way ports using either terminal blocks or IP68 connectors
Finish
Black powder coat
Internal Sensors
Temperature, Port Status
Material
Aluminum
Mounting
4 x mounting slots Ø0.2” x 0.39” (Ø5 x 10mm)
Physical
L 10" (254mm) x W 15.63" (397mm) x H 3.11" (79mm)
Ports
4 x 6 pin terminal block (standard) or 4 x 6 pin IP68 (pool and spa)
Weight
Standard model: 10.58 lbs (4.8kg), Pool & Spa model: 12.12 lbs (5.5kg)
Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)
Impact Protection
IK10, protection against 20 joule impact (40cm distance)
Ingress Protection
Standard model: IP44, dry location / Pool & Spa model: IP66, wet location
Mode Adjustment
via RDM
