Aqua Graze
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Ingress
- IP68
- Lumens Per Foot
- 729
- Power
- 12W

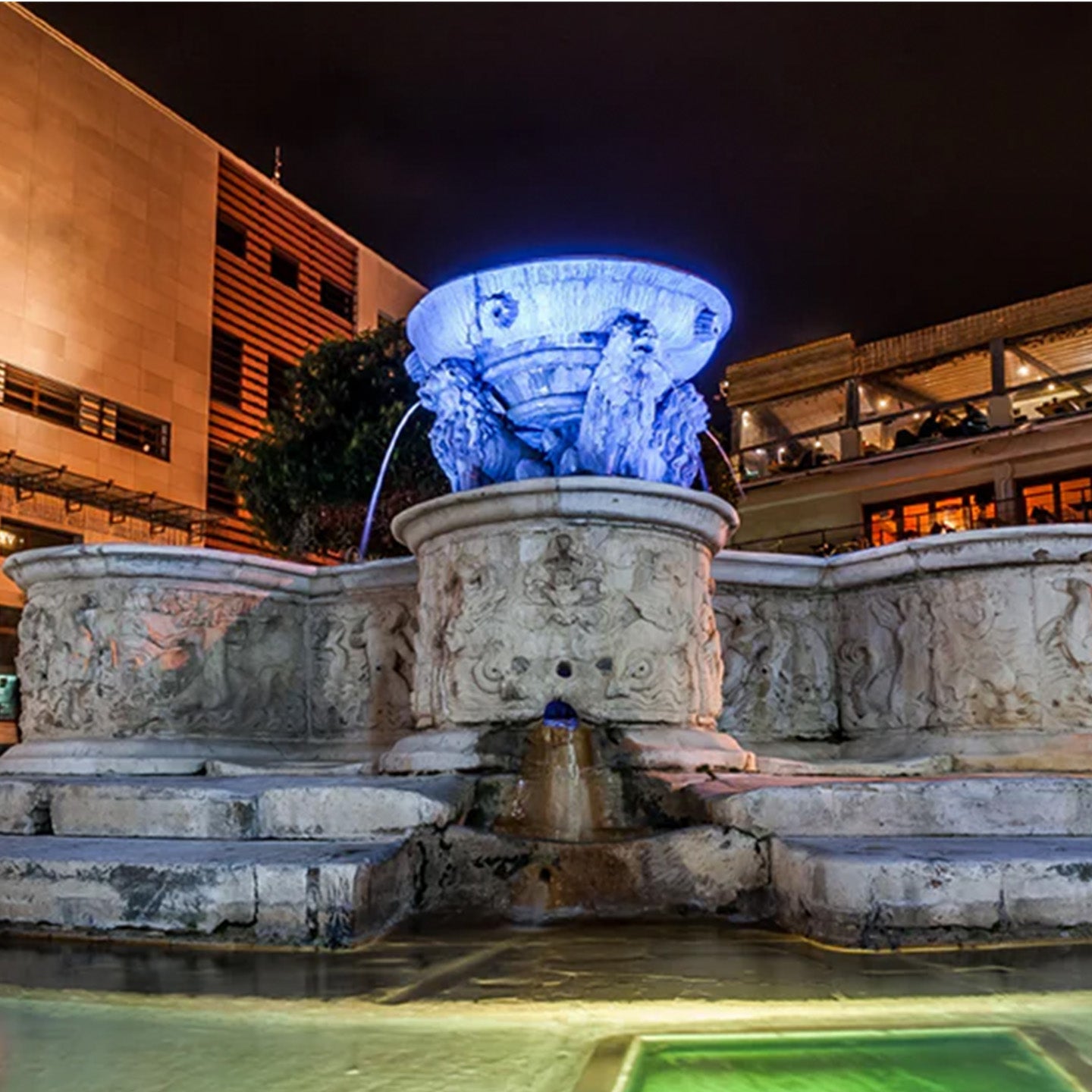

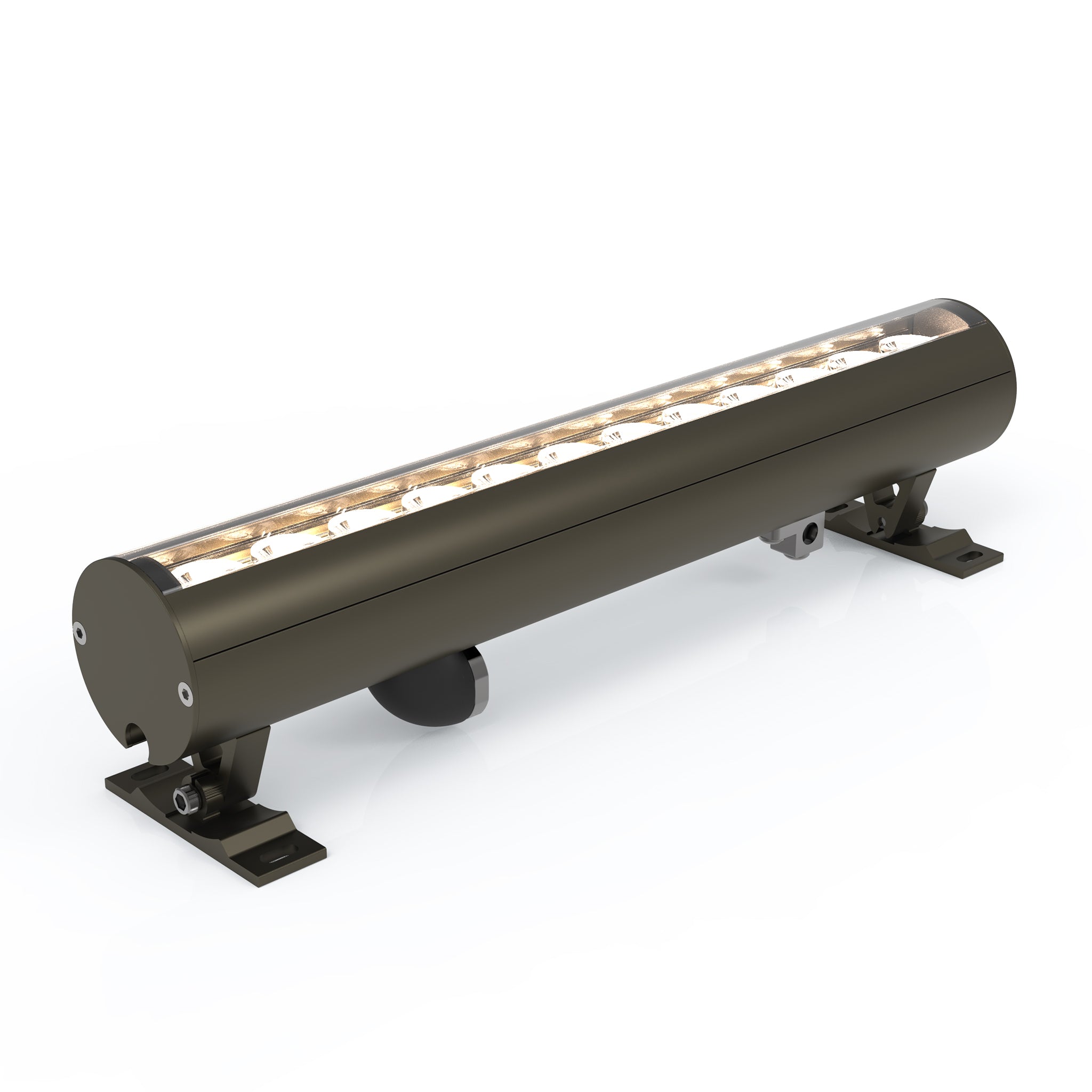

Aqua Graze is a high output, submersible, linear LED fixture. It features a unique internal configuration which features IP68 sealed components allowing for submersion up to 10’ (3m). Available in multiple color temperatures of white and color-changing versions, it is ideal for outdoor linear grazing, fountains, ponds, landscape applications, and is UL certified for Pool Spa applications.
Aqua Graze
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Aqua Graze
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Aqua Graze Specification Sheet - April 2025 | Specification Sheet | |
| Aqua Graze User Guide v3-0a | User Guide | |
| Aqua Graze Revit File | Revit Files | RFA |
| Aqua Graze 2D Drawings | Drawings | ZIP |
| Aqua Graze IES Files - August 2025 | IES Files | ZIP |
Tech Specs
Certifications
ETL, CE, UL676 Pool & SpaOperating Voltage
24VDC, constant current via Aqua Driver 150 or 400. Aqua Drivers require 100-277VAC, 50/60HzControl
0-100% dimming through DMX (via Aqua Driver 150 or 400)Lumen Maintenance
L70 150,000 hours (@ 25° C)Optics
10° x 10°, 25° x 25°, 40° x 40°, 60° x 60°, 90° x 90°, 10° x 60° or 30° x 60°Output
Up to 729 lumens per linear footConnection
98' (30m) STOW cable included (sealed at the fixture end, terminal block at the driver end)Emitters

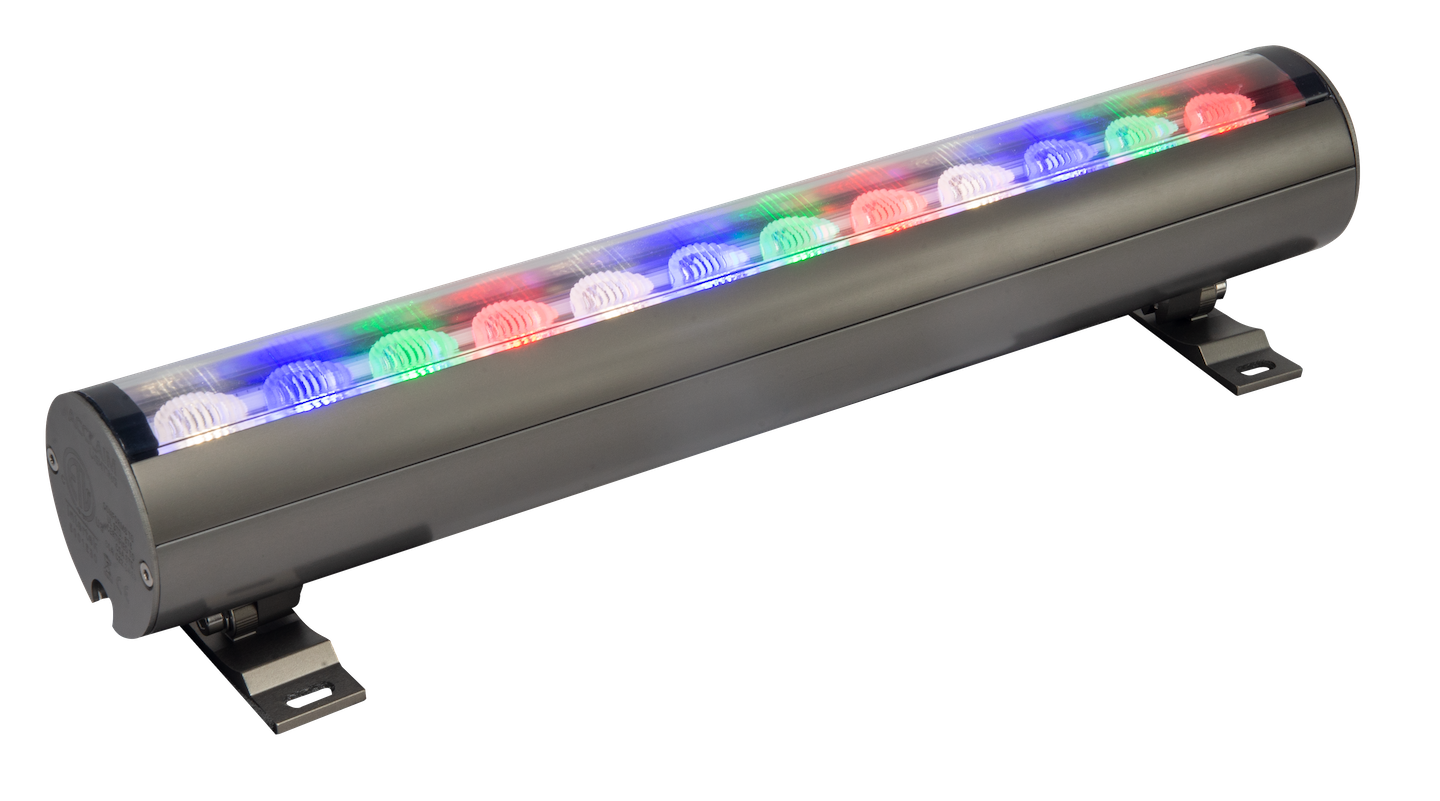

2700K, 3000K, 3500K, 4000K, DW (2400K-5500K), RGBW (W=3000K, 4000K or 6000K) or RGBAFinish
Dark gray, marine environment readyLength

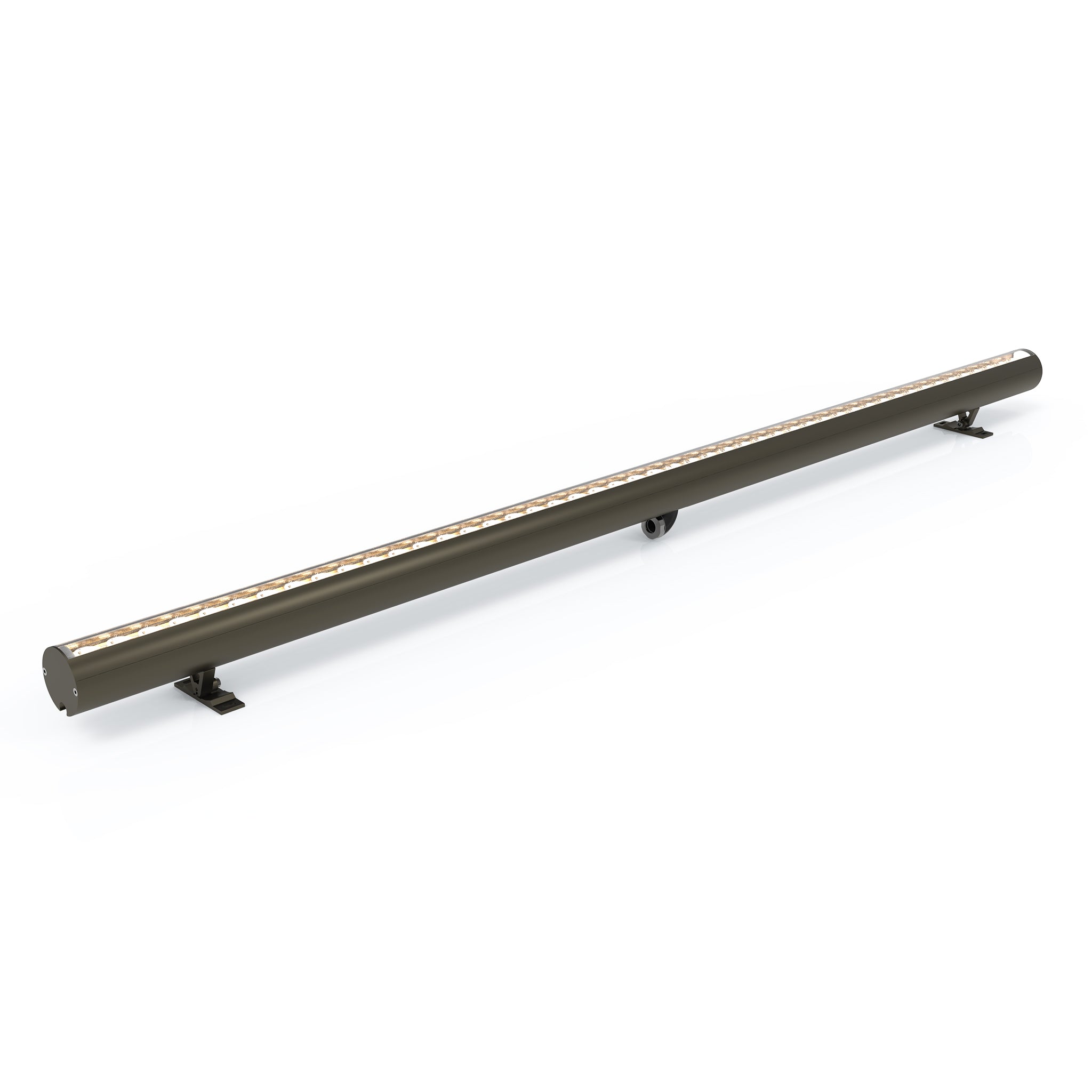

1' (305mm) or 4' (1220mm)Material
Anodized oxidation aluminum body with glass top lensMounting
Two 53° swivel mounting brackets includedWeight
1': 1.5 lbs (0.68 kg) 4': 6 lbs (2.72 kg)Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)Impact Protection
IK08, protection against 5 joule impact (40cm distance) - walk over ratedIngress Protection
IP68, submersible to 10' (3m)Maximum Fixtures In Series
Aqua Driver 150: up to 4 fixtures; Aqua Driver 400: up to 8 fixtures (see page 6)
