Aqua Driver 150
Specification highlights
- Input Voltage
- 100-277VAC
- Output Power
- 150W
- Output Voltage
- 24VDC

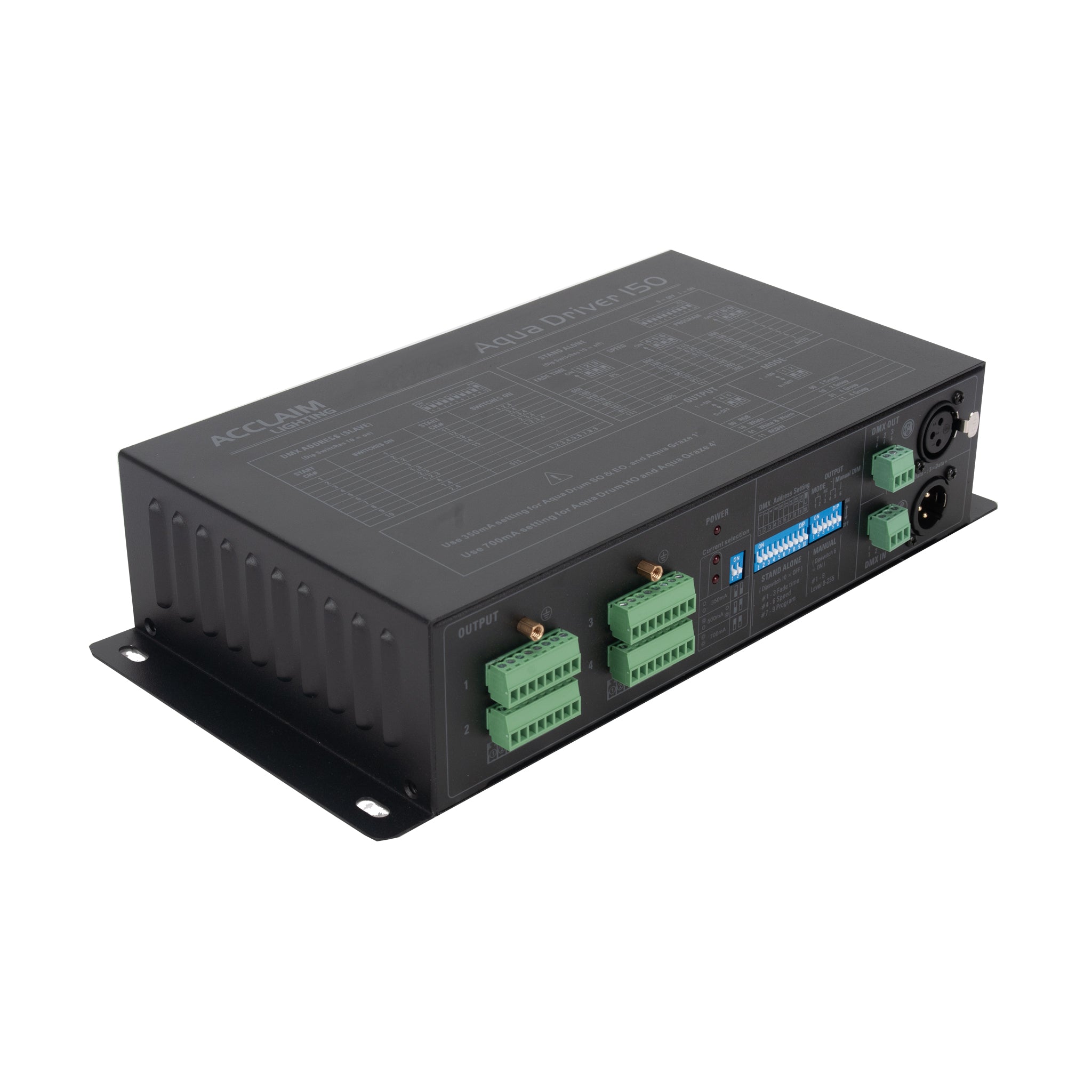

The Aqua Driver 150 is a constant current dimming driver for 24vDC LED products. It can take an AC input from 100-277vAC and dims each channel via DMX. It can control up to 150W of multi color LED product, and manual colors can be set in instances where external control is not desired.
Aqua Driver 150
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| AQUA DRIVER 150 DWG | Drawings | DWG |
| Aqua Drum guide v1-4b | User Guide | |
| AQUA DRIVER 150 PDF | Drawings | |
| Aqua Driver 150 - Specs - May 2023 | Specification Sheet |
Tech Specs
Certifications
ETL, CE, UKCAOperating Voltage
100-277VAC, 50/60HzControl
0-100% dimming via wired DMX (terminal block and XLR 3-pin connections)Connection
Four separate ports with a single 8-way terminal block per portFinish
Black powder coatMaterial
AluminumMounting
4 x mounting slots Ø0.24" x 0.47" (Ø6 x 12mm) - see belowWeight
2.6 lbs (1.18 kg)Ambient Temperature Range
0° F to 158° F (-20° C to 70° C)Impact Protection
IK06, protection against 1 joule impact (40cm distance)Ingress Protection
IP20, dry locationRelated Products
