Aqua Drum EO
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Ingress
- IP68
- Lumens
- 712
- Power
- 8W

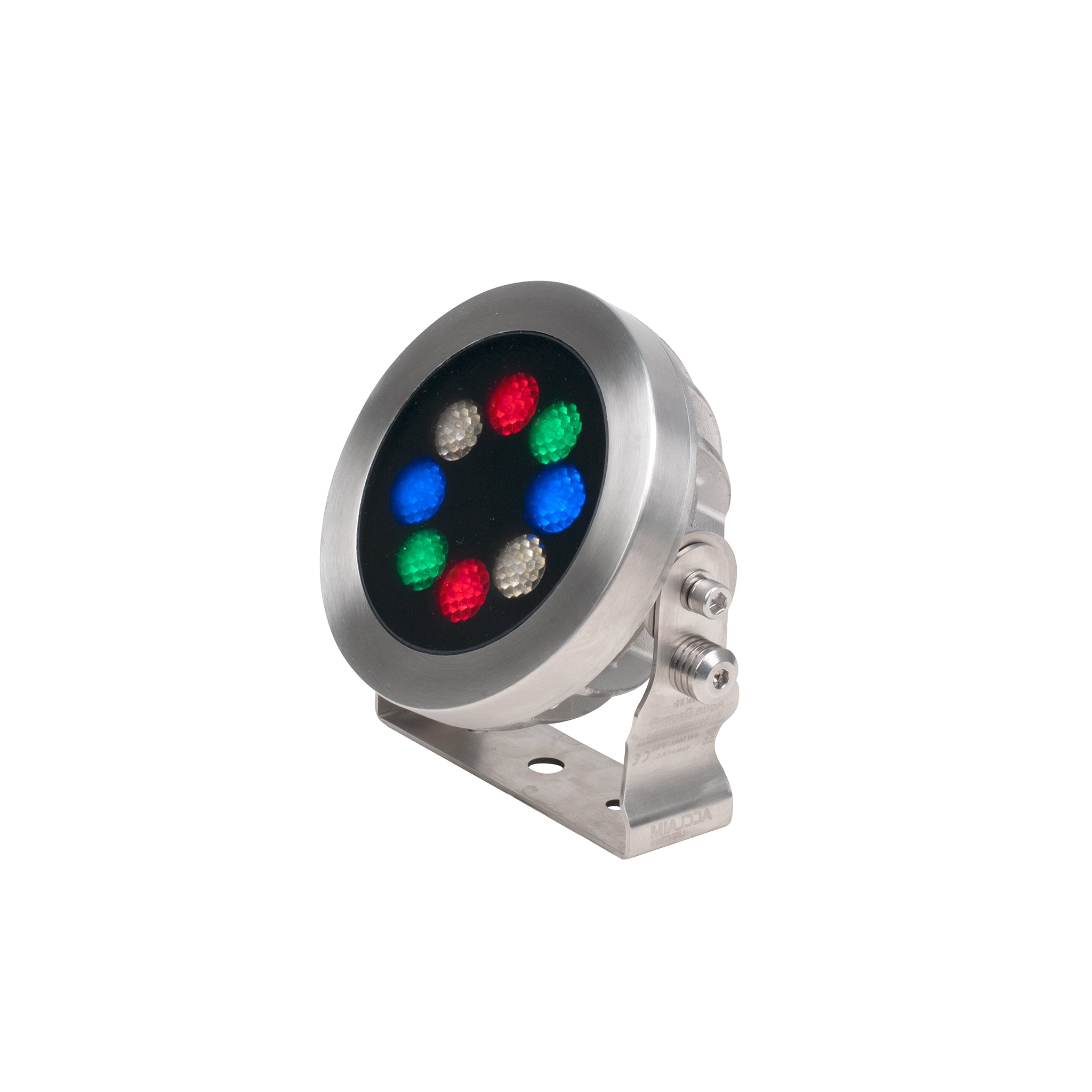

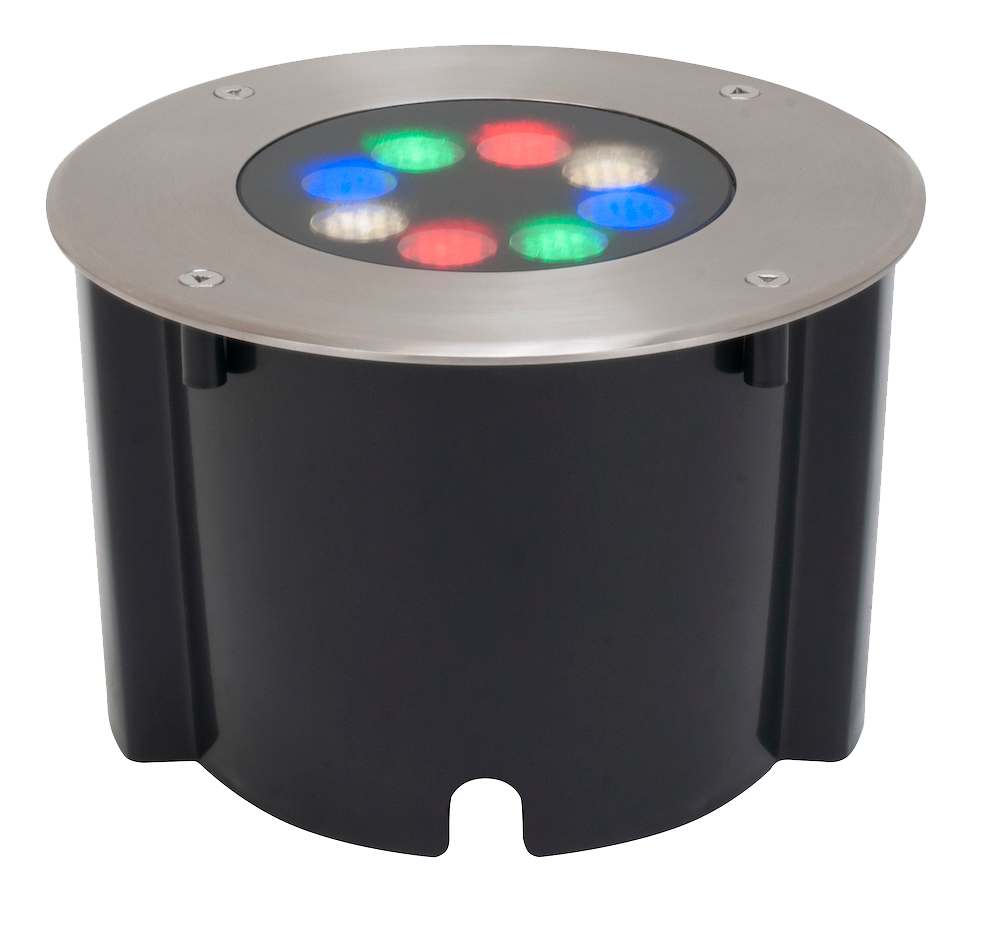

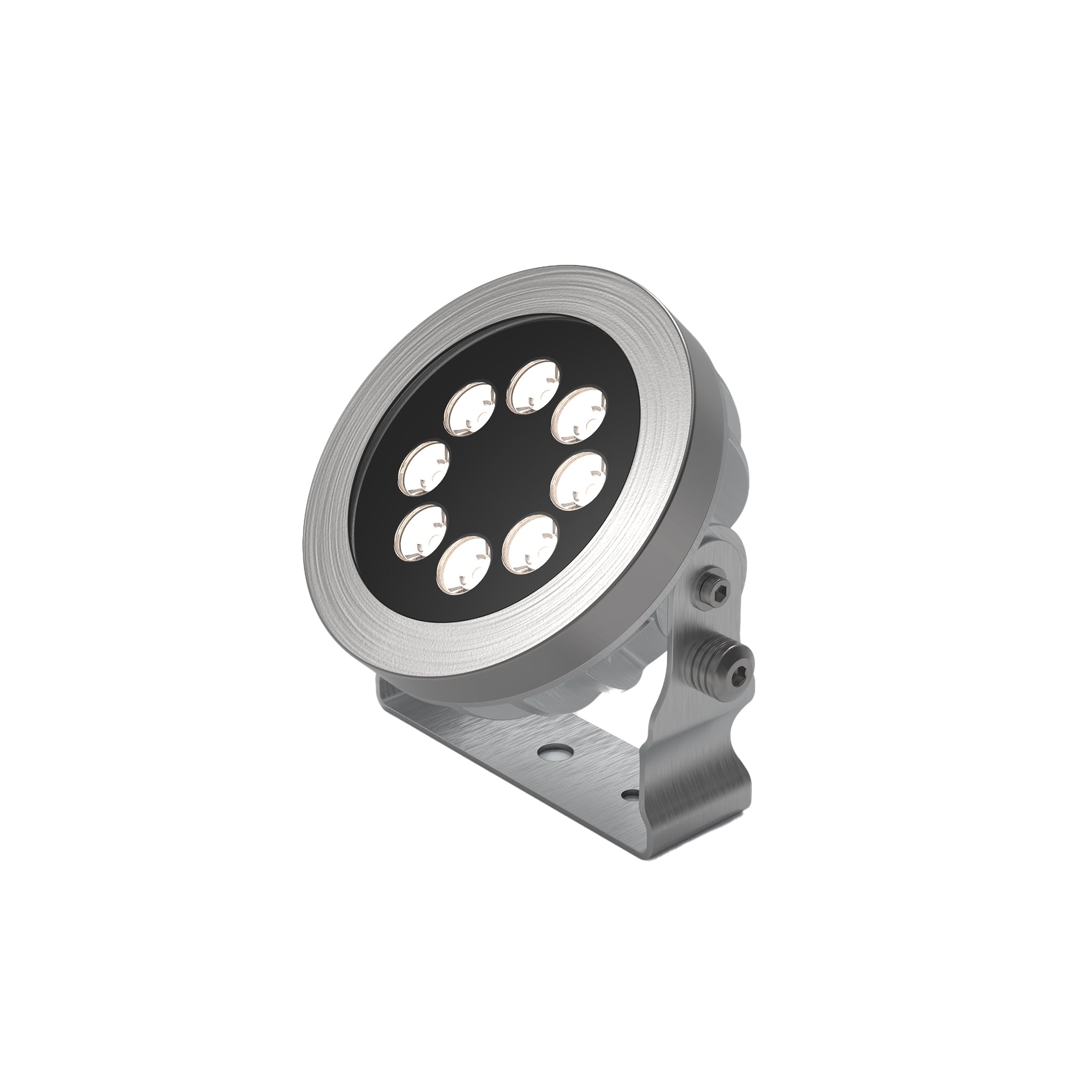

Aqua Drum EO is an economy output, submersible, LED flood fixture. It features an all stainless steel construction, with an optional in-grade housing mounting, and is submersible up to 20’ (6M). Available in multiple color temperatures of white and color changing versions, it is ideal for outdoor facade wash, fountains, ponds, landscape applications, and is UL certified for Pool Spa applications.
Aqua Drum EO
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Aqua Drum EO
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Aqua Drum Specification Sheet - April 2025 | Specification Sheet | |
| Aqua Drum User Guide v3-0a | User Guide | |
| Aqua Drum EO Revit File | Revit Files | RFA |
| Aqua Drum Series 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, UL676 Pool & SpaOperating Voltage
24VDC, constant current via Aqua Driver 150 or 400. Aqua Drivers require 100-277VAC, 50/60HzControl
0-100% dimming through DMX (via Aqua Driver 150 or 400)Lumen Maintenance
L70 150,000 hours (@ 25° C)Optics
10° x 10°, 25° x 25°, 40° x 40°, 60° x 60°, 90° x 90°, 10° x 35° or 10° x 60°Output
HO: up to 3,259 lumens SO: up to 1,600 lumens EO: up to 700 lumensConnection
98' (30m) STOW cable included (sealed at the head end, terminal block at the driver end)Emitters
2700K, 3000K, 3500K, 4000K, RGBW (W=3000K, 4000K or 6000K) or RGBAFinish
Stainless steel, marine environment readyMaterial
SAE 316 molybdenum-alloyed marine grade stainless steel plus sealed glass lensMounting
Yoke arm included or optional in-grade housingWeight
HO: 8 lbs (3.6 kg) SO: 6.6 lbs (3 kg) EO: 4 lbs (1.8 kg)Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)Impact Protection
IK08, protection against 5 joule impact (40cm distance) - walk over ratedIngress Protection
IP68, submersible to 20' (6m)
