Aqua Drum HO
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Ingress
- IP68
- Lumens
- 4077
- Power
- 36W

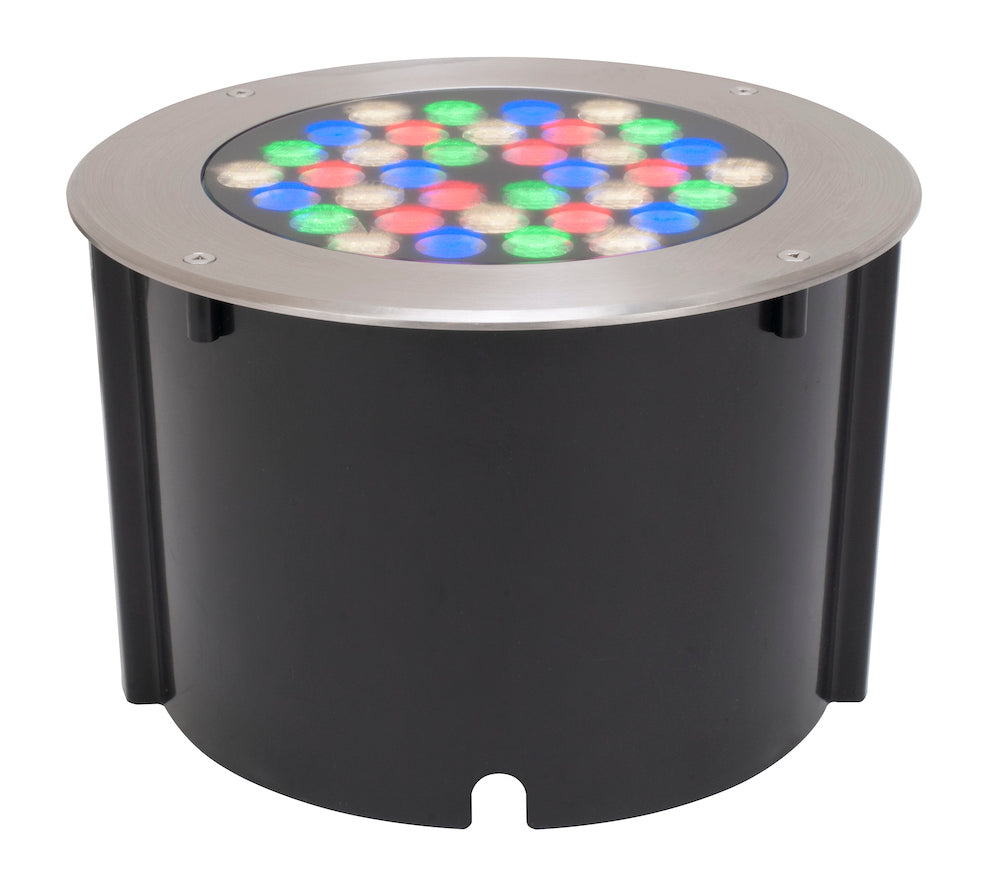

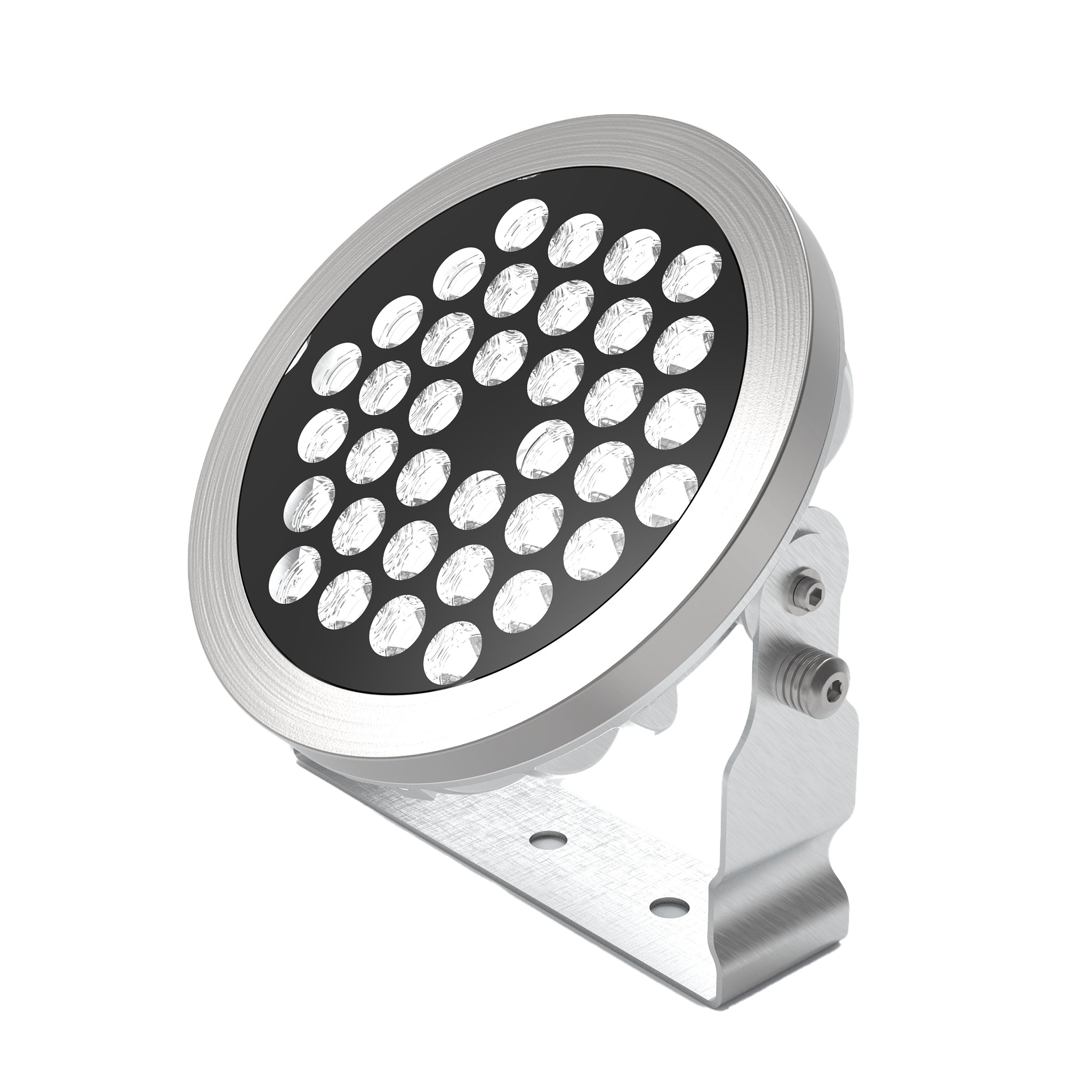

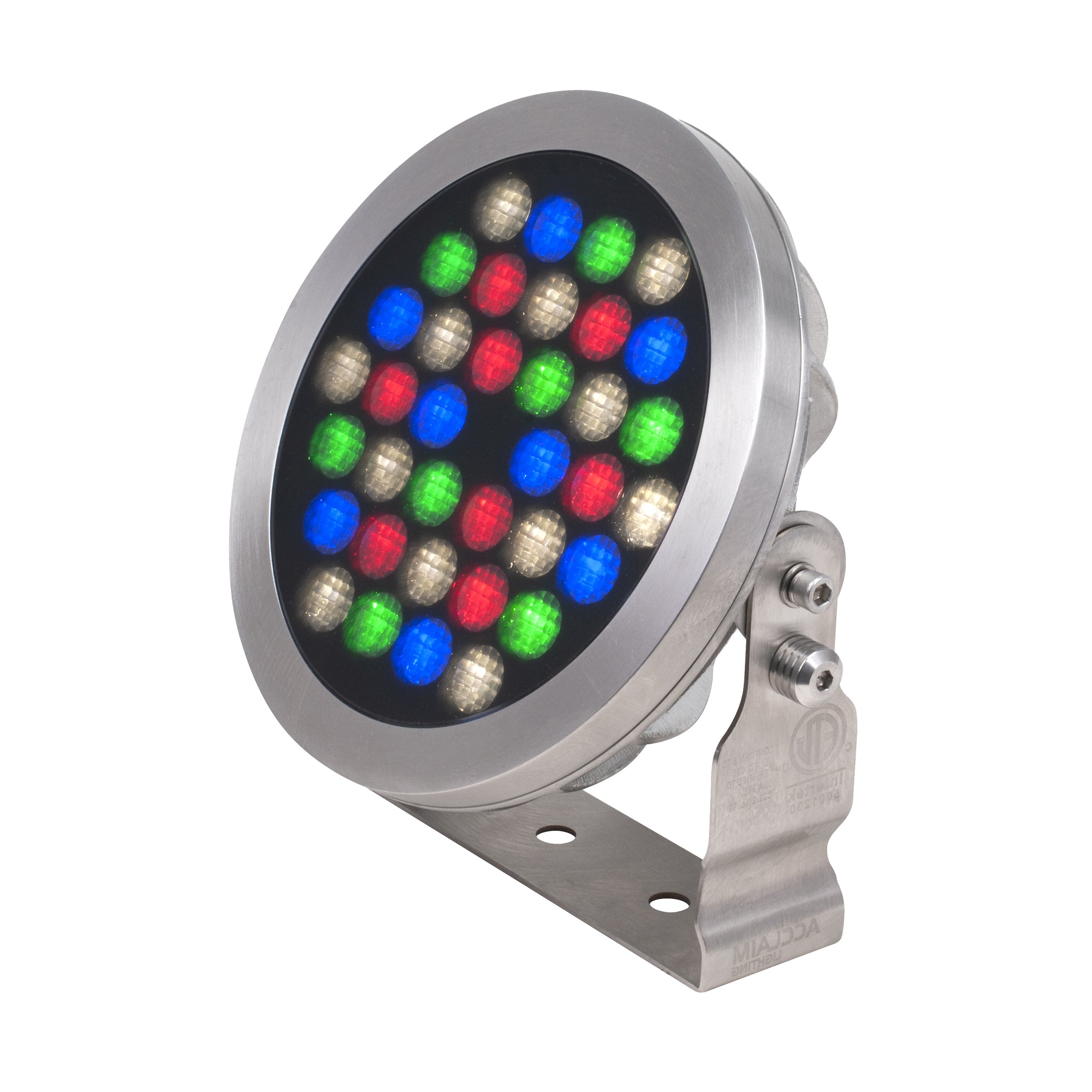

Aqua Drum HO is a high output, submersible, LED flood fixture. It features an all stainless steel construction, with an optional in-grade housing mounting, and is submersible up to 20’ (6M). Available in multiple color temperatures of white and color-changing versions, it is ideal for outdoor facade wash, fountains, ponds, landscape applications, and is UL certified for Pool Spa applications.
Aqua Drum HO
Sale price$0.00
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Aqua Drum HO
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Aqua Drum Specification Sheet - April 2025 | Specification Sheet | |
| Aqua Drum User Guide v3-0a | User Guide | |
| Aqua Drum HO Revit File | Revit Files | RFA |
| Aqua Drum Series 2D Drawings | Drawings | ZIP |
| Aqua Drum HO IES Files | IES Files | ZIP |
Tech Specs
Certifications
ETL, CE, UL676 Pool & SpaOperating Voltage
24VDC, constant current via Aqua Driver 150 or 400. Aqua Drivers require 100-277VAC, 50/60HzControl
0-100% dimming through DMX (via Aqua Driver 150 or 400)Lumen Maintenance
L70 150,000 hours (@ 25° C)Optics
10° x 10°, 25° x 25°, 40° x 40°, 60° x 60°, 90° x 90°, 10° x 35° or 10° x 60°Output
HO: up to 3,259 lumens SO: up to 1,600 lumens EO: up to 700 lumensConnection
98' (30m) STOW cable included (sealed at the head end, terminal block at the driver end)Emitters
2700K, 3000K, 3500K, 4000K, RGBW (W=3000K, 4000K or 6000K) or RGBAFinish
Stainless steel, marine environment readyMaterial
SAE 316 molybdenum-alloyed marine grade stainless steel plus sealed glass lensMounting
Yoke arm included or optional in-grade housingWeight
HO: 8 lbs (3.6 kg) SO: 6.6 lbs (3 kg) EO: 4 lbs (1.8 kg)Ambient Temperature Range
-40° F to 122° F (-40° C to 50° C)Impact Protection
IK08, protection against 5 joule impact (40cm distance) - walk over ratedIngress Protection
IP68, submersible to 20' (6m)
