Aqua Driver 400
Specification highlights
- Input Voltage
- 100-277VAC
- Output Power
- 400W
- Output Voltage
- 24VDC

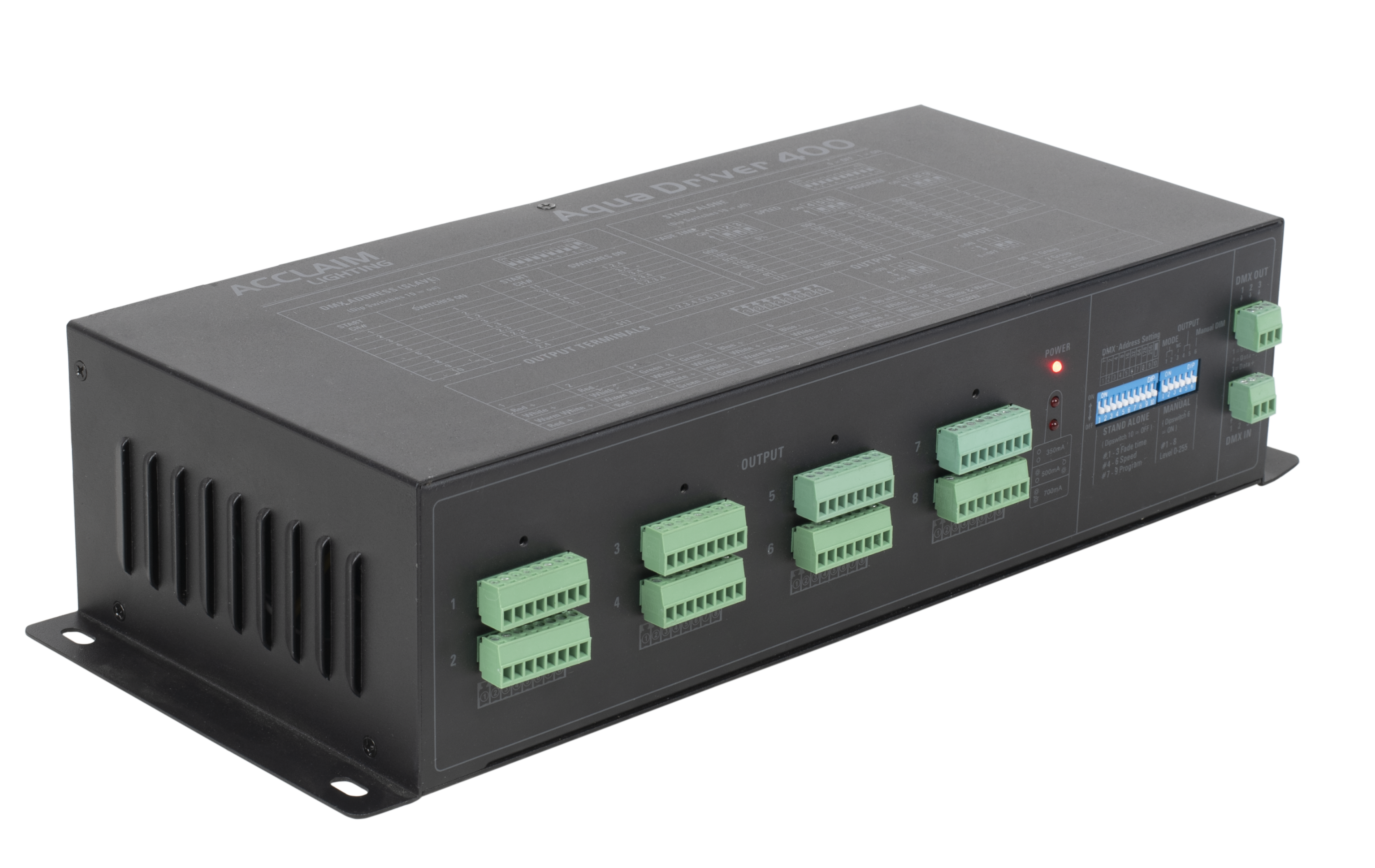

Aqua Driver 400 is a constant current dimming driver for 24VDC LED products. It can take an AC input from 100-277VAC and dims each channel via DMX. It can control up to 400W of multi-color and single color LED product, and manual colors can be set in instances where external control is not desired.
Aqua Driver 400
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| Aqua Graze guide v1-4b | User Guide | |
| Aqua Drum guide v1-4b | User Guide | |
| Aqua Driver 400 - Specs - June 2023 | Specification Sheet | |
| Aqua Driver 400 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, UKCAOperating Voltage
100-277VAC, 50/60HzControl
0-100% dimming via wired DMX (terminal block connections)Connection
Eight separate ports with a single 8-way terminal block per portFinish
Black powder coatMaterial
AluminumMounting
4 x mounting slots Ø0.24" x 0.47" (Ø6 x 12mm) - see belowWeight
4.4 lbs (1.99 kg)Ambient Temperature Range
0° F to 158° F (-20° C to 70° C)Impact Protection
IK06, protection against 1 joule impact (40cm distance)Ingress Protection
IP20, dry locationRelated Products
