Unity H1

This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified.

Specification highlights

Lumens
11639
Power
330W
TM-30
90

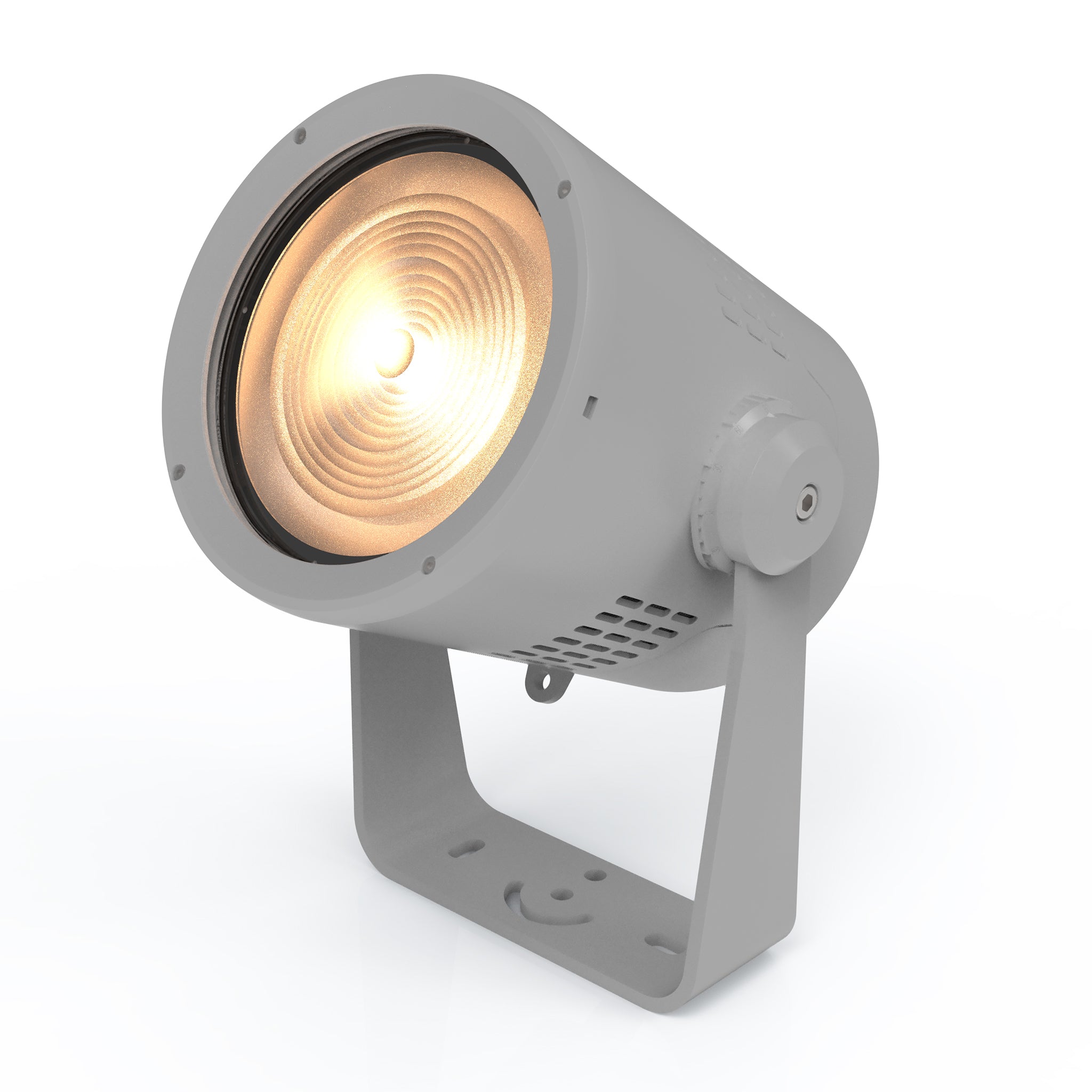

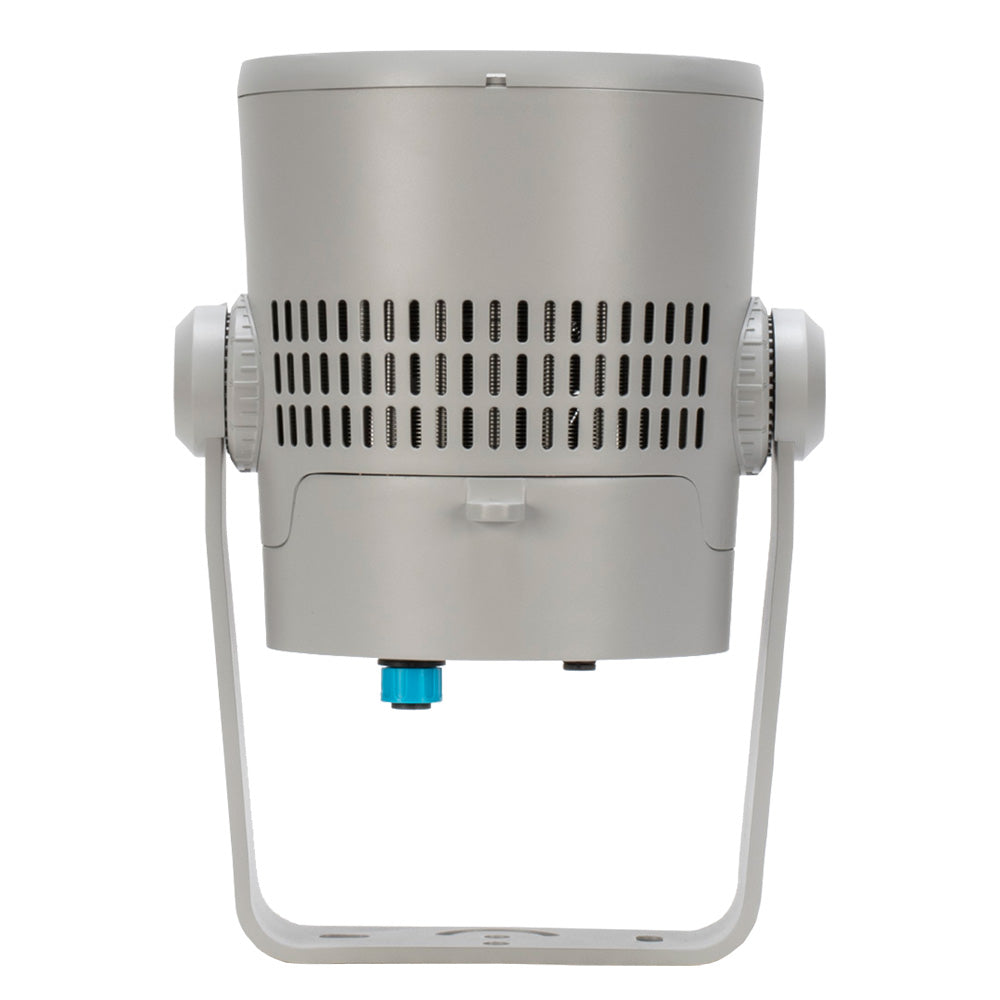

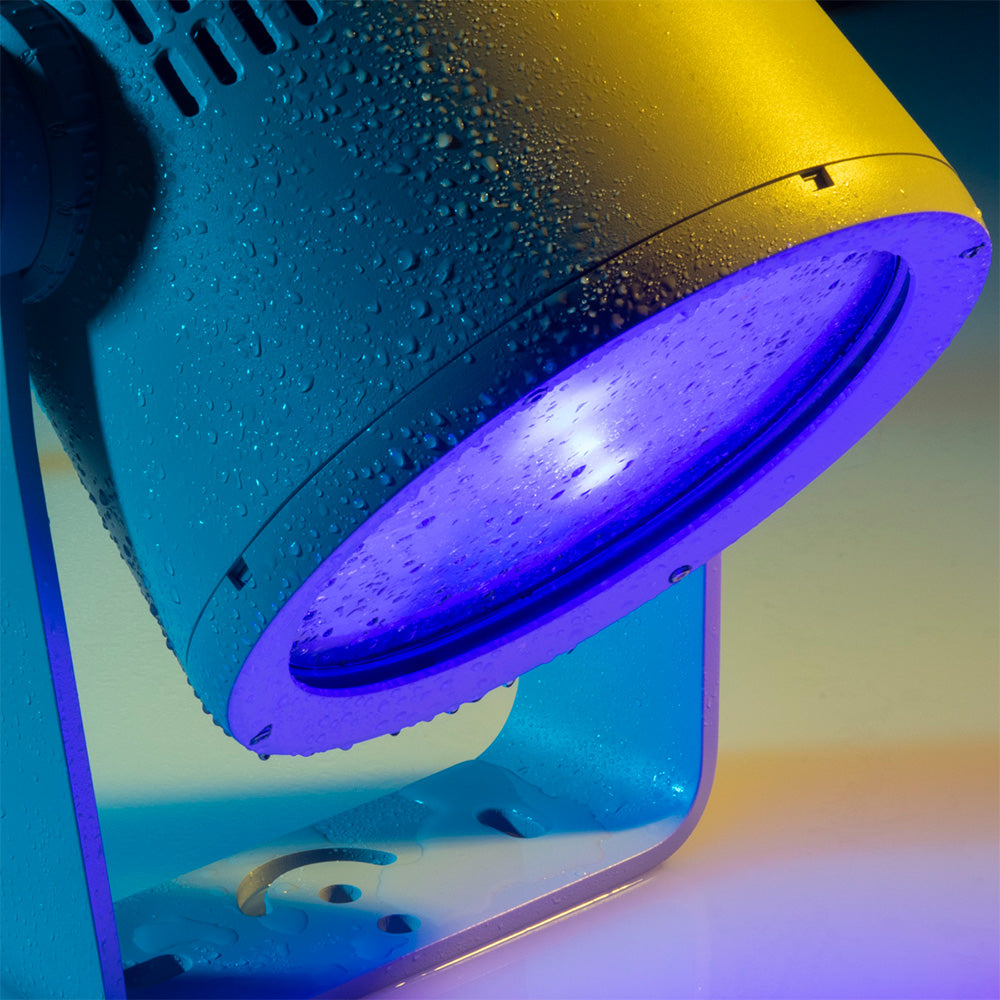

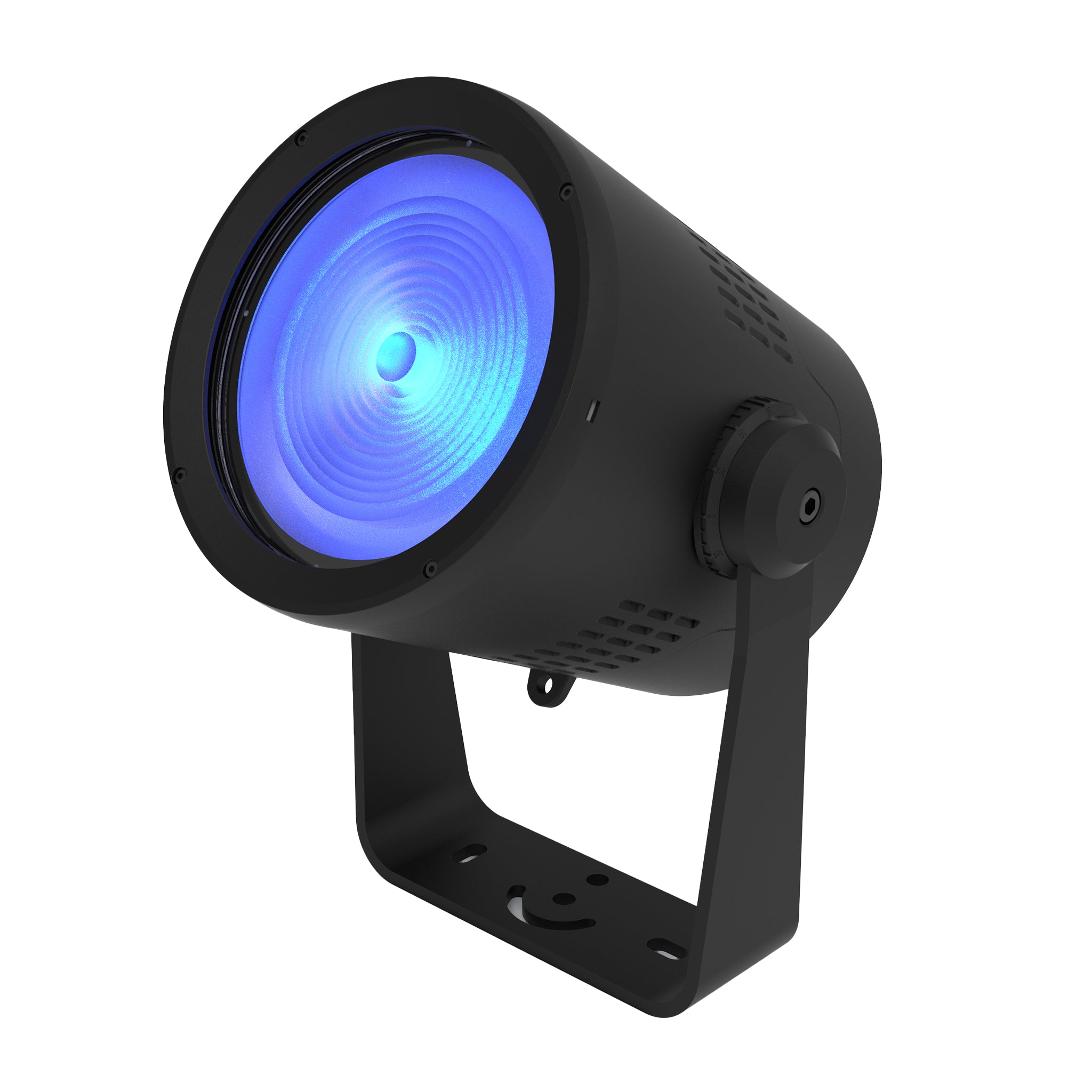

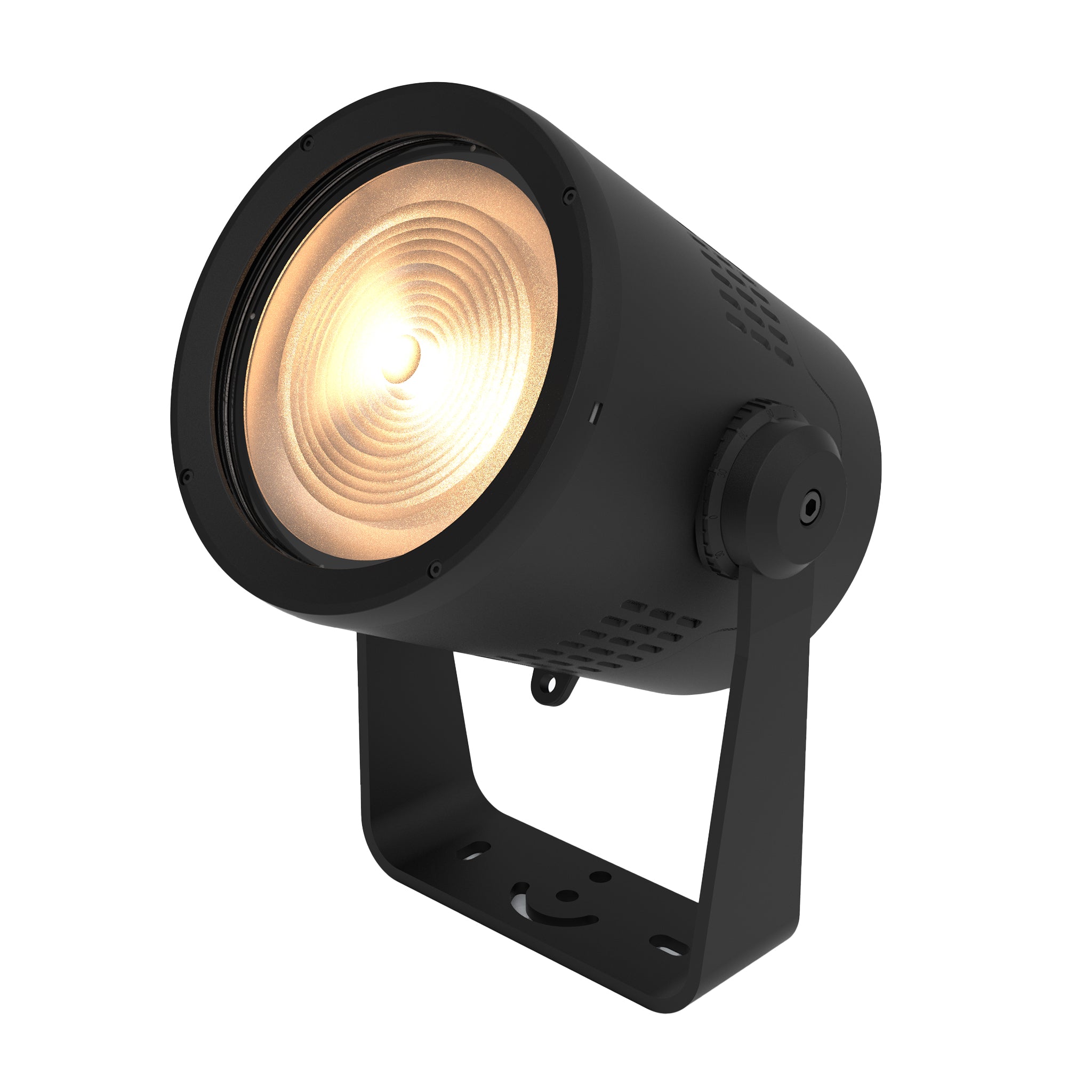

Unity H1 fundamentally rethinks what an outdoor LED floodlight can be. It uses the all-new Spectrum Five engine to give you perfect, high output / high CRI whites, dynamic white operation, and full color mixing in the same unit. It also provides a single, fully homogenized beam with no color striations or separation. Unity features Acclaim’s ColorSync Digital Color Calibration technology and Aria Wireless control built into every unit.
SKU: UNA-2#1-A#RN

Featured Technologies

01

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

02

ColorSync

ColorSync brings laboratory-grade calibration to every fixture that leaves our facility. Embedded hardware and software work in concert to ensure that whites match perfectly across your entire installation; today, tomorrow, and years from now. Mix fixtures from different production runs with confidence. ColorSync guarantees they'll speak the same language of light.

03

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

04

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

05

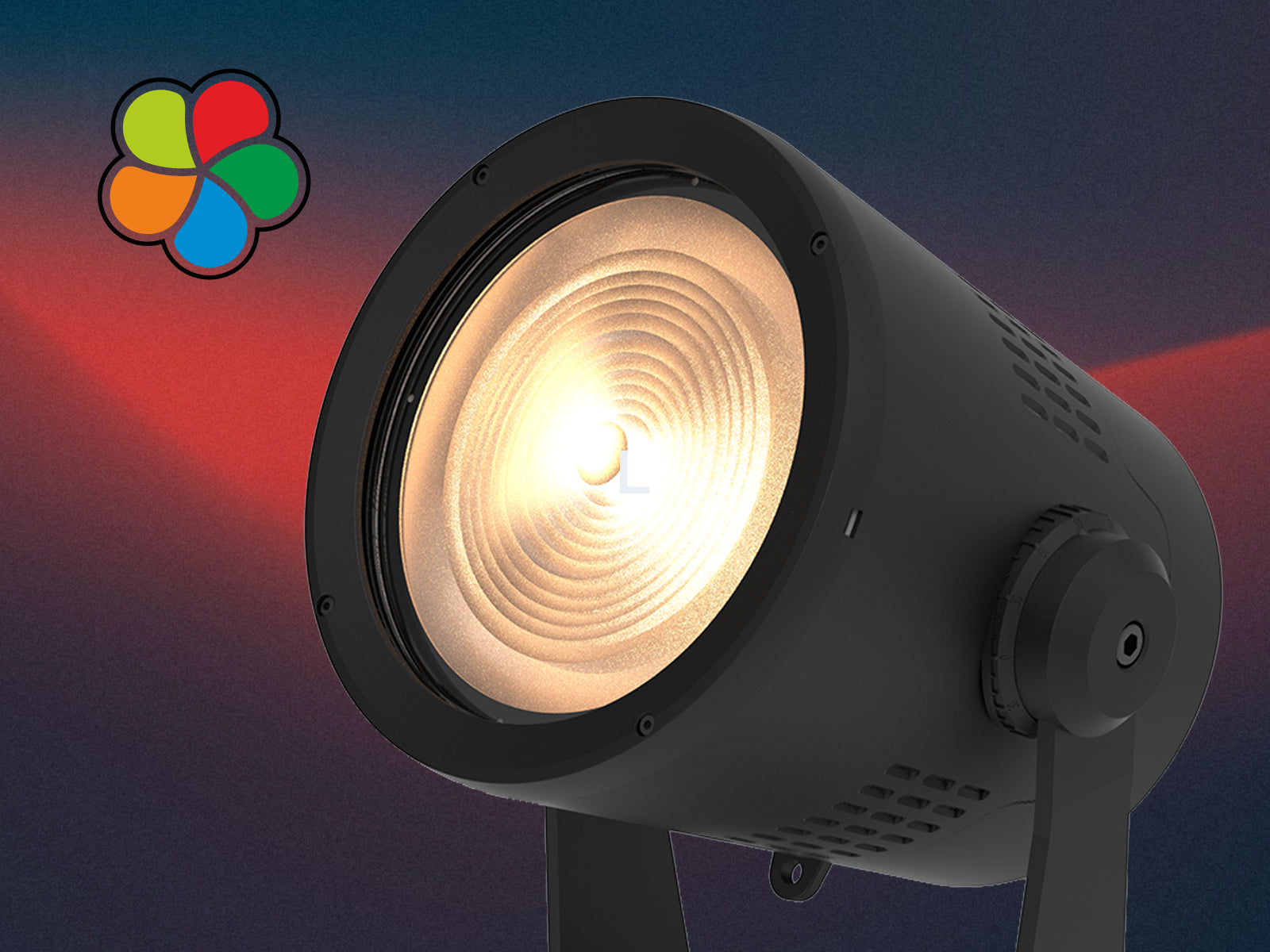

Spectrum Five

Five colors. Infinite possibilities. Zero compromises. Spectrum Five combines red, green, blue, amber, and lime in perfect balance to generate museum-quality whites, stunning colors, and everything in between. From high-CRI architectural white lighting to dynamic color palettes, Spectrum Five delivers the complete visible spectrum with unprecedented accuracy and output.

01

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

02

ColorSync

ColorSync brings laboratory-grade calibration to every fixture that leaves our facility. Embedded hardware and software work in concert to ensure that whites match perfectly across your entire installation; today, tomorrow, and years from now. Mix fixtures from different production runs with confidence. ColorSync guarantees they'll speak the same language of light.

03

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

04

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

05

Spectrum Five

Five colors. Infinite possibilities. Zero compromises. Spectrum Five combines red, green, blue, amber, and lime in perfect balance to generate museum-quality whites, stunning colors, and everything in between. From high-CRI architectural white lighting to dynamic color palettes, Spectrum Five delivers the complete visible spectrum with unprecedented accuracy and output.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Unity H1 Unity H1
Configuration code
Configuration code
Optics:

Downloads

Filename Document type File type
Unity H1 Specification Sheet - July 2025 Specification Sheet PDF
Unity Series User Guide v3-1b User Guide PDF
Unity H1 Revit File Revit Files RFA
Unity IES Sept 2024 IES Files ZIP
Unity 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, FCC, CE, 3G, UKCA, RoHS
Operating Voltage
100-277VAC, 50/60 Hz
Power Consumption
330W
Control
0-100% dimming via wired DMX (with RDM configuration) plus built-in Aria™ Wireless System
Lumen Maintenance
L70 100,000 hours (@ 25° C)
Optics
10° x 10º 10° x 60°, 20° x 20°, 30° x 30°, 30° x 60°, 40° x 40°, 50° x 50°, 80° x 80°, 100° x 100°
Output
Up to 11,639 lumens and 91 CRI
Connection
Removable power and control cord (9 feet, 2.7m with bare wire tails) or use Outdoor Link System
Emitters
Spectrum Five light engine: Red, Green, Blue, Amber, Lime plus CCT select: 1800K to 8000K
Finish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)
Material
Die cast aluminum with a glass lens. Optional marine environment coating available
Mounting
Surface mount yoke included. Tenon, pipe clamp, pendant and cable mount options available
Weight
26.9 lbs (12.2 kg)
Ambient Temperature Range
-40° F to 125° F (-40° C to 51° C)
Impact Protection
IK07, protection against 2 joule impact (40cm distance)

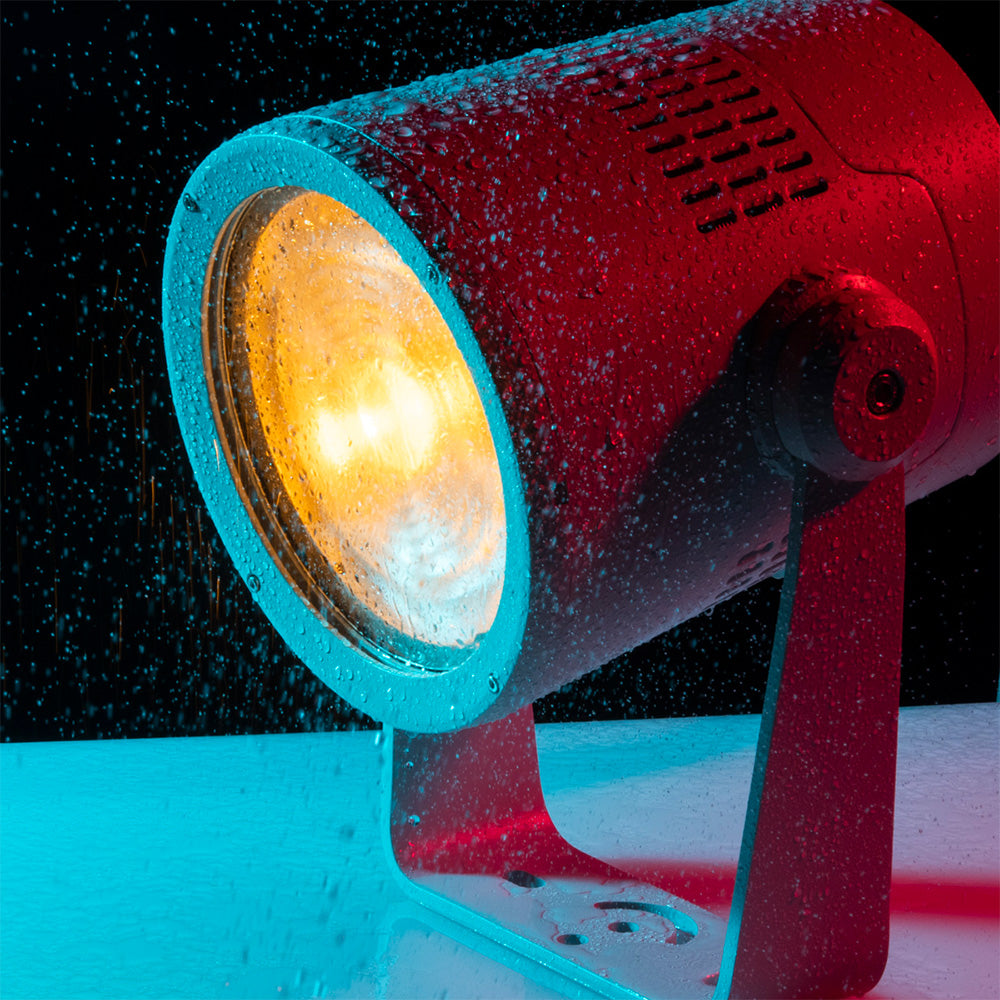

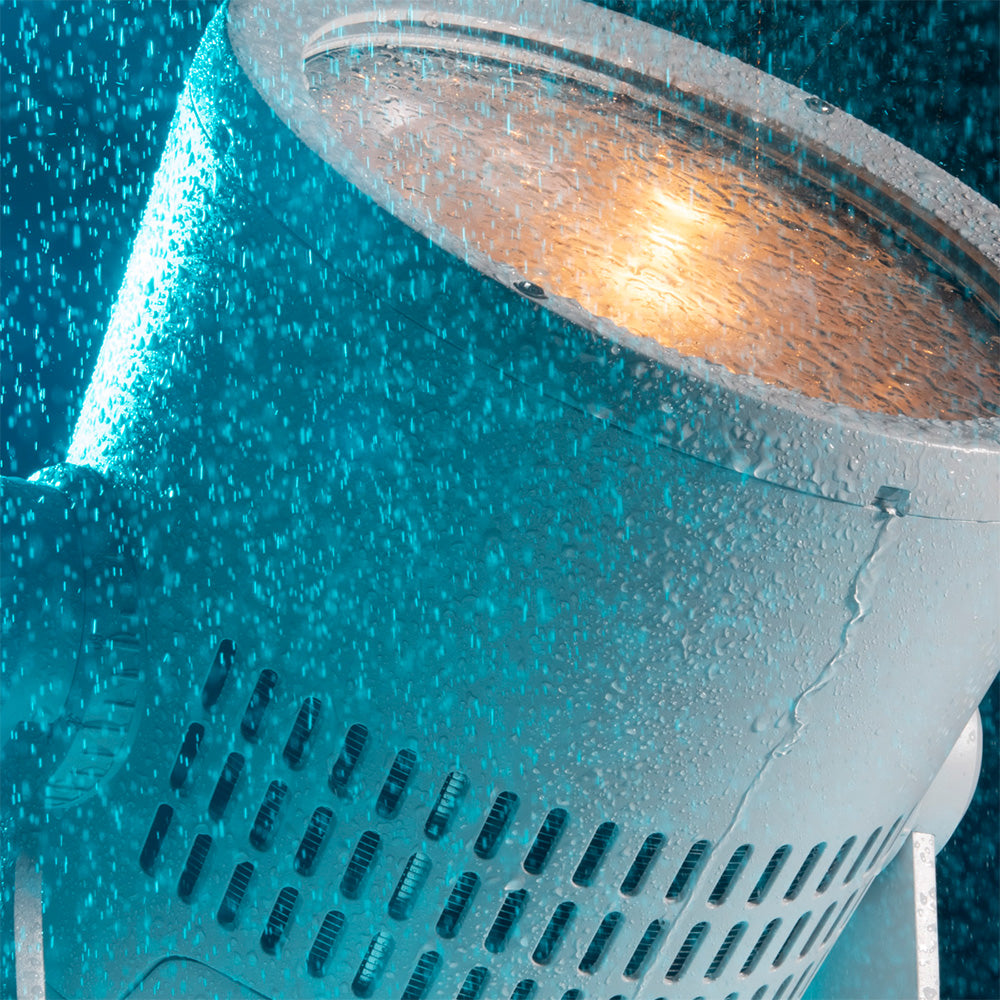

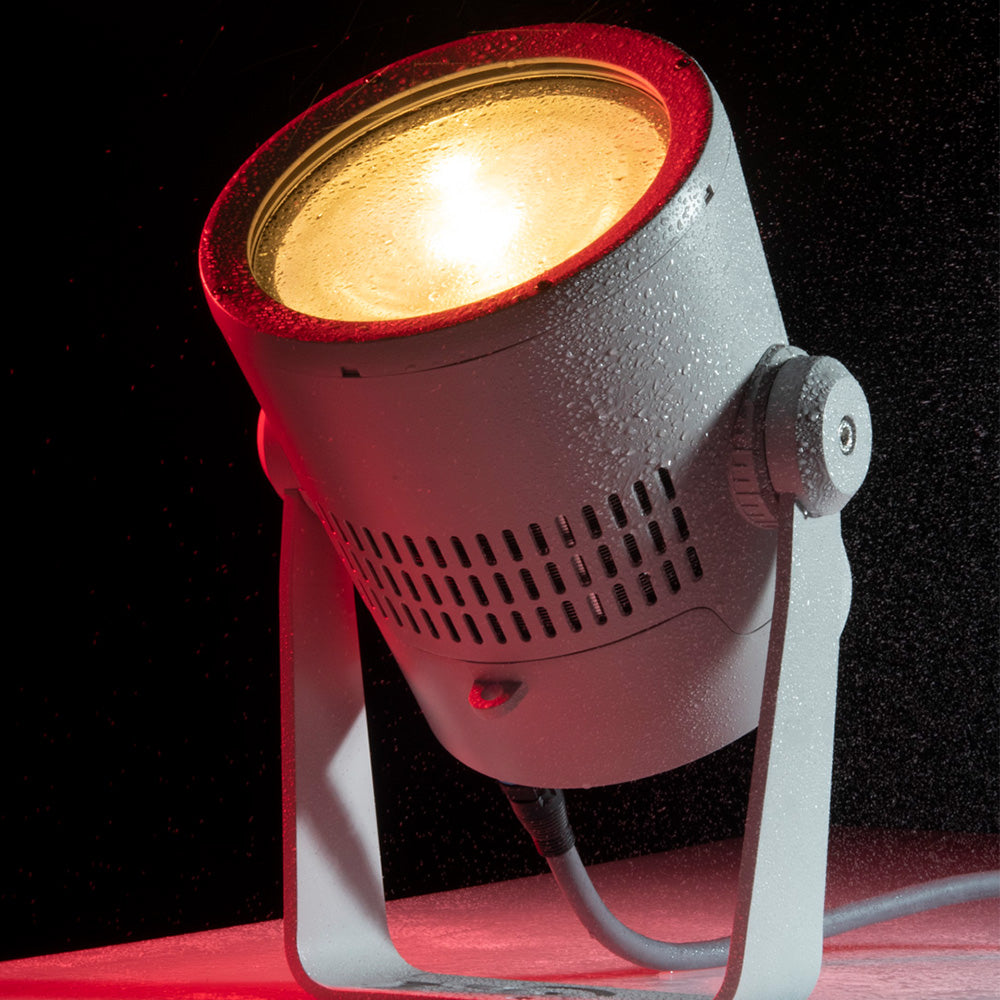

Ingress Protection
IP66, wet location
Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applications
Maximum Fixtures In Series
32 via wired DMX. Power local to each fixture or use Acclaim's Outdoor Link System - see page 10

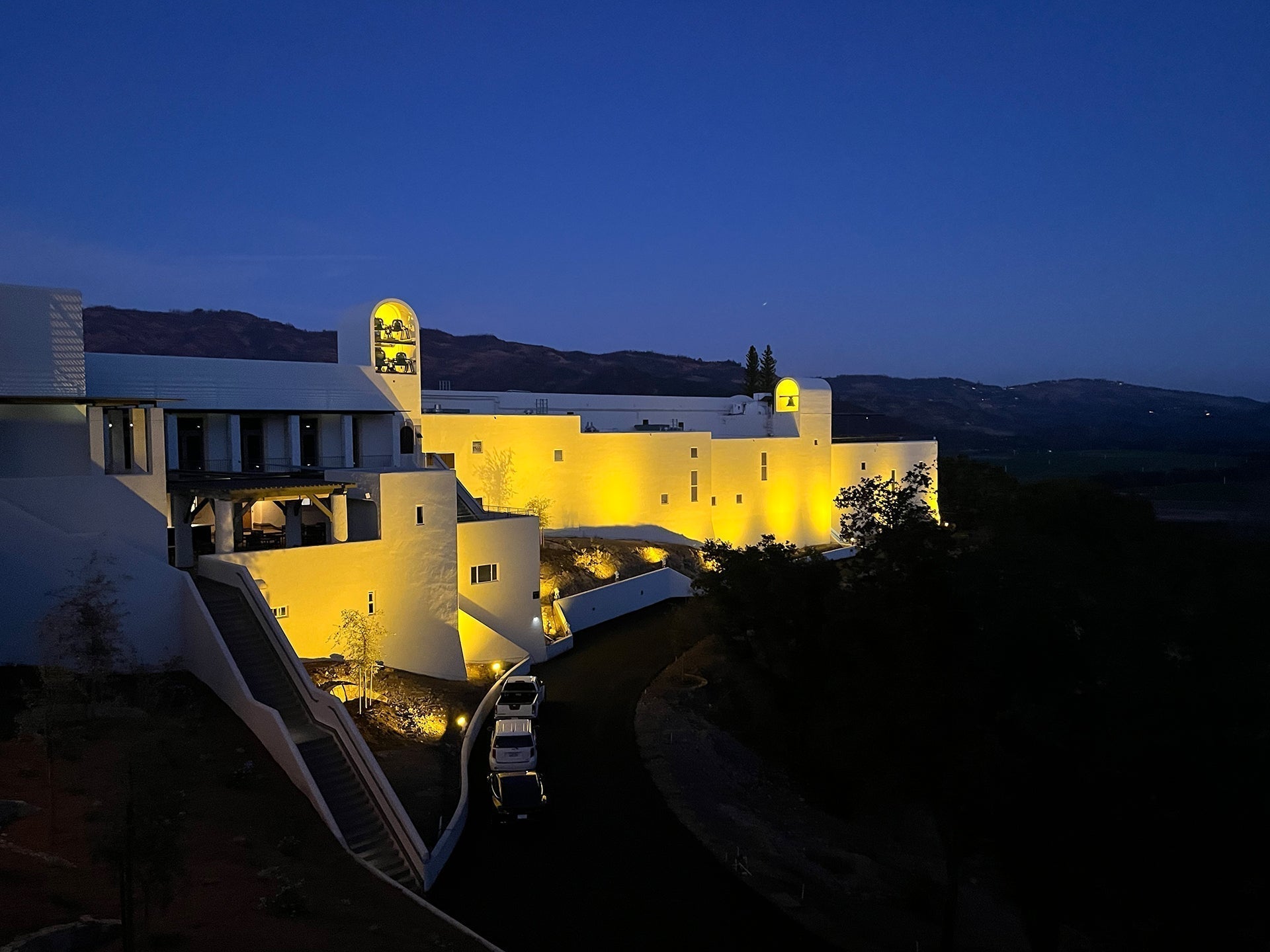

Related Projects
