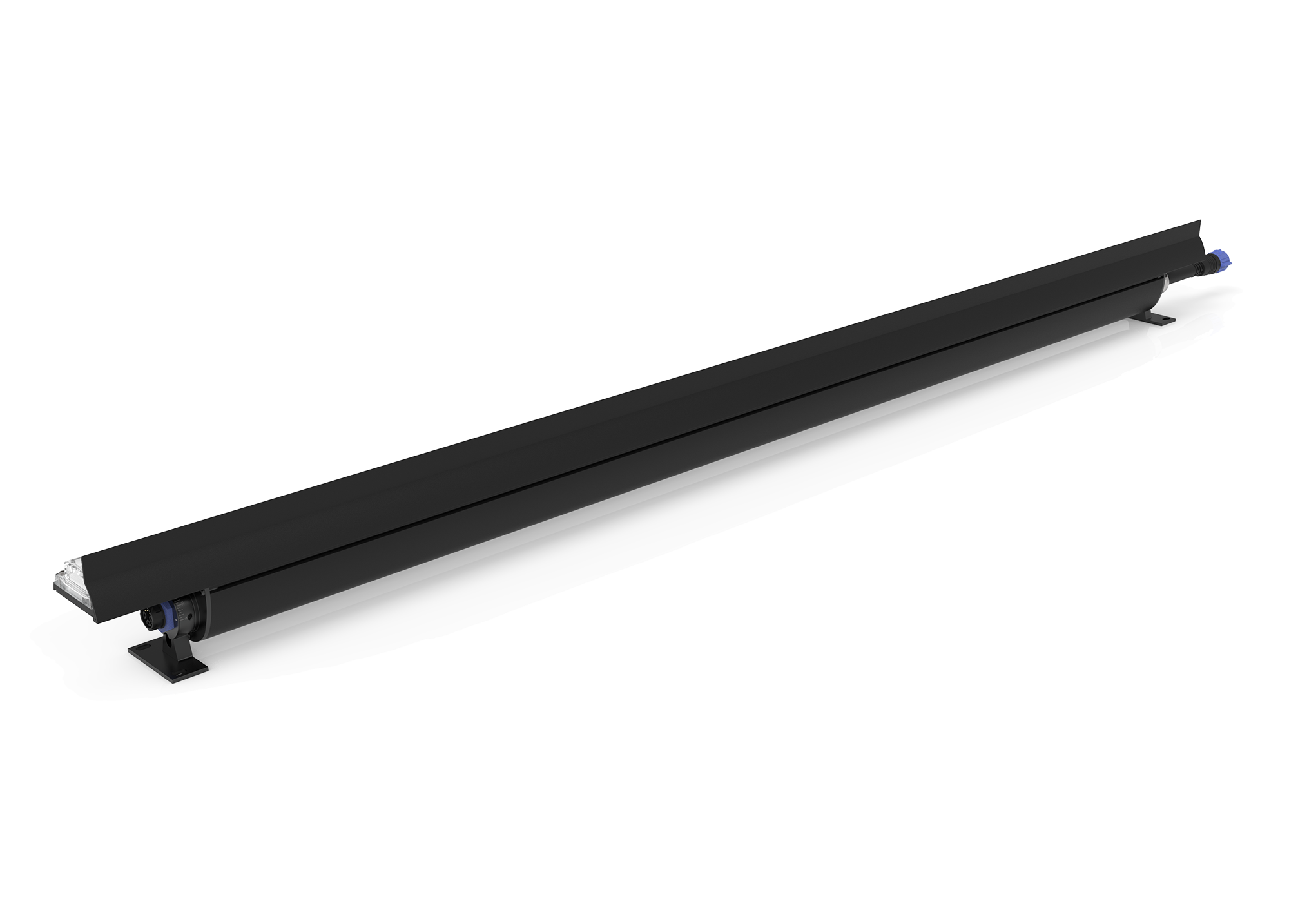

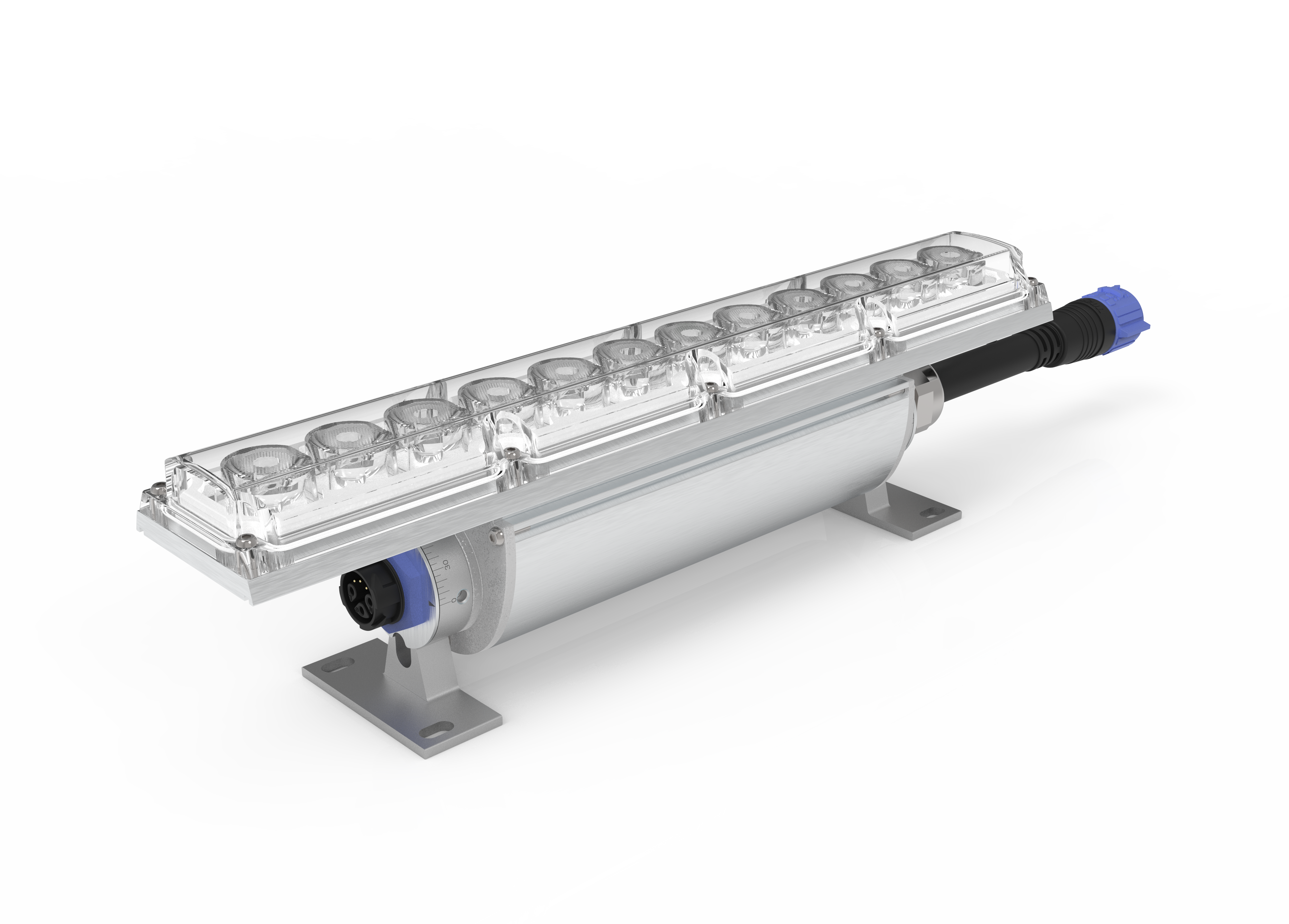

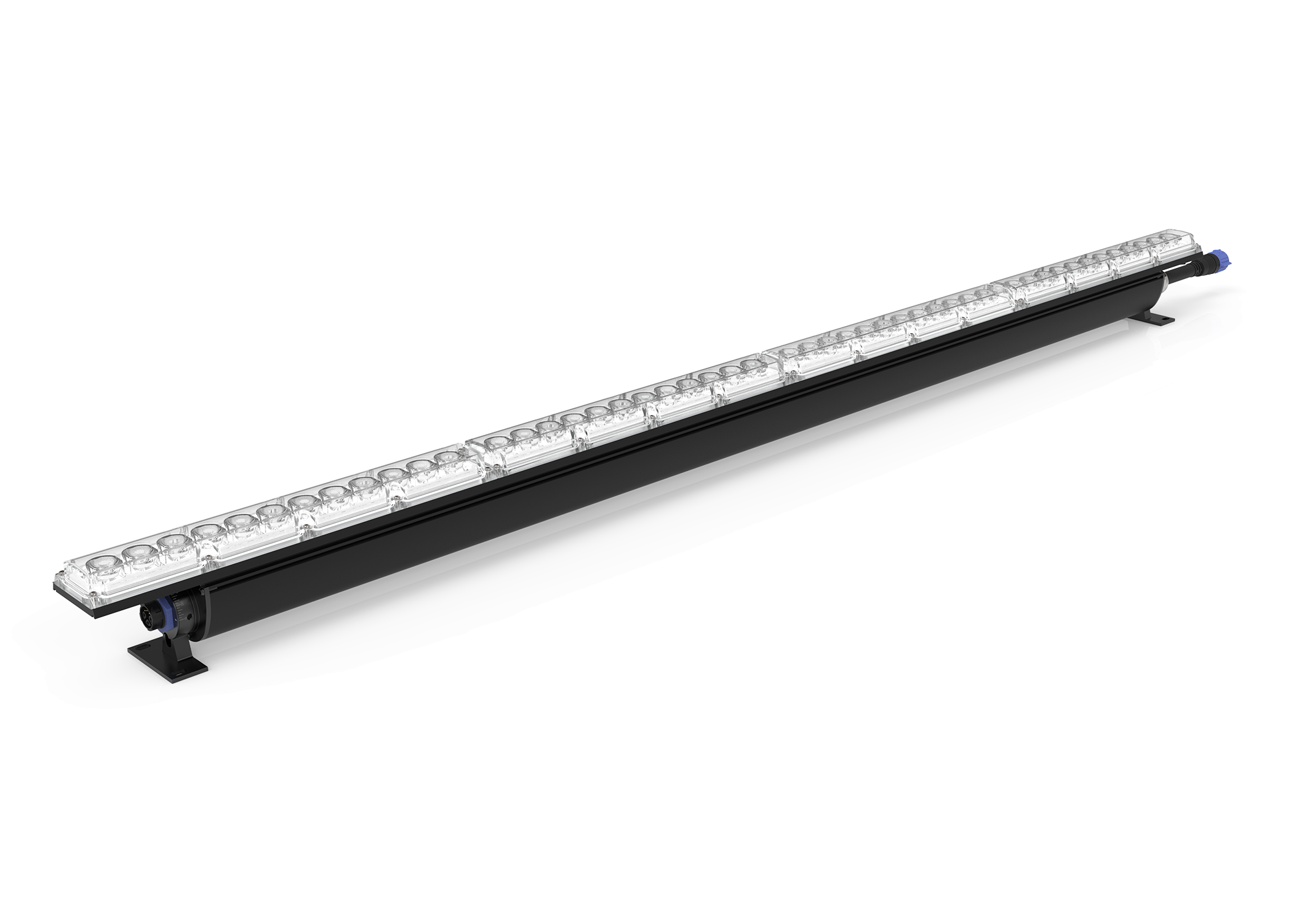

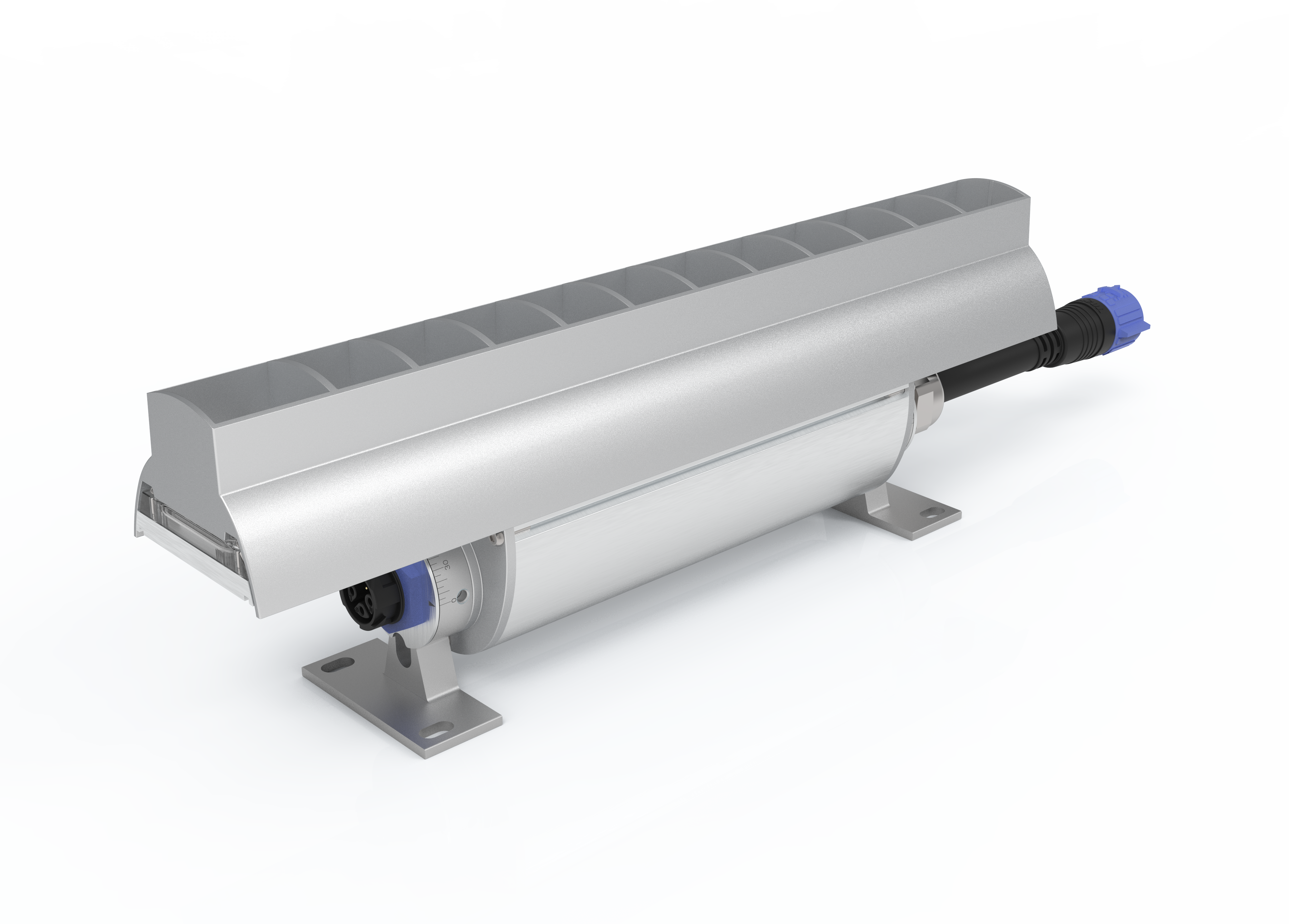

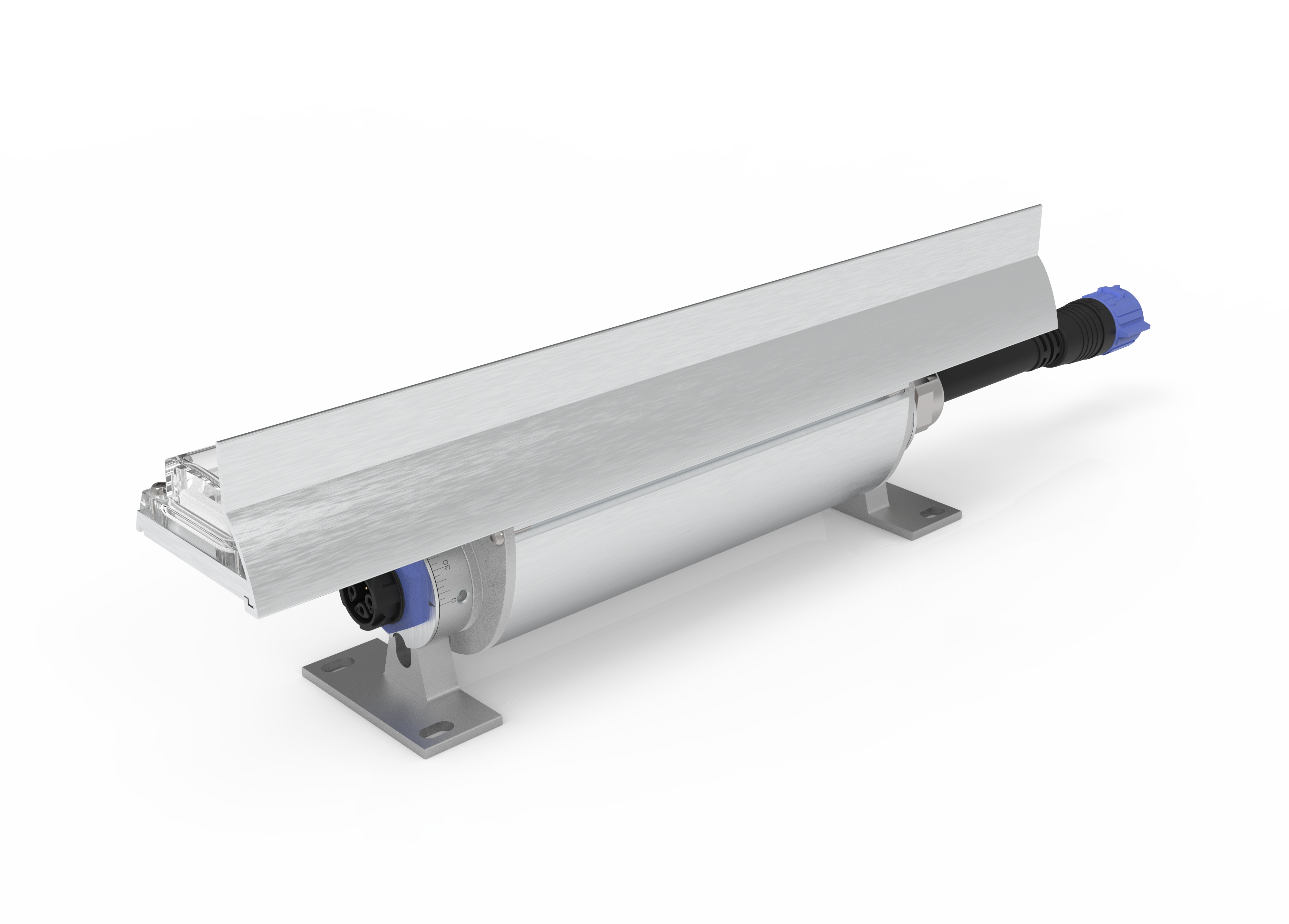

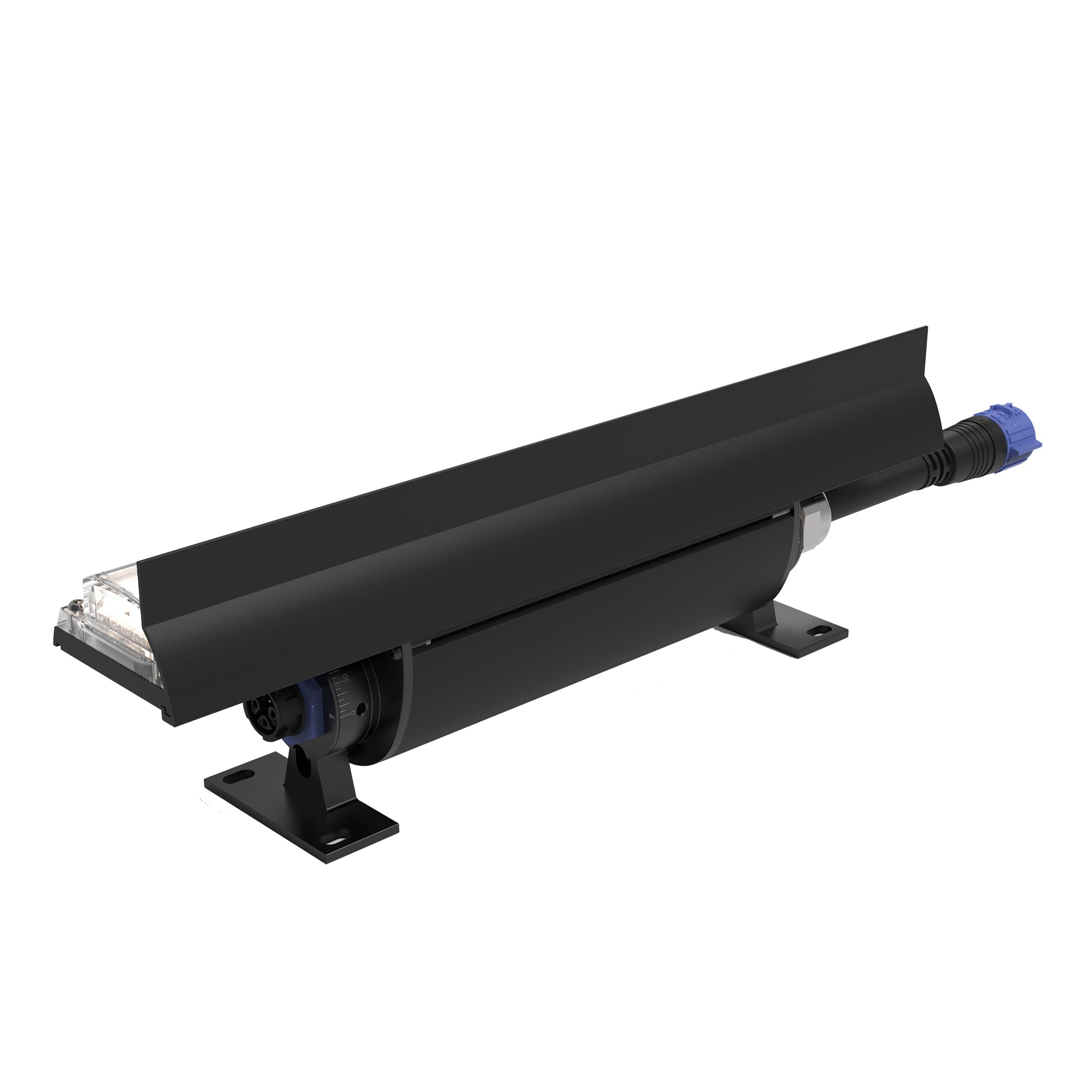

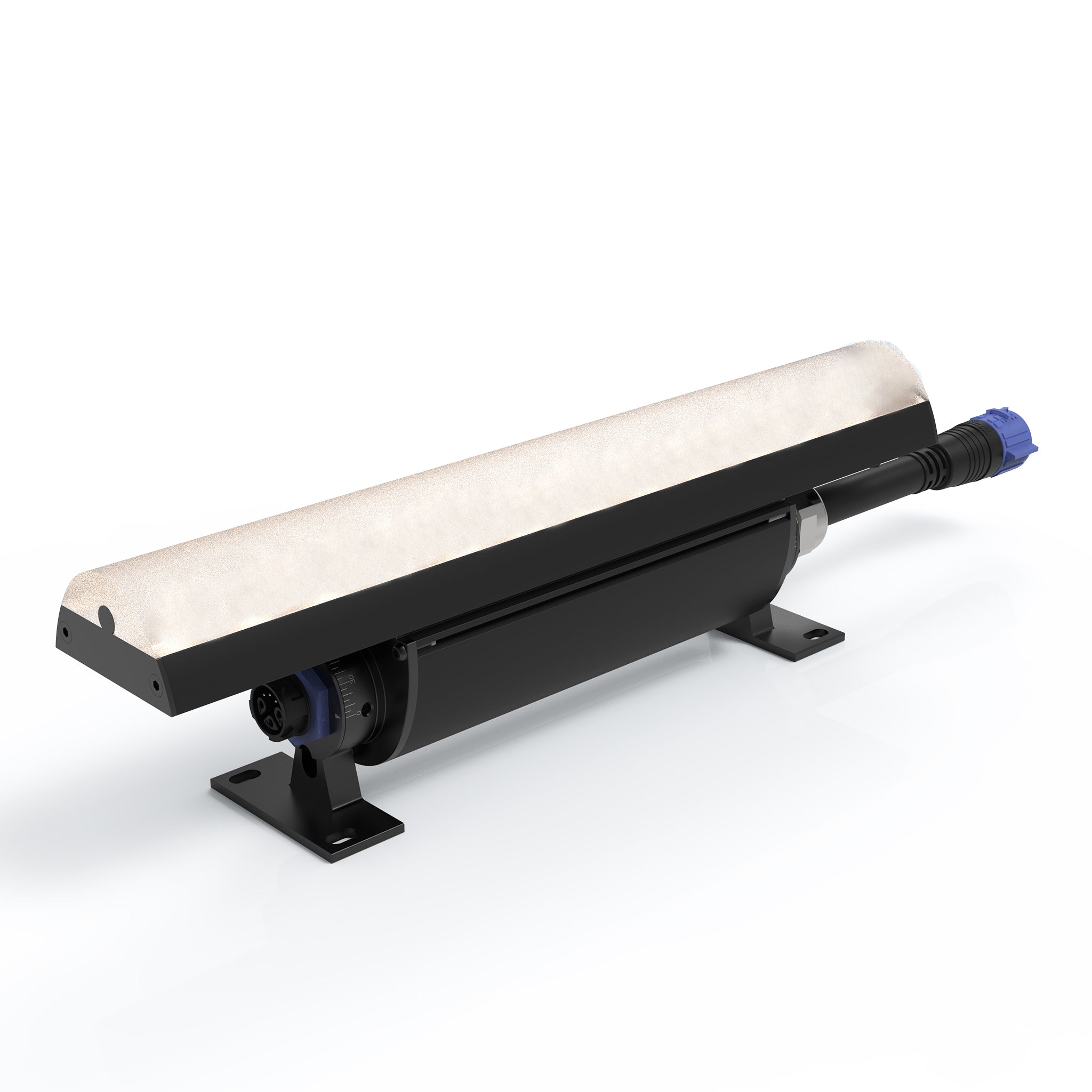

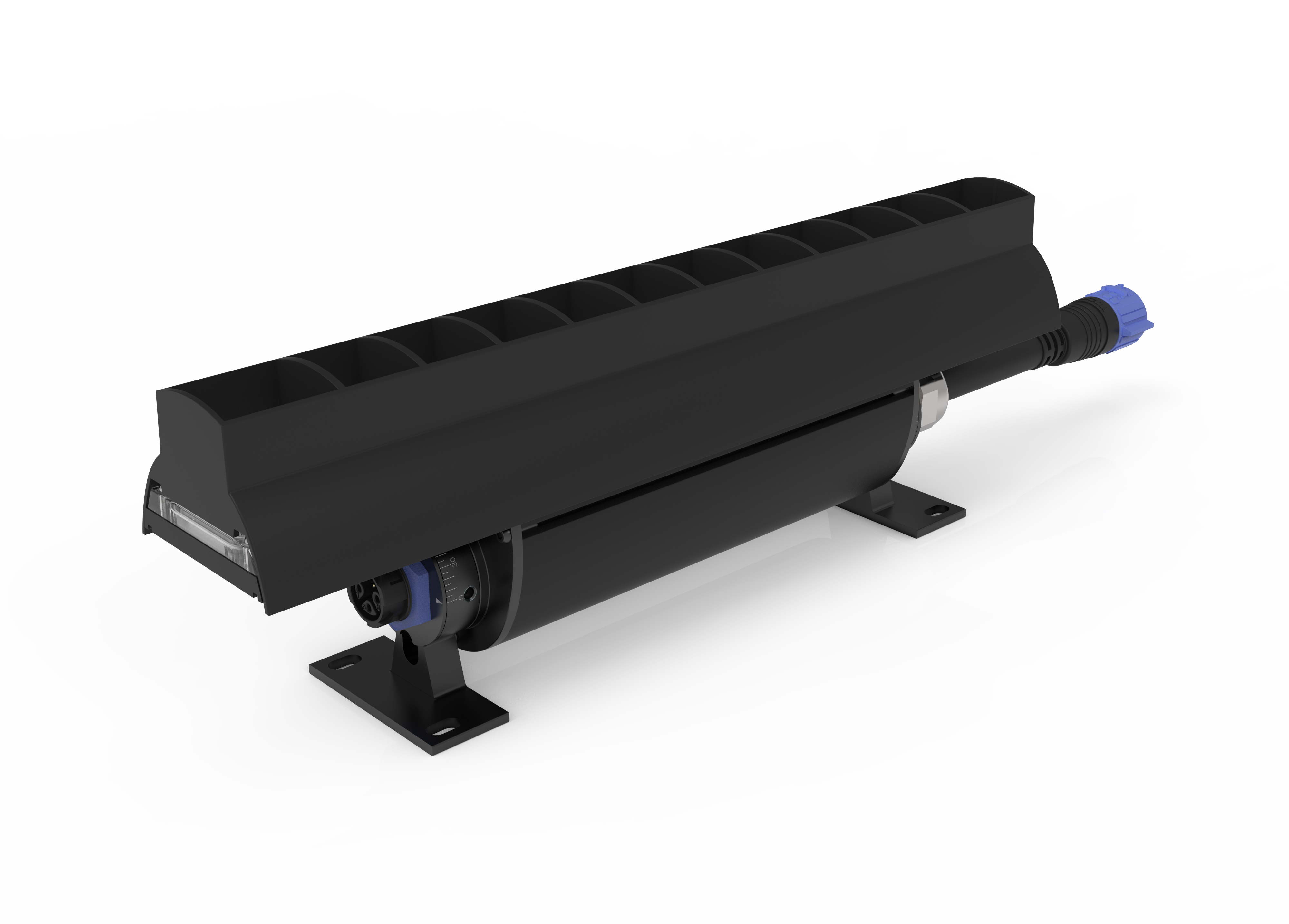

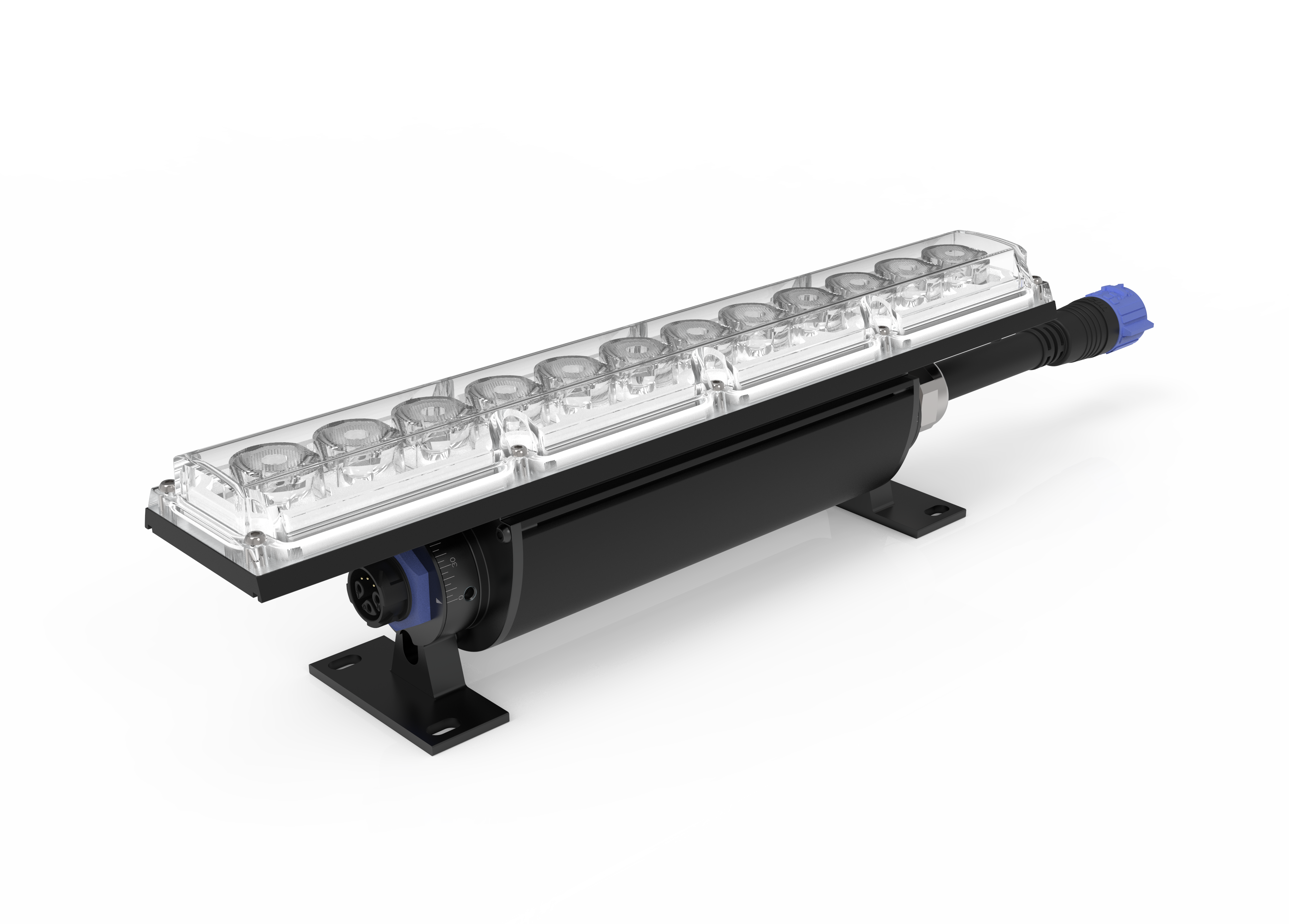

Linear XTR H1

Lumens Per Foot: 1606
Power: 22W
TM-30: 85

Linear XTR H1 fixtures are precision-engineered to deliver long runs of all-weather high-output linear illumination, up to 1,606 lumens per foot. When powered by standard mains (100 to 277VAC) they can achieve daisy-chained runs of up to 100 feet (30m). When supplied by an optional XTR Driver, the maximum length of a single daisy-chained run can be raised to 180 feet (55m).

SKU: XTH-2#1-###N

Featured Technologies

01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Downloads

Filename	Document type	File type
Linear XTR H1 Specification Sheet - August 2025	Specification Sheet	PDF
Linear XTR H1 User Guide v3-0b	User Guide	PDF
Linear XTR H1 IES June 2025	IES Files	ZIP
Linear XTR H1 2D Drawings (DWG+PDF)	Drawings	ZIP

Tech Specs

Certifications

ETL, FCC, CE, 3G, RoHS

Operating Voltage

100-277VAC, 50/60Hz direct or 380VDC via XTR Driver 4000/8000 (200-300VAC input to XTR Driver)

Power Consumption

22W per foot

Control

0-100% dimming via wired DMX (with RDM configuration). 0-10V and DALI via XTR Driver

Lumen Maintenance

L70 150,000 hours (@ 25° C)

Optics

10° x 10°, 25° x 25°, 40° x 40°, 30° x 10°, 60° x 10°, 60° x 60°, 100° x 100°, 10° x 35°, 10° x 60°, 30° x 60º, 60° x 30°, 90° x 10°, Asymmetric Left, Asymmetric Right
