TC 1 Pro

DMX Channels: 1
Input Voltage: 12-24VDC

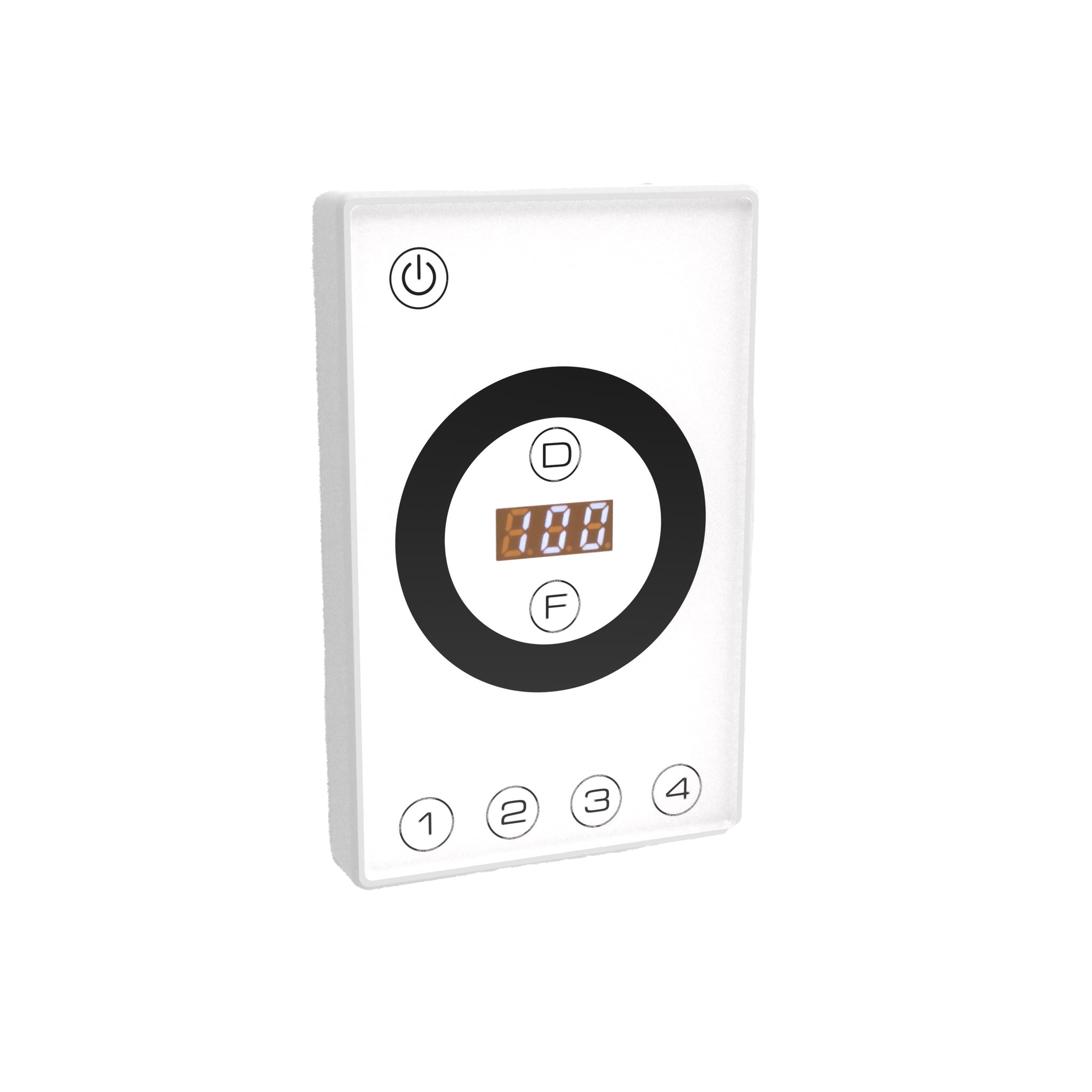

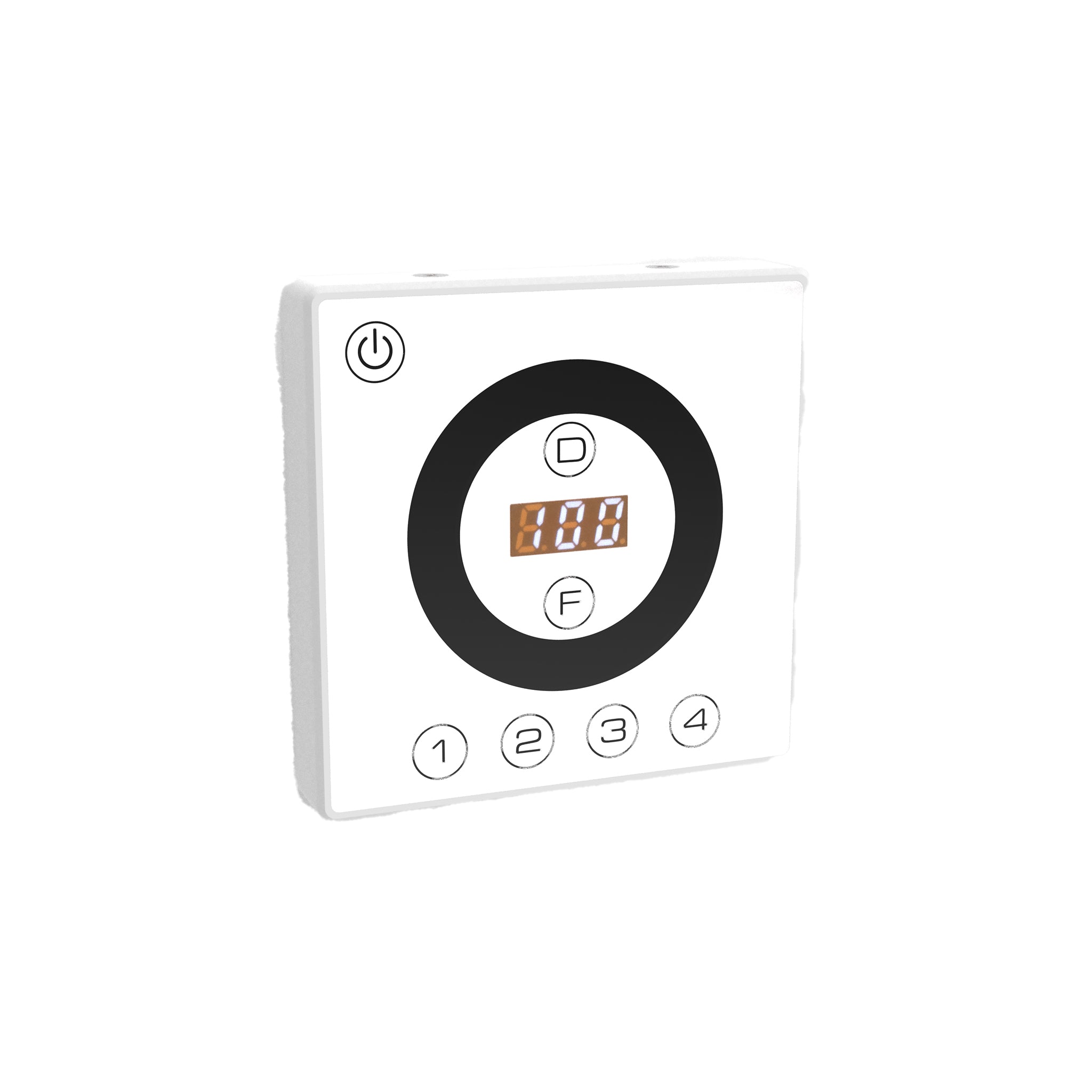

TC 1 Pro is a simple, touch-based wall-mount DMX controller, designed for single color lighting products. It features a DMX and 0-10V (source) outputs, four user-programmable dimming level presets, and an adjustable fade function.

SKU: TC1P#

Downloads

Filename	Document type	File type
TC 1 Pro Specification Sheet 2.0.1a	Specification Sheet	PDF
TC-1 Pro User Guide v1-0b	User Guide	PDF
TC 1 Pro 2D Drawings	Drawings	ZIP

Tech Specs

Certifications

CE

Operating Voltage

6-24VDC

Audio Indicator

Tone can be toggled on /oﬀ by holding buttons 1-4 simultaneously

DMX Output

1 channel

Interface

Touch senstitve wall panel

Finish

White

Connectors

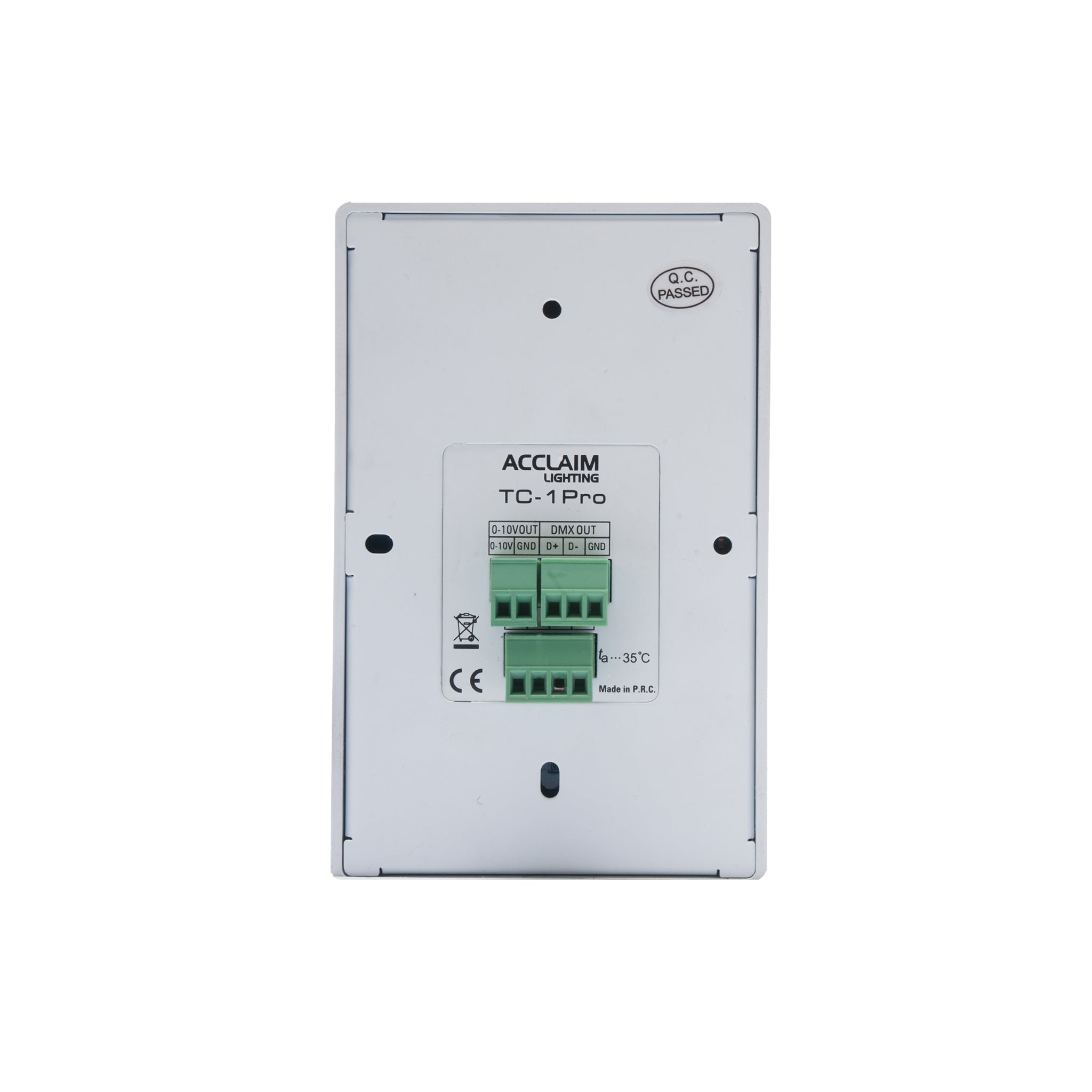

Screw terminal block, direct hardwire

Material

Aluminum housing, glass panel

Mounting

Single gang electrical box (not included)

Weight

0.3 lbs (140g)

Ambient Temperature Range

32º F to 104º F (0º C to 40º C)

Ingress Protection

IP20, dry location
