AL Fade 6 Pro

DMX Channels: 6
Input Voltage: 12-24VDC

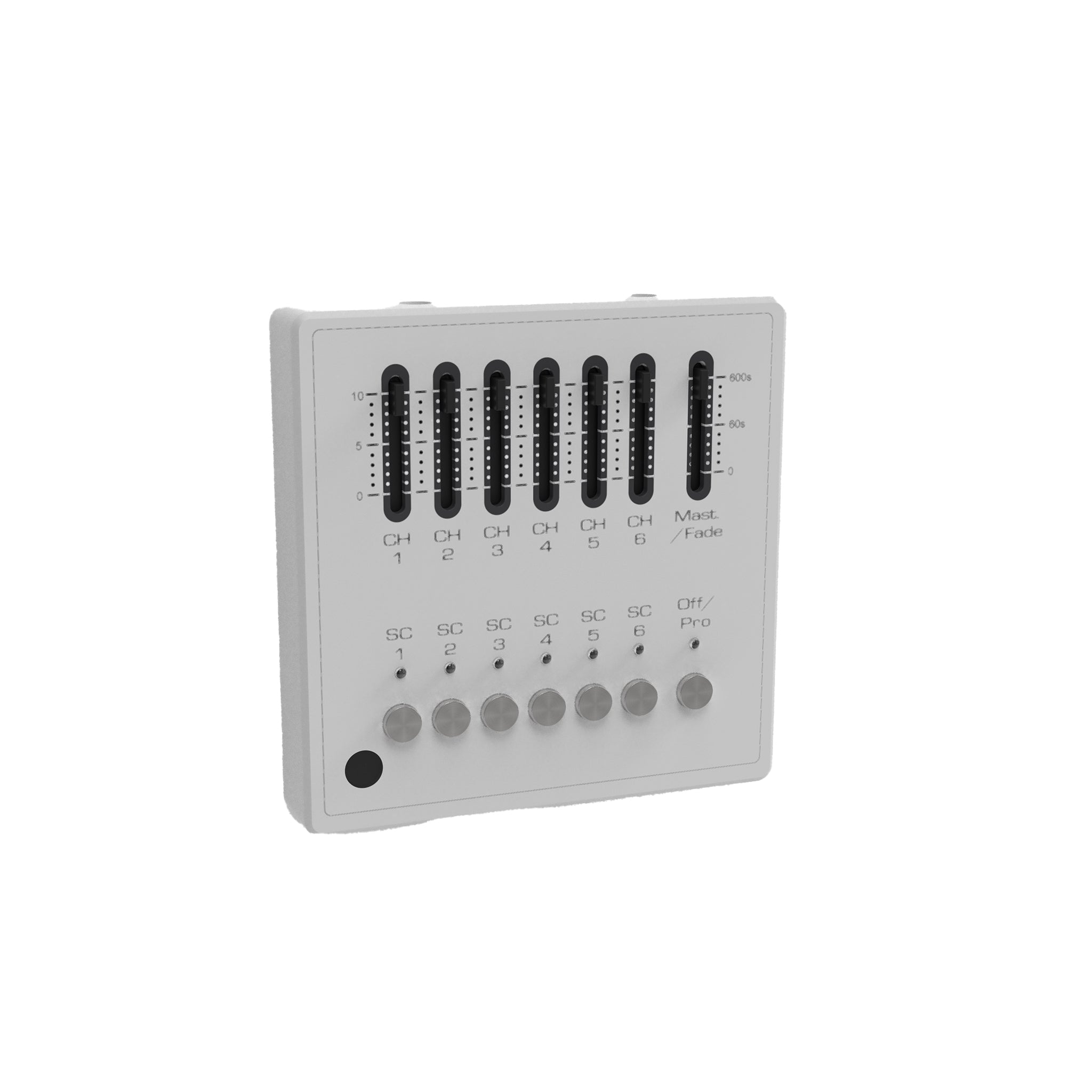

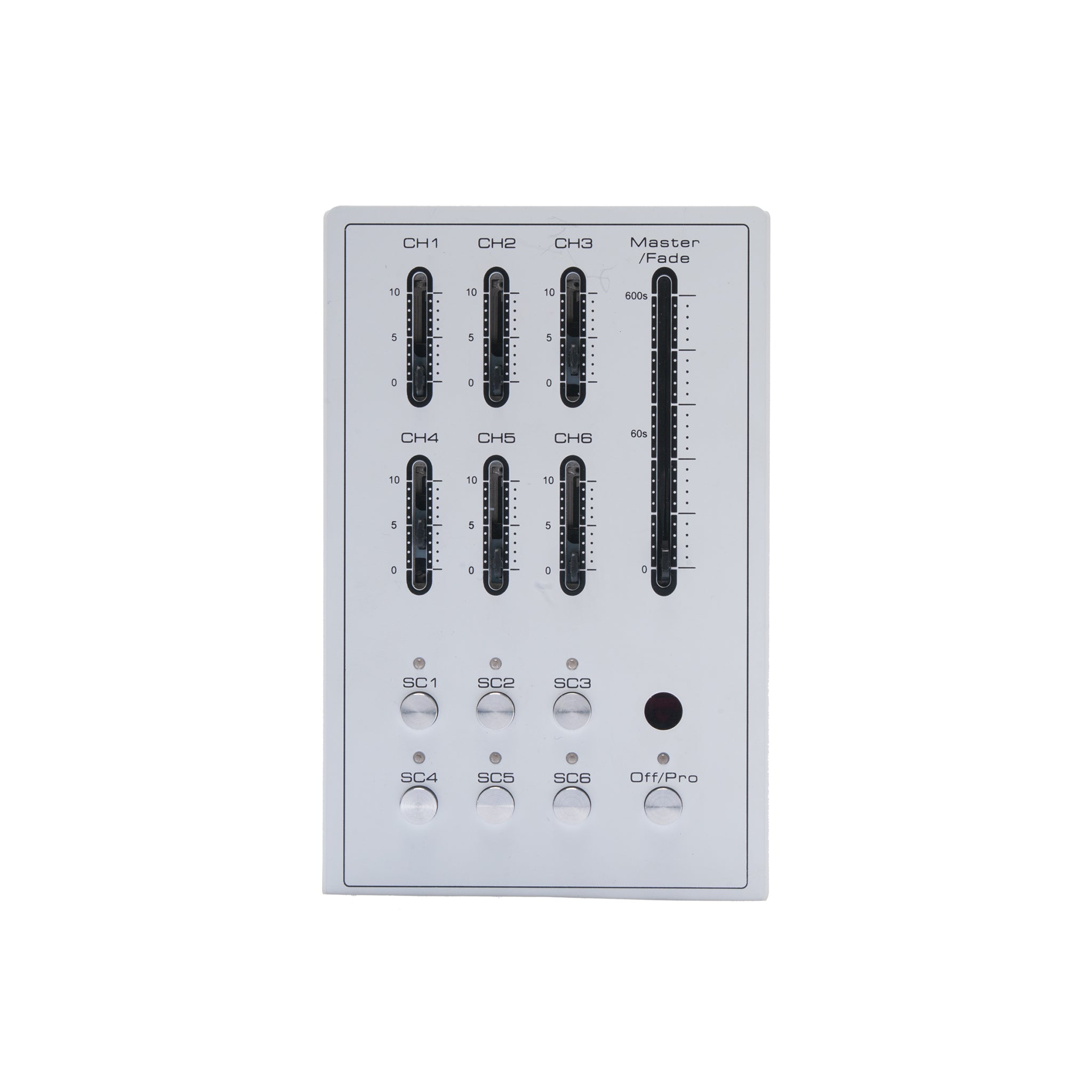

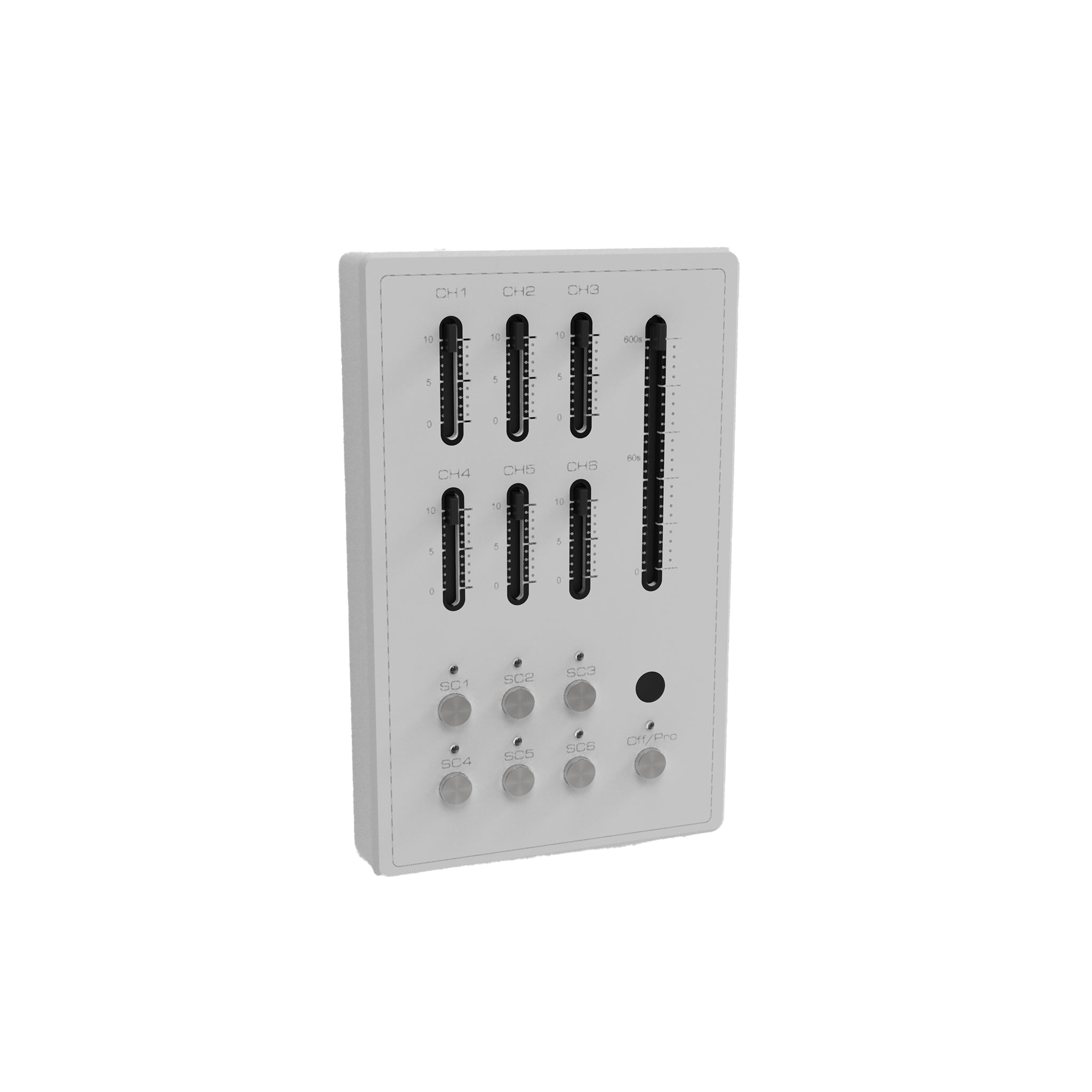

AL Fade 6 Pro is a simple, fader based wall-mount DMX controller designed for single color or multi-color LED lighting products. It features a six-channel DMX output, six user-programmable presets (static color or moving sequence), and a master dimmer function. An IR remote control is included for wireless control up to 30’.

SKU: ALF6P#

Downloads

Filename	Document type	File type
AL Fade 6 Pro 2.0.1	Specification Sheet	PDF
AL Fade 6 Pro guide v1-0a copy	User Guide	PDF
AL Fade 6 Pro CAD	Drawings	ZIP

Tech Specs

Certifications

CE

Adjustable Start Address

Available via back panel dip switches

DMX Input

6 channels, overrides dimmer levels for programming

DMX Output

6 channels

Interface

Dimmable faders and preset buttons

Finish

White

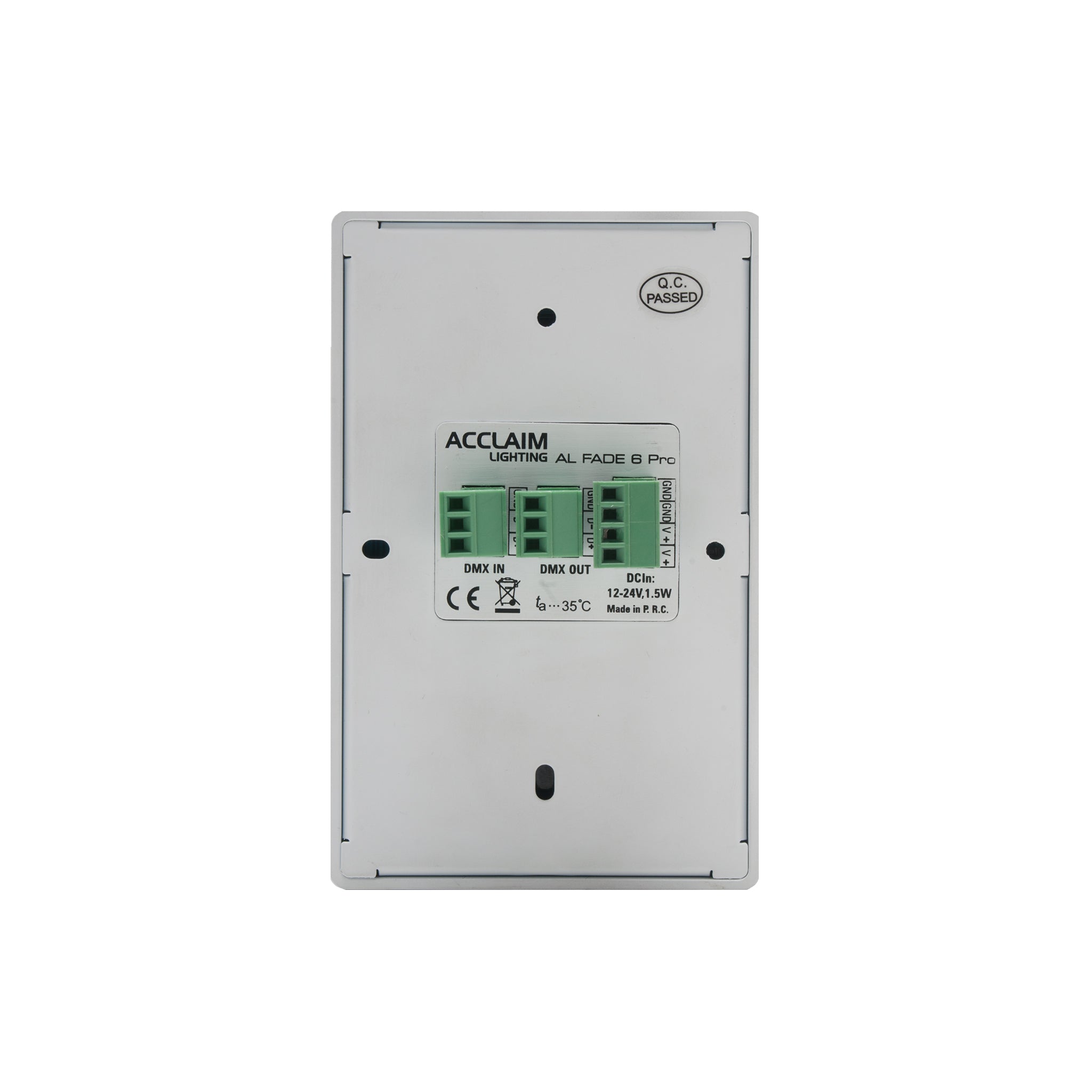

Connectors

Screw terminal block, direct hardwire

Material

Aluminum housing, glass panel

Mounting

Single gang electrical box (not included)

Weight

0.3 lbs (140g)

Ambient Temperature Range

32º F to 104º F (0º C to 40º C)

Ingress Protection

IP20, dry location
