ART 4 PRO

DMX Channels: 4
Input Voltage: 12-24VDC

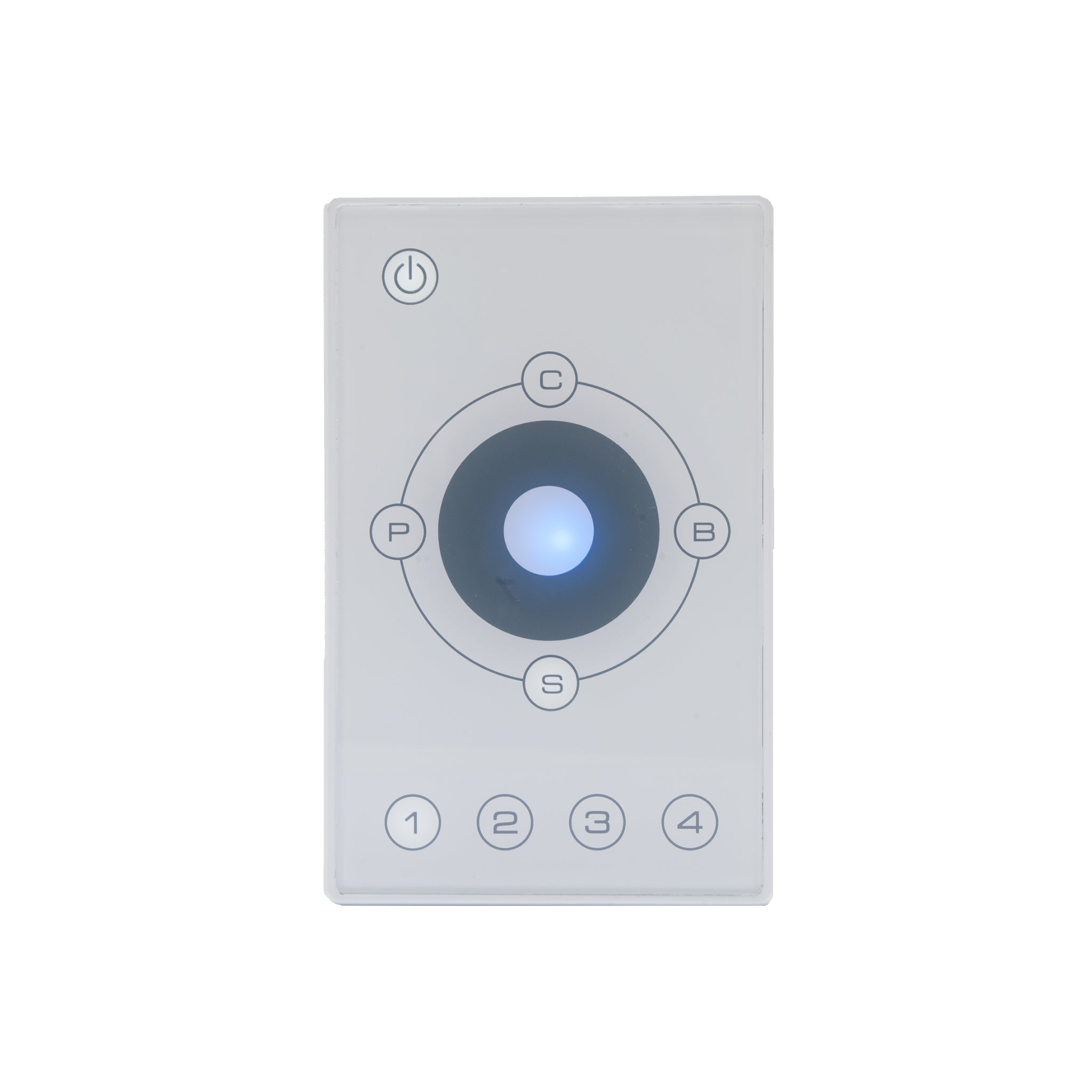

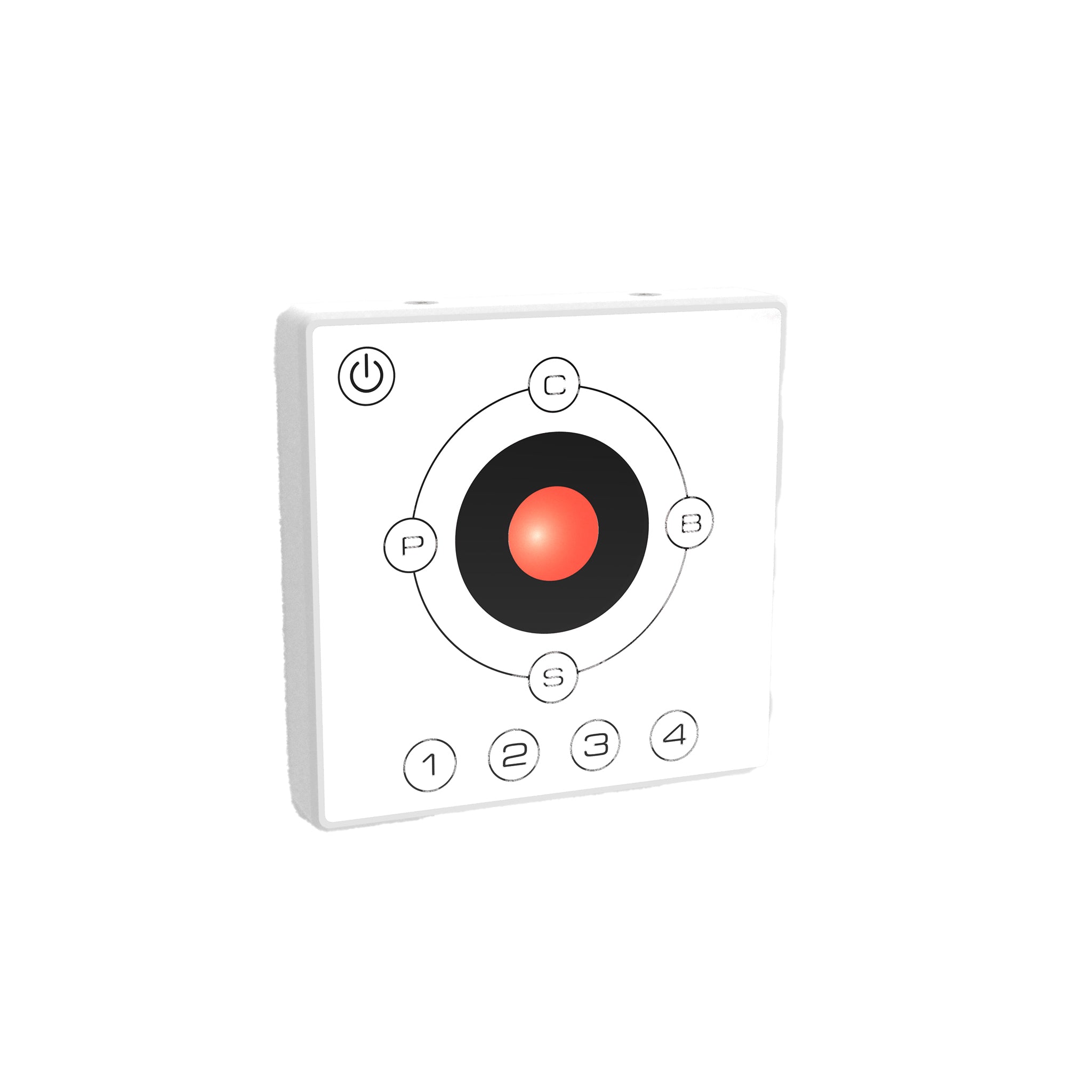

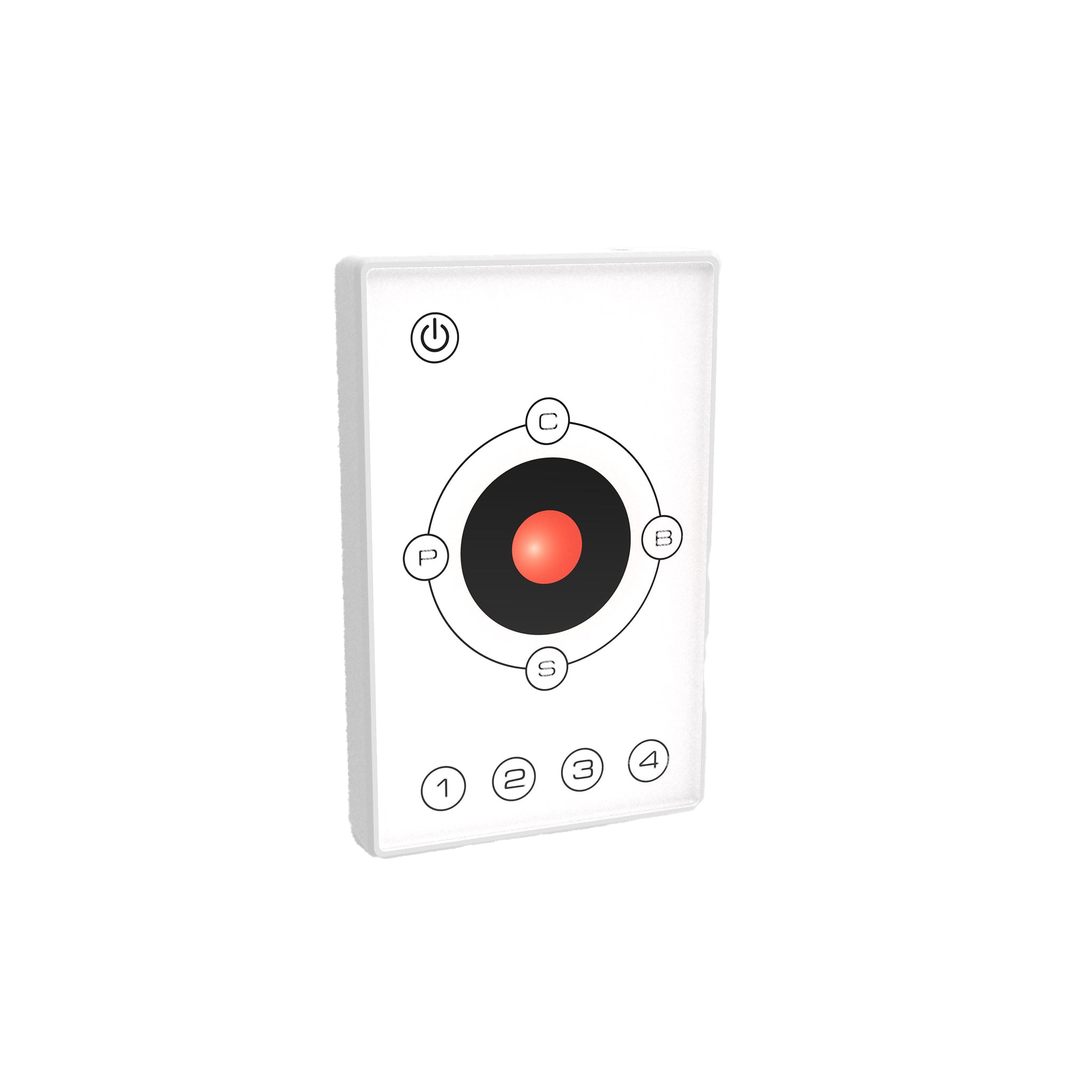

ART 4 PRO is a simple, touch-based wall-mount DMX controller, designed for RGB and RGBW lighting products. It features a PWM output which can directly drive 12-24VDC LED fixtures, four user programmable static color presets, and a manual speed and dimmer function.

SKU: ART4P#

Downloads

Filename	Document type	File type
ART 4 Pro Specification Sheet 2.0.1	Specification Sheet	PDF
ART-4 Pro guide v1-0b	User Guide	PDF
Art 4 Pro	Drawings	ZIP

Tech Specs

Certifications

CE

Audio Indicator

Tone can be toggled on /oﬀ by holding buttons 1-4 simultaneously

DMX Output

4 channels

Interface

Touch senstitve wall panel

PWM Output

4 channels, 100W maximum pass through

Finish

White

Connectors

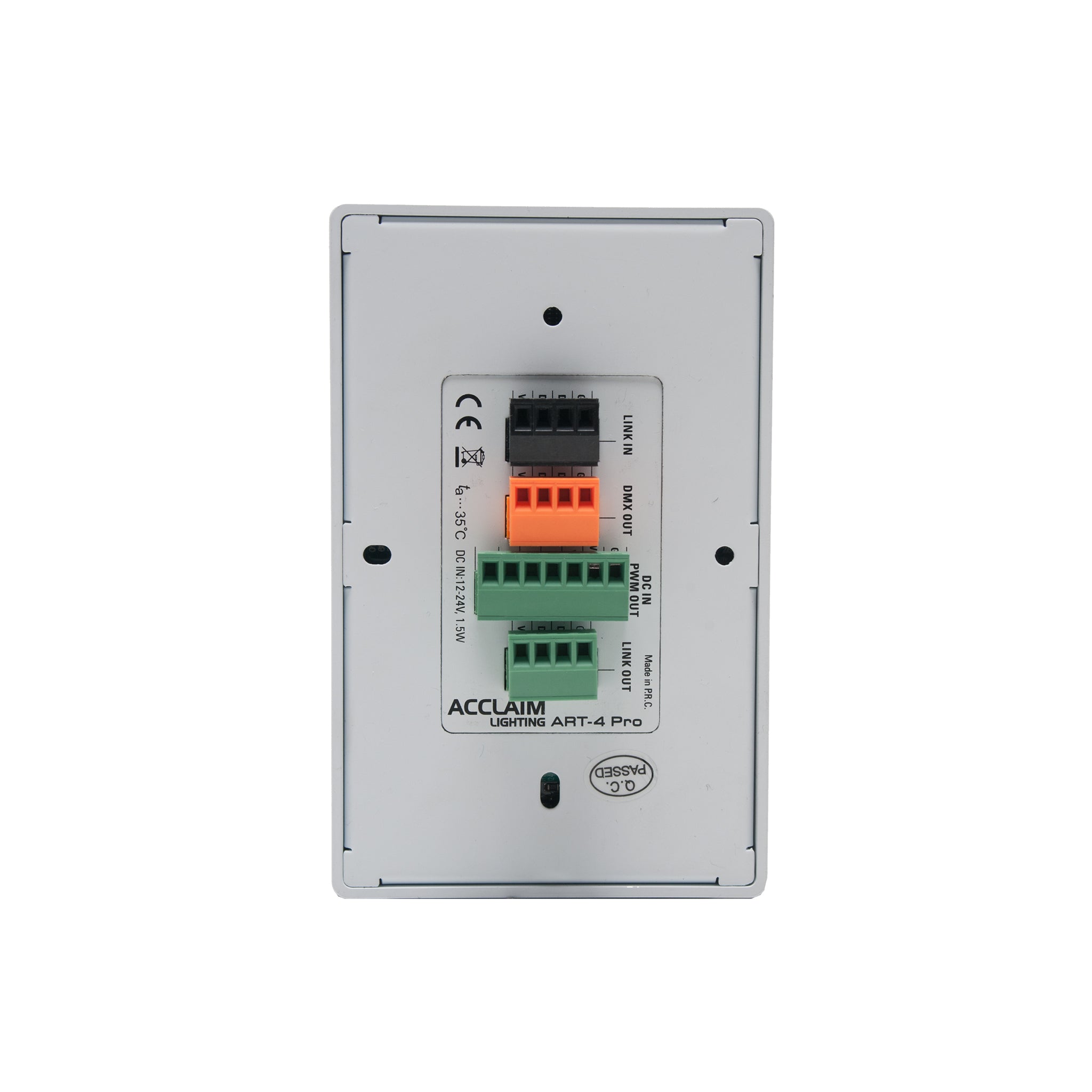

Screw terminal block, direct hardwire

Material

Aluminum housing, glass panel

Mounting

Single gang electrical box (not included)

Weight

0.3 lbs (140g)

Ambient Temperature Range

32º F to 104º F (0º C to 40º C)

Ingress Protection

IP20, dry location

IP Rating
