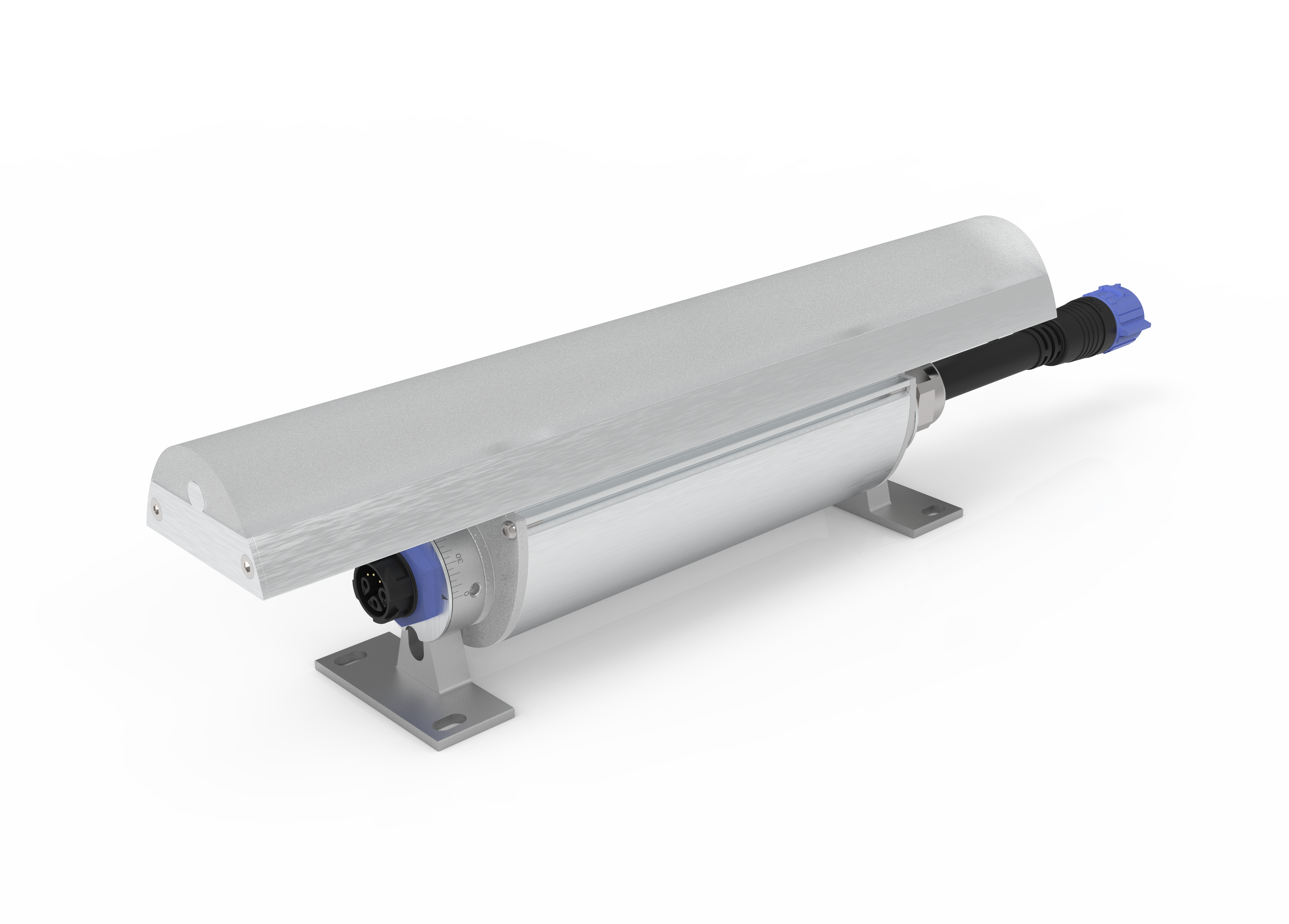

Linear XTR H1 Direct View

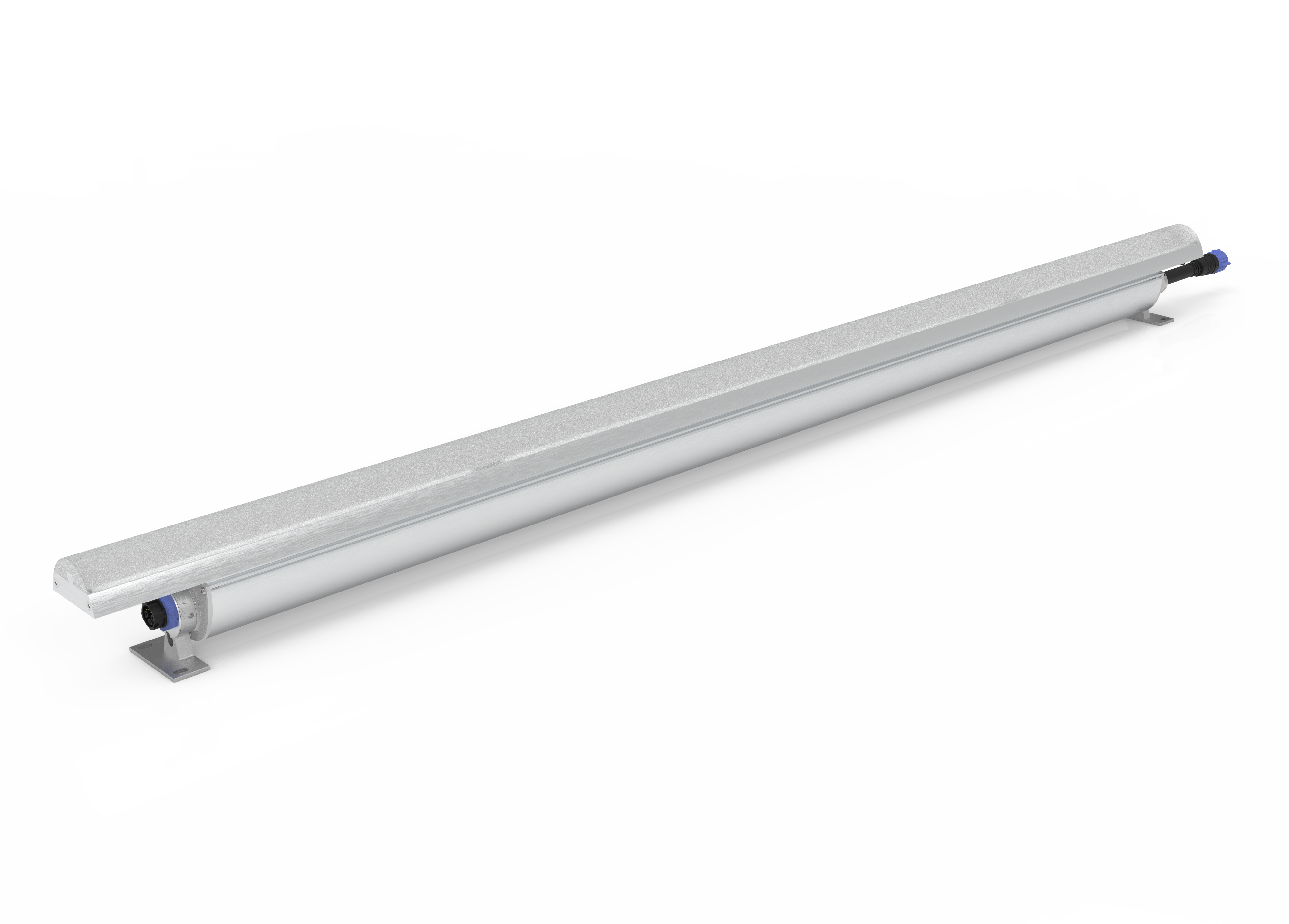

Linear XTR H1 Direct View

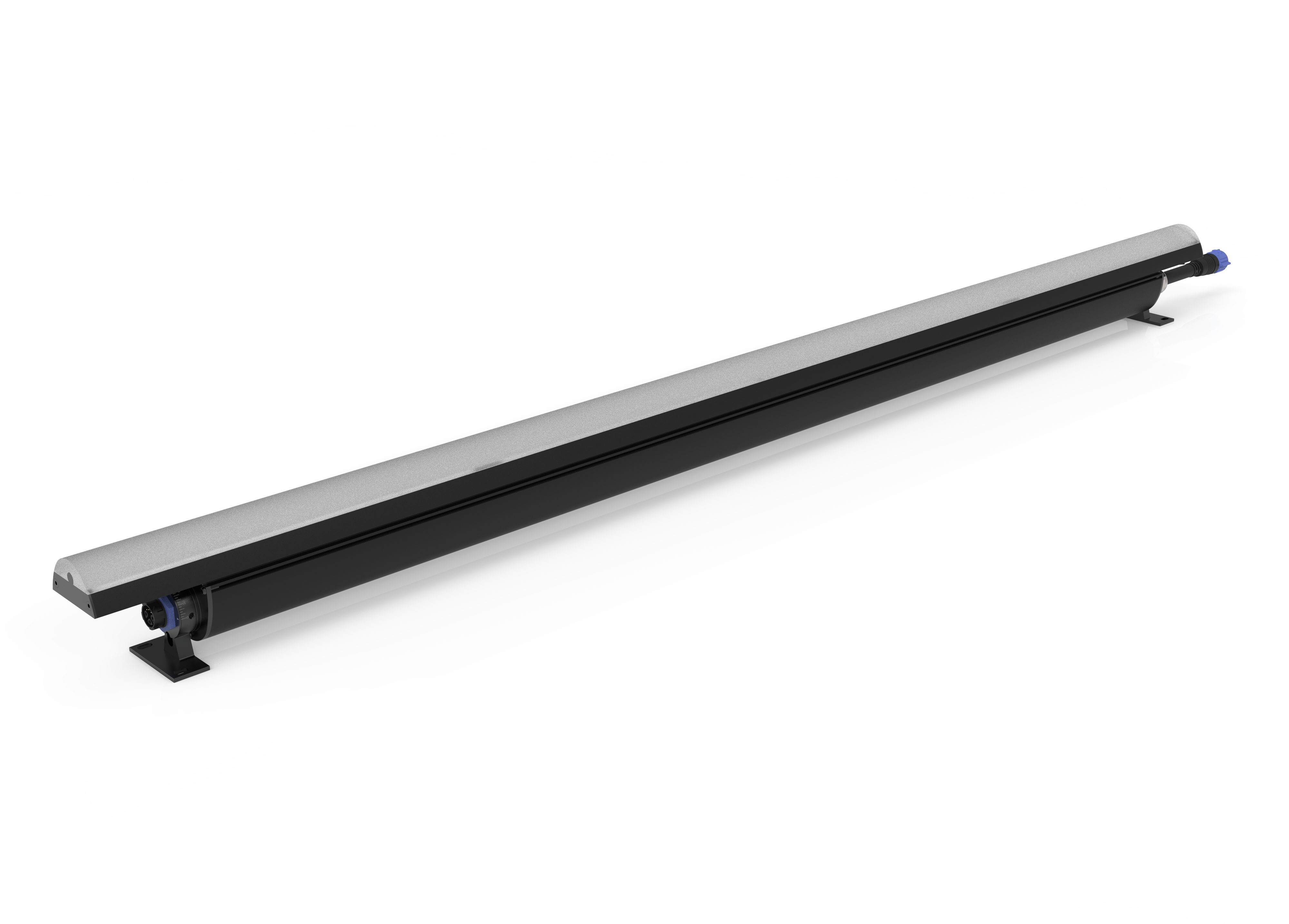

Linear XTR H1 Direct View

This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified. This product is MetaobjectDrop certified.

Specification highlights

Lumens Per Foot
1653
Power
22W
TM-30
85

Linear XTR H1 Direct View™ fixtures are designed to be visible and precision-engineered to deliver long runs of all-weather high-output linear illumination. When powered by standard mains (100 to 277VAC) they can achieve daisy-chained runs of up to 100 feet (30m). However, when supplied by an optional XTR Driver, the maximum length of a single daisy-chained run can be raised to 180 feet (55m).

Available in both 1’ and 4’ lengths, there are also numerous emitter color and power options. The custom diffused lens homogenizes the emitter output beautifully without adversely affecting brightness.

Control is achieved using the industry standard DMX-512A format, with RDM for configuration. DALI and 0-10V control inputs can also be used when optional XTR Drivers are used.

SKU: XDH-2#1-#N#N

Featured Technologies

01

XTR Link

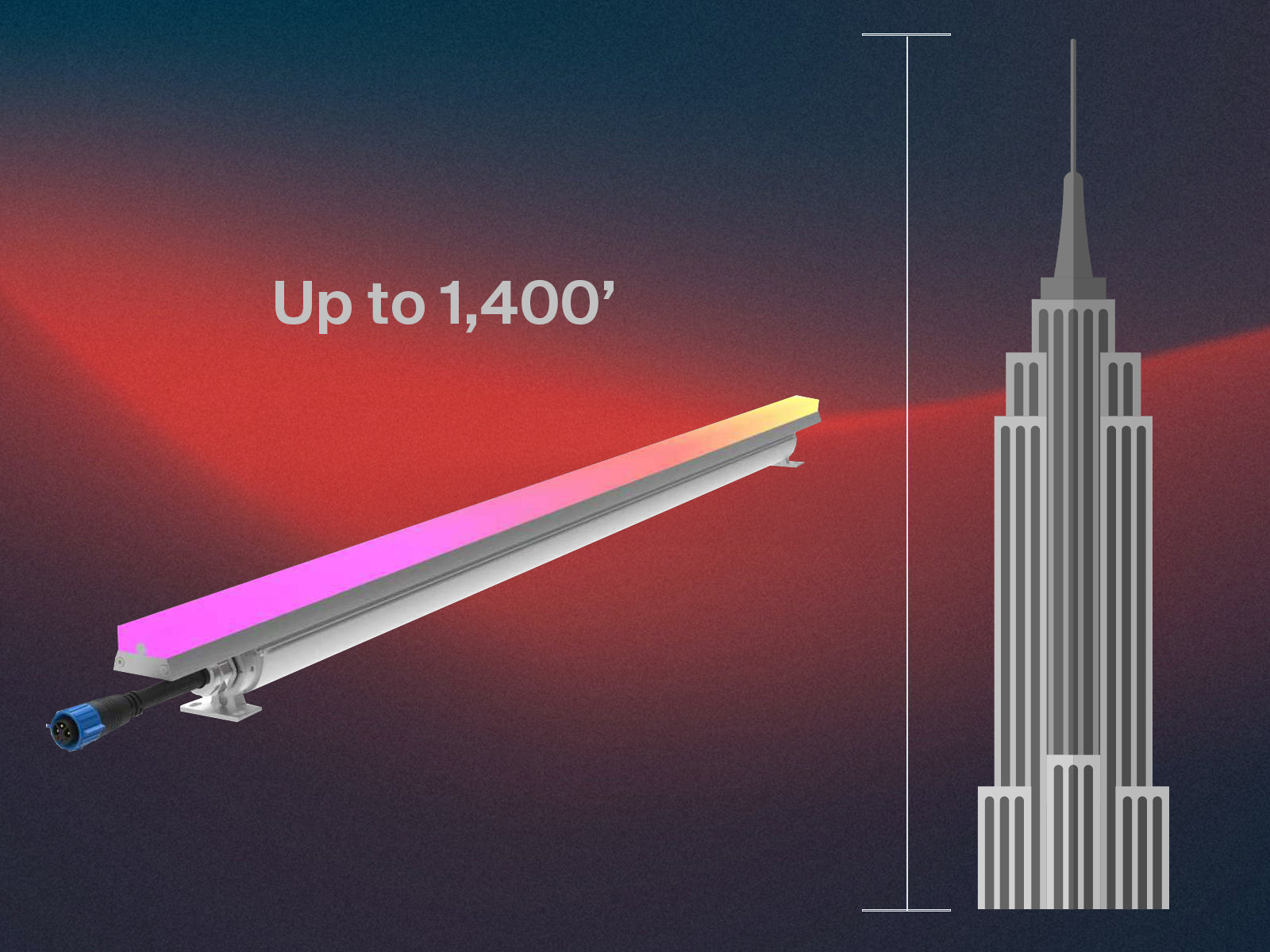

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.
01

XTR Link

Our XTR Link™ Technology redefines what's possible in linear lighting. Run up to 700 feet of interconnected fixtures from a single power point, or push to 1400 feet in group control mode. Advanced internal circuitry maintains consistent output and color across every foot, turning architectural challenges into design opportunities.

02

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Linear XTR H1 Direct View Linear XTR H1 Direct View
Configuration code
Configuration code
Emitters:

Downloads

Filename Document type File type
Linear XTR H1 DV User Guide v3-0a User Guide PDF
Linear XTR H1 DV Specification Sheet - August 2025 Specification Sheet PDF
Linear XTR H1 DV IES Photometric Data ZIP
Linear XTR H1 DV 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, FCC, CE, 3G, RoHS
Operating Voltage
100-277VAC, 50/60Hz direct or 380VDC via XTR Driver 4000/8000 (200-300VAC input to XTR Driver)
Power Consumption
22W per foot
Control
0-100% dimming via wired DMX (with RDM configuration). 0-10V and DALI via XTR Driver
Lumen Maintenance
L70 150,000 hours (@ 25° C)
Optics
140°
Output
Up to 1,653 l/ft
Connection
Composite IP68-rated input and output connectors. All cables are NEC compliant
Emitters
2700K, 3000K, 3500K, 4000K, DW (2400K-5500K), RGBW (W=3000K, 4000K or 6000K) or RGBA
Finish
Finished aluminum, black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)
Length
1' (305mm) or 4' (1220mm)
Material
Aluminum body with frosted PMMA top lens
Mounting
Two built-in ratcheted (tool-free) swivel mount brackets
Weight
1': 3.06 lbs (1.39 kg) 4': 9.7 lbs (4.39 kg)
Ambient Temperature Range
-40° F to 131° F (-40° C to 55° C)
Impact Protection
IK10, protection against 20 joule impact (40cm distance)
Ingress Protection
IP66, wet location
Vibration Protection
ANSI C136.31, 3G-rated for high vibration and bridge applications
Maximum Fixtures In Series
Up to 180' (55m) via XTR Driver 4000 /8000
