Flex Graze HO SC

Lumens Per Foot: 737
Power: 8W
TM-30: 81

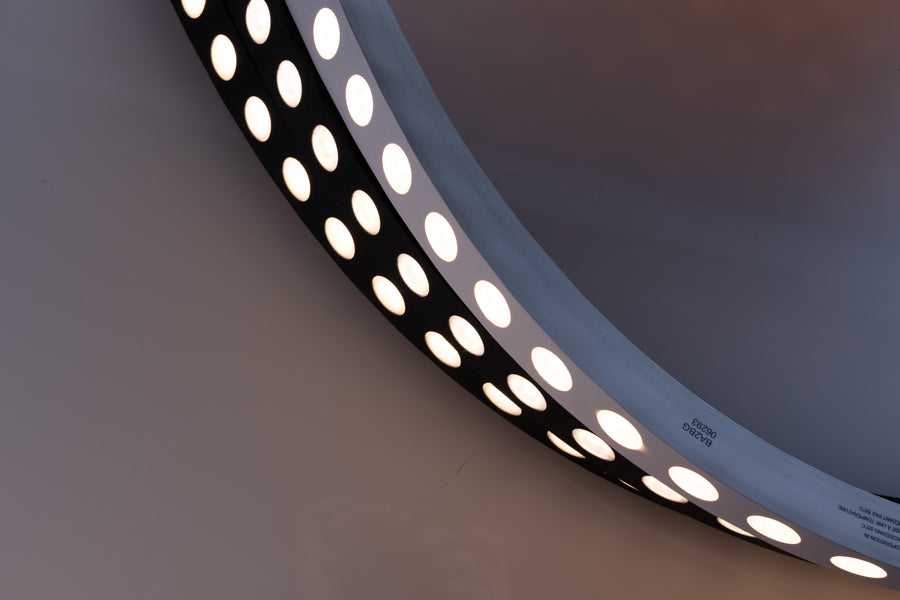

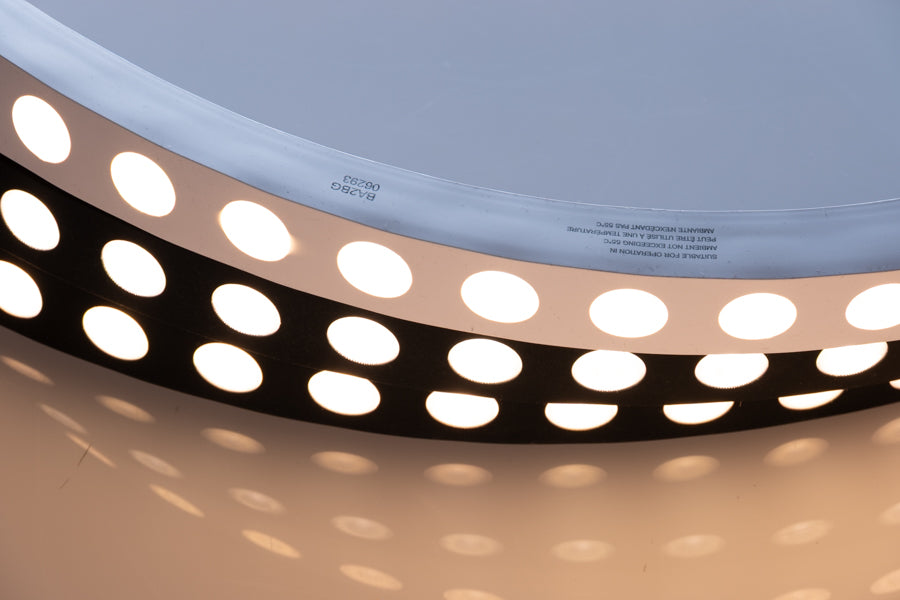

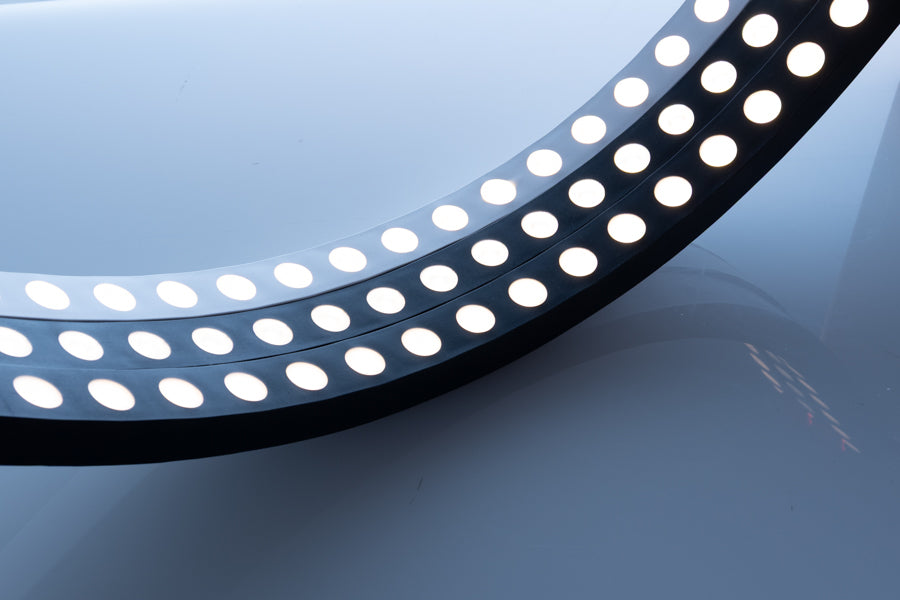

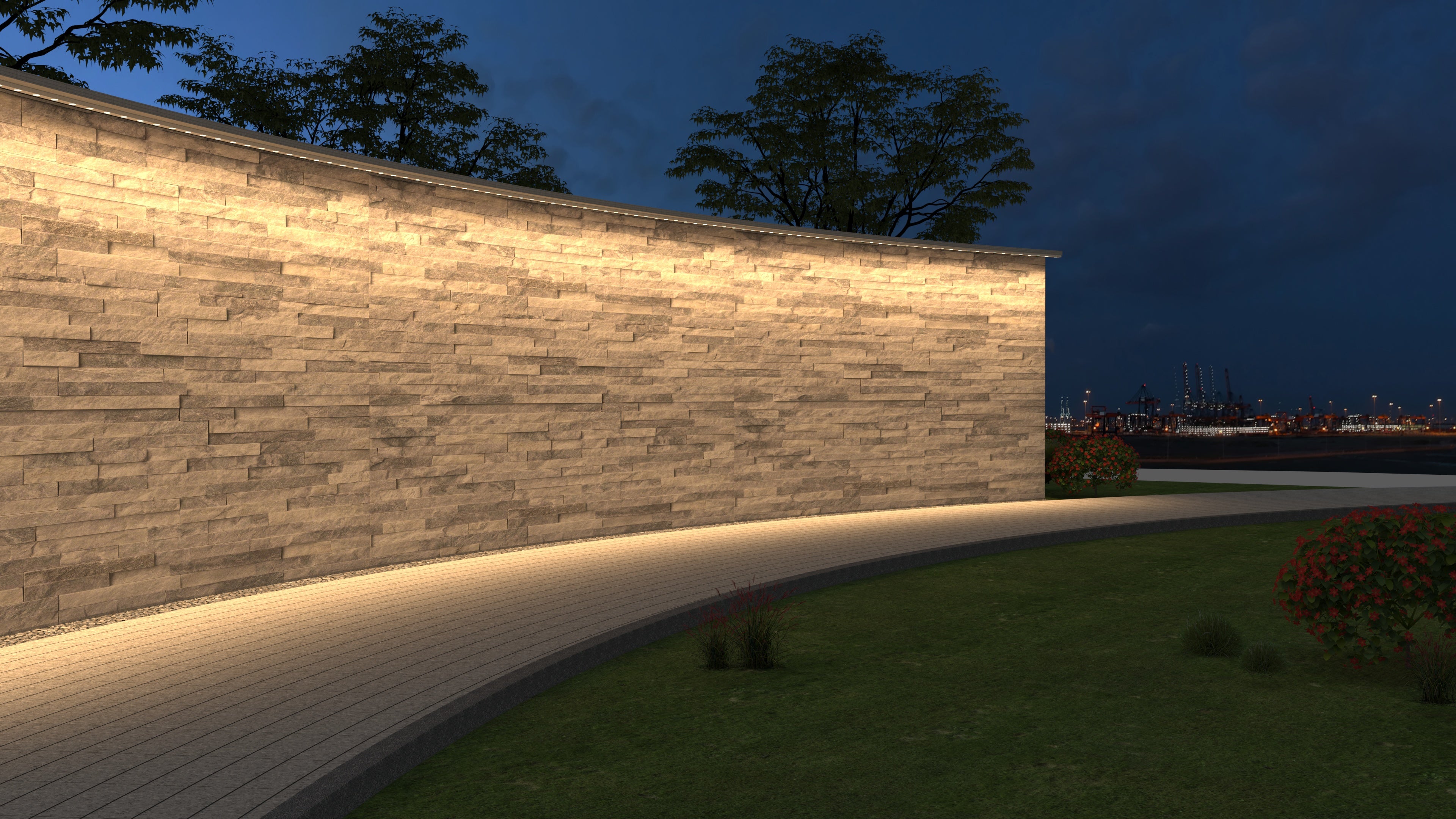

Flex Graze HO SC is a uniquely dual-bend flexible linear LED fixture designed for low-profile linear wall washing and grazing. It is

suitable for indoor or outdoor use and can bend in two directions, ensuring placement options. Acclaim’s powerful driver solutions work in combination with the Flex Graze to give you the control options you need.

SKU: FGA-2#1-X##N-1

Featured Technologies

01

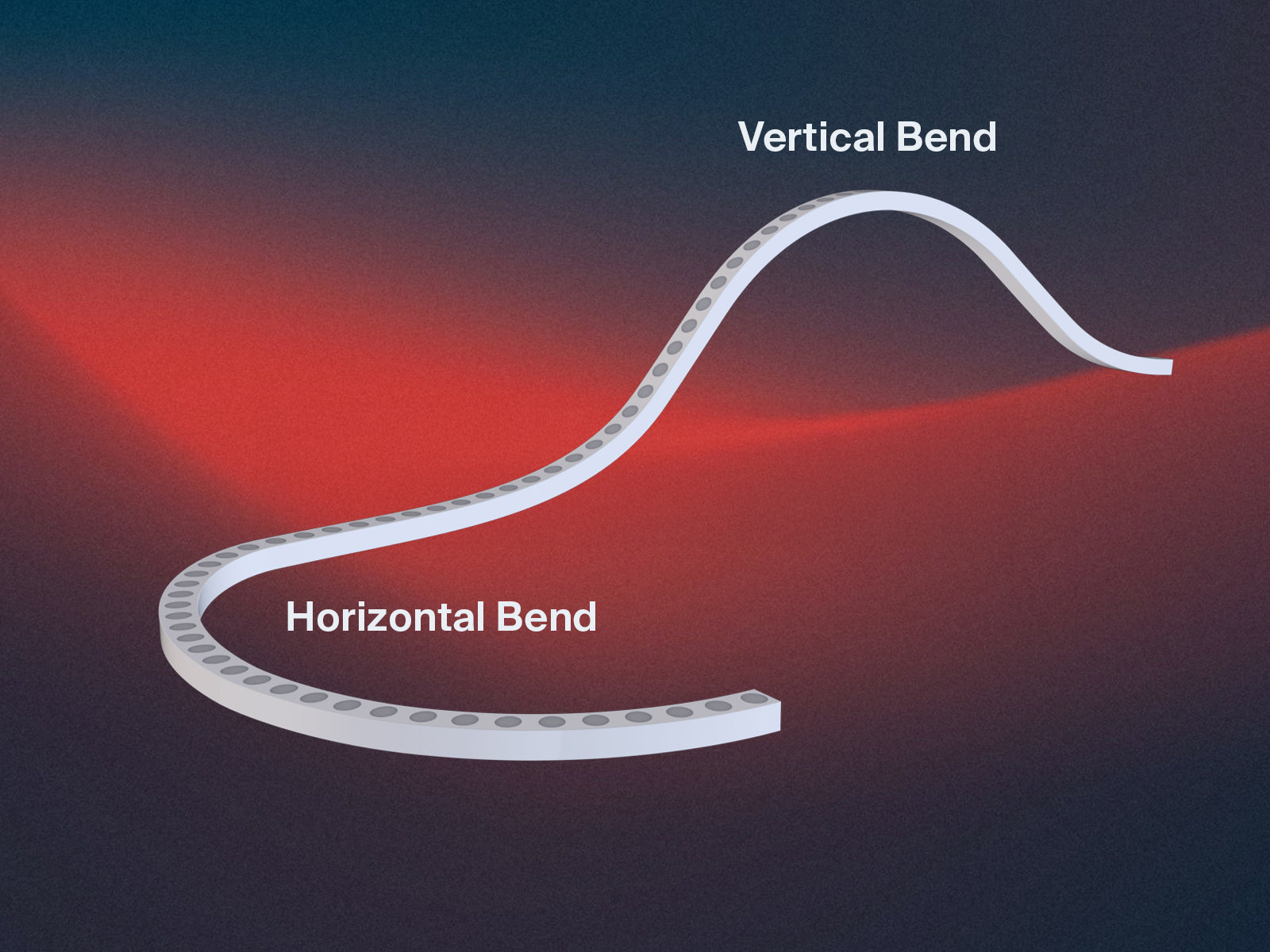

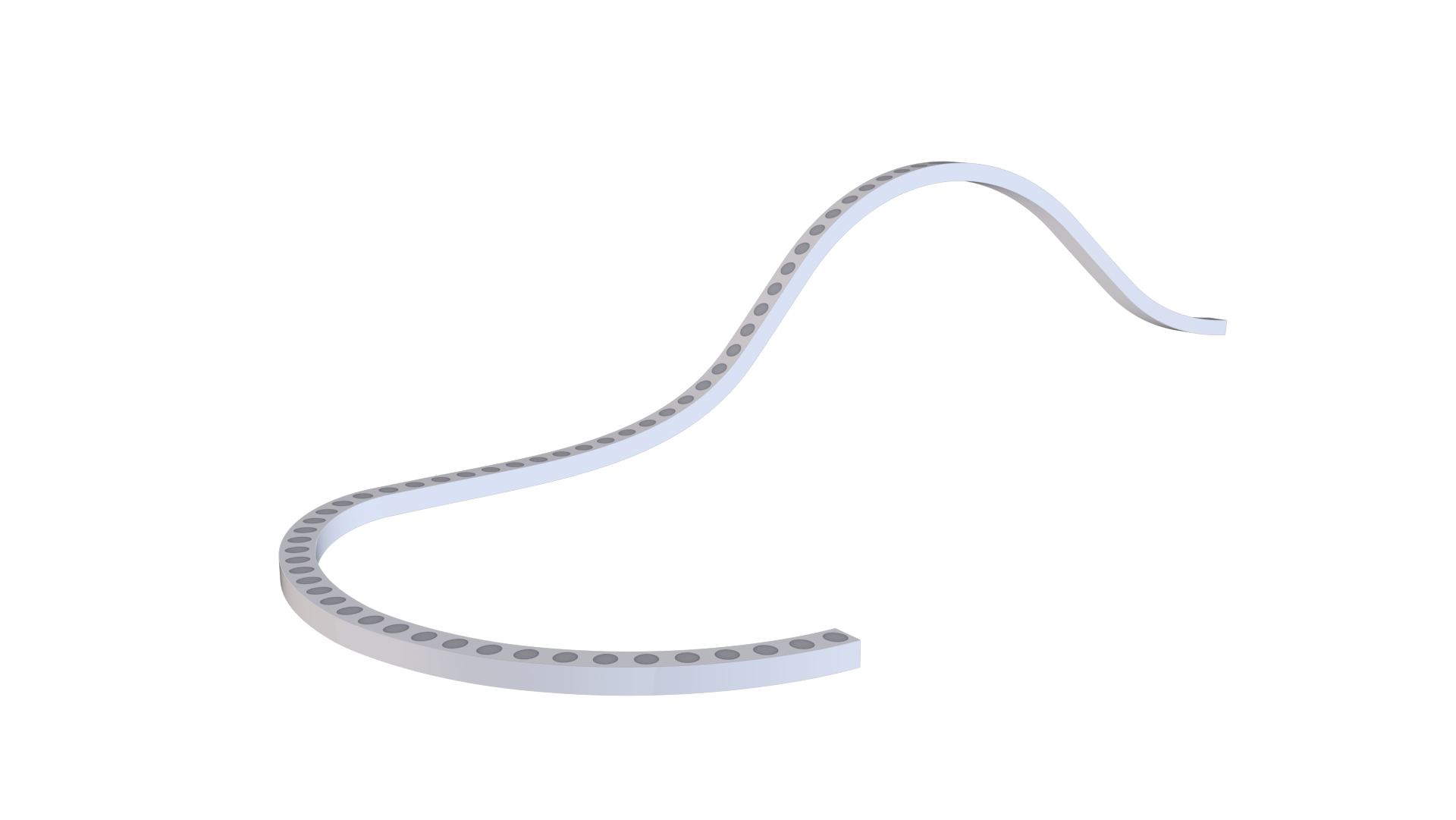

Dual Bend

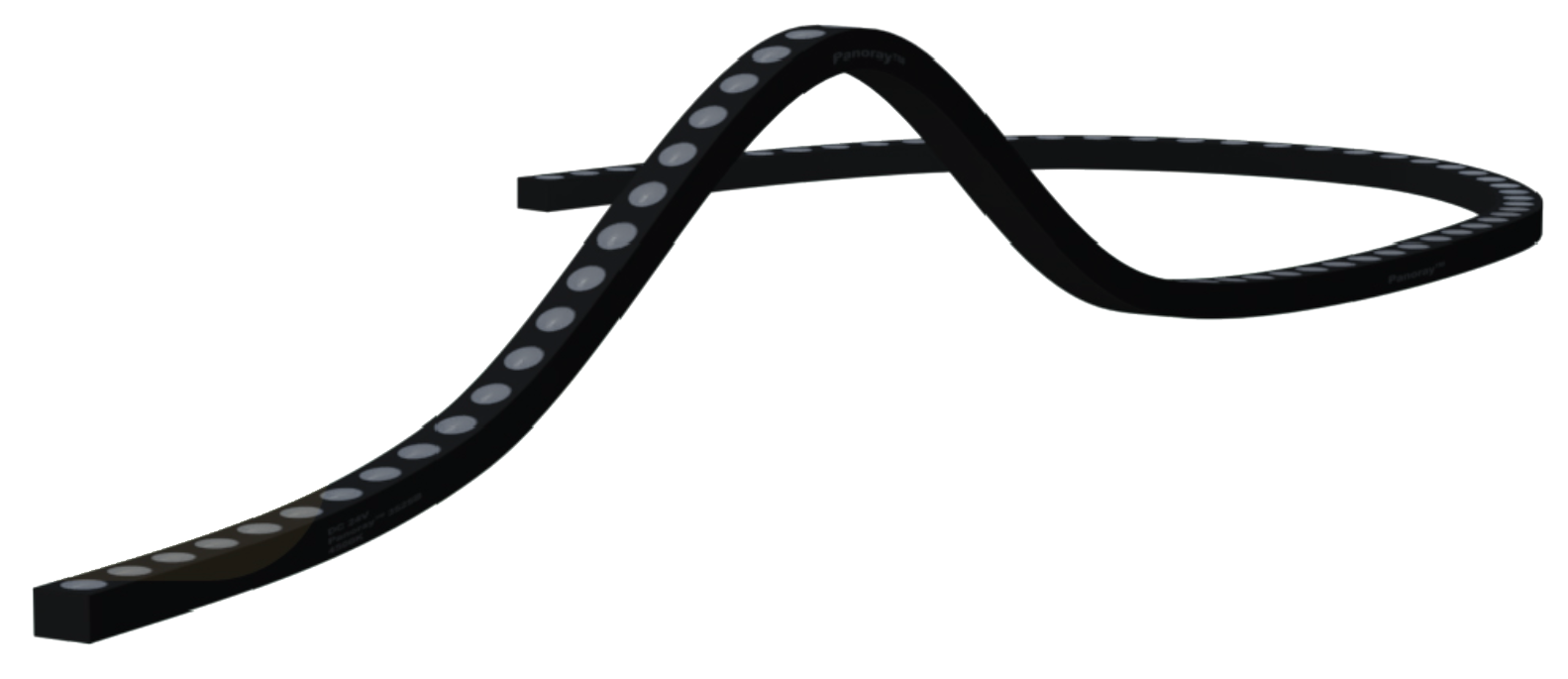

Why settle for a flexible linear product that only bends one way when architecture moves in three dimensions? Dual Bend Technology™ delivers true multi-axis flexibility, allowing our fixtures to bend horizontally and vertically simultaneously. Serpentine walls, compound curves, helical forms, complex geometries that once required multiple fixtures and creative workarounds now bend to a single, elegant solution. This isn't just flexible lighting. It's lighting that thinks in 3D.

01

Dual Bend

Why settle for a flexible linear product that only bends one way when architecture moves in three dimensions? Dual Bend Technology™ delivers true multi-axis flexibility, allowing our fixtures to bend horizontally and vertically simultaneously. Serpentine walls, compound curves, helical forms, complex geometries that once required multiple fixtures and creative workarounds now bend to a single, elegant solution. This isn't just flexible lighting. It's lighting that thinks in 3D.

Downloads

Filename	Document type	File type
Flex Graze Specification Sheet - March 2025	Specification Sheet	PDF
Flex Graze HO SC guide v2-0a	User Guide	PDF
Lighting-Surface-Acclaim-Flex Graze HO SC	Revit Files	RFA
Flex Graze HO SC 2D CAD	Drawings	ZIP
Flex Graze HO IES March 2025	IES Files	ZIP

Tech Specs

Certifications

UL, CE, UKCA, 3G, RoHS, EPD

Operating Voltage

24VDC

Power Consumption

8W per foot

Control

Low voltage control via optional AL Driver: DMX (0-100%), DALI (0-100%) or 0-10V (1-100%)

Lumen Maintenance

L70 80,000 hours (@ 25º C)

Optics

12° x 12°, 15° x 25°, 25° x 25°, 15° x 40°, 15° x 60°

Output

Up to 737 lumens per foot (80 CRI)

Connection

16.4' (5m) injection molded feed cable with bare tails entering from the rear at one end

Emitters

2700K, 3000K, 3500K, 4000K or 5700K

Finish

White or black

Length

Built to order lengths from 9.84" (250mm) to 13.1' (4m). Sections points every 9.28" (250mm)

Material

UV resistant silicone

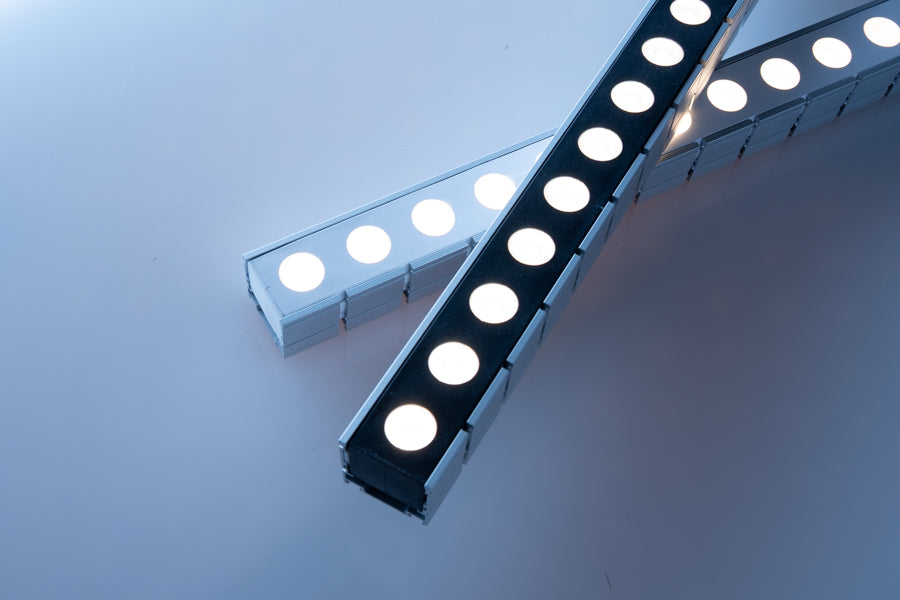

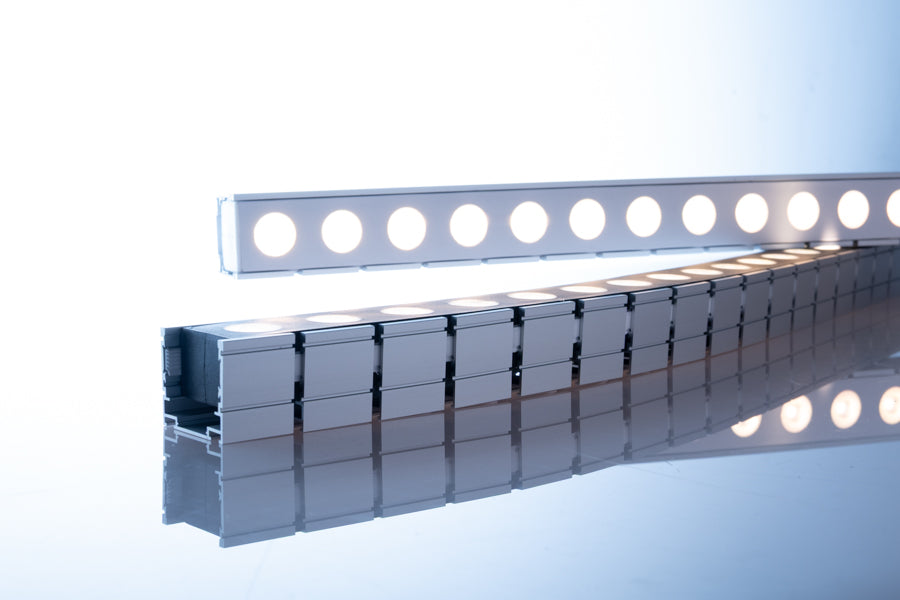

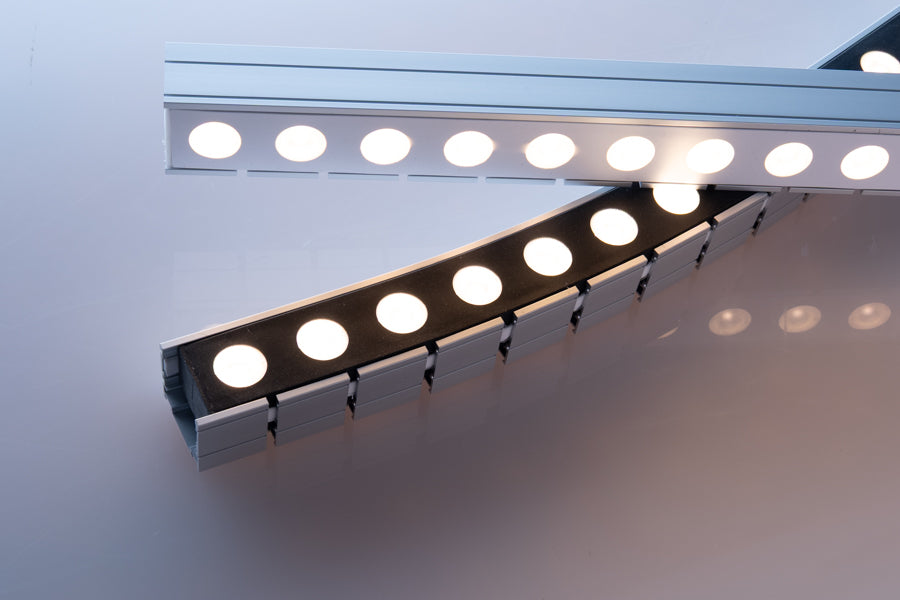

Mounting

Press-fit aluminum channels in various lengths: 2" (50mm) to 6.5' (2m)

Weight

2.4 lbs (1.1 kg)

Ambient Temperature Range

-40° F to 131° F (-40° C to 55° C)

Impact Protection

IK10, protection against 20 joule impact (40cm distance)

Ingress Protection

IP67, wet location and temporary submersion (1 meter for up to 1 hour)

Vibration Protection

ANSI C136.31, 3G-rated for high vibration and bridge applications

Maximum Fixtures In Series

13.1’ (4m)

Minimum Bends

Vertical bend radius: 15.7" (400mm). Horizontal bend radius: 31.5" (800mm)
