Dyna Drum SO SCS G2
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Lumens
- 4221
- Power
- 150W
- TM-30
- 82

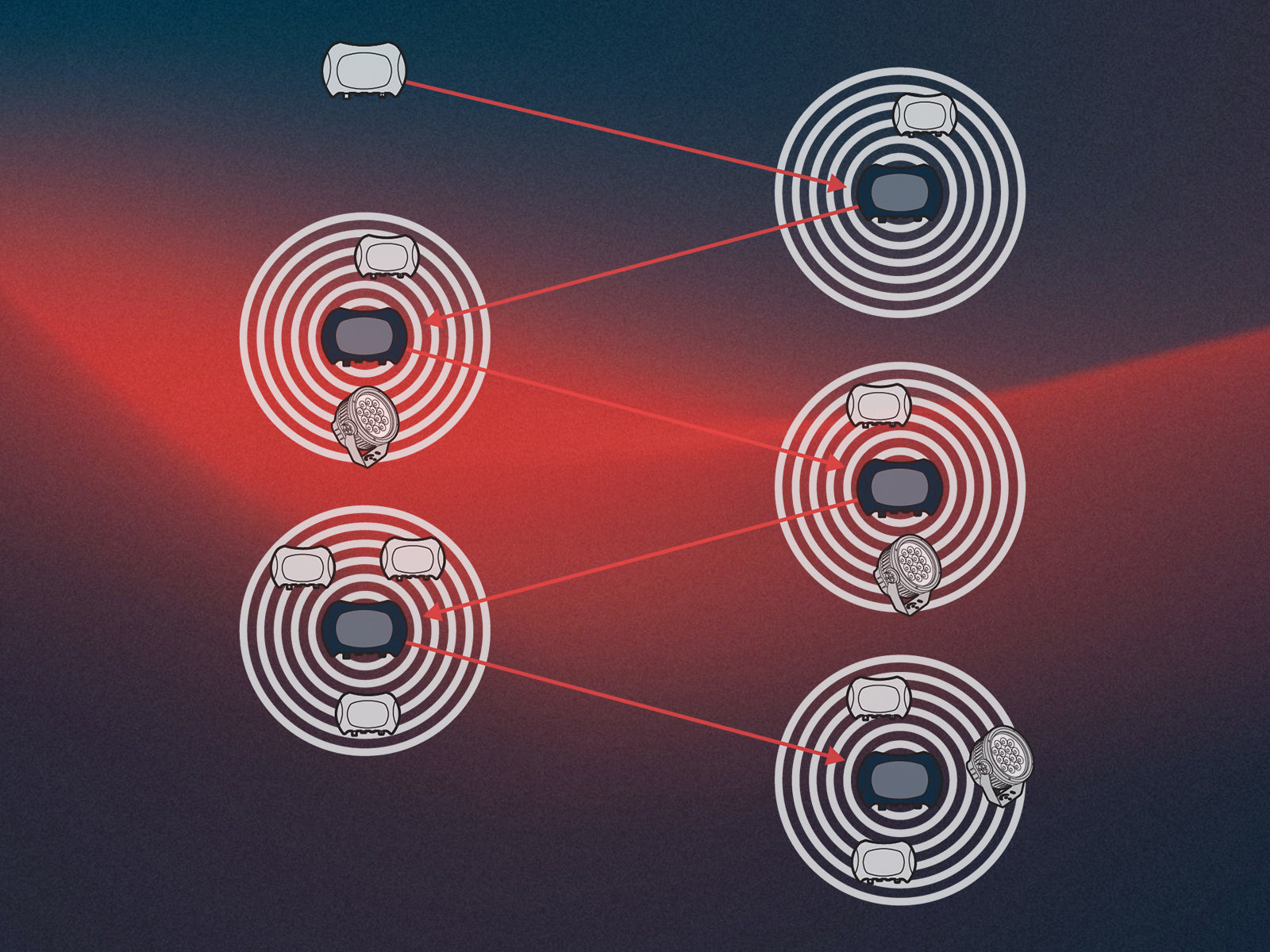

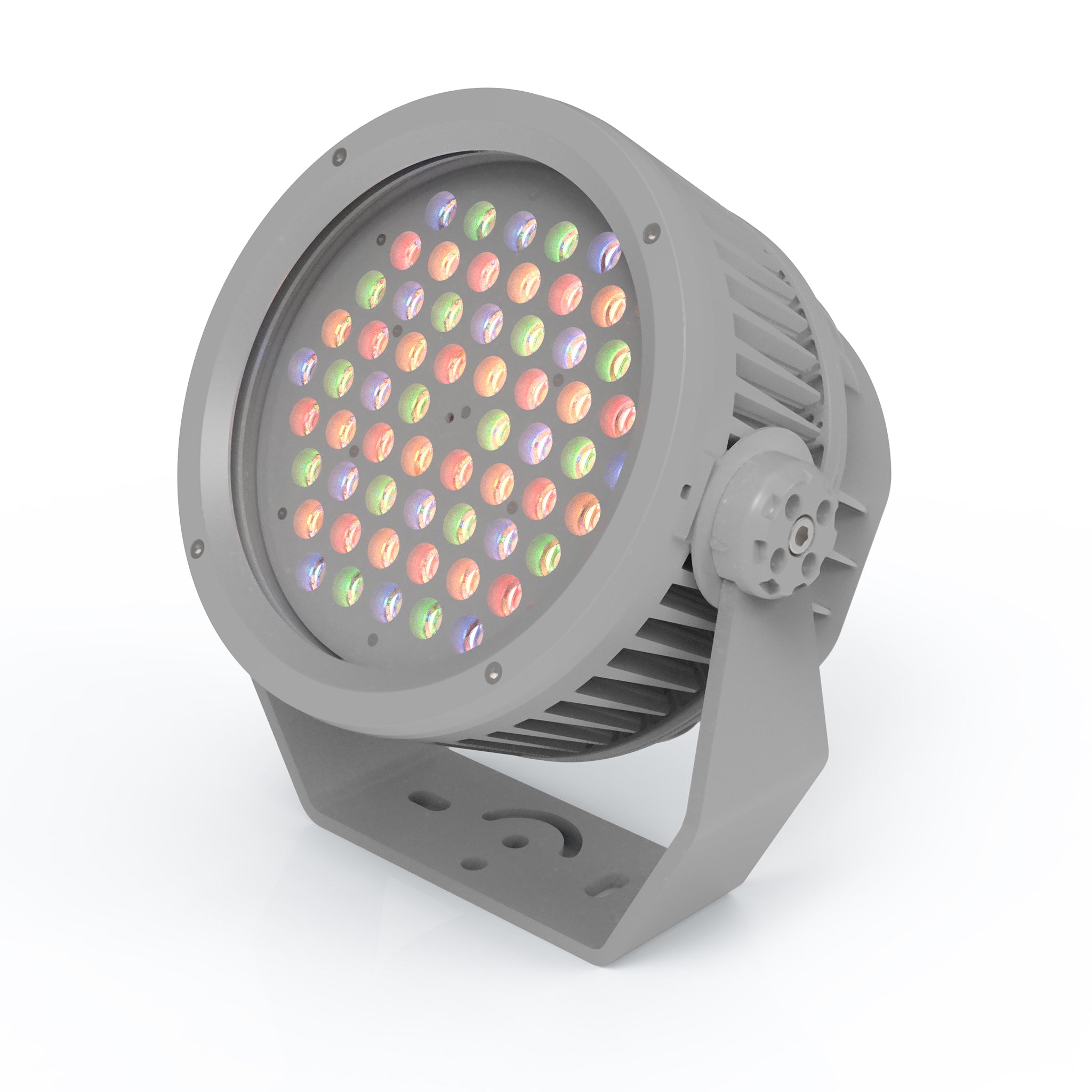

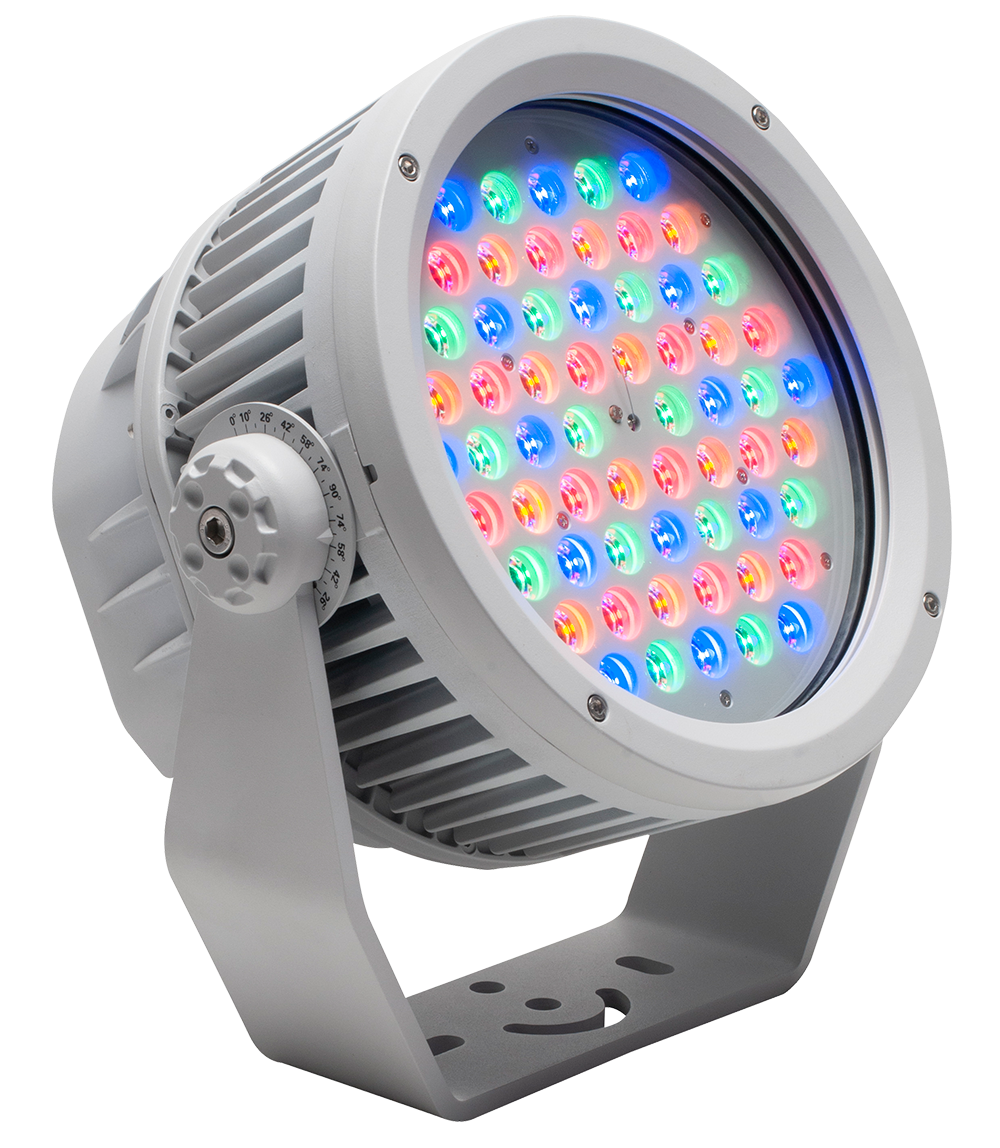

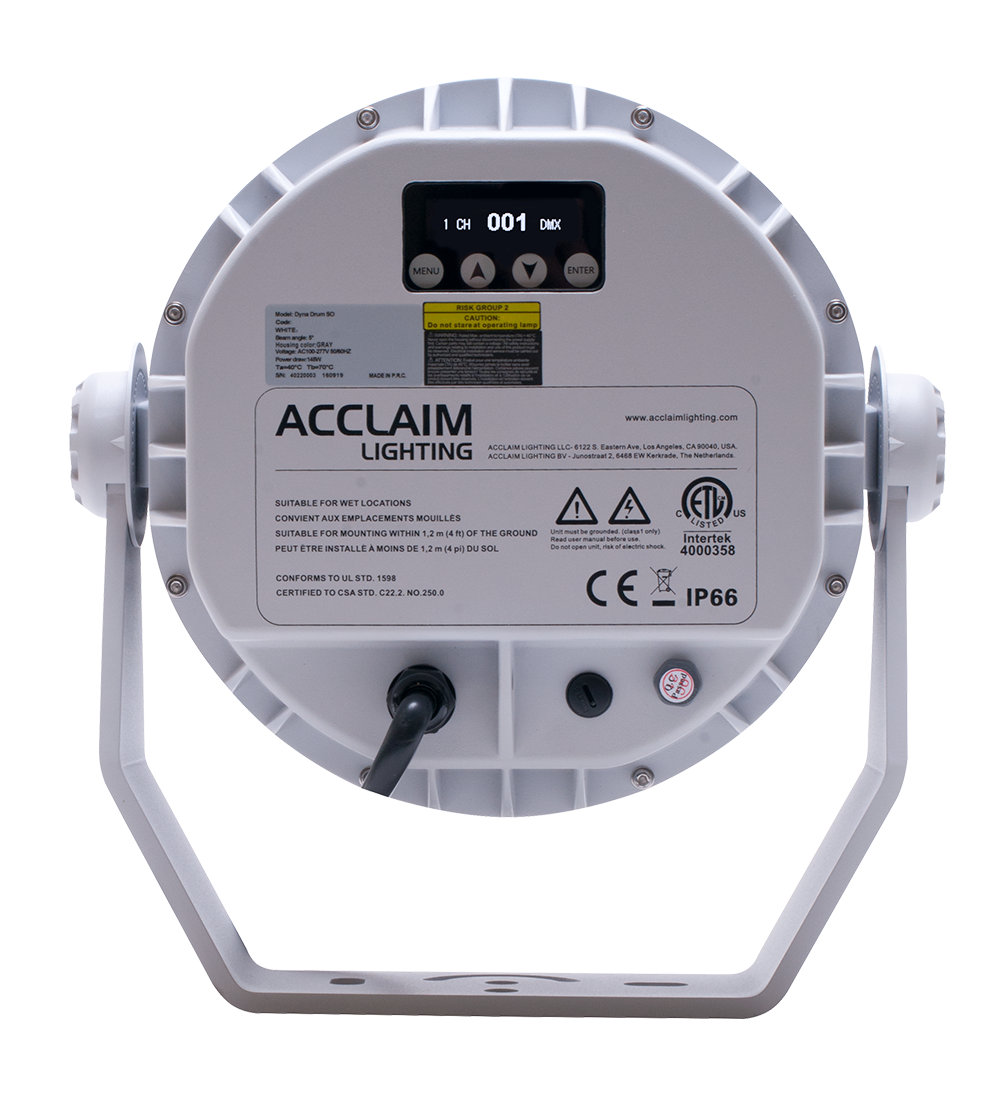

Dyna Drum SO SCS is a high output, outdoor rated, color-changing LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. It comes with a narrow 8º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.
Dyna Drum SO SCS G2
Sale price$0.00
Featured Technologies
01
02
01
02
Configurator
Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header
Dyna Drum SO SCS G2
Configuration code
Configuration code
Downloads
| Filename | Document type | File type |
|---|---|---|
| Dyna Drum SO SCS (Gen2) - August 2025 | Specification Sheet | |
| Dyna Drum SO (Gen 2) guide v2-1c | User Guide | |
| Lighting-Accent-Acclaim-Dyna Drum SO SCS gen 2 | Revit Files | RFA |
| Dyna Drum SO Gen2 IES | IES Files | ZIP |
| Dyna Drum SO Gen 2 2D Drawings | Drawings | ZIP |
Tech Specs
Certifications
ETL, CE, 3GOperating Voltage
100-277VAC, 50/60HzPower Consumption
150WLumen Maintenance
L70 150,000 hours (@ 25° C)Optics
8° x 8º, 20° x 20º, 40° x 40º, 60° x 60º, 10° x 60°Output
Up to 4,200 lumens, 187,500 center candelaEmitters
RGBW (W=4000K), RGBA, RGBAW (W=4000K), DW (2400K-5500K)Finish
Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) and custom colors optionalMaterial
Die cast aluminum, glass top lens, optional marine coating availableAmbient Temperature Range
-40° F to 122° F (-40° C to 50° C)Ingress Protection
IP66, wet locationMaximum Fixtures In Series
32 via DMX (with power connections local to each fixture)
